Almera Tino V10 (2003 year). Manual - part 57





NBT121

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

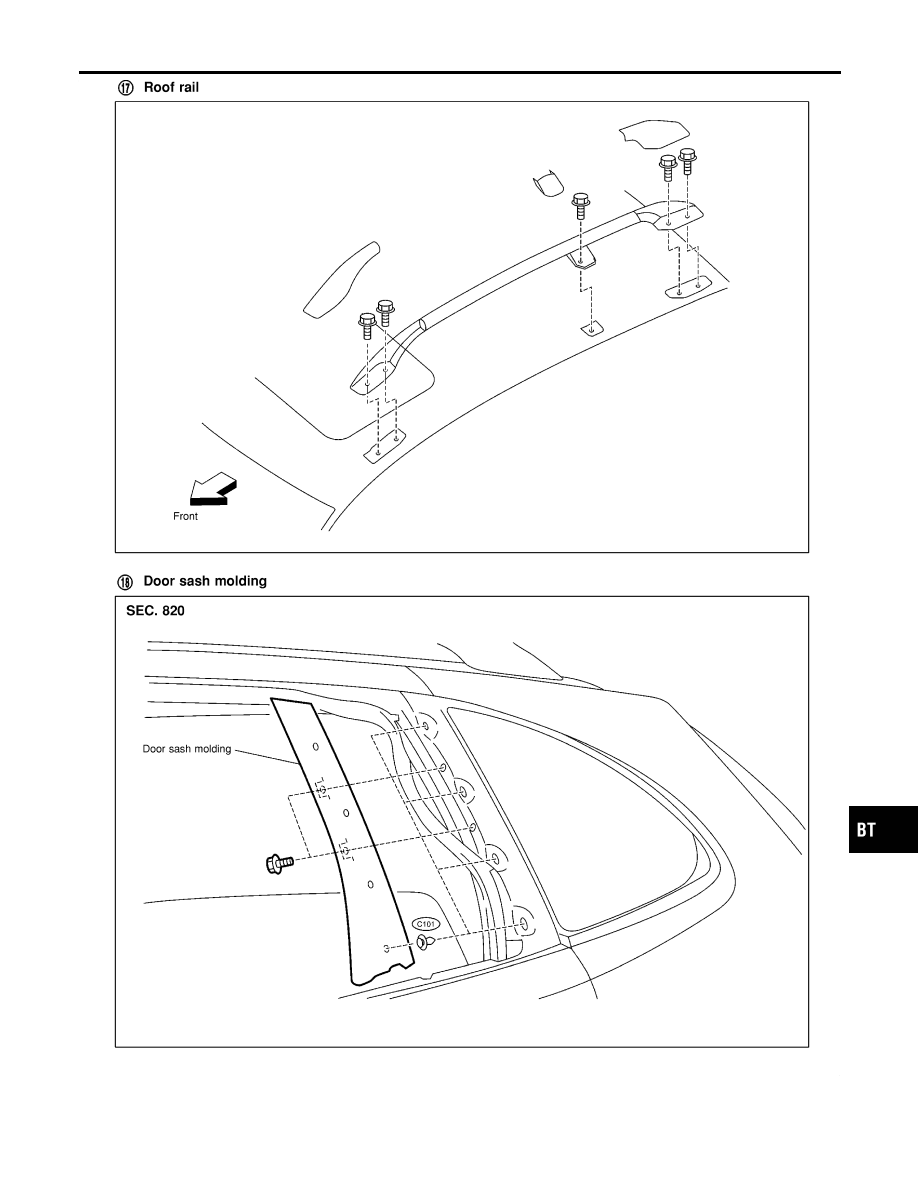

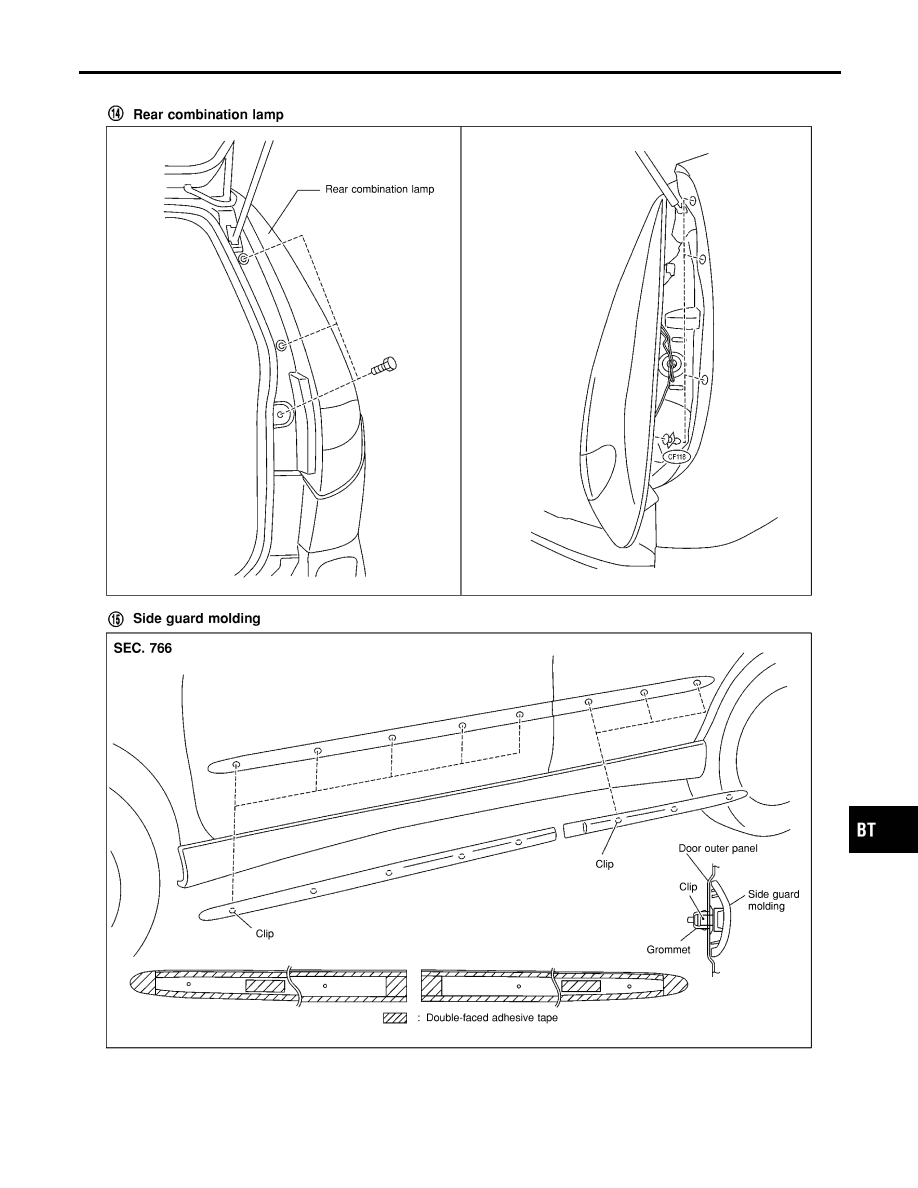

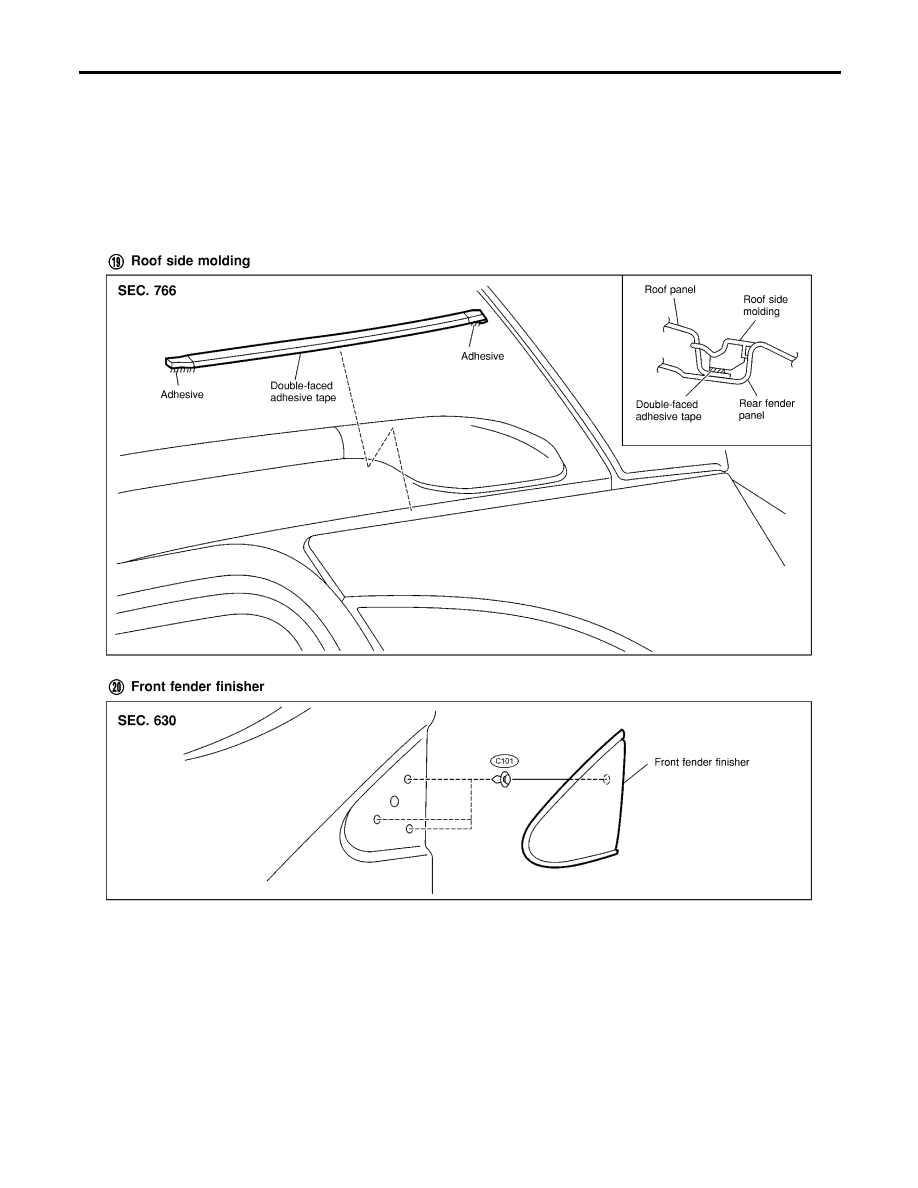

EXTERIOR

Removal and Installation (Cont’d)

BT-41

NBT122

EXTERIOR

Removal and Installation (Cont’d)

BT-42

NBT123

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

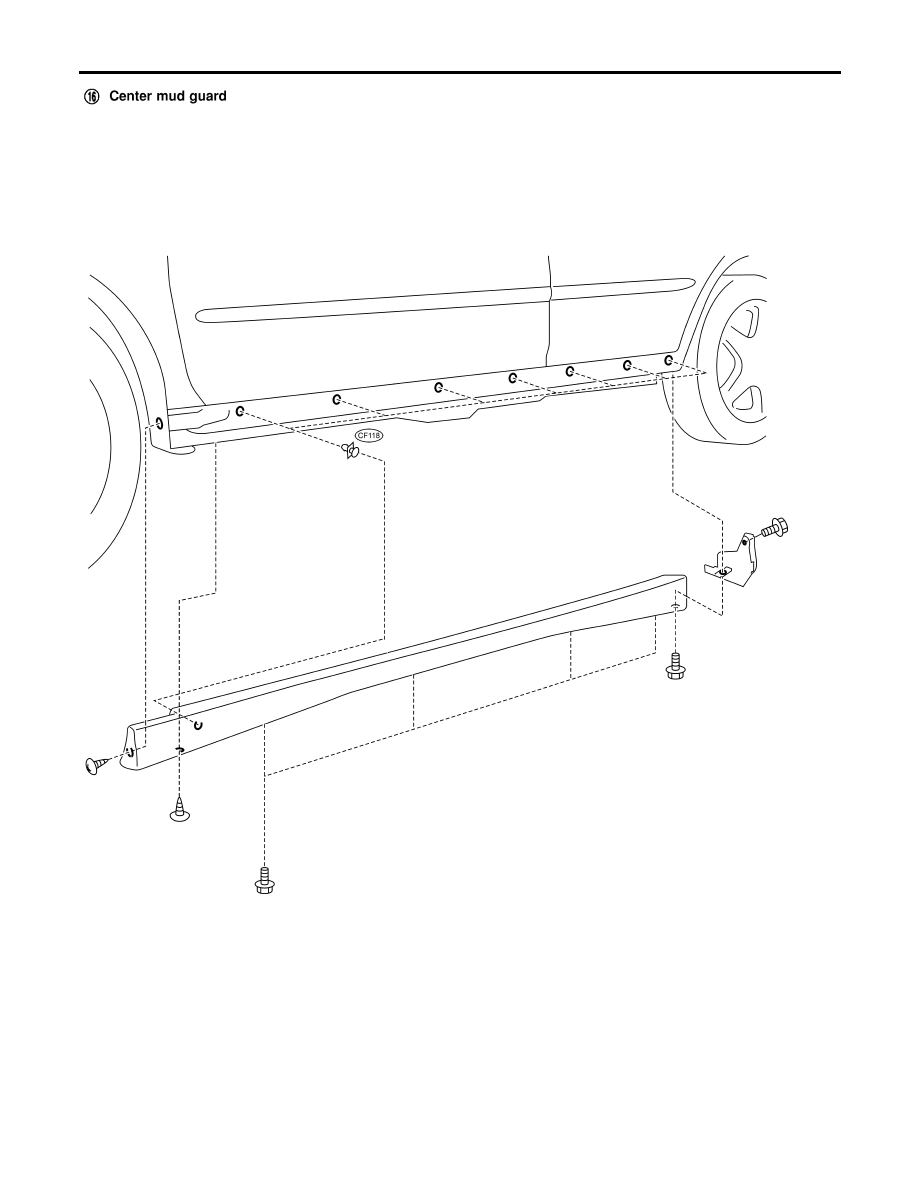

EXTERIOR

Removal and Installation (Cont’d)

BT-43

NBT125

EXTERIOR

Removal and Installation (Cont’d)

BT-44

Removal and Installation

NLBT0018

I

When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.

CAUTION:

I

Before removing the front seat, turn the ignition switch off, disconnect both battery cables and wait
at least 3 minutes (models with side airbag).

I

Do not drop, tilt, or bump the side air bag module installed in the seat. Always handle it with care.

I

Disconnect the side air bag harness connector and heated seat harness connector from under the
seat before removing the seat.

I

Disconnect the side air bag harness connector before removing the seat back. Refer to RS-26,
“Front Side Air Bag Module” for details.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

FRONT SEAT

Removal and Installation

BT-45

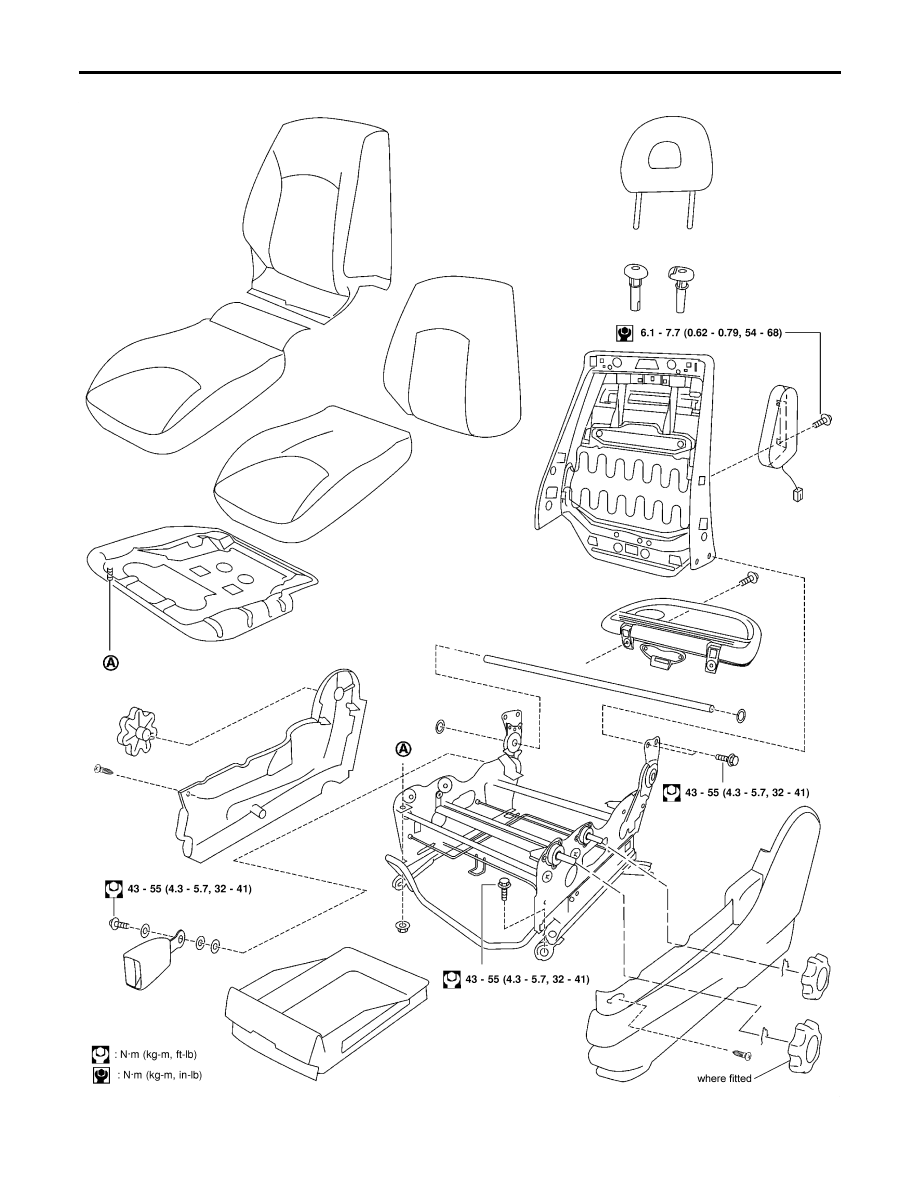

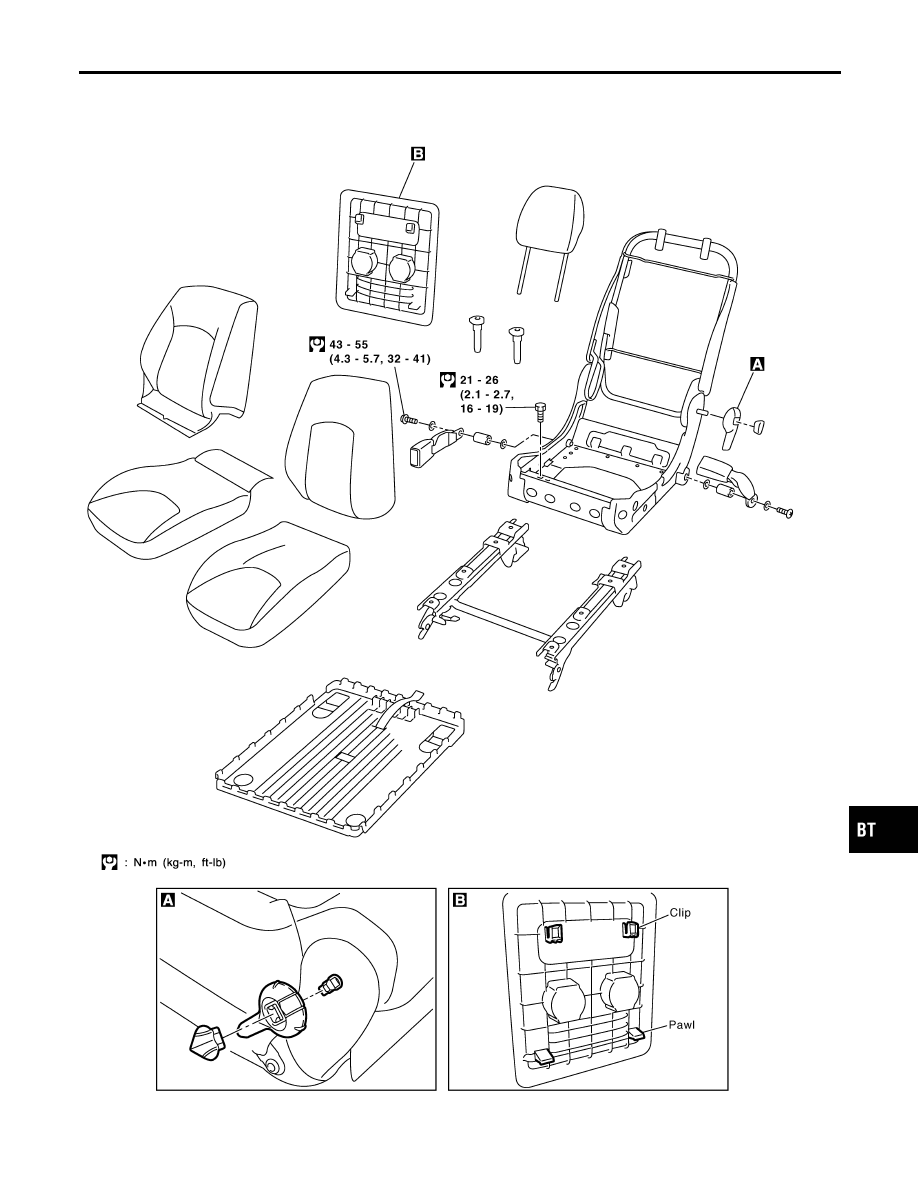

MANUAL SEAT

NLBT0018S07

NBT177

FRONT SEAT

Removal and Installation (Cont’d)

BT-46

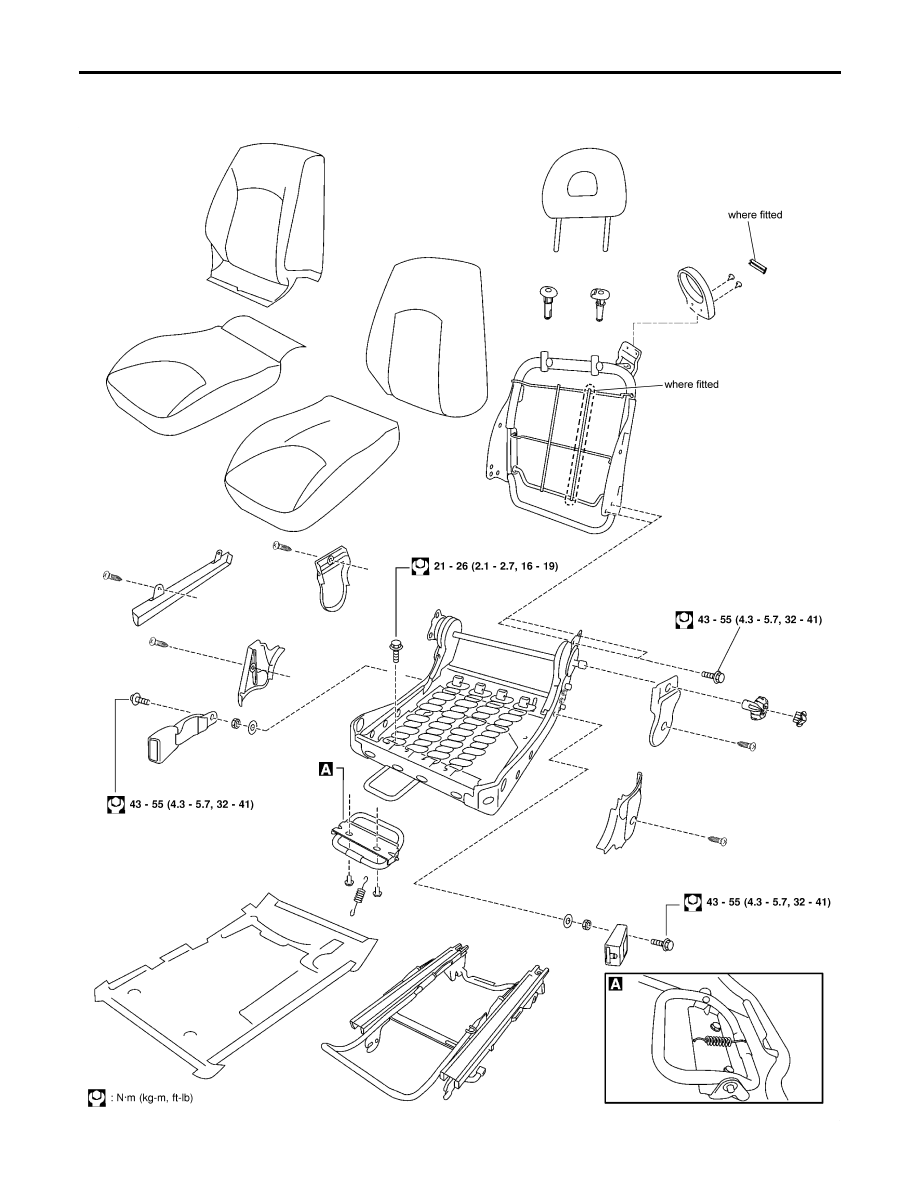

Heated Seat

NLBT0036

For Wiring Diagram, refer to EL-250, “HEATED SEAT” for details.

SBT014A

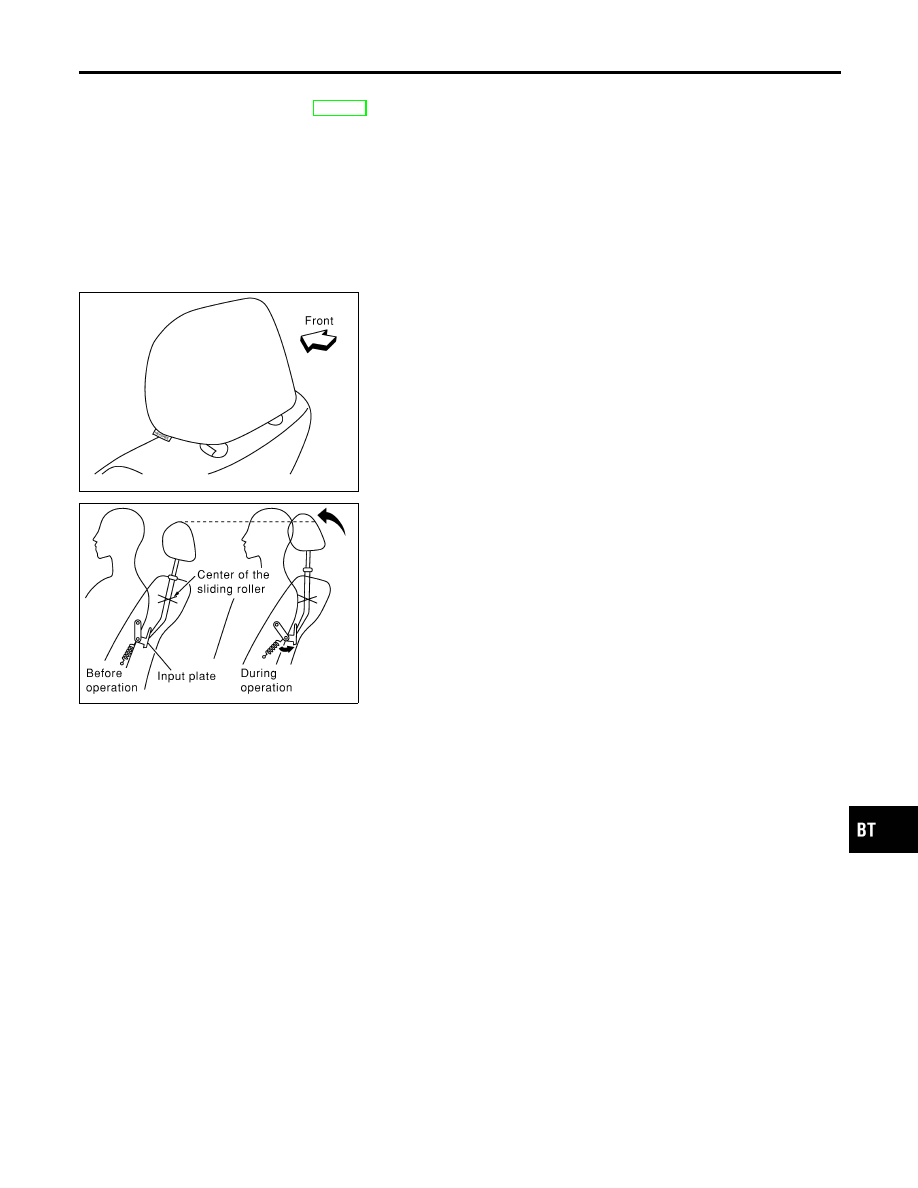

Active Head Restraint

NLBT0032

The active head restraint system is designed so that the headrest
instantaneously moves towards the front upper direction by utiliz-
ing the force at the seatback during a rear-end collision.
As a result, the occupant’s head is protected from being
overextended, reducing the chance for neck injury as much as
possible.
Seat with active head restraint have the labels shown in figures at
left.

SBT888

OPERATION OUTLINE

NLBT0032S01

When the seatback receives a sharp backward force during a rear-
end collision, the input plate moves with the link rotating center as
a pivot. The headrest will then move towards the front upper direc-
tion with the center of the sliding roller as a pivot.
As the backward force on the seat back is eliminated, spring ten-
sion returns the headrest to its original position.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

FRONT SEAT

Heated Seat

BT-47

Removal and Installation

NLBT0019

REAR OUTSIDE SEAT

NLBT0019S02

NBT178

REAR SEAT

Removal and Installation

BT-48

REAR CENTER SEAT

NLBT0019S03

YBT110

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

REAR SEAT

Removal and Installation (Cont’d)

BT-49

Adjustment

NLBT0020

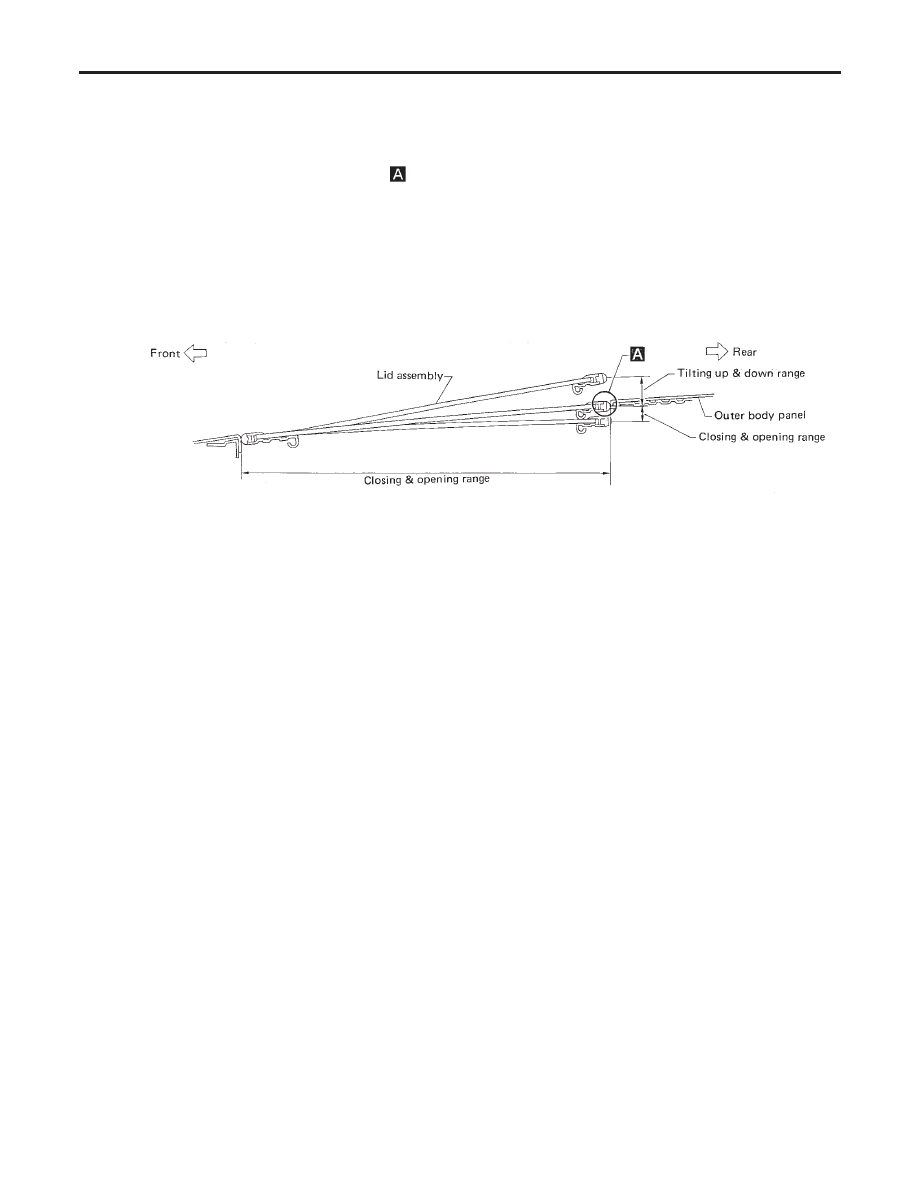

Install motor & limit SW assembly and sunroof rail assembly in the following sequence:
1. Arrange equal lengths of link and wire assemblies on both sides of sunroof opening.
2. Connect sunroof connector to sunroof switch and positive (+) power supply.
3. Set lid assembly to fully closed position

by operating OPEN switch and TILT switch.

4. Fit outer side of lid assembly to the surface of roof on body outer panel.
5. Remove motor, and keep OPEN switch pressed until motor pinion gear reaches the end of its rotating

range.

6. Install motor.
7. Check that motor drive gear fits properly in wires.
8. Press TILT-UP switch to check lid assembly for normal tilting.
9. Check sunroof lid assembly for normal operations (tilt-up, tilt-down, open, and close).

SBF920F

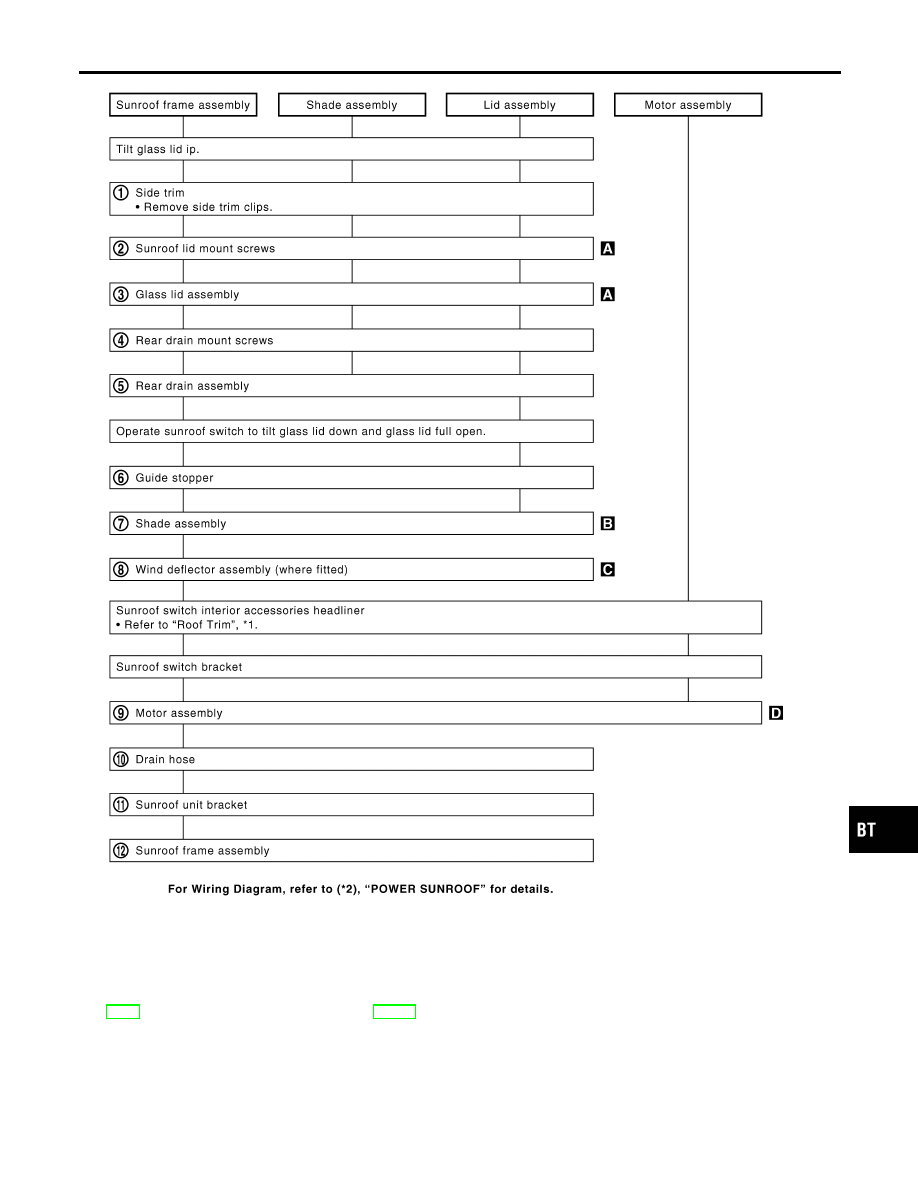

Removal

NLBT0021

I

After any adjustment, check sunroof operation and lid align-
ment.

I

Handle finisher plate and glass lid with care so not to cause
damage.

I

It is desirable for easy installation to mark each point before
removal.

CAUTION:

Always work with a helper.

SUNROOF

Adjustment

BT-50

YBT115

*1

BT-34

*2

EL-252

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

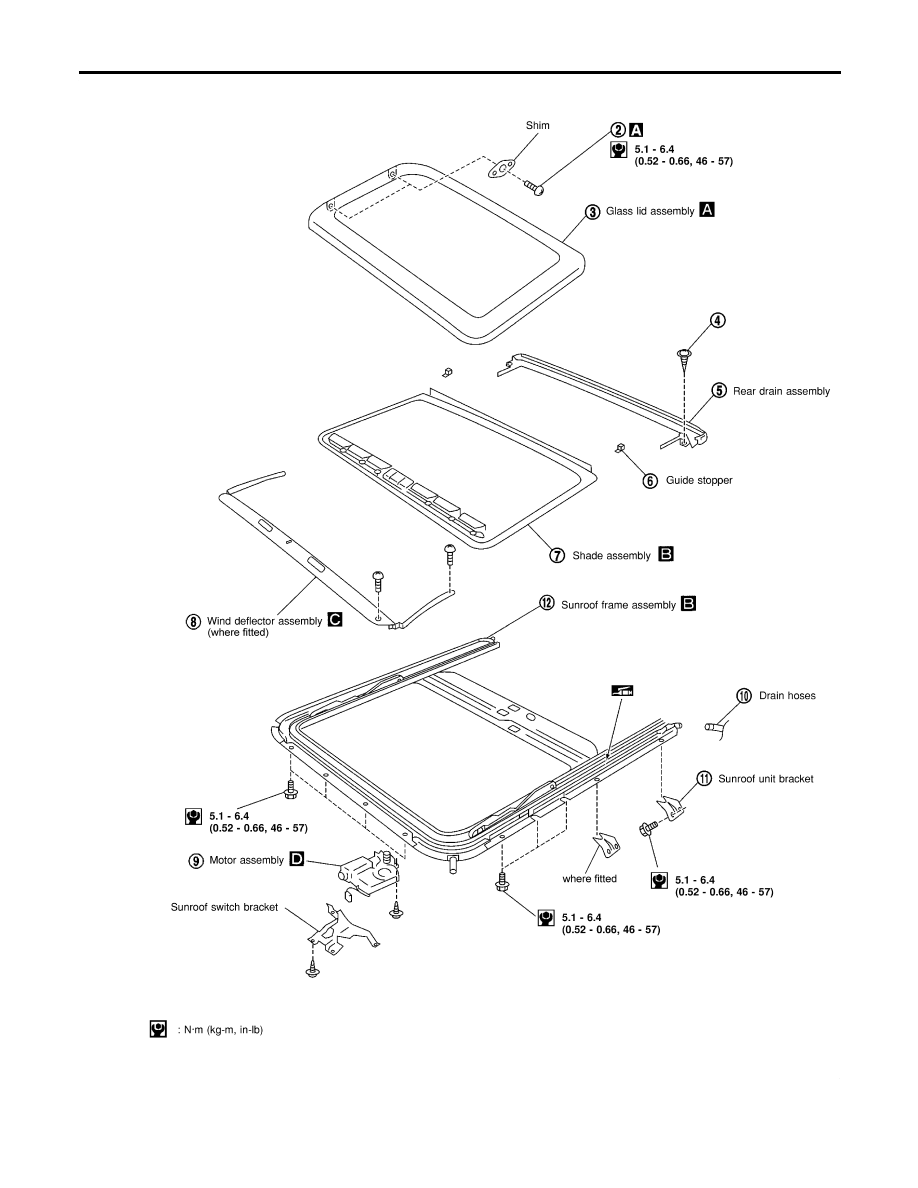

SUNROOF

Removal (Cont’d)

BT-51

NBT180

SUNROOF

Removal (Cont’d)

BT-52

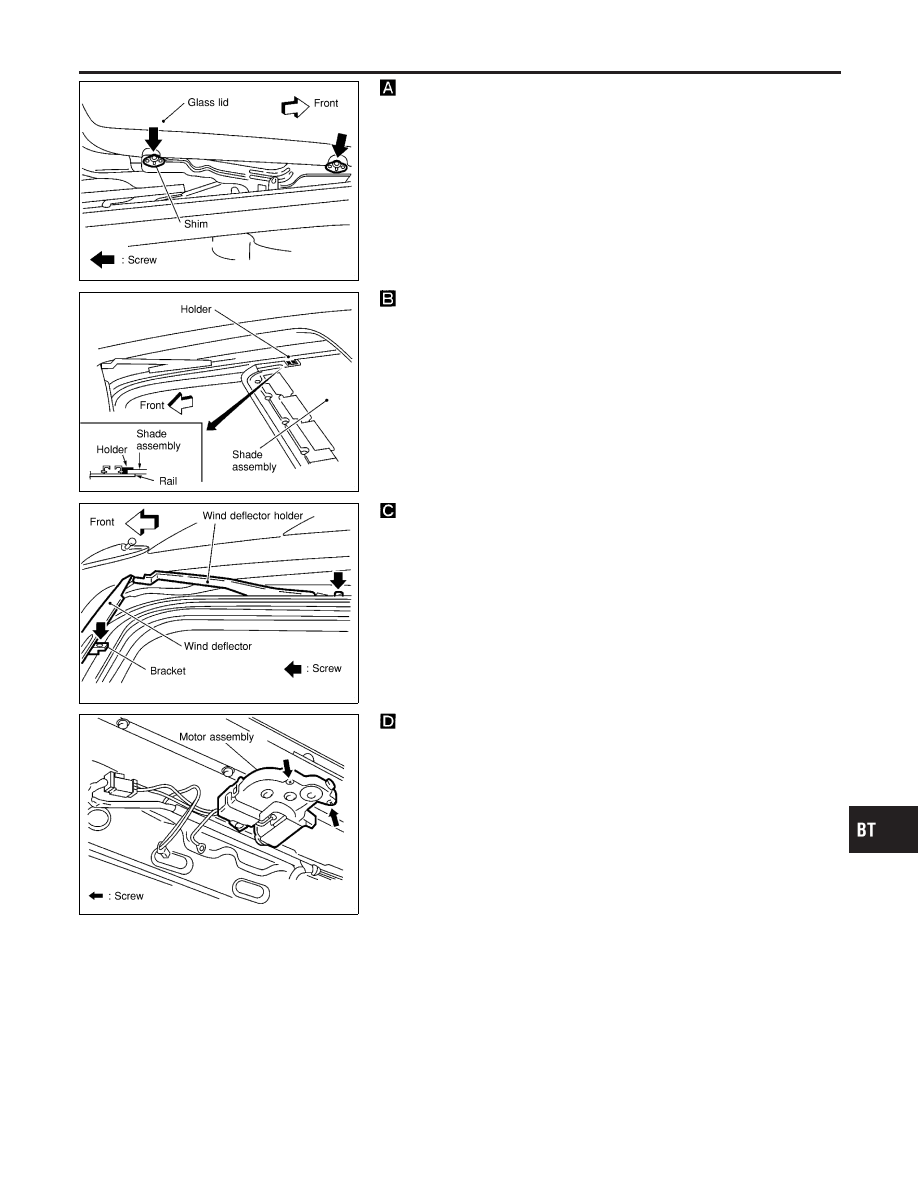

NBT145

Record the number of shims placed between glass lid assem-

bly and link and wire assembly. Remove securing screws and glass
lid assembly.

NBT146

Remove shade stoppers (2 points) from rear end of sunroof

frame assembly. Remove sun shade from rear end of sunroof
frame assembly.

NBT147

Remove screws from left and right sides of each wind deflector

holder. Then remove left and right sides of wind deflector holder.
Remove screws from front end of sunroof unit. Then remove wind
deflector from frame assembly.
(If wind deflector is equipped).

NBT148

CAUTION:

I

Before removing sunroof motor, make sure that sunroof is
fully closed.

I

After removing sunroof motor, never attempt to rotate
sunroof motor as a single unit.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

SUNROOF

Removal (Cont’d)

BT-53

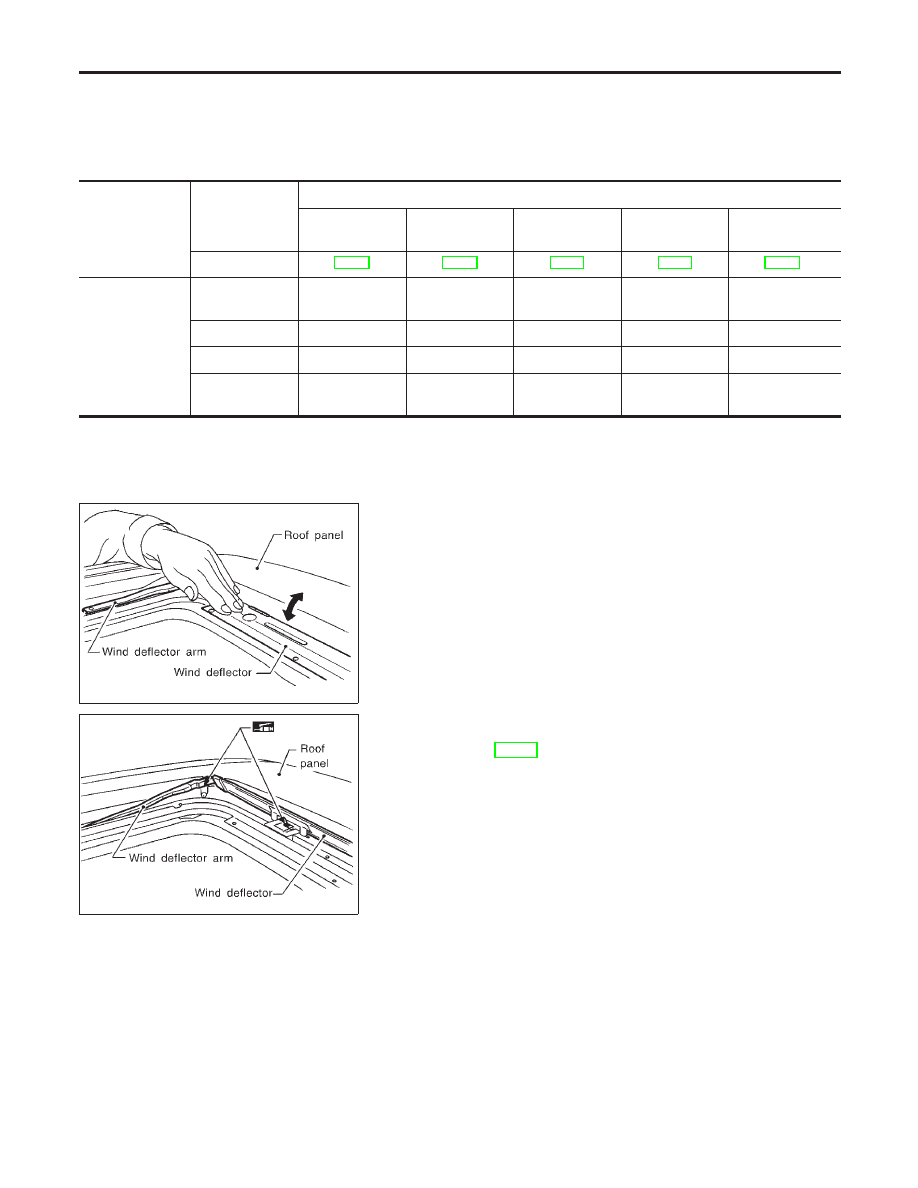

Trouble Diagnoses

=NLBT0022

DIAGNOSTIC TABLE

NLBT0022S01

NOTE:
For diagnosing electric malfunction, refer to “ELECTRIC SUN-
ROOF” in EL section.

Check items (Components)

Wind deflector

(where fitted)

Adjustment

Drain hoses

Weatherstrip

Link and wire

assembly

Reference page

BT-54

BT-55

BT-56

BT-56

BT-57

Symptom

Excessive wind
noise

1

2

3

Water leaks

1

2

3

Sunroof rattles

1

4

2

3

Excessive opera-
tion noise

1

2

3

The numbers in this table mean checking order.

SBT331

WIND DEFLECTOR (WHERE FITTED)

NLBT0022S02

1.

Open lid.

2.

Check visually for proper installation.

3.

Check to ensure a proper amount of petroleum jelly has been
applied to wind deflector connection points; apply if necessary.

SBT332

4.

Check that wind deflector is properly retracted by hand. If it is
not, remove and visually check condition. (Refer to removal
procedures, BT-50.) If wind deflector is damaged, replace with
new one. If wind deflector is not damaged, re-install properly.

SUNROOF

Trouble Diagnoses

BT-54

ADJUSTMENT

NLBT0022S03

NBT150

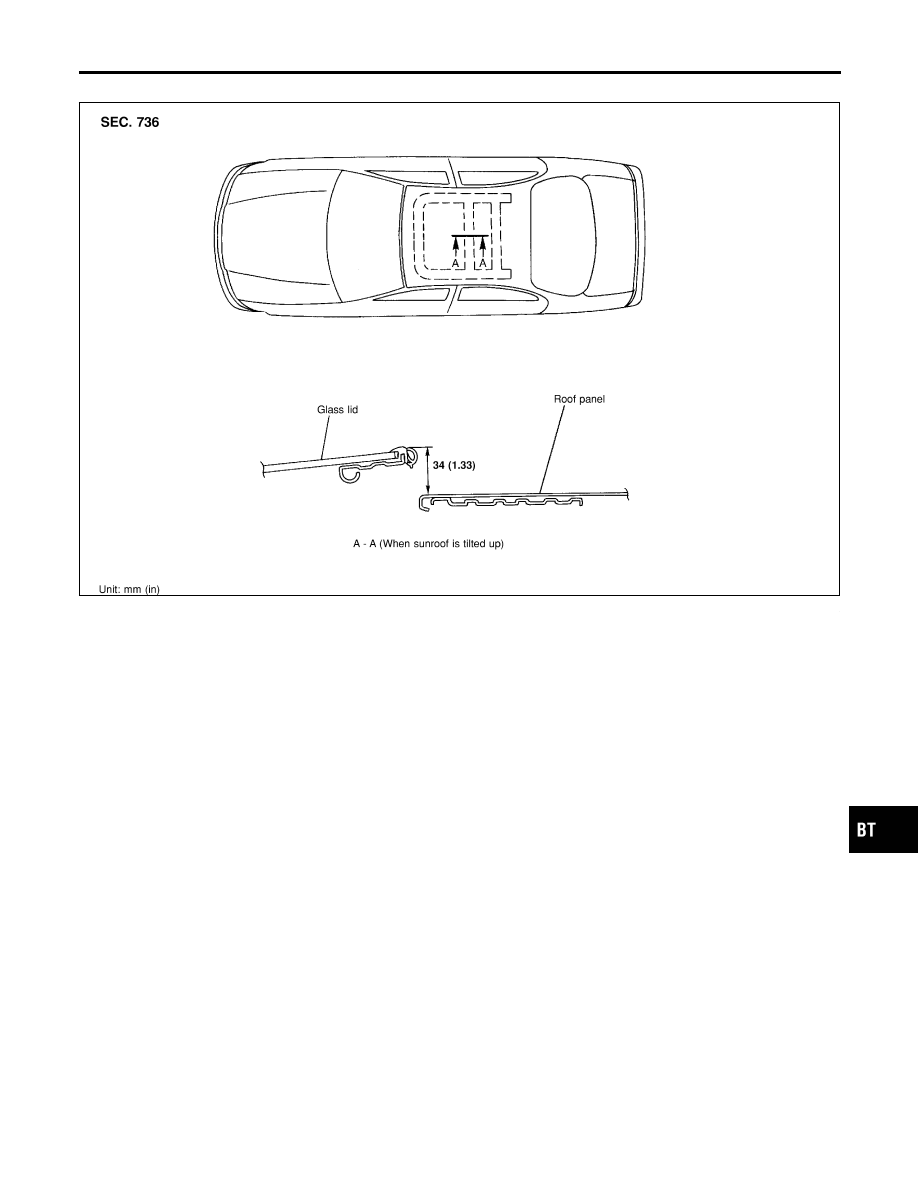

If any height difference between glass lid and roof is found, check
glass lid fit and adjust as follows:

Height Difference Adjustment

NLBT0022S0302

1.

Tilt glass lid up and down.

2.

Check height difference between roof panel and glass lid to
see if it is as “A-A” as shown in the figure above.

3.

If necessary, adjust it by using one of following procedures.

I

Adjust by adding or removing adjustment shim(s) between
glass lid and link assembly.

I

If glass lid protrudes above roof panel, add shim(s) or plain
washer(s) at sunroof mounting bracket or stud bolt locations to
adjust sunroof installation as required.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

SUNROOF

Trouble Diagnoses (Cont’d)

BT-55

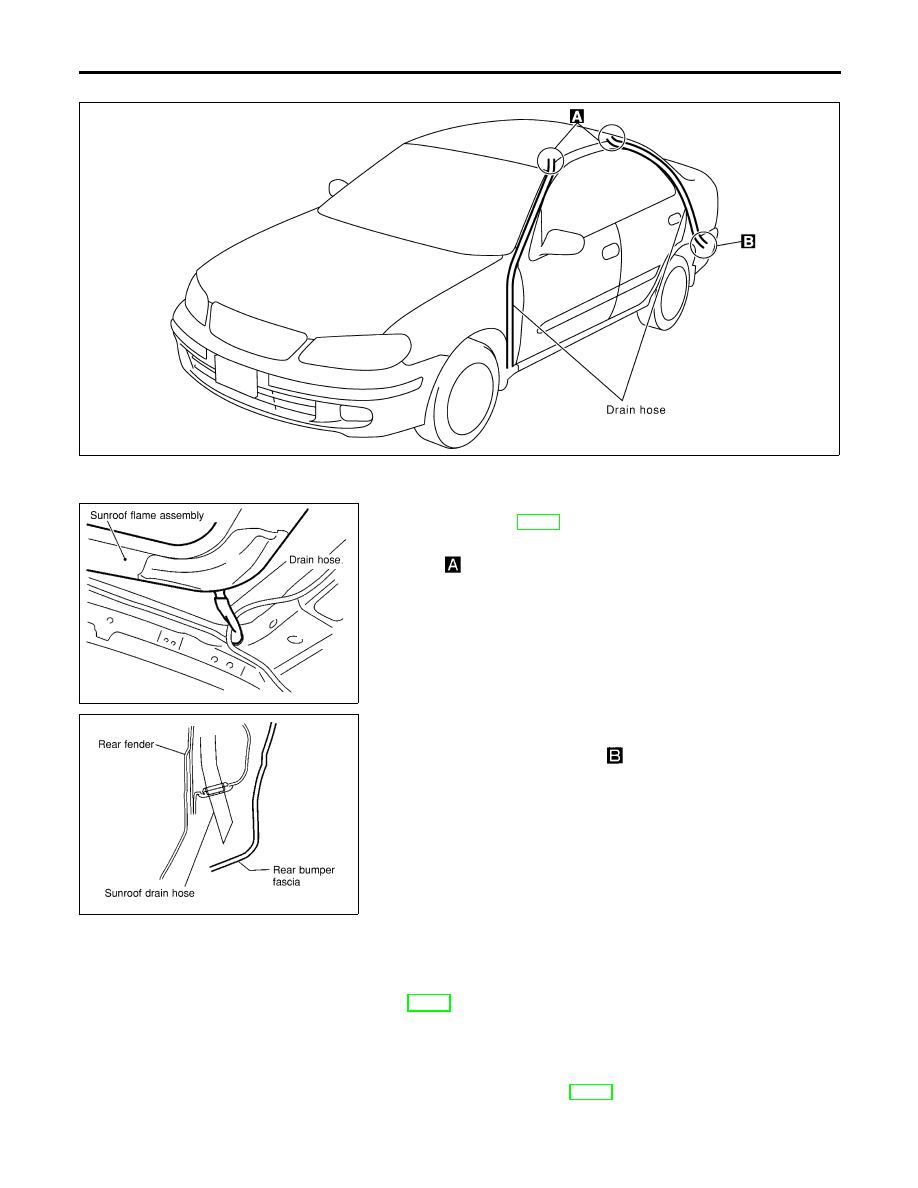

DRAIN HOSES

NLBT0022S04

SBT005A

NBT151

1.

Remove headliner to access drain hose connections. (Refer to
“ROOF TRIM”, BT-34, for detail.)

2.

Check visually for proper connections, damage or deteriora-
tion.

(The figure shows only the front side.)

NBT152

3.

If leakage occurs around luggage room, remove luggage room
side trim and check connecting area. Check for proper
connection, damage or tear.

4.

Remove drain hoses and check visually for any damage,
cracks, or deterioration.

5.

Pour water into drain hoses and find damaged portion.

I

If any damaged portion is found at each step, replace the
damaged part.

WEATHERSTRIP

NLBT0022S05

I

In the case of leakage around glass lid, close glass lid and pour
water over glass lid to find damaged or gap portion.

1.

Remove glass lid assembly. (Refer to removal procedures,
BT-50, for details.)

2.

Visually check weatherstrip for proper installation. If a gap
exists between glass lid and weatherstrip, check for sufficient
amount of butyl seal. If required, remove weatherstrip and
apply butyl seal.
Refer to “EXTERIOR”, BT-37, for details.

SUNROOF

Trouble Diagnoses (Cont’d)

BT-56
