TROUBLE DIAGNOSIS — BASIC INSPECTION

AT-65

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

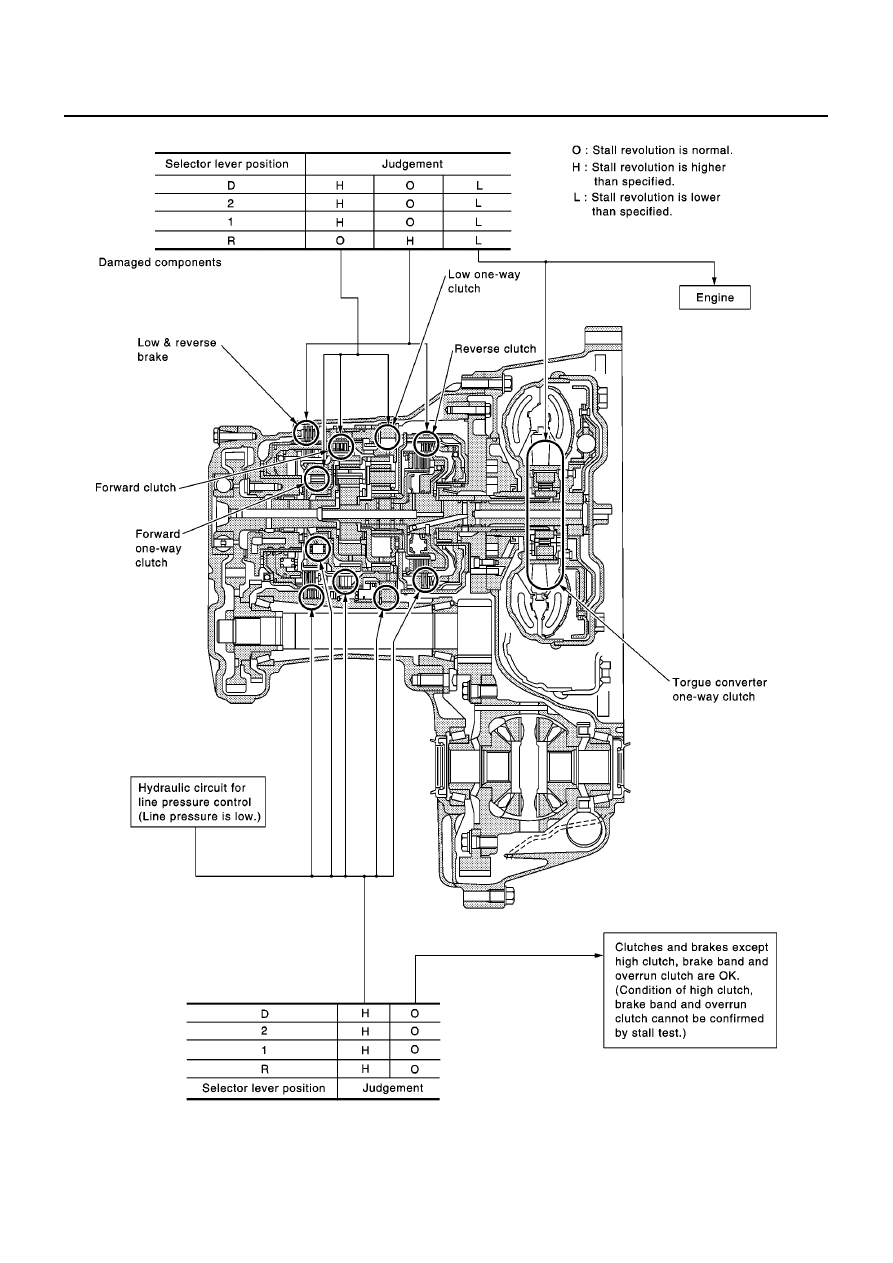

JUDGEMENT OF STALL TEST

The test result and possible damaged components relating to each result are shown in the illustrations on next
page.
In order to pinpoint the possible damaged components, follow the WORK FLOW shown in

AT-60, "Work Flow"

(EURO-OBD).

NOTE:
Stall revolution is too high in “D”, “2” or “1” position:

Slippage occurs in 1st gear but not in 2nd and 3rd gears...... Low one-way clutch slippage

Slippage occurs in the following gears:
1st through 3rd gears in “D” position and engine brake functions with overdrive control switch set to
“OFF”.
1st and 2nd gears in “2” position and engine brake functions with accelerator pedal released (fully closed
throttle)...... Forward clutch or forward one-way clutch slippage

Stall revolution is too high in R position:

Engine brake does not function in “1” position...... Low & reverse brake slippage

Engine brake functions in “1” position...... Reverse clutch slippage

Stall revolution within specifications:

Vehicle does not achieve speed of more than 80 km/h (50 MPH)...... One-way clutch seizure in torque
converter housing

CAUTION:

Be careful since automatic fluid temperature increases abnormally.

Slippage occurs in 3rd and 4th gears in “D” position...... High clutch slippage

Slippage occurs in 2nd and 4th gear in “D” position...... Brake band slippage

Engine brake does not function in 2nd and 3rd gears in “D” position, 2nd gear in “2” position, and 1st gear
in “1” position with overdrive control switch set to “OFF”.

Stall revolution less than specifications:

Poor acceleration during starts...... One-way clutch seizure in torque converter

AT-66

[EURO-OBD]

TROUBLE DIAGNOSIS — BASIC INSPECTION

SCIA0707E

TROUBLE DIAGNOSIS — BASIC INSPECTION

AT-67

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

Line Pressure Test

ECS00975

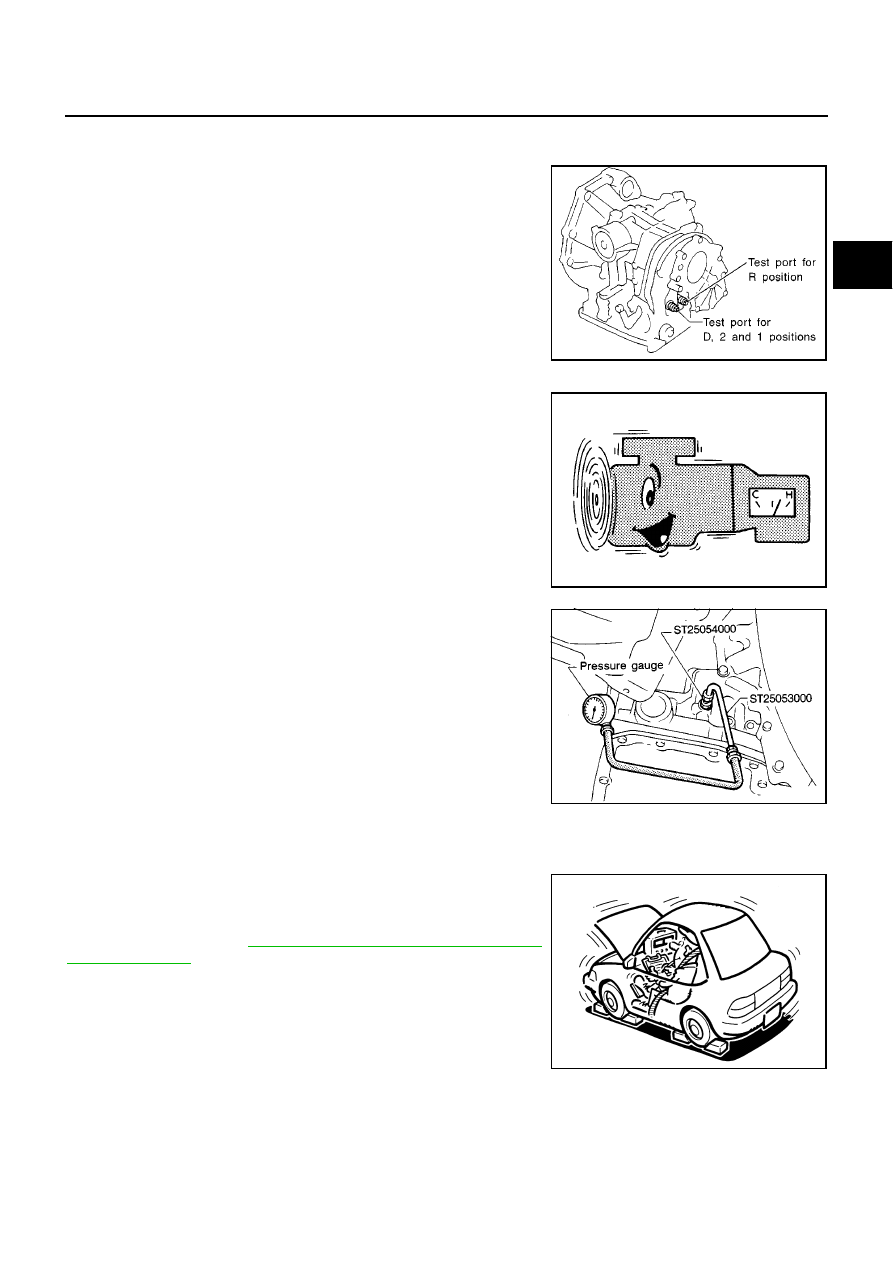

LINE PRESSURE TEST PORTS

Location of line pressure test ports are shown in the illustration.

Always replace pressure plugs as they are self-sealing
bolts.

LINE PRESSURE TEST PROCEDURE

1.

Check A/T fluid and engine oil levels. If necessary, add fluid or
oil.

2.

Drive vehicle for approx. 10 minutes or until engine oil and ATF
reach operating temperature.

3.

Install pressure gauge to corresponding line pressure port.

4.

Set parking brake and block wheels.

Continue to depress brake pedal fully while line pressure test is being performed at stall speed.

5.

Start engine and measure line pressure at idle and stall speed.

When measuring line pressure at stall speed, follow the
stall test procedure.

Line pressure: Refer to

AT-519, "SERVICE DATA AND SPECIFI-

CATIONS (SDS)"

.

SAT561J

ATF operating temperature:

50 - 80

°

C (122 -176

°

F)

SAT647B

UAT008

SAT493G

AT-68

[EURO-OBD]

TROUBLE DIAGNOSIS — BASIC INSPECTION

JUDGEMENT OF LINE PRESSURE TEST

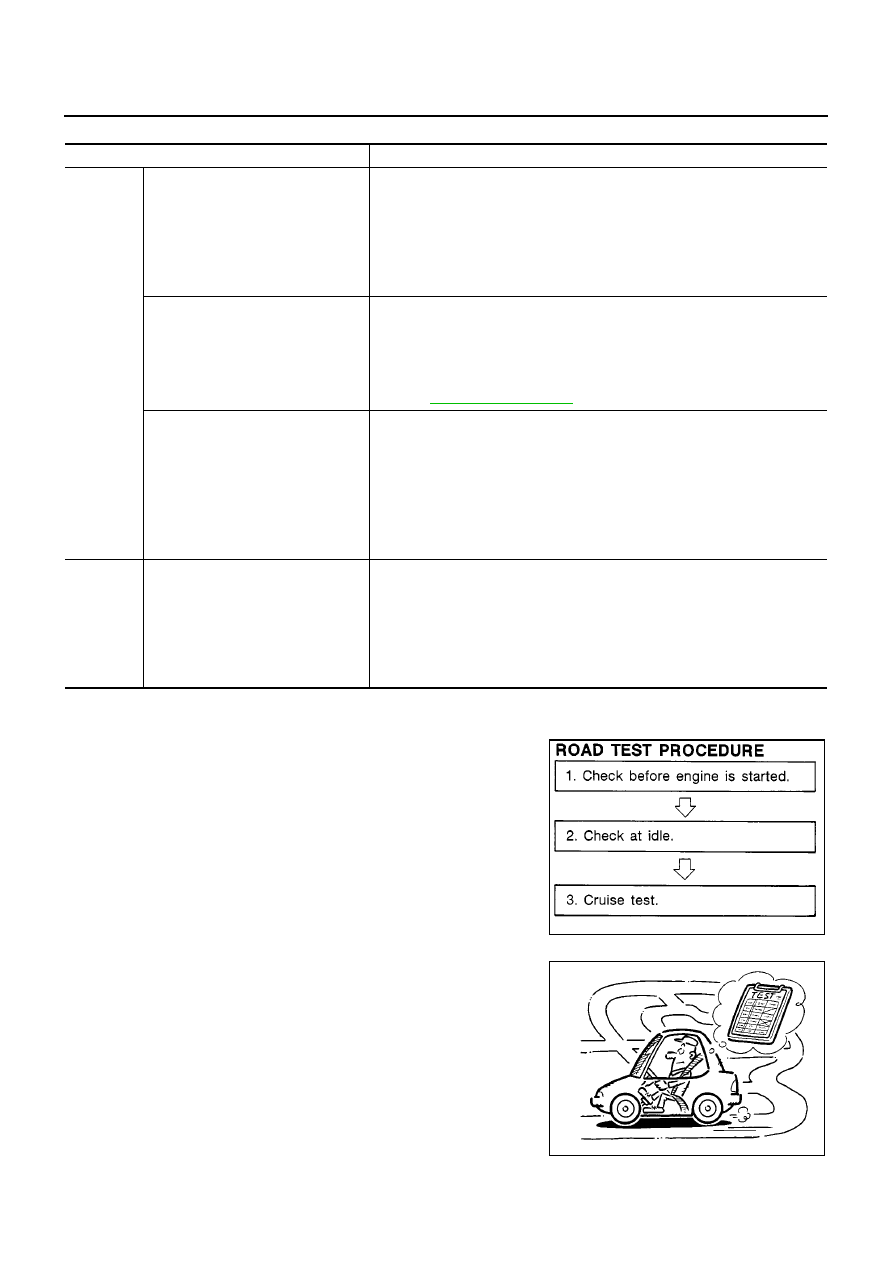

Road Test

ECS00976

DESCRIPTION

The purpose of the test is to determine overall performance of A/
T and analyze causes of problems.

The road test consists of the following three parts:

1.

Check before engine is started

2.

Check at idle

3.

Cruise test

Before road test, familiarize yourself with all test procedures and
items to check.

Conduct tests on all items until specified symptom is found.
Troubleshoot items which check out No Good after road test.
Refer to the following items.

Judgement

Suspected parts

At idle

Line pressure is low in all positions.

Oil pump wear

Control piston damage

Pressure regulator valve or plug sticking

Spring for pressure regulator valve damaged

Line pressure leakage between oil strainer and pressure regulator valve

Clogged strainer

Line pressure is low in particular posi-
tion.

Line pressure leakage between manual valve and particular clutch

For example, line pressure is:

Low in “R” and “1” positions, but

Normal in “D” and “2” positions.

Therefore, fluid leakage exists at or around low and reverse brake circuit.

Refer to

AT-18, "Shift Mechanism"

.

Line pressure is high.

Maladjustment of throttle position sensor

A/T fluid temperature sensor damaged

Line pressure solenoid valve sticking

Short circuit of line pressure solenoid valve circuit

Pressure modifier valve sticking

Pressure regulator valve or plug sticking

Open in dropping resistor circuit

At stall
speed

Line pressure is low.

Maladjustment of throttle position sensor

Line pressure solenoid valve sticking

Short circuit of line pressure solenoid valve circuit

Pressure regulator valve or plug sticking

Pressure modifier valve sticking

Pilot valve sticking

SAT786A

SAT496G

AT-70

[EURO-OBD]

TROUBLE DIAGNOSIS — BASIC INSPECTION

1. CHECK BEFORE ENGINE IS STARTED

1.

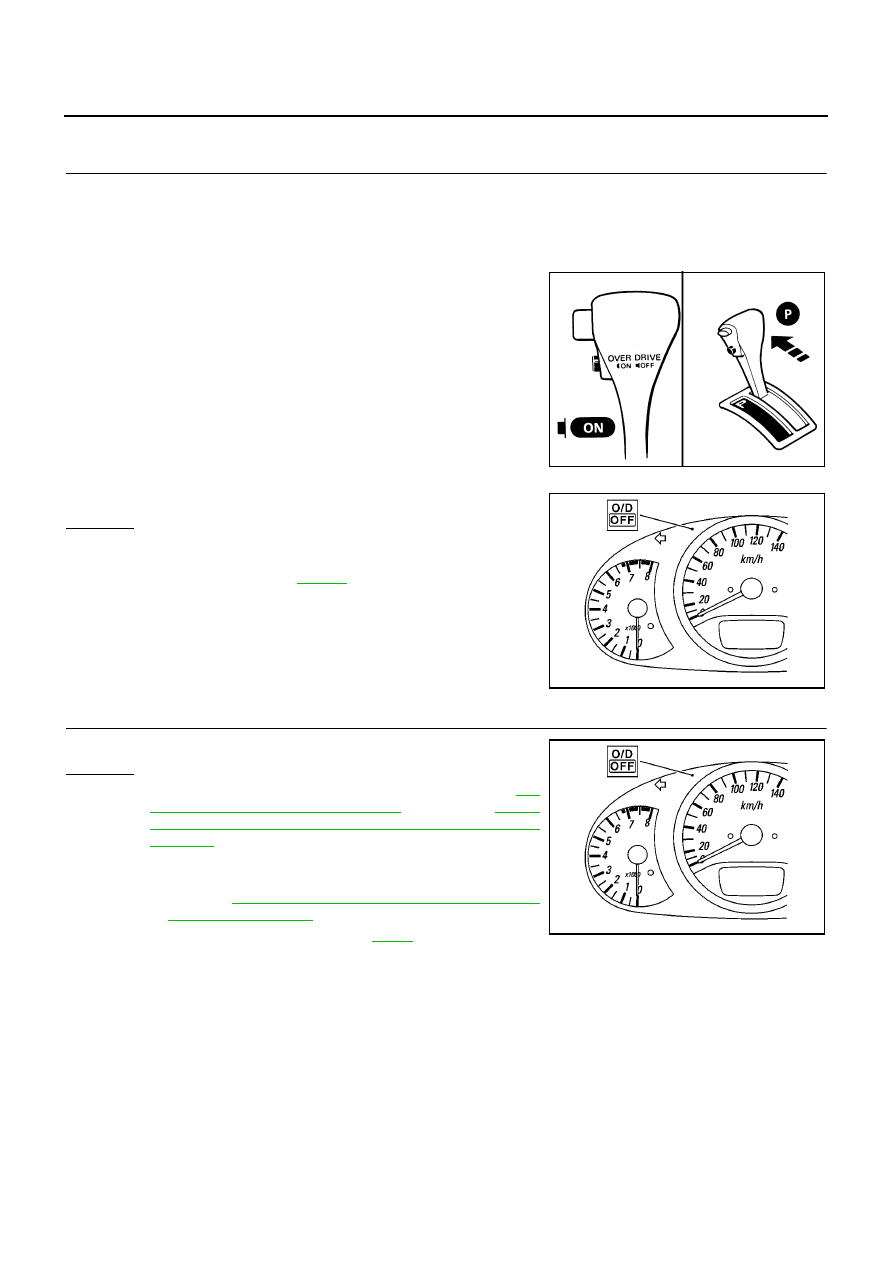

CHECK O/D OFF INDICATOR LAMP

1.

Park vehicle on flat surface.

2.

Turn ignition switch to “OFF” position.

3.

Move selector lever to “P” position.

4.

Set overdrive control switch to “ON” position.

5.

Turn ignition switch to “ON” position. (Do not start engine.)

6.

Does O/D OFF indicator lamp come on for about 2 seconds?

Yes or No

Yes

>> GO TO 2

No

>> Stop ROAD TEST. GO TO “1. O/D OFF Indicator Lamp

Does Not Come On”

AT-213

.

2.

CHECK O/D OFF INDICATOR LAMP

Does O/D OFF indicator lamp flicker for about 8 seconds?

Yes or No

Yes

>> Perform self-diagnosis and check NG items on the

AT-

57, "DIAGNOSTIC WORKSHEET"

. Refer to

AT-51,

"TCM

SELF-DIAGNOSTIC

PROCEDURE

(NO

TOOLS)"

.

No

>> 1. Turn ignition switch to “OFF” position.

2. Perform self-diagnosis and note NG items.

Refer to

AT-51, "TCM SELF-DIAGNOSTIC PROCE-

DURE (NO TOOLS)"

.

3. GO TO “2. CHECK AT IDLE”

AT-71

.

SAT774B

MCIA0066E

MCIA0066E

TROUBLE DIAGNOSIS — BASIC INSPECTION

AT-71

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

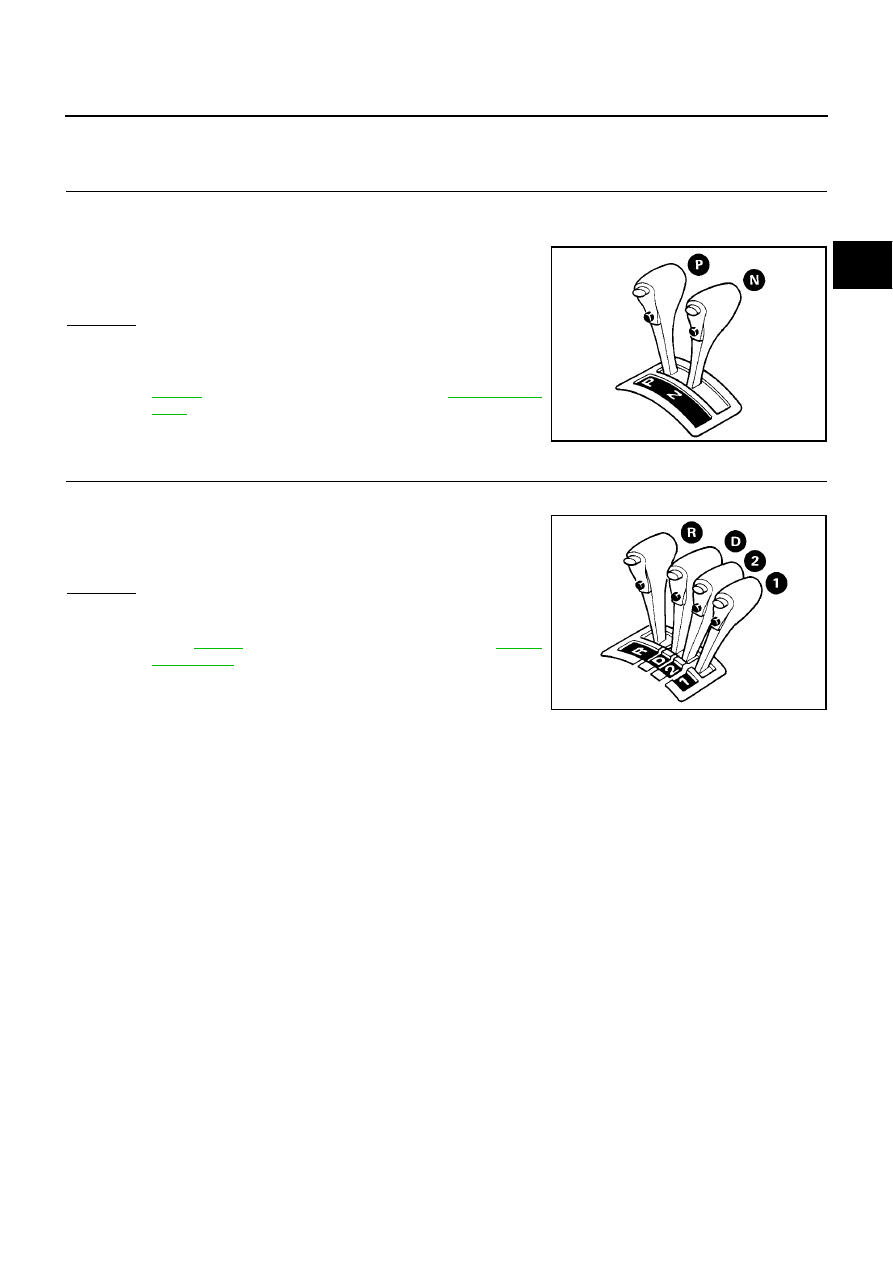

2. CHECK AT IDLE

1.

CHECK ENGINE START

1.

Park vehicle on flat surface.

2.

Turn ignition switch to “OFF” position.

3.

Move selector lever to “P” or “N” position.

4.

Turn ignition switch to “START” position.

5.

Is engine started?

Yes or No

Yes

>> GO TO 2

No

>> Mark the box on the DIAGNOSTIC WORKSHEET.Go to

“2 Engine Cannot Be Started In “P” and “N” Position”,

AT-214

. Continue ROAD TEST. Refer to

AT-68, "Road

Test"

.

2.

CHECK ENGINE START

1.

Turn ignition switch to “OFF” position.

2.

Move selector lever to “D”, “1”, “2” or “R” position.

3.

Turn ignition switch to “START” position.

4.

Is engine started?

Yes or No

Yes

>> Mark the box on the DIAGNOSTIC WORKSHEET. Go

To “2. Engine Cannot Be Started In “P” and “N” Posi-
tion”,

AT-214

. Continue ROAD TEST. Refer to

AT-68,

"Road Test"

.

No

>> GO TO 3

SAT769B

SAT770B

AT-72

[EURO-OBD]

TROUBLE DIAGNOSIS — BASIC INSPECTION

3.

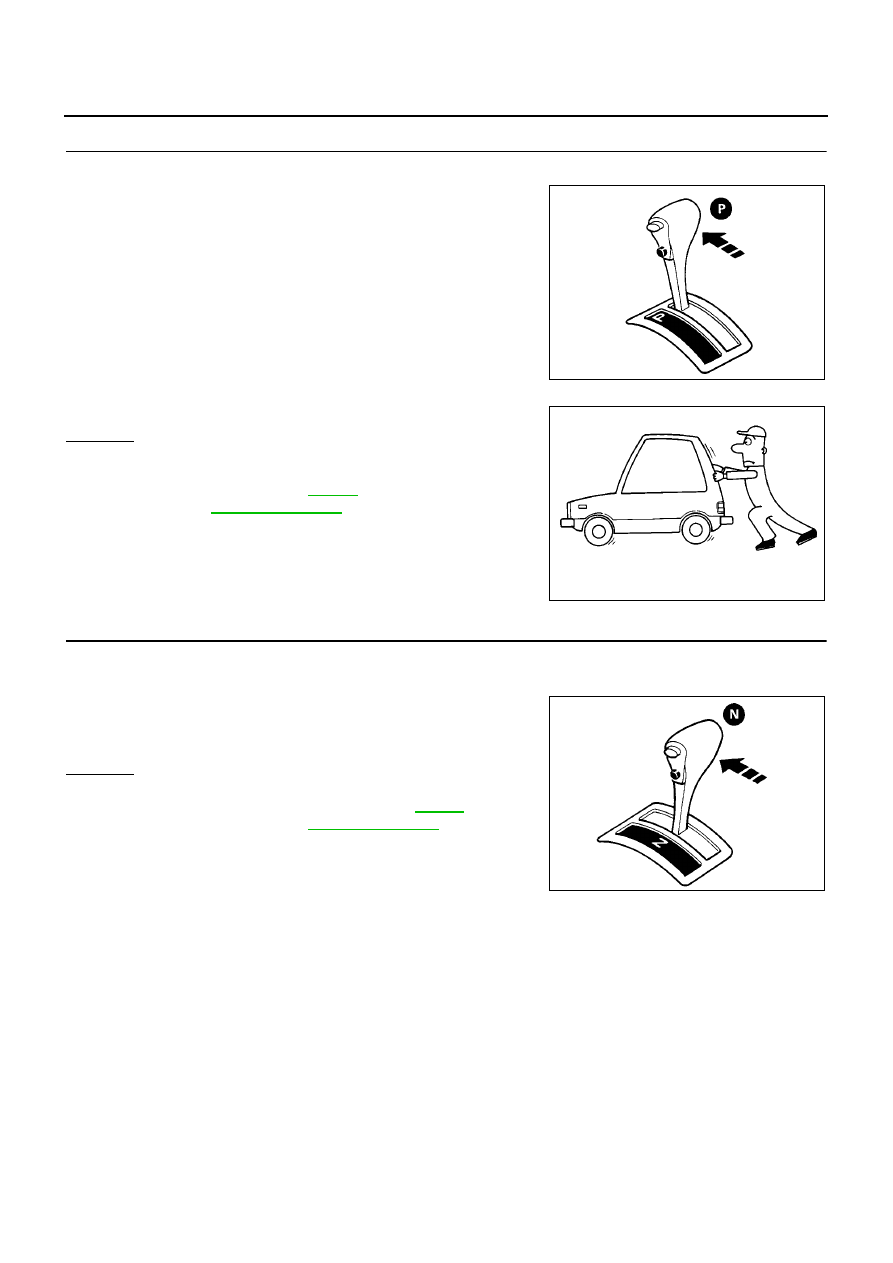

CHECK VEHICLE MOVE

1.

Turn ignition switch to “OFF” position.

2.

Move selector lever to “P” position.

3.

Release parking brake.

4.

Push vehicle forward or backward.

5.

Does vehicle move when it is pushed forward or backward?

Yes or No

Yes

>> Mark the box on the DIAGNOSTIC WORKSHEET. Go

To “3. In “P” Position, Vehicle Moves Forward Or Back-
ward When Pushed”,

AT-214

. Continue ROAD TEST.

Refer to

AT-68, "Road Test"

.

No

>> GO TO 4

4.

CHECK VEHICLE MOVE

1.

Apply parking brake.

2.

Move selector lever to “N” position.

3.

Turn ignition switch to “START” position and start engine.

4.

Release parking brake.

5.

Does vehicle move forward or backward?

Yes or No

Yes

>> Mark the box on the DIAGNOSTIC WORKSHEET. Go

To “4. In “N” Position, Vehicle Moves”,

AT-216

. Continue

ROAD TEST. Refer to

AT-68, "Road Test"

.

No

>> GO TO 5

SAT768B

SAT796A

SAT771B

TROUBLE DIAGNOSIS — BASIC INSPECTION

AT-73

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

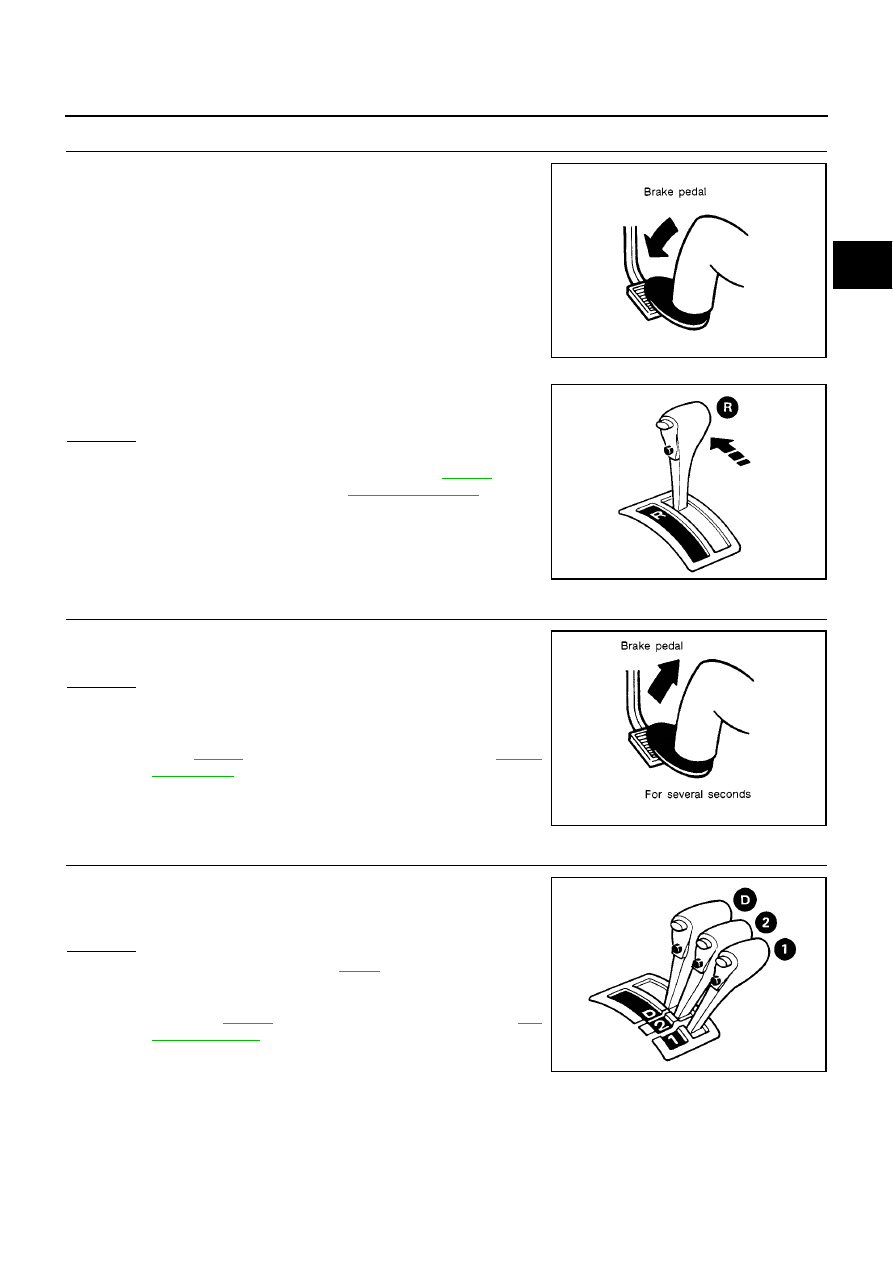

5.

CHECK SHIFT SHOCK

1.

Apply foot brake.

2.

Move selector lever to “R” position.

3.

Is there large shock when changing from “N” to “R” position?

Yes or No

Yes

>> Mark the box on the DIAGNOSTIC WORKSHEET. Go

To “5. Large Shock “N”

“R” Position”,

AT-217

. Con-

tinue ROAD TEST. Refer to

AT-68, "Road Test"

.

No

>> GO TO 6

6.

CHECK VEHICLE MOVE

1.

Release foot brake for several seconds.

2.

Does vehicle creep backward when foot brake is released?

Yes or No

Yes

>> GO TO 7

No

>> Mark the box on the DIAGNOSTIC WORKSHEET. Go

To “6. Vehicle Does Not Creep Backward In “R” Posi-
tion”,

AT-218

. Continue ROAD TEST. Refer to

AT-68,

"Road Test"

.

7.

CHECK VEHICLE MOVE

1.

Move selector lever to “D”, “2” and “1” positions and check if
vehicle creeps forward.

2.

Does vehicle creep forward in all three positions?

Yes or No

Yes

>> Go To “3. CRUISE TEST”,

AT-74

.

No

>> Mark the box on the DIAGNOSTIC WORKSHEET. Go

To “7. Vehicle Does Not Creep Forward In “D”, “2” Or “1”
Position”,

AT-221

. Continue ROAD TEST. Refer to

AT-

68, "Road Test"

.

SAT797A

SAT772B

SAT799A

SAT773B

AT-74

[EURO-OBD]

TROUBLE DIAGNOSIS — BASIC INSPECTION

3. CRUISE TEST

Check all items listed in Parts 1 through 3.

With CONSULT-II

Using CONSULT-II, conduct a cruise test and record the result.

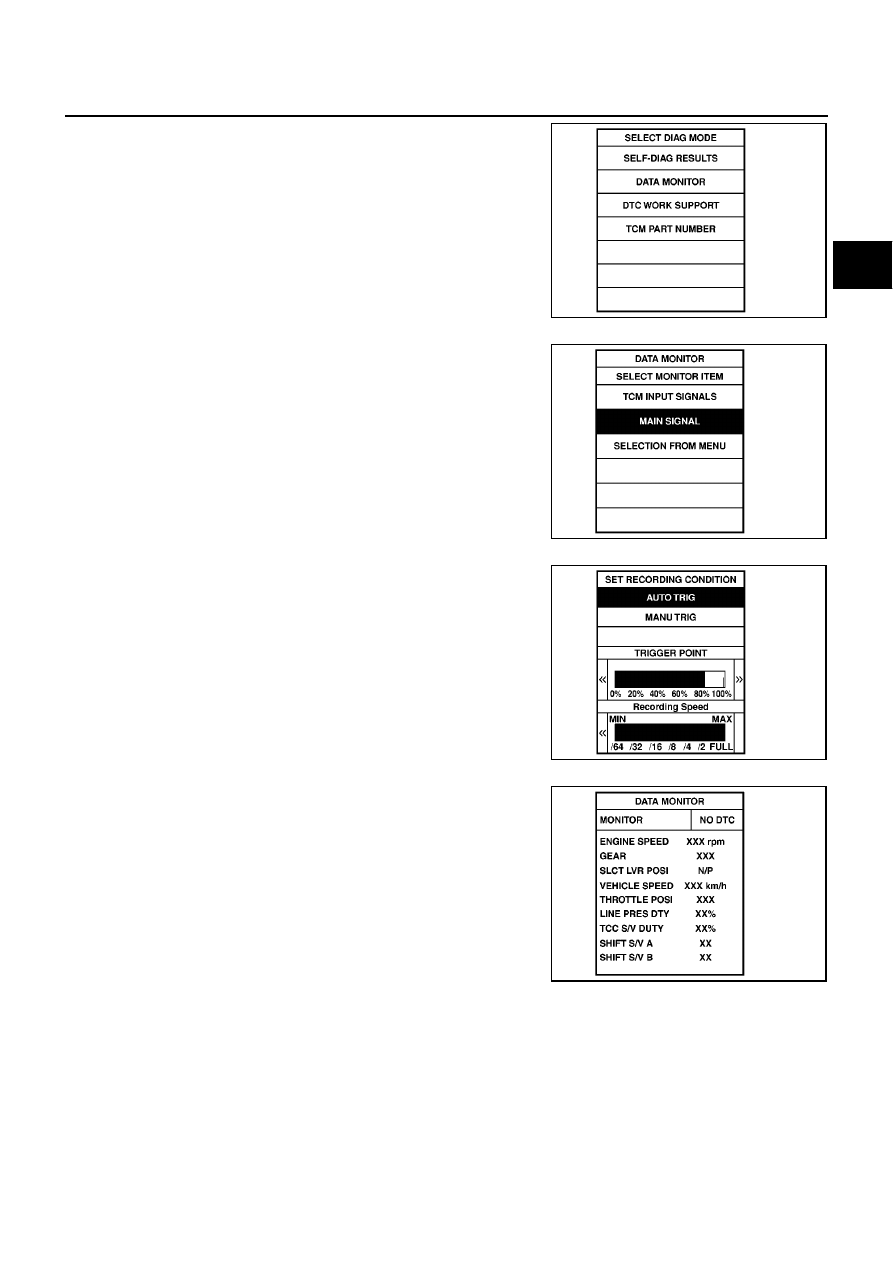

Print the result and ensure that shifts and lock-ups take place as per Shift Schedule.

CONSULT-II Setting Procedure

1.

Turn ignition switch “OFF”.

2.

Connect CONSULT-II to data link connector, which is located in
left side lower dash panel.

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”.

5.

Touch “A/T”.

SAT601J

PAIA0070E

MBIB0233E

SAT014K

TROUBLE DIAGNOSIS — BASIC INSPECTION

AT-75

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

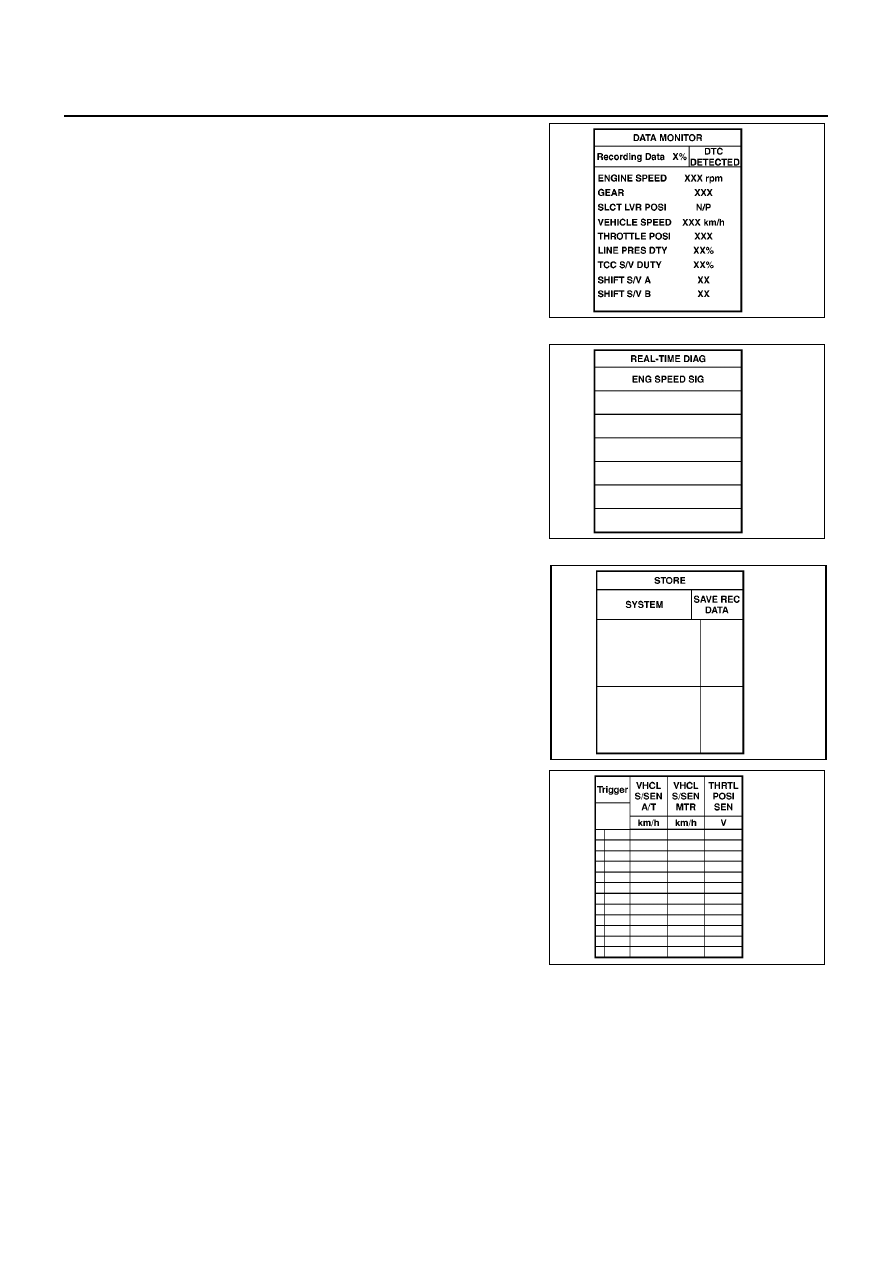

6.

Touch “DATA MONITOR”.

7.

Touch “MAIN SIGNALS” or “TCM INPUT SIGNALS”.

8.

Select “Numerical Display”, “Barchart Display” or “Line Graph
Display”.

9.

Touch “SETTING” to recording condition (“AUTO TRIG” or
“MANU TRIG”) and touch “BACK”.

10. Touch “Start”.

11. When performing cruise test, touch “RECORD”.

SAT971J

SAT175K

SAT973J

SAT134K

AT-76

[EURO-OBD]

TROUBLE DIAGNOSIS — BASIC INSPECTION

12. After finishing cruise test part 1, touch “STOP”.

13. Touch “STORE” and touch “BACK”.

14. Touch “DISPLAY”.
15. Touch “PRINT”.

16. Check the monitor data printed out.

17. Continue cruise test part 2 and 3.

SAT135K

SAT987J

SAT974J

SAT975J

TROUBLE DIAGNOSIS — BASIC INSPECTION

AT-77

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

Without CONSULT-II

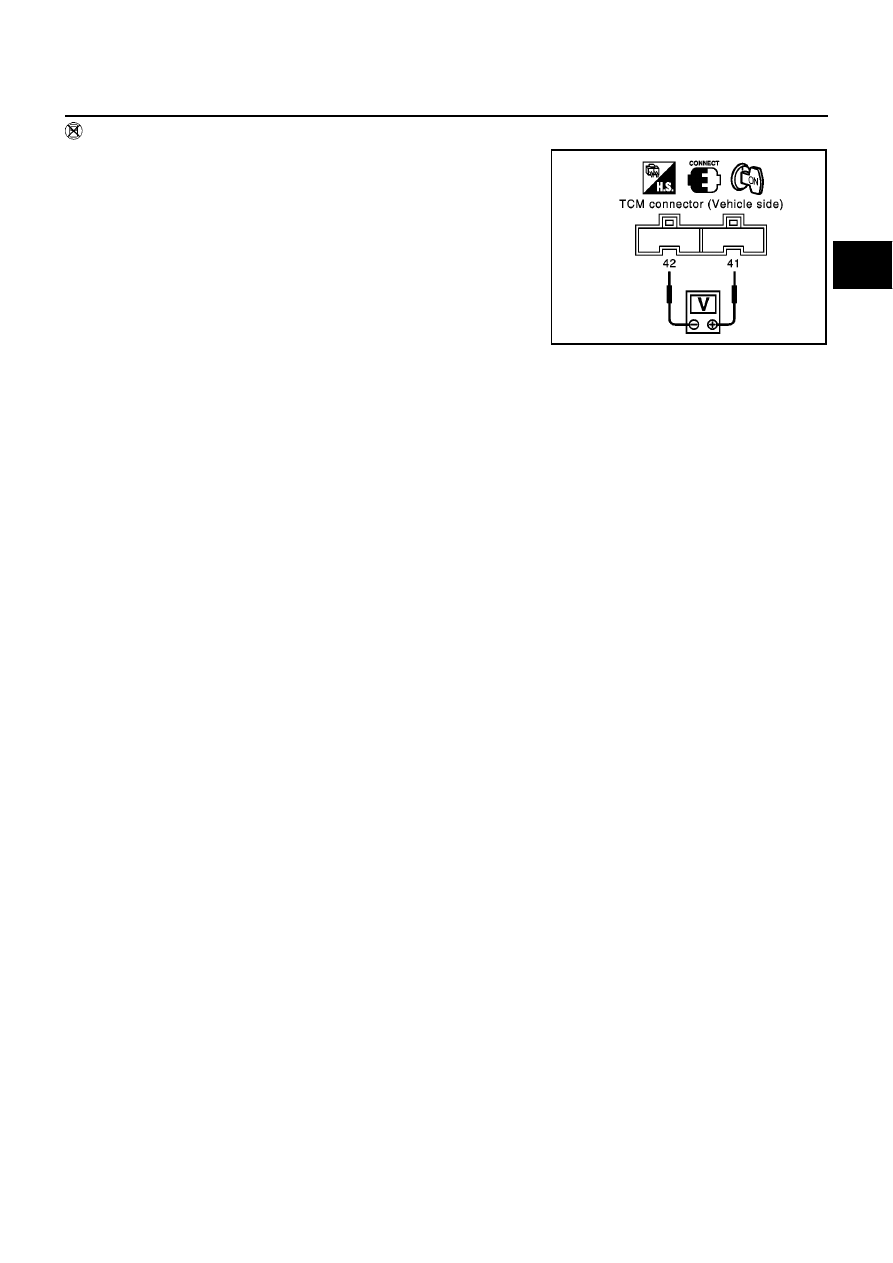

Throttle position sensor can be checked by voltage across termi-
nals 41 and 42 of TCM.

SCIA0710E

AT-78

[EURO-OBD]

TROUBLE DIAGNOSIS — BASIC INSPECTION

Cruise Test — Part 1

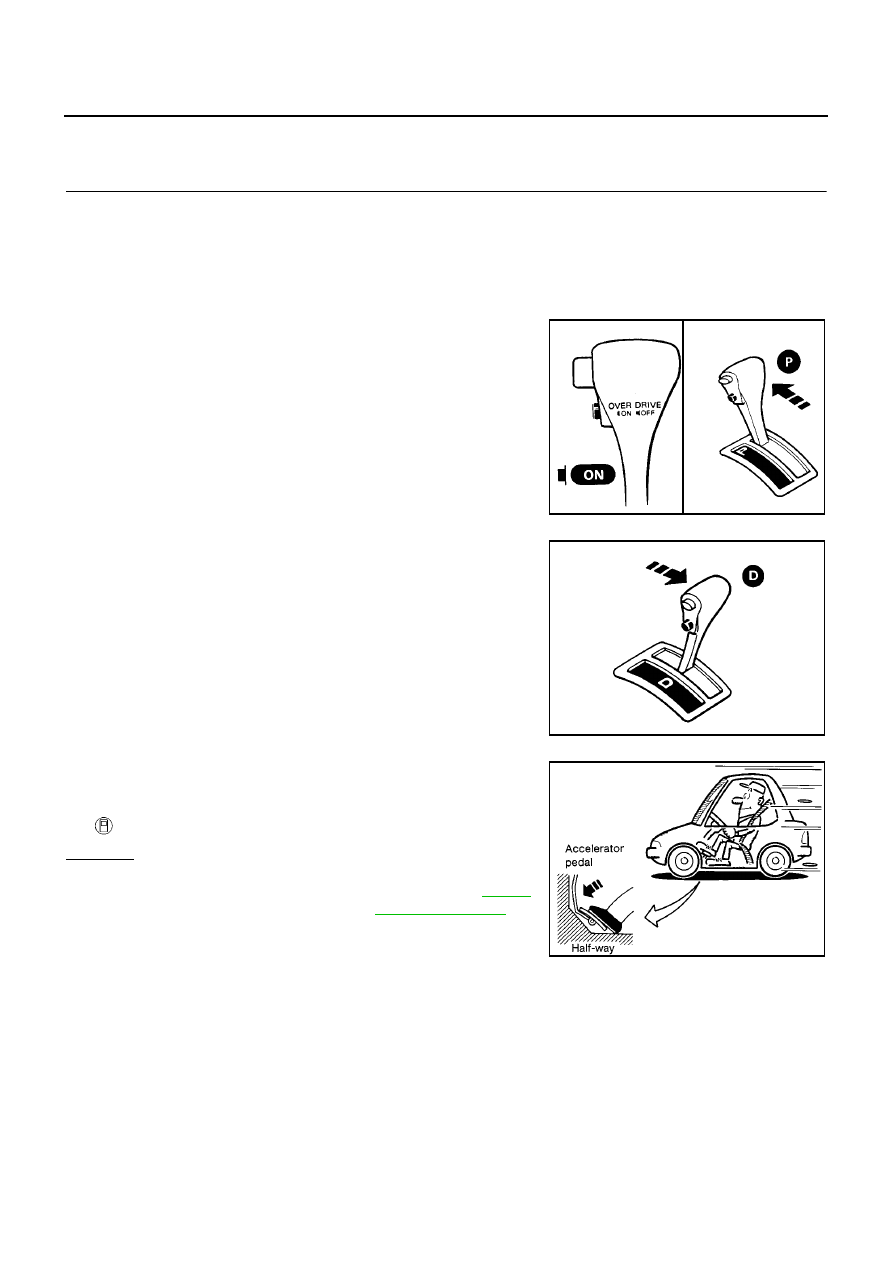

1.

CHECK STARTING GEAR (D

1

) POSITION

1.

Drive vehicle for approx. 10 minutes to warm engine oil and ATF up to operating
temperature.

2.

Park vehicle on flat surface.

3.

Set overdrive control switch to “ON” position.

4.

Move selector lever to “P” position.

5.

Start engine.

6.

Move selector lever to “D” position.

7.

Accelerate vehicle by constantly depressing accelerator pedal
halfway.

8.

Does vehicle start from D

1

?

Read gear position.

Yes or No

Yes

>> GO TO 2

No

>> Go To “8. Vehicle Cannot Be Started From D

1

”,

AT-223

.

Continue ROAD TEST. Refer to

AT-68, "Road Test"

.

ATF operating temperature: 50 - 80

°

C (122 - 176

°

F)

SAT774B

SAT775B

SAT495G

TROUBLE DIAGNOSIS — BASIC INSPECTION

AT-79

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

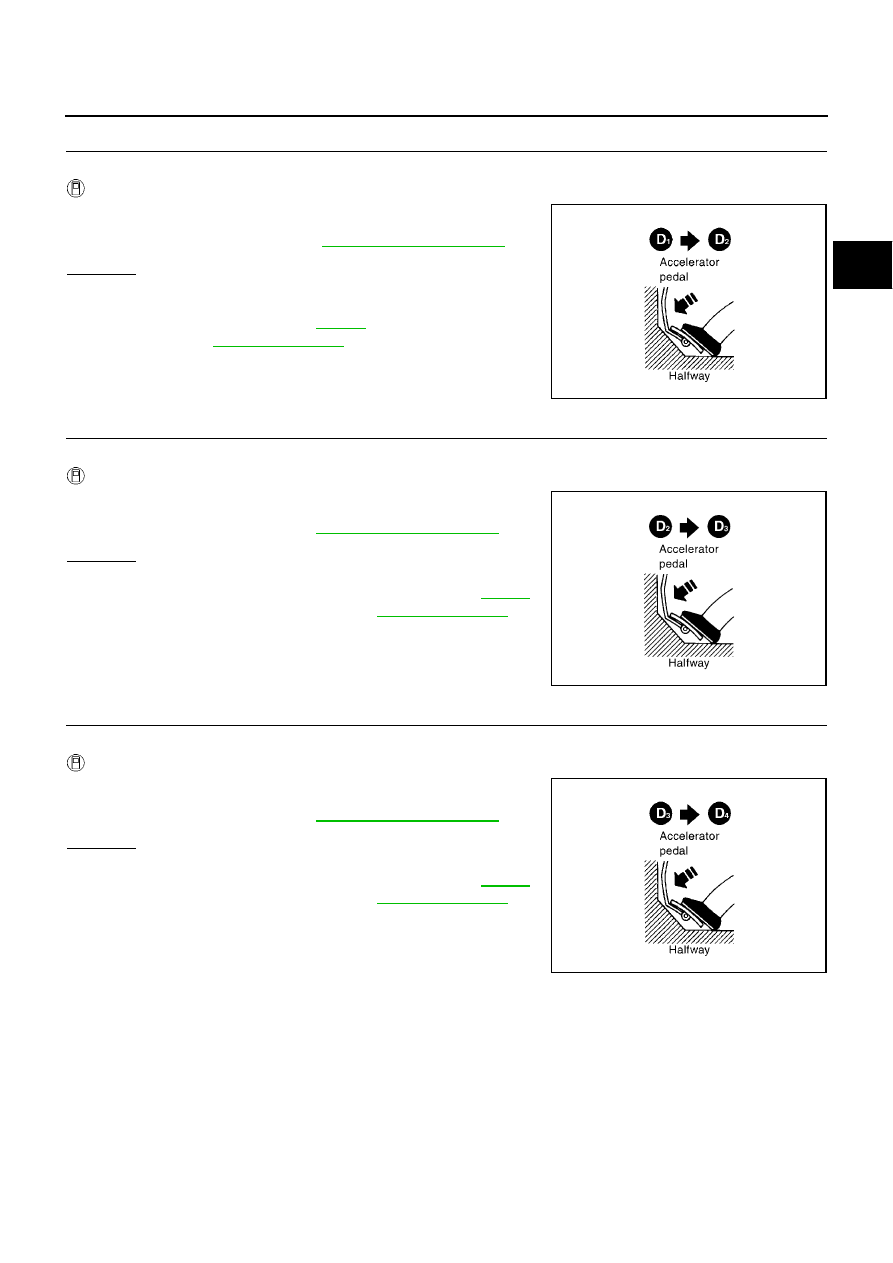

2.

CHECK SHIFT UP (D

1

TO D

2

)

Does A/T shift from D

1

to D

2

at the specified speed?

Read gear position, throttle opening and vehicle speed.

Yes or No

Yes

>> GO TO 3

No

>> Go To “9. A/T Does Not Shift: D

1

D

2

Or Does Not

Kickdown: D

4

D

2

”,

AT-225

. Continue ROAD TEST.

Refer to

AT-68, "Road Test"

.

3.

CHECK SHIFT UP (D

2

TO D

3

)

Does A/T shift from D

2

to D

3

at the specified speed?

Read gear position, throttle position and vehicle speed.

Yes or No

Yes

>> GO TO 4

No

>> Go To “10. A/T Does Not Shift: D

2

D

3

”,

AT-227

.

Continue ROAD TEST. Refer to

AT-68, "Road Test"

.

4.

CHECK SHIFT UP (D

3

TO D

4

)

Does A/T shift from D

3

to D

4

at the specified speed?

Read gear position, throttle position and vehicle speed.

Yes or No

Yes

>> GO TO 5

No

>> Go To “11. A/T Does Not Shift: D

3

D

4

”,

AT-229

.

Continue ROAD TEST. Refer to

AT-68, "Road Test"

.

Specified speed when shifting from D

1

to D

2

:

Refer to

AT-519, "Shift Schedule"

.

SAT954I

Specified speed when shifting from D

2

to D

3

:

Refer to

AT-519, "Shift Schedule"

.

SAT955I

Specified speed when shifting from D

3

to D

4

:

Refer to

AT-519, "Shift Schedule"

.

SAT956I

AT-80

[EURO-OBD]

TROUBLE DIAGNOSIS — BASIC INSPECTION

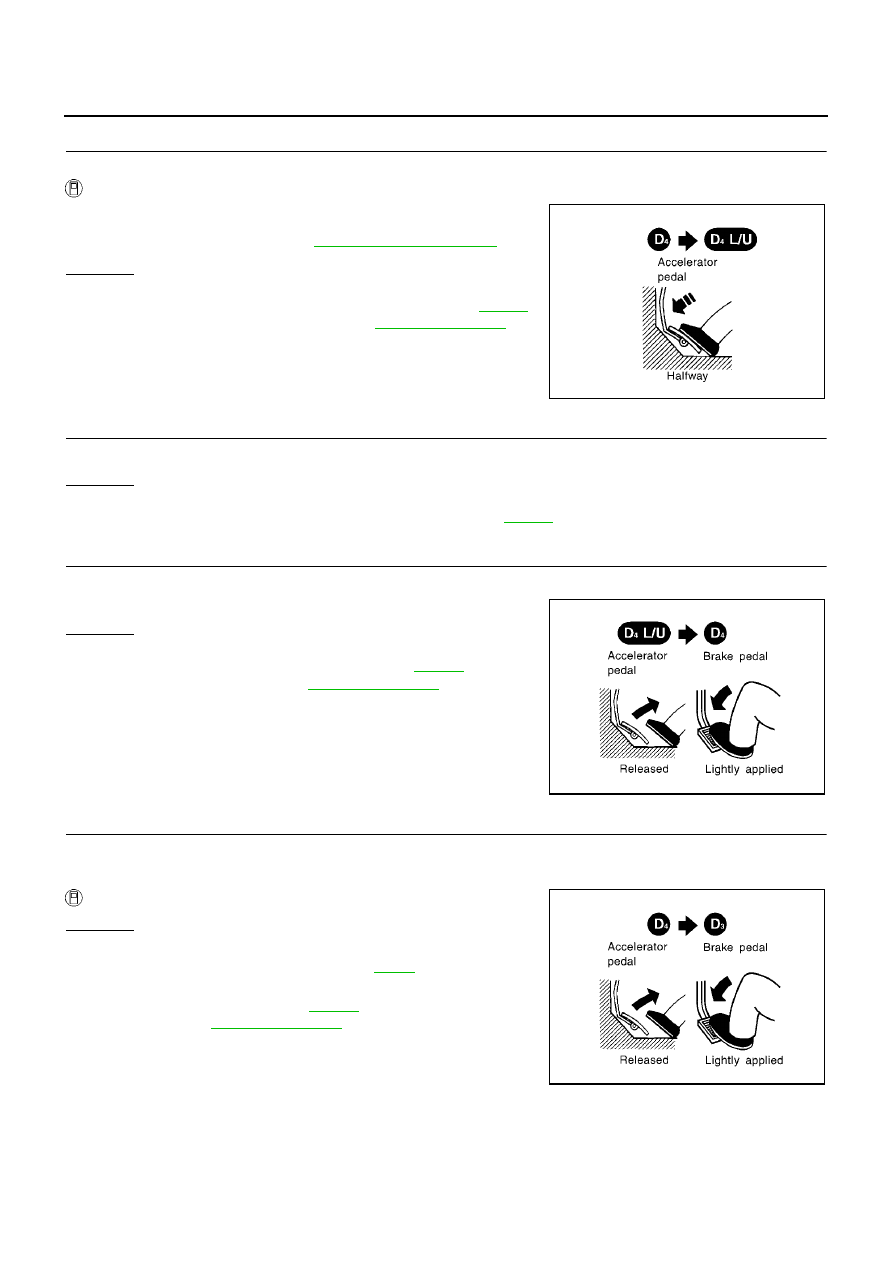

5.

CHECK LOCK-UP (D

4

TO D

4

L/U)

Does A/T perform lock-up at the specified speed?

Read vehicle speed, throttle position when lock-up duty becomes 94%.

Yes or No

Yes

>> GO TO 6

No

>> Go To “12. A/T Does Not Perform Lock-up”,

AT-232

.

Continue ROAD TEST. Refer to

AT-68, "Road Test"

.

6.

CHECK HOLD LOCK-UP

Does A/T hold lock-up condition for more than 30 seconds?

Yes or No

Yes

>> GO TO 7

No

>> Go To “13. A/T Does Not Hold Lock-up Condition”,

AT-233

.

7.

CHECK SHIFT DOWN (D

4

L/U TO D

4

)

1.

Release accelerator pedal.

2.

Is lock-up released when accelerator pedal is released?

Yes or No

Yes

>> GO TO 8

No

>> Go To “14. Lock-up Is Not Released”,

AT-234

. Continue

ROAD TEST. Refer to

AT-68, "Road Test"

.

8.

CHECK SHIFT DOWN (D

4

TO D

3

)

1.

Decelerate vehicle by applying foot brake lightly.

2.

Does engine speed return to idle smoothly when A/T is shifted from D

4

to D

3

?

Read gear position and engine speed.

Yes or No

Yes

>> 1. Stop vehicle.

2. Go To “Cruise test — Part 2”,

AT-81

.

No

>> Go To “15. Engine Speed Does Not Return To Idle (Light

Braking D

4

D

3

)”,

AT-235

. Continue ROAD TEST.

Refer to

AT-68, "Road Test"

.

Specified speed when lock-up occurs:

Refer to

AT-519, "Shift Schedule"

.

SAT957I

SAT958I

SAT959I















Content      ..     3      4      5      6     ..
