Nissan Almera Tino V10. Manual - part 962





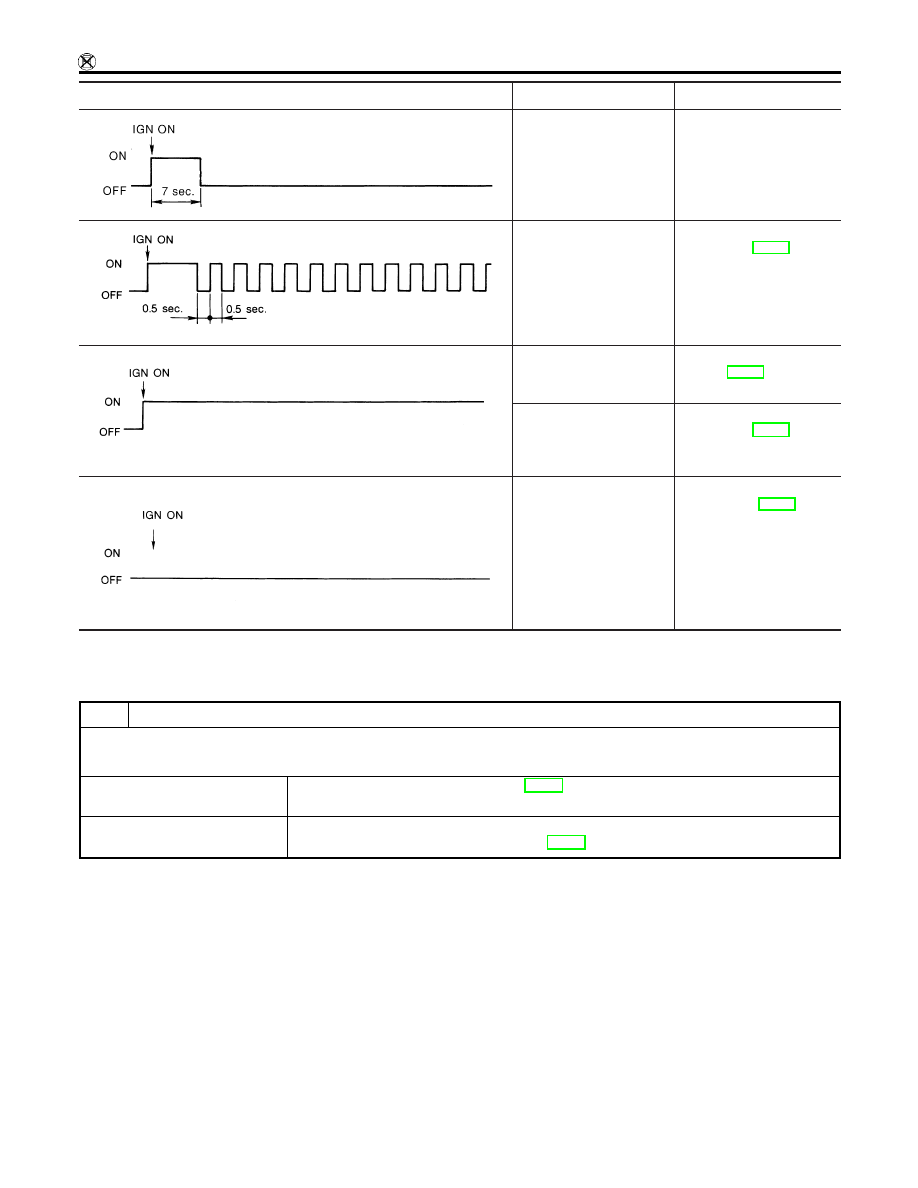

“AIR BAG” warning lamp operation — User mode —

SRS condition

Reference item

MRS095A

No malfunction is
detected.
No further action is neces-
sary.

MRS096A

The system is malfunc-
tioning and needs to be
repaired as indicated.

Go to DIAGNOSTIC PRO-
CEDURE 6 (RS-53).

MRS097A

Air bag is deployed.
Seat belt pre-tensioner is
deployed.

Go to COLLISION DIAG-
NOSIS (RS-64).

Air bag fuse, diagnosis
sensor unit or harness is
malfunctioning and needs
to be repaired.

Go to DIAGNOSTIC PRO-
CEDURE 9 (RS-61).

MRS098A

One of the following has
occurred and needs to be
repaired.

I

Meter fuse is blown.

I

“AIR BAG” warning
lamp circuit has open or
short.

I

Diagnosis sensor unit is
malfunctioning.

Go to DIAGNOSTIC PRO-
CEDURE 10 (RS-63).

DIAGNOSTIC PROCEDURE 8 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 6)

NLRS0049S03

Inspecting SRS malfunctioning record

1

CONSIDER POSSIBILITY OF NOT ERASING SELF-DIAGNOSTIC RESULT AFTER REPAIRING

Is it the first time for maintenance of SRS?

Yes or No

Yes

©

Go to DIAGNOSTIC PROCEDURE 5 (RS-49). (Further inspection cannot be performed
without CONSULT-II.)

No

©

Diagnosis results (previously stored in the memory) might not be erased after repair. Go
to DIAGNOSTIC PROCEDURE 7, step 5 (RS-58).

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-60

Trouble Diagnoses: “AIR BAG” Warning Lamp
Does Not Turn Off

=NLRS0050

DIAGNOSTIC PROCEDURE 9

NLRS0050S01

1

SEE THE DEPLOYMENT OF AIR BAG MODULE

Is air bag module deployed?

Yes or No

Yes

©

Refer to COLLISION DIAGNOSIS (RS-64).

No

©

GO TO 2.

2

CHECK AIR BAG FUSE

Is SRS “Air Bag” fuse OK?

SRS835

OK or NG

OK

©

GO TO 4.

NG

©

GO TO 3.

3

CHECK AIR BAG FUSE AGAIN

Replace “AIR BAG” fuse and turn ignition switch ON.

Is “AIR BAG” fuse blown again?

Yes

©

Repair main harness.

No

©

INSPECTION END

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses: “AIR BAG” Warning Lamp Does Not Turn Off

RS-61

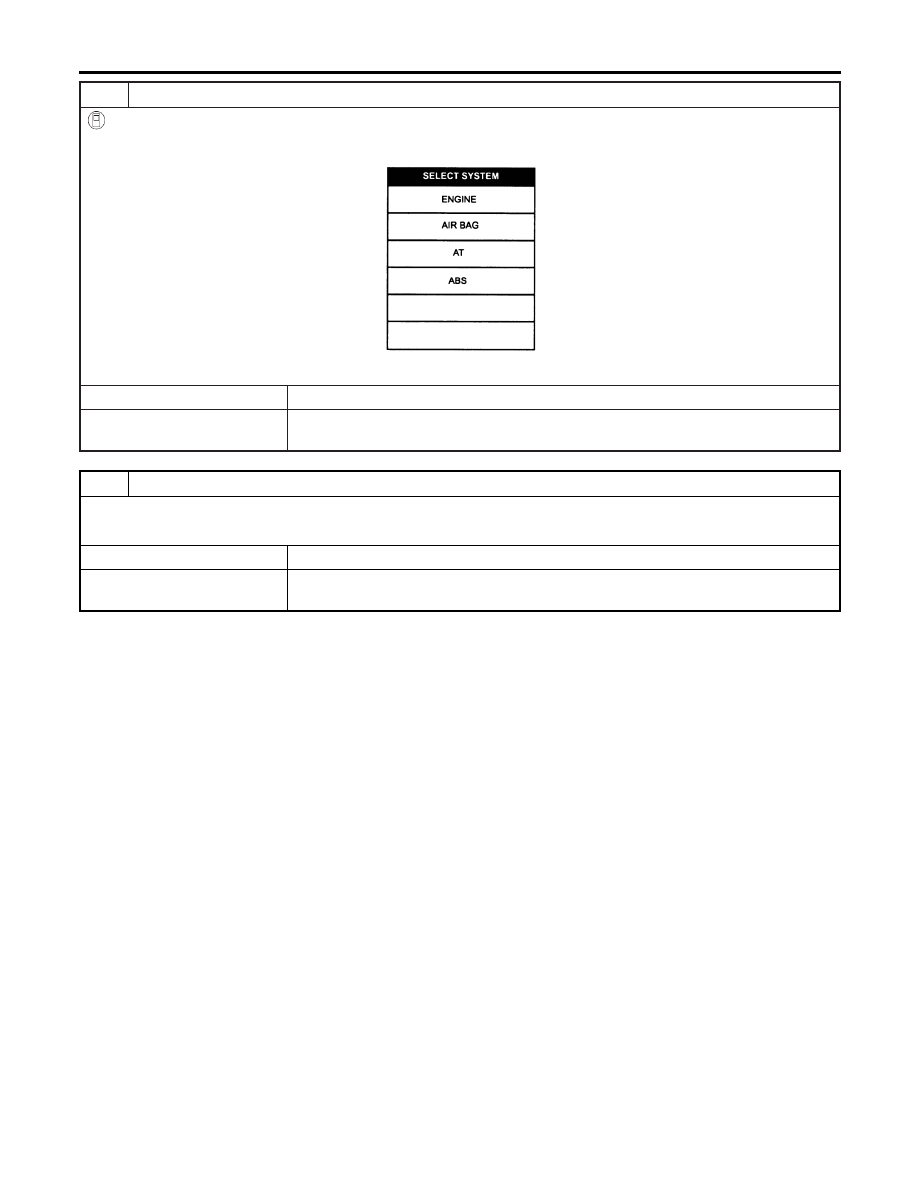

4

CHECK DIAGNOSIS SENSOR UNIT

Connect CONSULT-II and touch “START”.

I

Is “AIR BAG” displayed on CONSULT-II?

C2SSE01

Yes or No

Yes

©

GO TO 5.

No

©

Visually check the wiring harness connection of diagnosis sensor unit. If the harness
connection check result is OK, replace diagnosis sensor unit.

5

CHECK HARNESS CONNECTION

Is harness connection between warning lamp and diagnosis sensor unit OK?

OK or NG

OK

©

Replace diagnosis sensor unit.

NG

©

Connect “AIR BAG” warning lamp and diagnosis sensor unit connector properly. If “AIR
BAG” warning lamp still does not go off, replace harness.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses: “AIR BAG” Warning Lamp Does Not Turn Off (Cont’d)

RS-62

Trouble Diagnoses: “AIR BAG” Warning Lamp
Does Not Turn On

=NLRS0051

DIAGNOSTIC PROCEDURE 10

NLRS0051S01

1

CHECK “METER” FUSE

Is meter fuse OK?

SRS836

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

CHECK “METER” FUSE AGAIN

Replace meter fuse and turn ignition switch ON.

Is meter fuse blown again?

Yes

©

Repair main harness.

No

©

INSPECTION END

3

CHECK “AIR BAG” WARNING LAMP LED

Is “AIR BAG” warning lamp LED OK?

OK or NG

OK

©

GO TO 4.

NG

©

Replace combination meter.

4

CHECK HARNESS CONNECTION BETWEEN DIAGNOSIS SENSOR UNIT AND “AIR BAG” WARNING
LAMP

Disconnect diagnosis sensor unit connector and turn ignition switch “ON”.

I

Does “AIR BAG” warning lamp turn on?

Yes or No

Yes

©

Replace diagnosis sensor unit.

No

©

Check the ground circuit of “AIR BAG” warning lamp.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses: “AIR BAG” Warning Lamp Does Not Turn On

RS-63
