Diagnostic item

Explanation

Repair order

SIDE MODULE RH
[OPEN]

I

Front RH side air bag module circuit is
open.

1. Visually check the wiring harness con-

nection.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace the

diagnosis sensor unit and front RH
side air bag module. (Before disposing
of the front RH side air bag module, it
must be deployed.)

SIDE MODULE RH
[VB-SHORT]

I

Front RH side air bag module circuit is
shorted to a power supply circuit.

SIDE MODULE RH
[GND-SHORT]

I

Front RH side air bag module circuit is
shorted to ground.

SIDE MODULE RH
[SHORT]

I

Front RH side air bag module circuit is
shorted to between lines.

SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]

I

LH side air bag (satellite) sensor

1. Visually check the wiring harness con-

nection.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace the

diagnosis sensor unit and LH side air
bag (satellite) sensor.

SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]

I

RH side air bag (satellite) sensor

1. Visually check the wiring harness con-

nection.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace the

diagnosis sensor unit and RH side air
bag (satellite) sensor.

PRE-TEN FRONT LH
[OPEN/VB-SHORT]

I

Front LH seat belt pre-tensioner circuit
is open or shorted to a power supply
circuit.

1. Visually check the wiring harness con-

nections.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace the

diagnosis sensor unit and front LH
seat belt. (Before disposing of the front
LH seat belt pre-tensioner, if must be
deployed.)

PRE-TEN FRONT LH
[GND-SHORT]

I

Front LH seat belt pre-tensioner circuit
is shorted to ground.

PRE-TEN FRONT RH
[OPEN/VB-SHORT]

I

Front RH seat belt pre-tensioner circuit
is open or shorted to a power supply
circuit.

1. Visually check the wiring harness con-

nections.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace the

diagnosis sensor unit and front RH
seat belt. (Before disposing of the front
RH seat belt pre-tensioner, if must be
deployed.)

PRE-TEN FRONT RH
[GND-SHORT]

I

Front RH seat belt pre-tensioner circuit
is shorted to ground.

CONTROL UNIT

I

Diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness con-

nection.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace the

diagnosis sensor unit.

* Follow the procedures in numerical order when repairing malfunctioning parts, then make the final system check.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses with CONSULT-II (Cont’d)

RS-52

SRS800

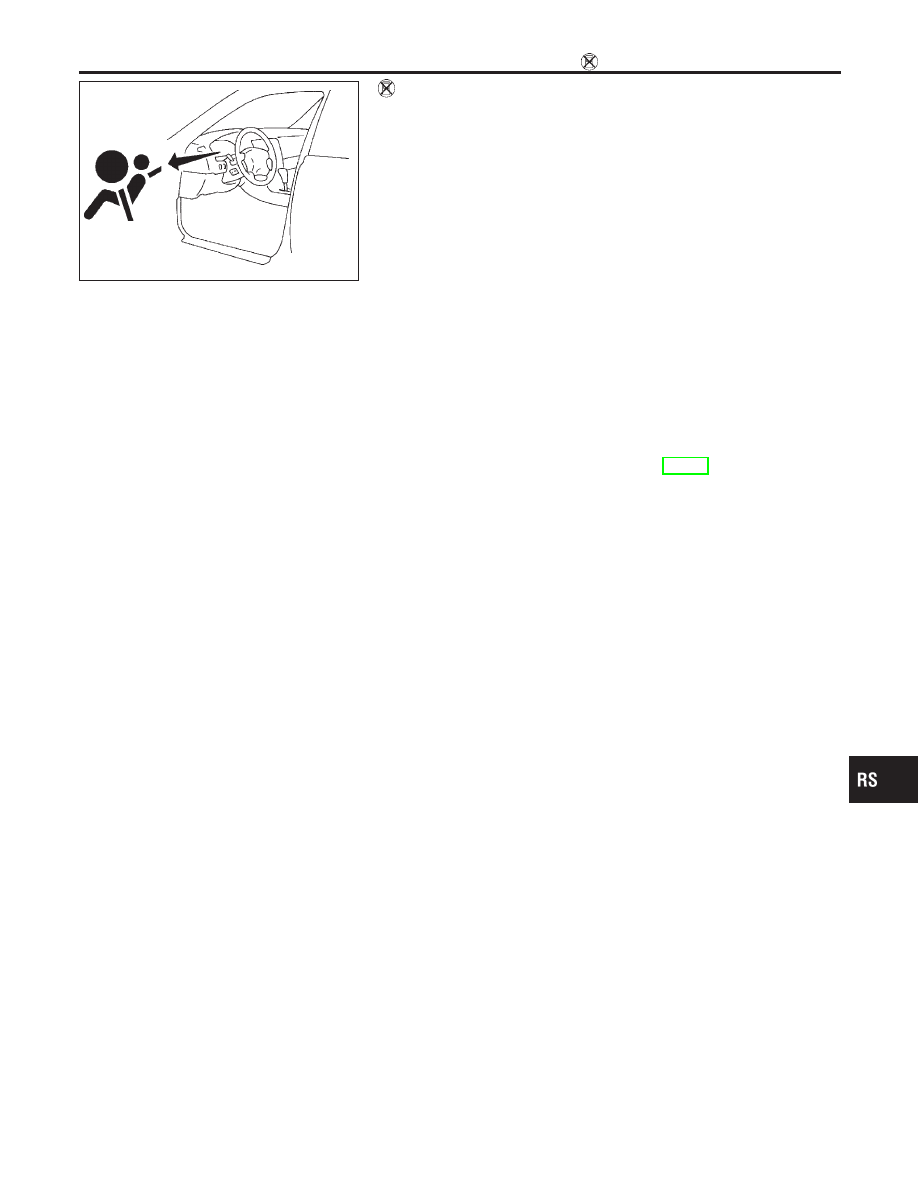

Trouble Diagnoses without CONSULT-II

=NLRS0049

DIAGNOSTIC PROCEDURE 6

NLRS0049S01

Inspecting SRS malfunctioning parts by using “AIR BAG”
warning lamp — Diagnosis mode
NOTE:
SRS will not enter Diagnosis mode if no malfunction is
detected in User mode.
1.

Turn ignition switch “ON”.

2.

After “AIR BAG” warning lamp lights for 7 seconds, turn igni-
tion switch “OFF” within 1 second.

3.

Wait more than 3 seconds.

4.

Repeat steps 1 to 3 three times.

5.

Turn ignition switch “ON”.
SRS is now in Diagnosis mode.

6.

“AIR BAG” warning lamp operates in Diagnosis mode as fol-
lows:

NOTE:
If SRS does not enter Diagnosis mode even though malfunction is
detected in User mode, check the battery voltage.
If the battery voltage is less than 9V, charge the battery. Then go
to DIAGNOSTIC PROCEDURE 7, page RS-58.
If the battery voltage is OK, replace the diagnosis sensor unit.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II

RS-53

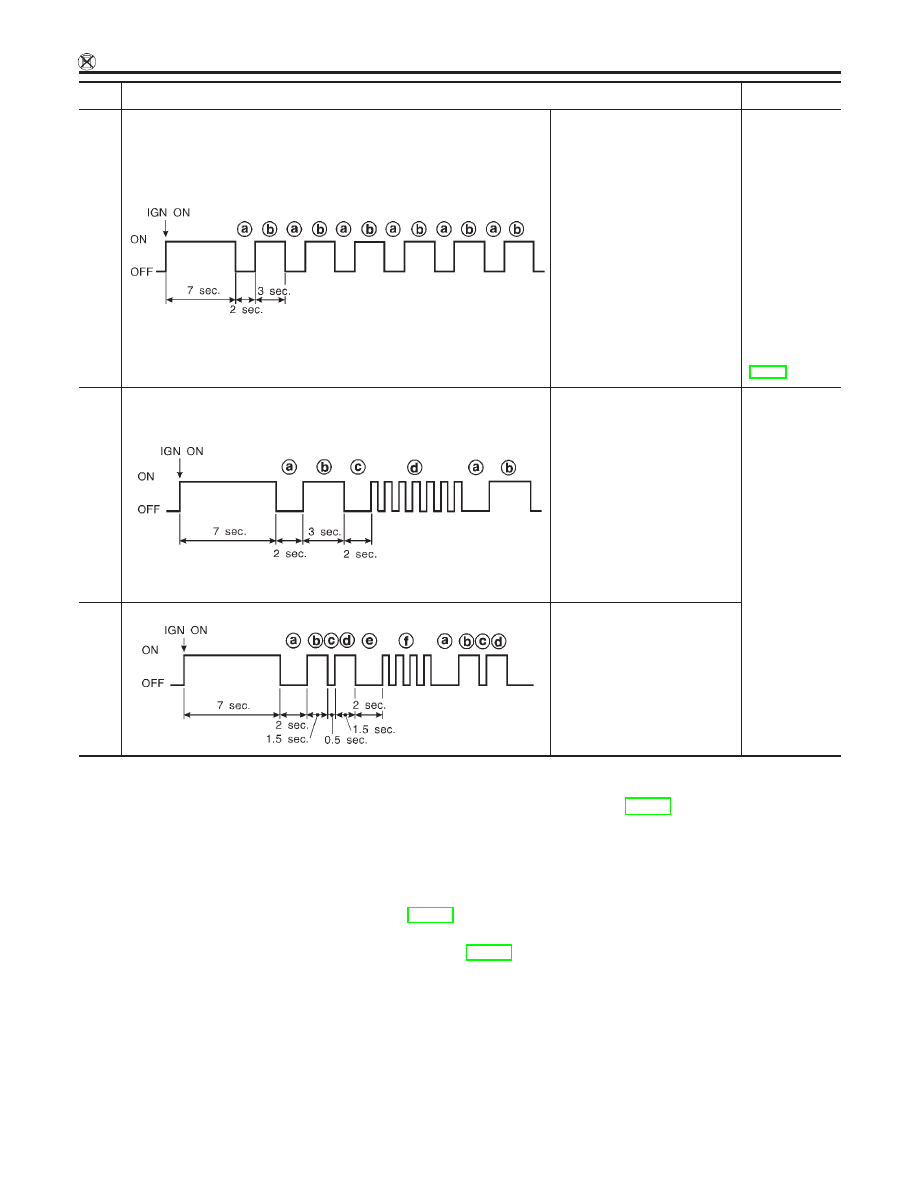

No.

“AIR BAG” warning lamp flash pattern — Diagnosis mode —

SRS condition

1

SRS333

through are repeated.

I

Diagnosis
results (pre-
viously
stored in the
memory)
might not be
erased after
repair.

I

Intermittent
malfunction
has been
detected in
the past.

Go to DIAG-
NOSTIC PRO-
CEDURE 8
(RS-60).

2

SRS341

through are repeated.
— Driver and front passen-
ger air bag and front seat belt
pre-tensioner marker (For iden-
tifying driver air bag, front pas-
senger air bag and/or front seat
belt pre-tensioners malfunction-
ing)
— Indicates malfunctioning
part. The number of flash var-
ies with malfunctioning part
(0.5 sec. ON and 0.5 sec. OFF
is counted as one flash.)

The system is
malfunctioning
and needs to
be repaired.

3

SRS342-A

through are repeated.
bc— Front side air bag
marker (For identifying front
side air bag malfunctioning)
— Indicates malfunctioning
part. The number of flash var-
ies with malfunctioning part
(0.5 sec. ON and 0.5 sec. OFF
is counted as one flash.)

7.

Malfunctioning part is indicated by the number of flashes (part
or f). Compare the number of flashes to “Air Bag Warning
Lamp Flash Code Chart”, page RS-55, and locate malfunction-
ing part.

8.

Turn ignition switch “OFF”, and disconnect both battery cables.

9.

Repair the system as outlined by the “Repair order” in “Warn-
ing Lamp Flash Code Chart” that corresponds to the flash
code. For replacement procedure of component parts, refer to
RS-21.

10. After repairing the system, go to DIAGNOSTIC PROCEDURE

7, page RS-58.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-54

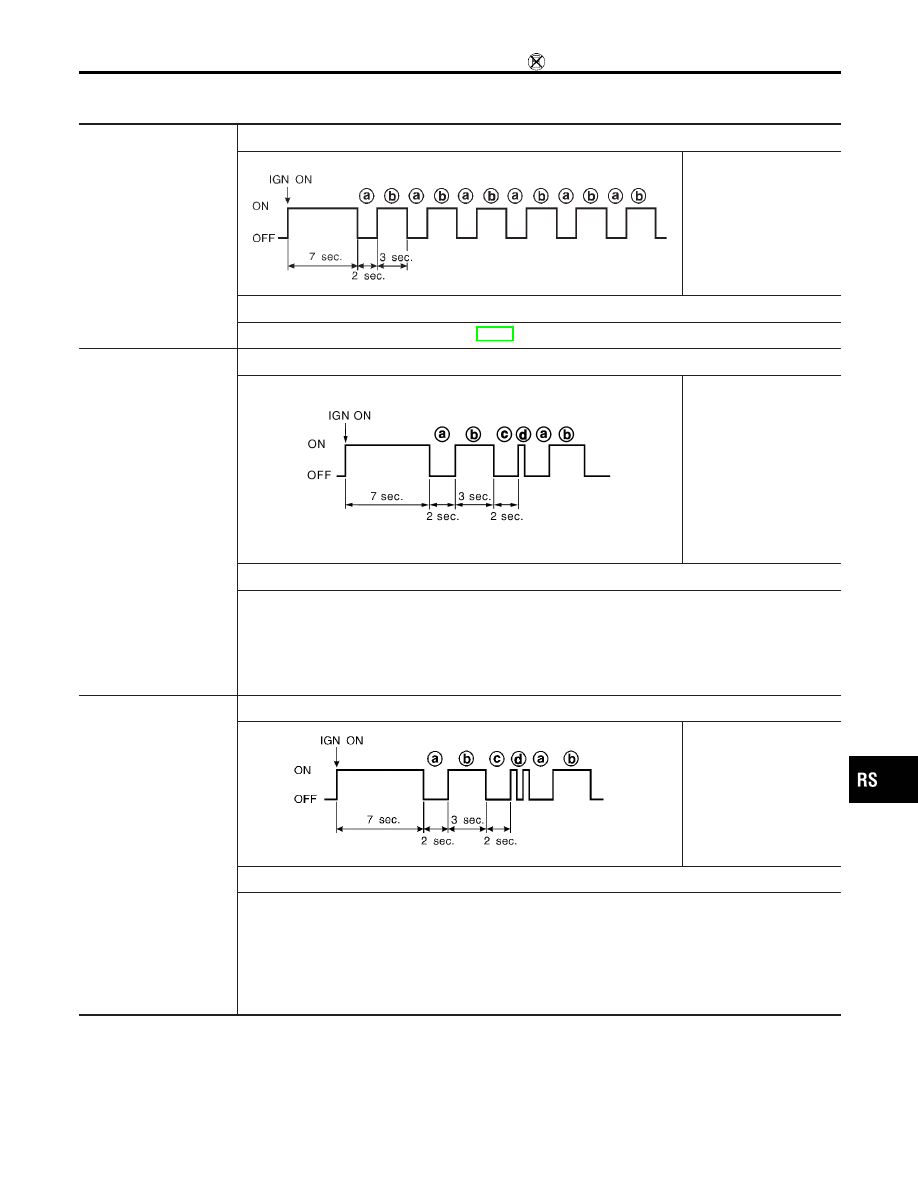

Air Bag Warning Lamp Flash Code Chart (Diagnosis
mode)

NLRS0049S0101

I

Diagnosis results (pre-
viously stored in the
memory) might not be
erased after repair.

I

Intermittent malfunc-
tion has been detected
in the past.

Flash pattern

SRS333

through are
repeated.

Repair order

I

Go to DIAGNOSTIC PROCEDURE 8 (RS-60).

Front RH seat belt pre-
tensioner circuit is mal-
functioning.
(d: 1 flash)

Flash pattern

SRS801

through are
repeated.
— One flash indicates
malfunctioning front RH
seat belt pre-tensioner
circuit.

Repair order (“Recheck SRS at each replacement”).

1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace front RH seat belt pre-tensioner.

(Before disposal, it must be deactivated.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

Driver air bag module
circuit is malfunctioning.
(d: 2 flashes)

Flash pattern

SRS334

through are
repeated.
— Two flashes indi-
cate malfunctioning
driver air bag module
circuit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the spiral cable.
4. Replace driver air bag module.

(Before disposal, it must be deployed.)

5. Replace the diagnosis sensor unit.
6. Replace the related harness.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-55
