Gear End Play

NLMT0077

Unit: mm (in)

Gear

End play

1st main gear

0.18 - 0.31 (0.0071 - 0.0122)

2nd main gear

5th main gear

Reverse main gear

3rd input gear

4th input gear

0.17 - 0.44 (0.0067 - 0.0173)

Clearance Coupling Sleeve

NLMT0094

1ST, 2ND, 3RD, 4TH, 5TH & REVERSE COUPLING SLEEVE

NLMT0094S01

Coupling sleeve

Length “L”

1st & 2nd

0 - 0.68 mm (0 - 0.0268 in)

3rd & 4th

0 - 0.95 mm (0 - 0.0374 in)

5th & Reverse

0 - 0.89 mm (0 - 0.0350 in)

Clearance Between Baulk Ring and Gear

NLMT0078

3RD, 4TH, 5TH, REVERSE BAULK RING

NLMT0078S01

Unit: mm (in)

Standard

Wear limit

3rd

0.90 - 1.45 (0.0354 - 0.0571)

0.7 (0.028)

4th

5th

Reverse

0.9 - 1.35 (0.0354 - 0.0531)

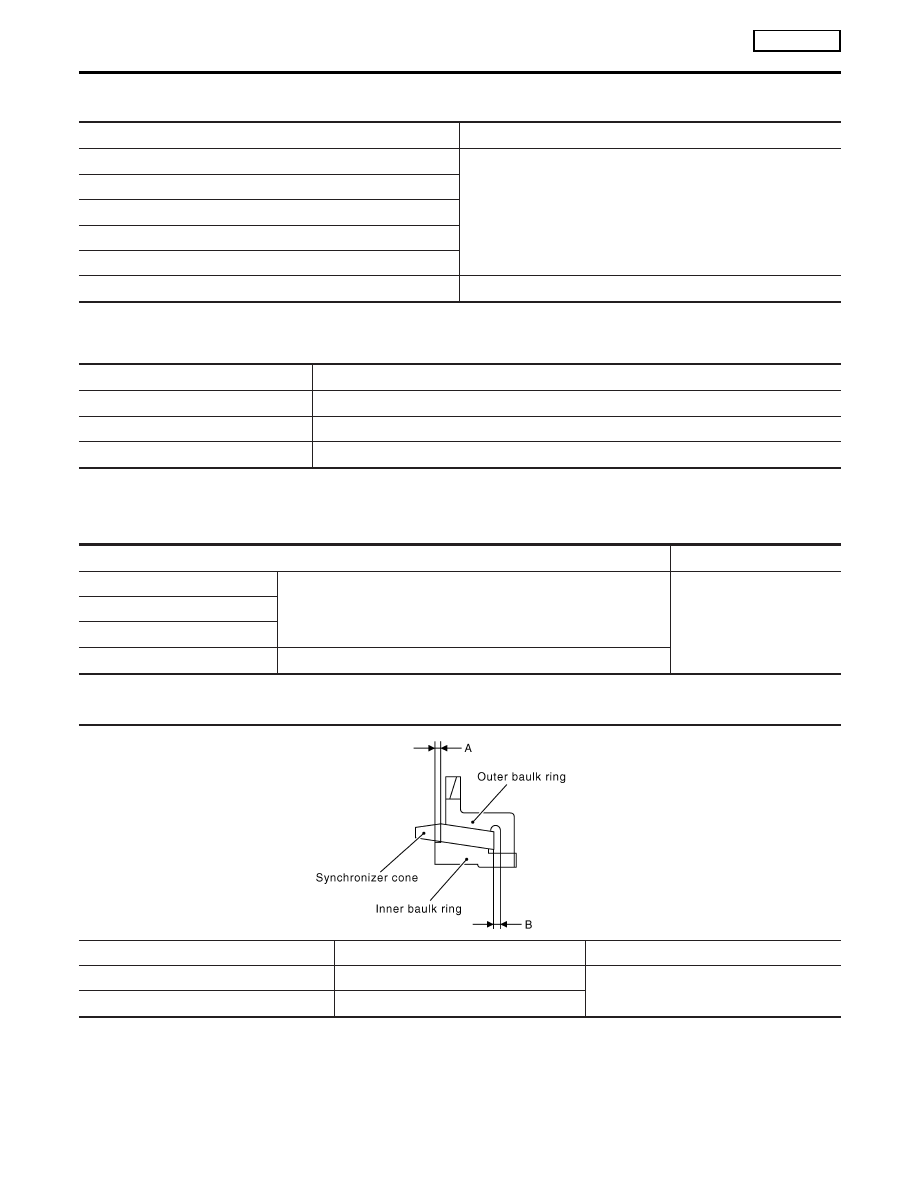

1ST AND 2ND DOUBLE BAULK RING

NLMT0078S02

Unit: mm (in)

SMT906D

Dimension

Standard

Wear limit

0.6 - 0.8 (0.024 - 0.031)

0.2 (0.008)

0.6 - 1.1 (0.024 - 0.043)

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F70A

Gear End Play

MT-90

Available Snap Rings

NLMT0079

SNAP RING

NLMT0079S01

End play

0.05 - 0.25 mm (0.0020 - 0.0098 in)

Thickness

mm (in)

Part number*

1.45 (0.0571)

32204-6J000

1.55 (0.0610)

32204-6J001

1.65 (0.0650)

32204-6J002

1.75 (0.0689)

32204-6J003

1.85 (0.0728)

32204-6J004

*: Always check with the parts department for the latest information.

Available C-rings

NLMT0080

4TH INPUT GEAR C-RING

NLMT0080S01

End play

0 - 0.06 mm (0 - 0.0024 in)

Thickness

mm (in)

Part number*

3.00 (0.1181)

32205-6J000

3.03 (0.1193)

32205-6J001

3.06 (0.1205)

32205-6J002

3.09 (0.1217)

32205-6J003

3.12 (0.1228)

32205-6J004

*: Always check with the parts department for the latest information.

5TH INPUT GEAR REAR C-RING

NLMT0080S02

End play

0 - 0.06 mm (0 - 0.0024 in)

Thickness

mm (in)

Part number*

2.59 (0.1020)

32205-6J005

2.62 (0.1031)

32205-6J006

2.65 (0.1043)

32205-6J007

2.68 (0.1055)

32205-6J008

2.71 (0.1067)

32205-6J009

2.74 (0.1079)

32205-6J010

*: Always check with the parts department for the latest information.

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F70A

Available Snap Rings

MT-91

MAINSHAFT C-RING

NLMT0080S03

End play

0 - 0.06 mm (0 - 0.0024 in)

Thickness

mm (in)

Part number*

3.48 (0.1370)

32348-6J000

3.51 (0.1382)

32348-6J001

3.54 (0.1394)

32348-6J002

3.57 (0.1406)

32348-6J003

3.60 (0.1417)

32348-6J004

3.63 (0.1429)

32348-6J005

3.66 (0.1441)

32348-6J006

3.69 (0.1453)

32348-6J007

3.72 (0.1465)

32348-6J008

3.75 (0.1476)

32348-6J009

3.78 (0.1488)

32348-6J010

3.81 (0.1500)

32348-6J011

3.84 (0.1512)

32348-6J012

3.87 (0.1524)

32348-6J013

3.90 (0.1535)

32348-6J014

3.93 (0.1547)

32348-6J015

3.96 (0.1559)

32348-6J016

*: Always check with the parts department for the latest information.

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F70A

Available C-rings (Cont’d)

MT-92

Available Adjusting Shims

NLMT0081

INPUT SHAFT REAR BEARING ADJUSTING SHIM

NLMT0081S01

End play

0 - 0.06 mm (0 - 0.0024 in)

Thickness

mm (in)

Part number*

0.74 (0.0291)

32225-6J003

0.78 (0.0307)

32225-6J004

0.82 (0.0323)

32225-6J005

0.86 (0.0339)

32225-6J006

0.90 (0.0354)

32225-6J007

0.94 (0.0370)

32225-6J008

0.98 (0.0386)

32225-6J009

1.02 (0.0402)

32225-6J010

1.06 (0.0417)

32225-6J011

1.10 (0.0433)

32225-6J012

1.14 (0.0449)

32225-6J013

1.18 (0.0465)

32225-6J014

1.22 (0.0480)

32225-6J015

1.26 (0.0496)

32225-6J016

1.30 (0.0512)

32225-6J017

1.34 (0.0528)

32225-6J018

1.38 (0.0543)

32225-6J019

1.42 (0.0559)

32225-6J020

1.46 (0.0575)

32225-6J021

1.50 (0.0591)

32225-6J022

1.54 (0.0606)

32225-6J023

1.58 (0.0622)

32225-6J024

1.62 (0.0638)

32225-6J060

1.66 (0.0654)

32225-6J061

*: Always check with the parts department for the latest information.
