Nissan Almera Tino V10. Manual - part 892





EM-224

[YD]

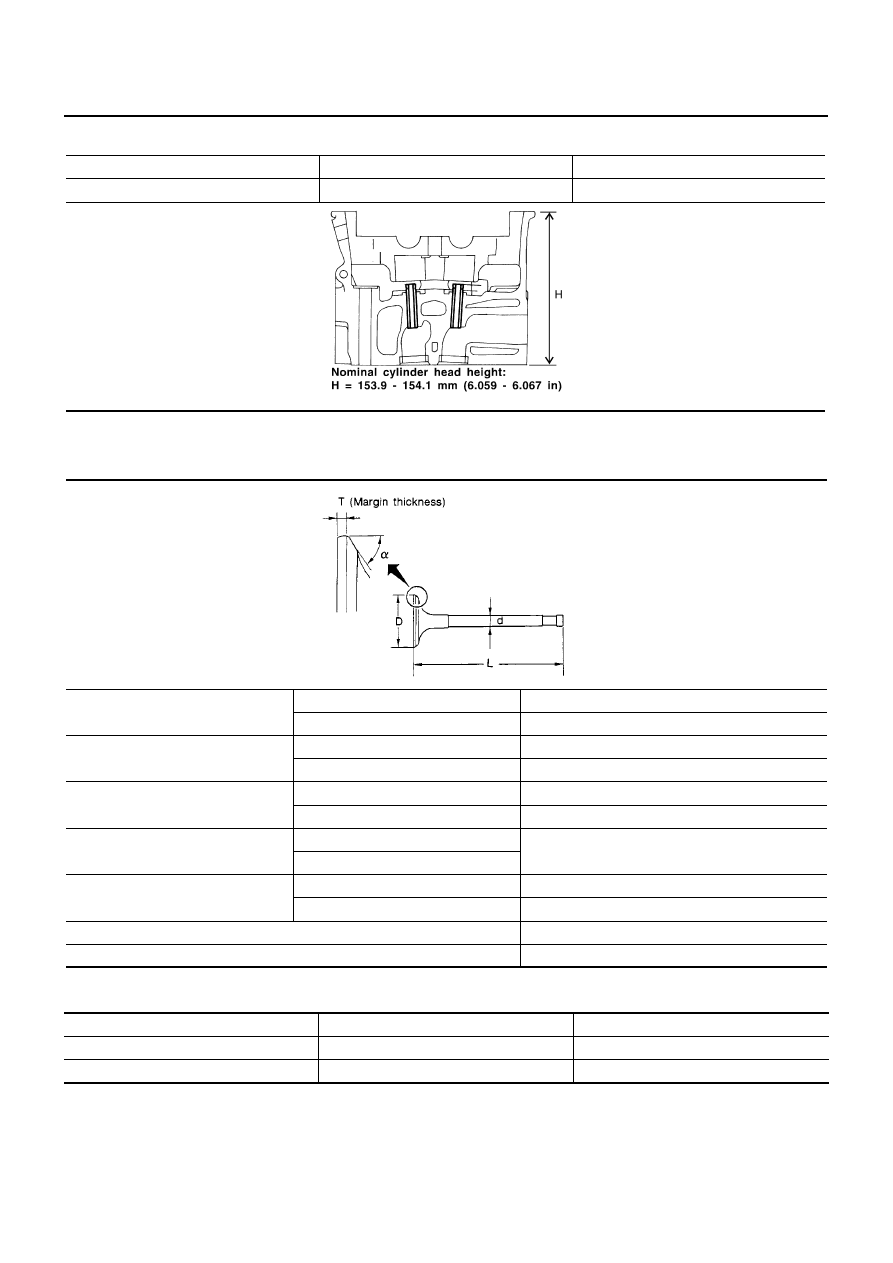

SERVICE DATA AND SPECIFICATIONS (SDS)

CYLINDER HEAD

Unit: mm (in)

VALVE
Valve

Unit: mm (in)

Valve Clearance

Unit: mm (in)

*1: Approximately 20

°

C (68

°

F)

*2: Approximately 80

°

C (176

°

F)

Item

Standard

Limit

Head surface distortion

Less than 0.03 (0.0012)

0.04 (0.0016)

JEM204G

Valve head diameter “D”

Intake

28.0 - 28.3 (1.102 - 1.114)

Exhaust

26.0 - 26.3 (1.024 - 1.035)

Valve length “L”

Intake

106.72 (4.2016)

Exhaust

106.36 (4.1874)

Valve stem diameter “d”

Intake

5.965 - 5.980 (0.2348 - 0.2354)

Exhaust

5.945 - 5.960 (0.2341 - 0.2346)

Valve seat angle “

α

Intake

45

°

15

- 45

°

45

Exhaust

Valve margin “T”

Intake

1.38 (0.0543)

Exhaust

1.48 (0.0583)

Valve margin “T” limit

More than 1.0 (0.039)

Valve stem end surface grinding limit

Less than 0.2 (0.008)

SEM188

Item

Cold*1

Hot*2 (reference data)

Intake

0.24 - 0.32 (0.0094 - 0.0126)

0.274 - 0.386 (0.011 - 0.015)

Exhaust

0.26 - 0.34 (0.0102 - 0.0134)

0.308 - 0.432 (0.012 - 0.017)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-225

[YD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

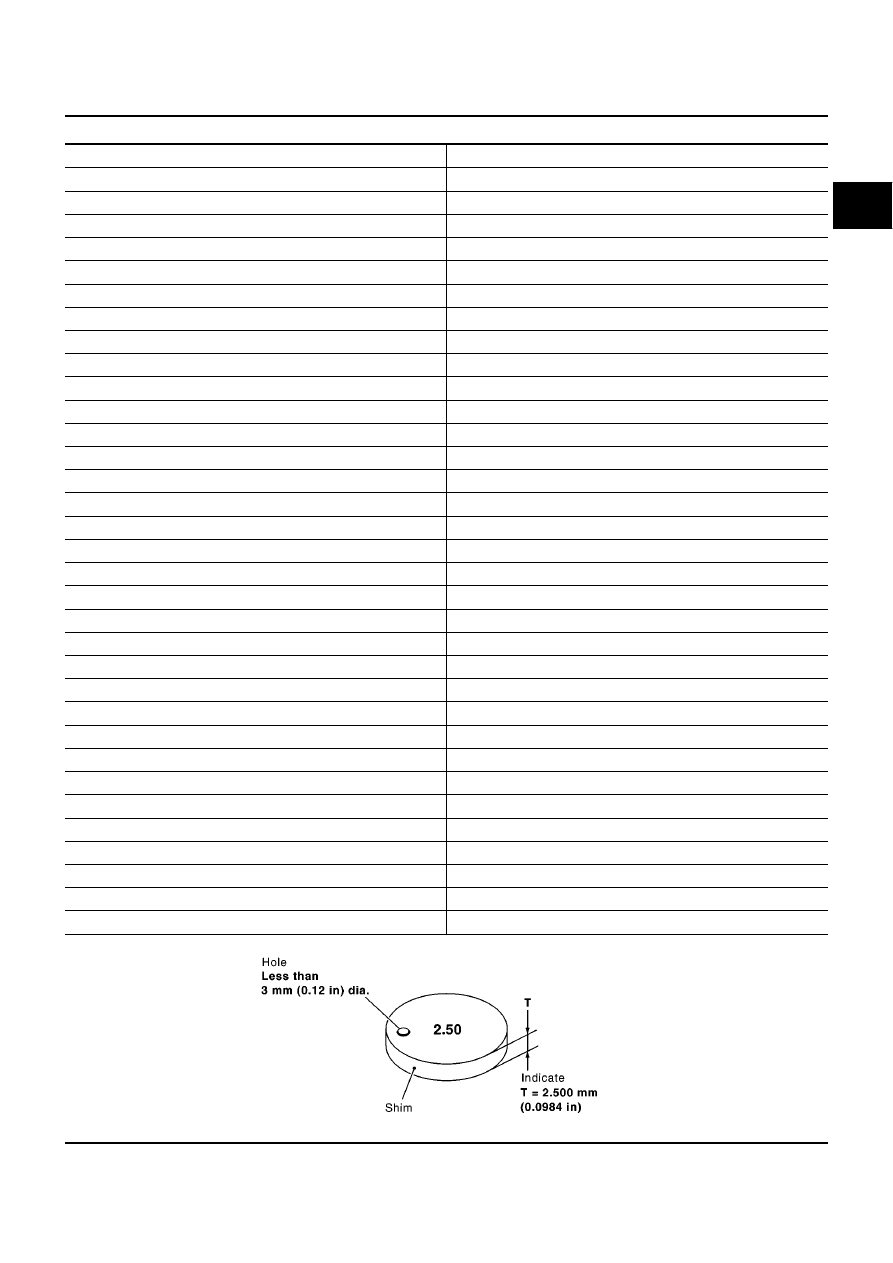

Available Shims

Stamped mark

Thickness

mm (in)

2.10

2.10 (0.0827)

2.12

2.12 (0.0835)

2.14

2.14 (0.0843)

2.16

2.16 (0.0850)

2.18

2.18 (0.0858)

2.20

2.20 (0.0866)

2.22

2.22 (0.0874)

2.24

2.24 (0.0882)

2.26

2.26 (0.0890)

2.28

2.28 (0.0898)

2.30

2.30 (0.0906)

2.32

2.32 (0.0913)

2.34

2.34 (0.0921)

2.36

2.36 (0.0929)

2.38

2.38 (0.0937)

2.40

2.40 (0.0954)

2.42

2.42 (0.0953)

2.44

2.44 (0.0961)

2.46

2.46 (0.0969)

2.48

2.48 (0.0976)

2.50

2.50 (0.0984)

2.52

2.52 (0.0992)

2.54

2.54 (0.1000)

2.56

2.56 (0.1008)

2.58

2.58 (0.1016)

2.60

2.60 (0.1024)

2.62

2.62 (0.1031)

2.64

2.64 (0.1039)

2.66

2.66 (0.1047)

2.68

2.68 (0.1055)

2.70

2.70 (0.1063)

2.72

2.72 (0.1071)

2.74

2.74 (0.1079)

SEM512G

EM-226

[YD]

SERVICE DATA AND SPECIFICATIONS (SDS)

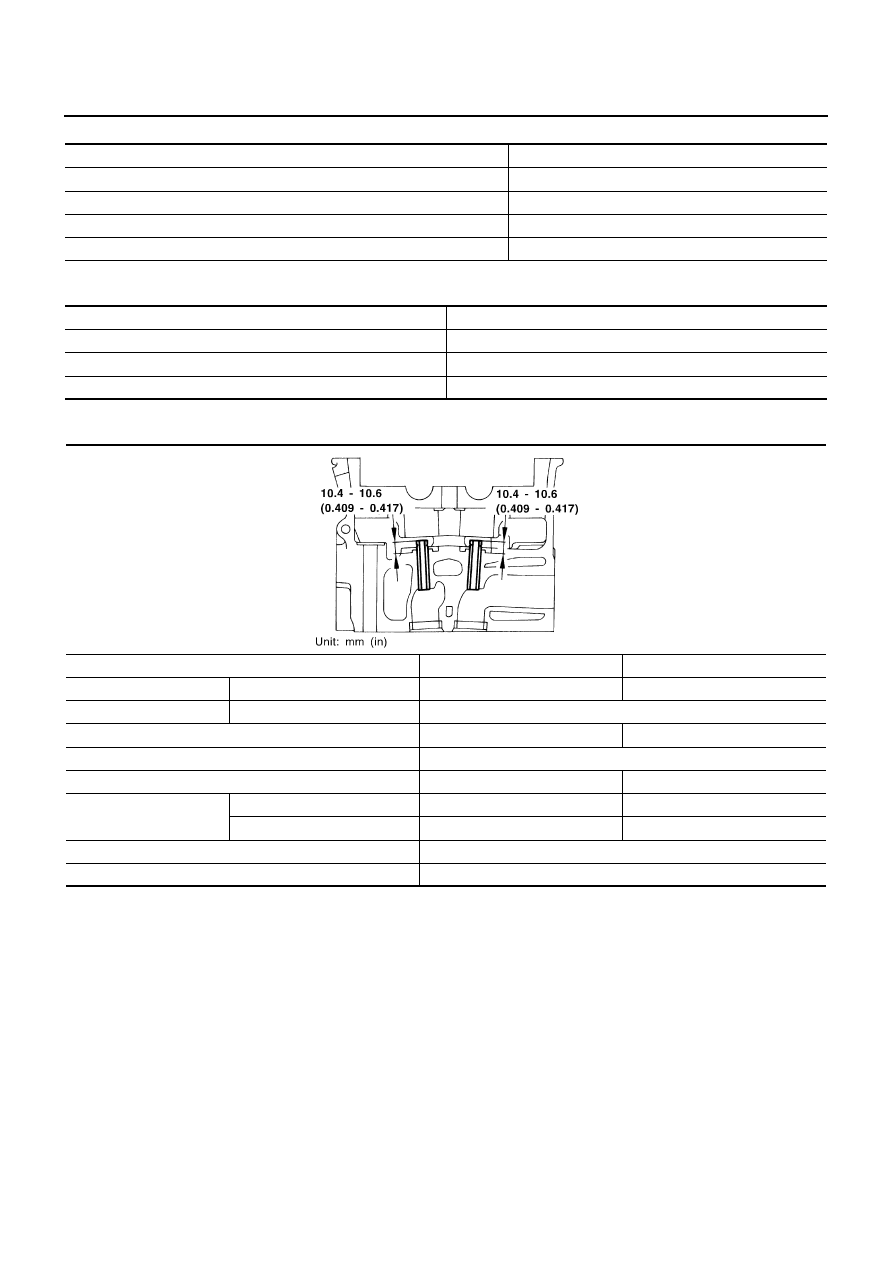

Valve Spring

Valve Lifter

Unit: mm (in)

Valve Guide

Unit: mm (in)

Free height

mm (in)

44.74 (1.7614)

Pressure

N (kg, lb) at height mm (in)

184 - 208 (18.77 - 21.22, 41.4 - 46.8) at 32.82 (1.2921)

Out-of-square

mm (in)

Limit 1.5 (0.059)

Height during valve open

mm (in)

24.82 (0.9772)

Load with valve open

N (kg, lb)

320 - 360 (32.65 - 36.73, 71.9 - 80.9)

Item

Standard

Valve lifter outer diameter

29.960 - 29.975 (1.1795 - 1.1801)

Lifter guide inner diameter

30.000 - 30.021 (1.1811 - 1.1819)

Clearance between lifter and lifter guide

0.025 - 0.061 (0.0010 - 0.0024)

Item

Standard

Service

Valve guide

Outer diameter

10.023 - 10.034 (0.3946 - 0.3950)

10.223 - 10.234 (0.4025 - 0.4029)

Valve guide

Inner diameter (Finished size)

6.000 - 6.018 (0.2362 - 0.2369)

Cylinder head valve guide hole diameter

9.975 - 9.996 (0.3927 - 0.3935)

10.175 - 10.196 (0.4006 - 0.4014)

Interference fit of valve guide

0.027 - 0.059 (0.0011 - 0.0023)

Item

Standard

Limit

Stem to guide clearance

Intake

0.020 - 0.053 (0.0008 - 0.0021)

0.08 (0.0031)

Exhaust

0.040 - 0.073 (0.0016 - 0.0029)

0.1 (0.004)

Valve deflection limit

0.15 (0.0059)

Projection length

10.4 - 10.6 (0.409 - 0.417)

JEM156G

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-227

[YD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

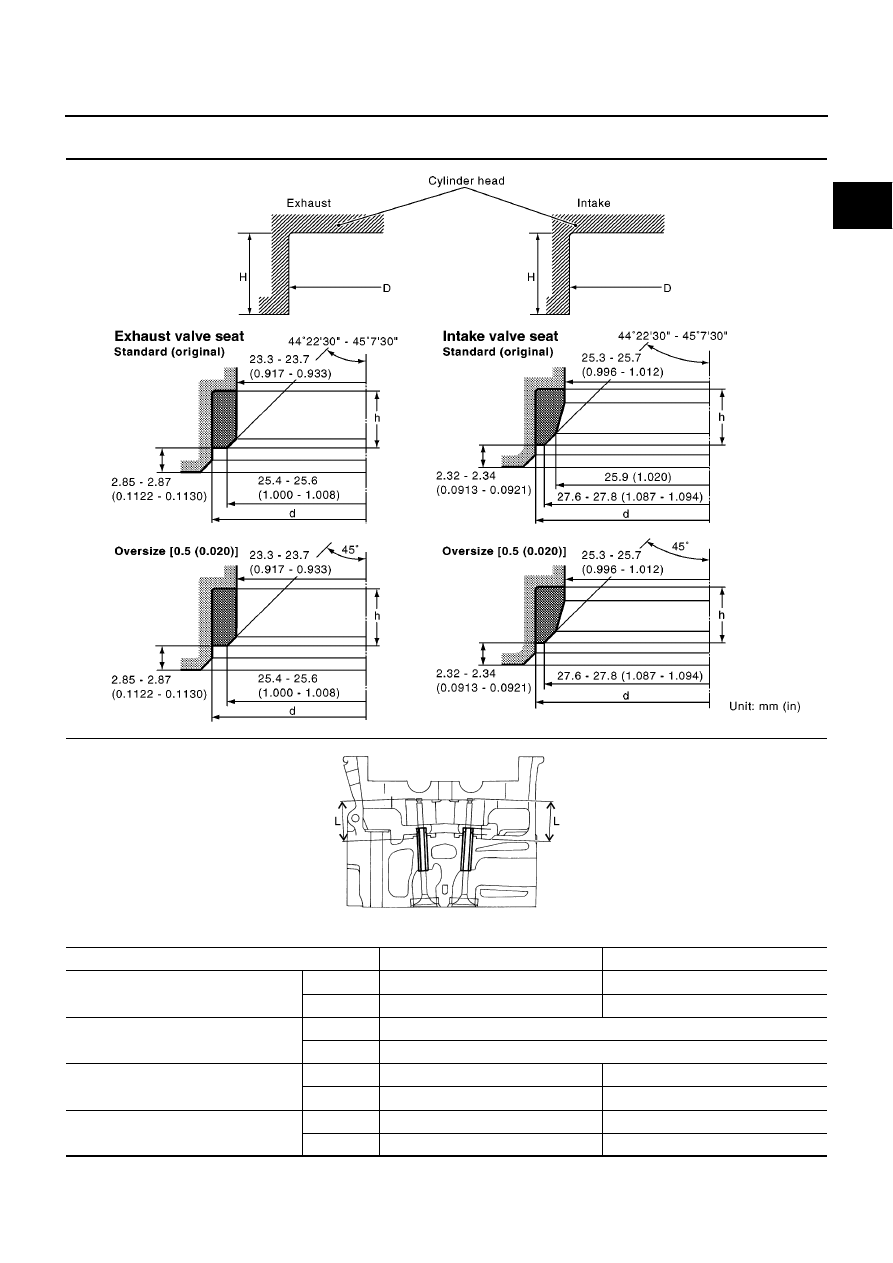

Valve Seat

Unit: mm (in)

Item

Standard

Service

Cylinder head seat recess diameter (D)

Intake

30.000 - 30.016 (1.1181 - 1.1817)

30.500 - 30.516 (1.2008 - 1.2014)

Exhaust

29.000 - 29.016 (1.1417 - 1.1424)

29.500 - 29.516 (1.1614 - 1.1620)

Valve seat interference fit

Intake

0.064 - 0.100 (0.0025 - 0.0039)

Exhaust

0.064 - 0.096 (0.0025 - 0.0038)

Valve seat outer diameter (d)

Intake

30.000 - 30.016 (1.1811 - 1.1817)

30.500 - 30.516 (1.2008 - 1.2014)

Exhaust

29.000 - 29.016 (1.1442 - 1.1424)

29.500 - 29.516 (1.1614 - 1.1620)

Height (h)

Intake

7.0 - 7.1 (0.276 - 0.280)

6.60 - 6.70 (0.2598 - 0.2638)

Exhaust

6.7 - 6.8 (0.264 - 0.268)

6.3 - 6.4 (0.248 - 0.252)

SEM546G

JEM253G
