CYLINDER HEAD

8.

Use a depth gauge to measure the distance between the mount-
ing surface of the cylinder head spring seat and the valve stem
end. If the distance is shorter than specified, repeat step 5
above to adjust it. If it is longer, replace the valve seat with a
new one.

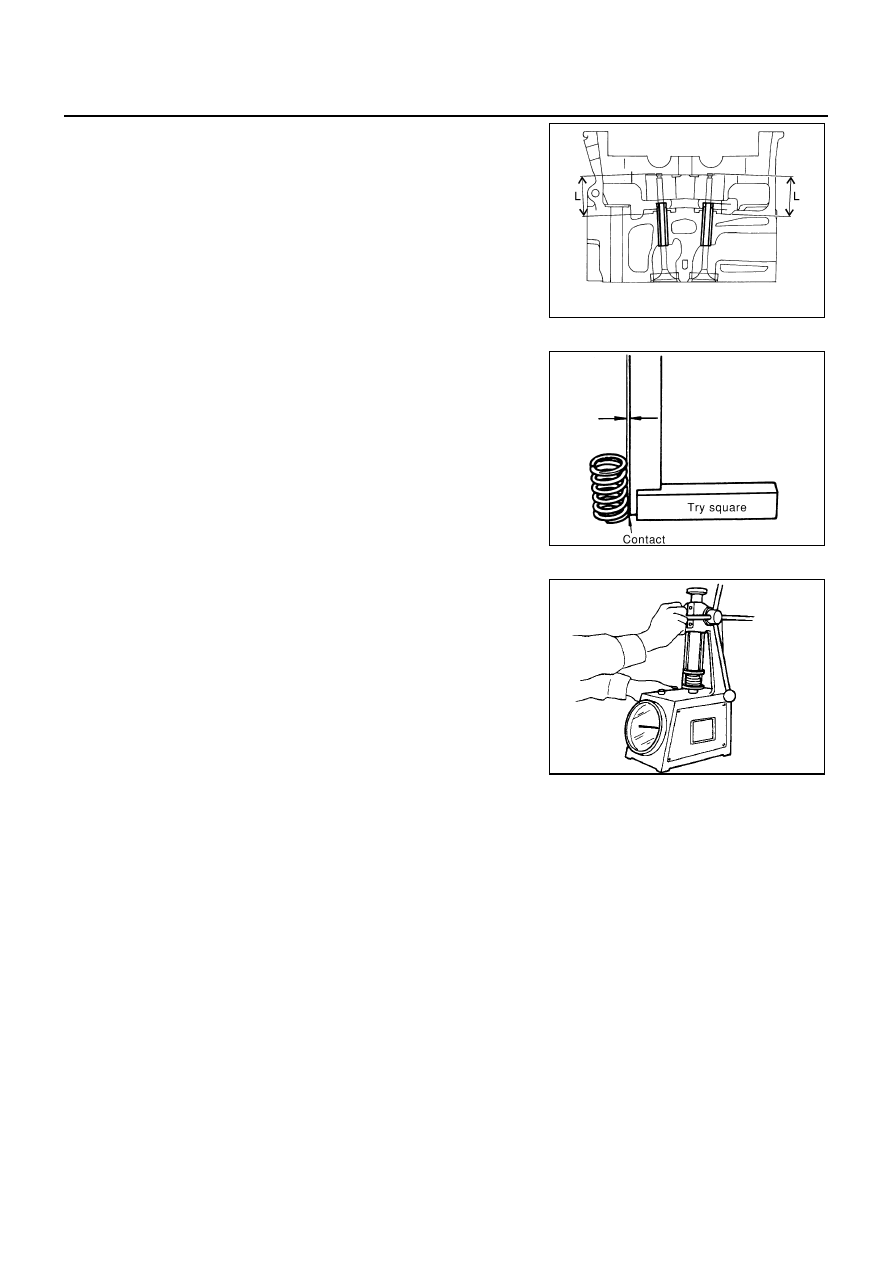

Valve Spring Squareness

Position a straightedge to valve spring, turn the spring, and measure
the maximum clearance value between top surface of spring and the
straightedge.

Valve Spring Dimensions and Valve Spring Pressure Load

Using valve spring tester, check the following.

Valve seat resurface limit “L”:

Intake

: 36.53 - 36.98 mm (1.4382 - 1.4559 in)

Exhaust

: 36.53 - 37.01 mm (1.4382 - 1.4571 in)

JEM253G

Limit

: 1.5 mm (0.059 in)

PBIC0080E

Free length

: 44.74 mm (1.7614in)

Installation height

: 32.82 mm (1.2921 in)

Installation load

: 184 - 208 N

(18.77 - 21.22 kg, 41.4 - 46.8 lb)

Height during
valve open

: 24.82 mm (0.9772 in)

Load with valve
open

: 320 - 360 N

(32.65 - 36.73 kg, 71.9 - 80.9 lb)

SEM113

ENGINE ASSEMBLY

EM-197

[YD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

ENGINE ASSEMBLY

PFP:10001

Removal and Installation

EBS00QFW

MBIA0022E

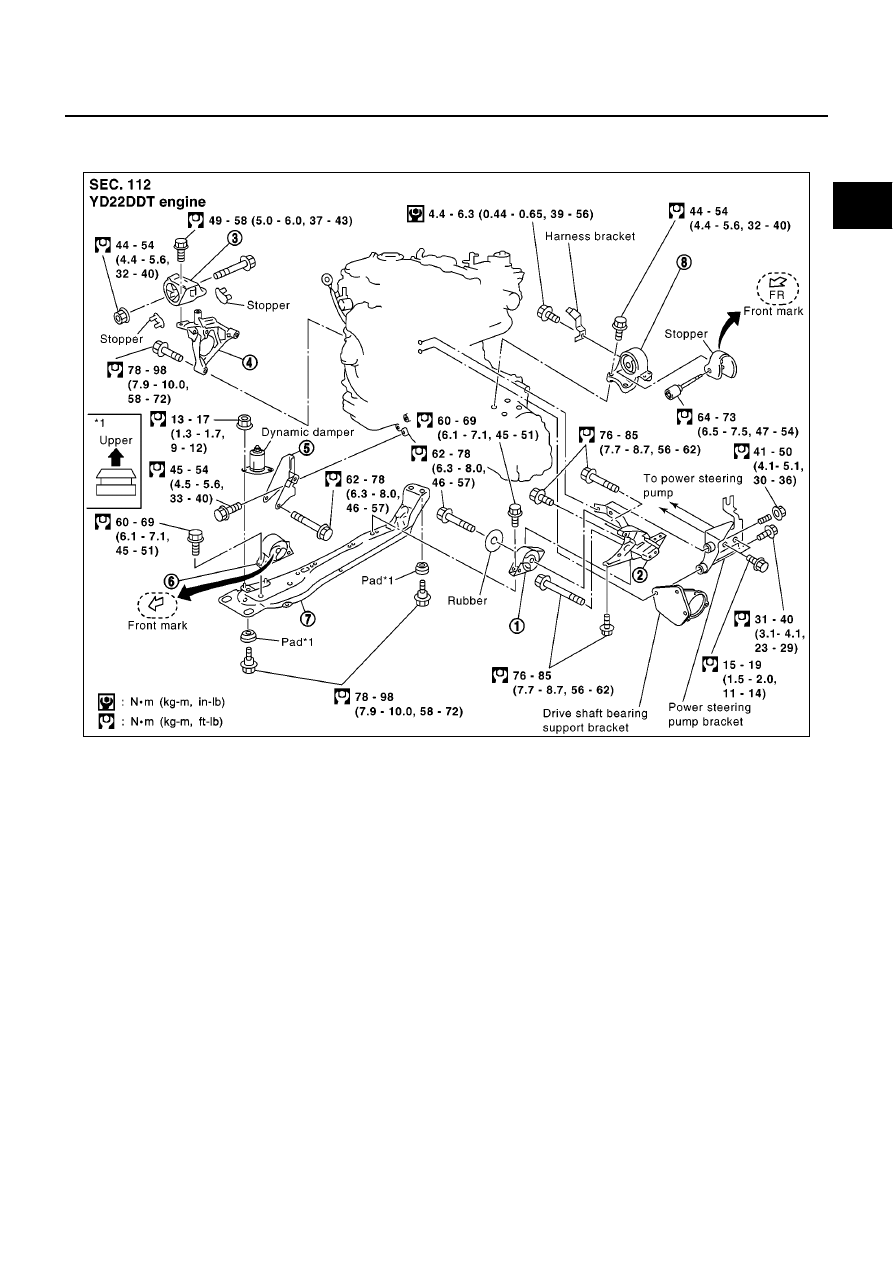

1.

Rear engine mounting insulator

2.

Rear engine mounting bracket

3.

RH engine mounting insulator

4.

RH engine mounting bracket

5.

Front engine mounting bracket

6.

Front engine mounting insulator

7.

Center member

8.

LH engine mounting insulator

EM-198

[YD]

ENGINE ASSEMBLY

WARNING:

Situate vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.

CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and coolant are cool enough.

If items or work required are not covered by the engine main body section, refer to the applicable
sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-43, “Lifting Points and
Tow Truck Towing”.

REMOVAL

Preparation

1.

Remove engine hood.

2.

Drain coolant from radiator drain plug.

3.

Remove the following parts.

LH/RH undercover

LH/RH front wheel

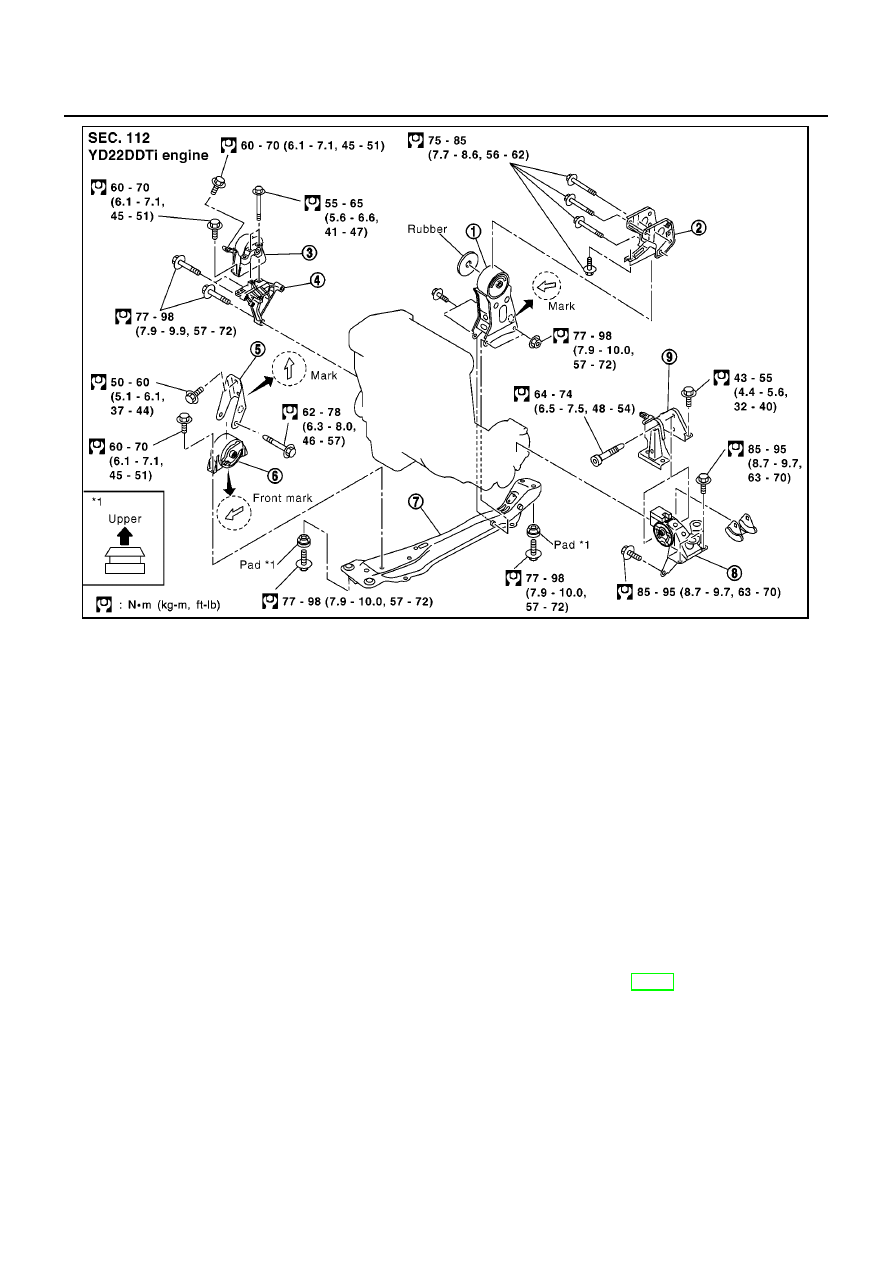

1.

Rear engine mounting insulator

2.

Rear engine mounting bracket

3.

RH engine mounting insulator

4.

RH engine mounting bracket

5.

Front engine mounting bracket

6.

Front engine mounting insulator

7.

Center member

8.

LH engine mounting insulator

9.

LH engine mounting bracket

MBIA0023E

ENGINE ASSEMBLY

EM-199

[YD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

Battery

Engine cover

Auxiliary drive belt; Refer to

EM-118, "Removal and Installation"

.

Air duct and air cleaner case assembly; Refer to

EM-119, "Removal and Installation"

.

Alternator and brackets

Radiator and radiator fan assembly; Refer to LC-39, “Radiator”.

4.

Disconnect engine room harness from the engine side and set it aside for easier work.

5.

Disconnect all the body-side vacuum hoses and air hoses at engine side.

Engine room LH

6.

Disconnect fuel feed and return hoses, and plug it to prevent fuel from draining.

7.

Disconnect heater hose, and install plug it to prevent engine coolant from draining.

8.

Remove clutch operating cylinder from transaxle, and move it aside.

9.

Disconnect shift cable from transaxle. (6M/T vehicle)

Engine room RH

10. Remove air conditioner compressor with piping connected from engine. Temporarily secure it on body

with a rope to avoid putting load on it.

Vehicle underbody

11. Remove exhaust front tube.

12. Disconnect two hoses from power steering pump and plug to stop fluid.

13. Remove MT control rod and support rod. (5M/T vehicle).

14. Remove ABS sensor from brake caliper.

15. Remove brake caliper with piping connected from steering knuckle. Temporarily secure it on body with a

rope to avoid load on it.

16. Remove LH/RH drive shafts ; Refer to AX-11, “Removal”.

Removal

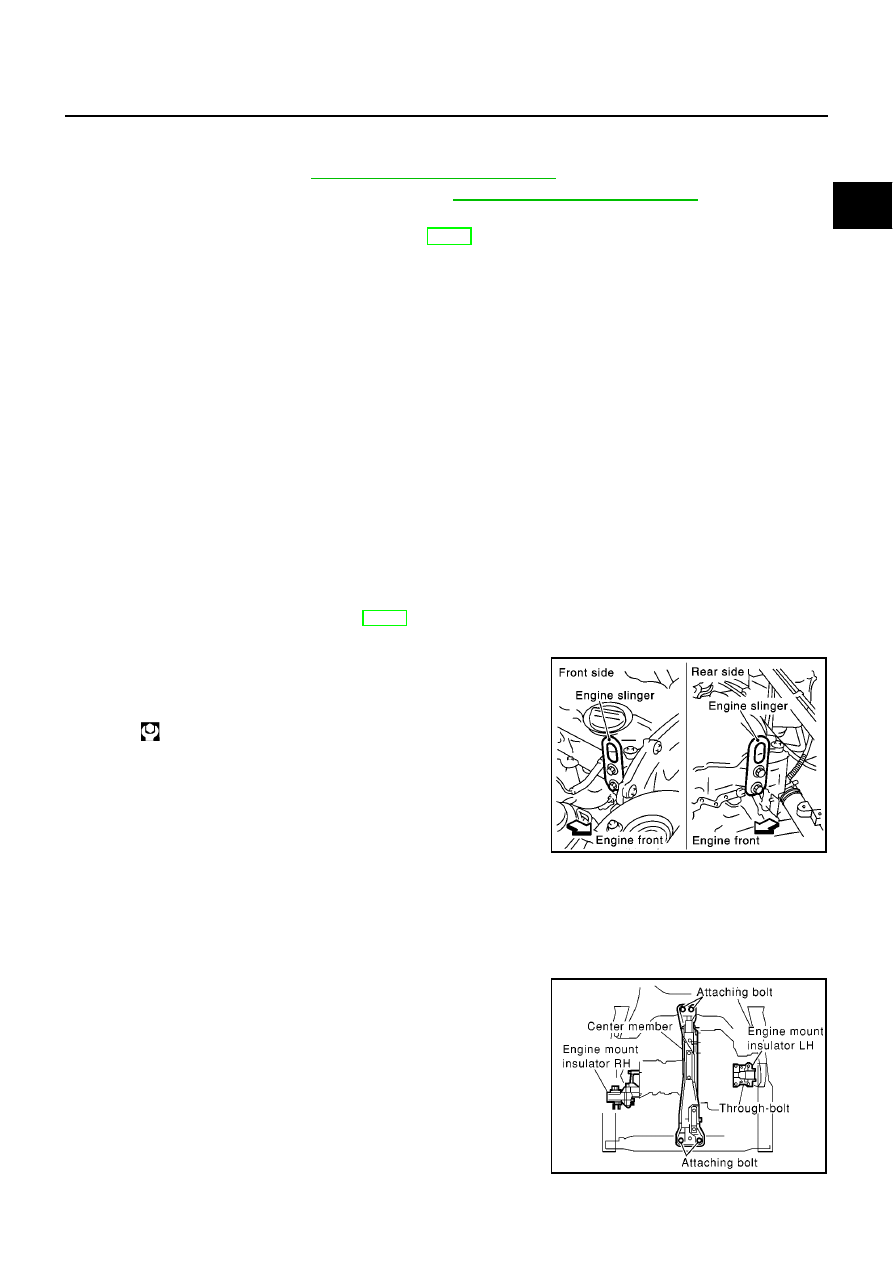

17. Install engine slingers into front right of cylinder head and rear

left of cylinder head.

18. Lift up vehicle to appropriate level where work can be performed

efficiently. Using two transmission jacks, securely support
engine oil pan and bottom surface of transaxle.

CAUTION:

Make sure that support is stable with the use of safety blocks.

19. Install hooks of lifting chain into engine slingers and tighten chain so that engine still remains on transmis-

sion jacks without being lifted up.

20. Remove engine mount insulator RH.

21. Remove through-bolt of engine mount insulator LH.
22. Remove bolts securing center member at front and rear.

Slinger bolts:

: 30 - 37 N·m (3.0 - 3.8 kg-m, 22 - 27 ft-lb)

SBIA0191E

SEM189G
