Nissan Almera Tino V10. Manual - part 803





COMBINATION METER CIRCUIT CHECK

=NLEL0646S11

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check following terminals and connector of combination meter for damage, bend and loose connection (meter side and

harness side).

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

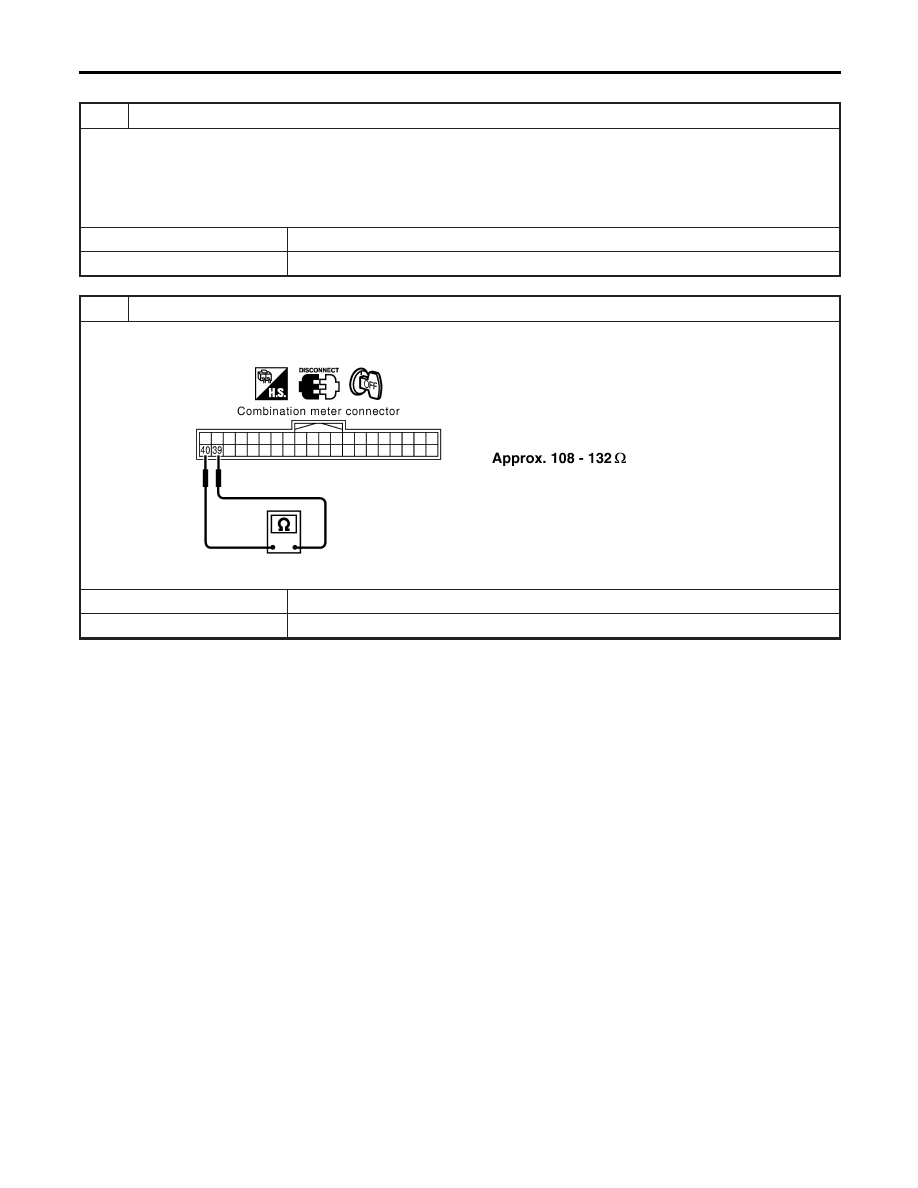

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connector M84 terminals 39 (L) and 40 (R).

YEL425E

OK or NG

OK

©

Replace combination meter.

NG

©

Repair harness between combination meter and data link connector.

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-508

CAN COMMUNICATION CIRCUIT CHECK

=NLEL0646S12

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check following terminals and connector of combination meter for damage, bend and loose connection (meter side,

control unit side, control module side and harness side).

I

Combination meter

I

Smart entrance control unit

I

ECM

I

ABS actuator and electric unit (control unit)

I

Steering angle sensor

I

Between ECM and data link connector

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

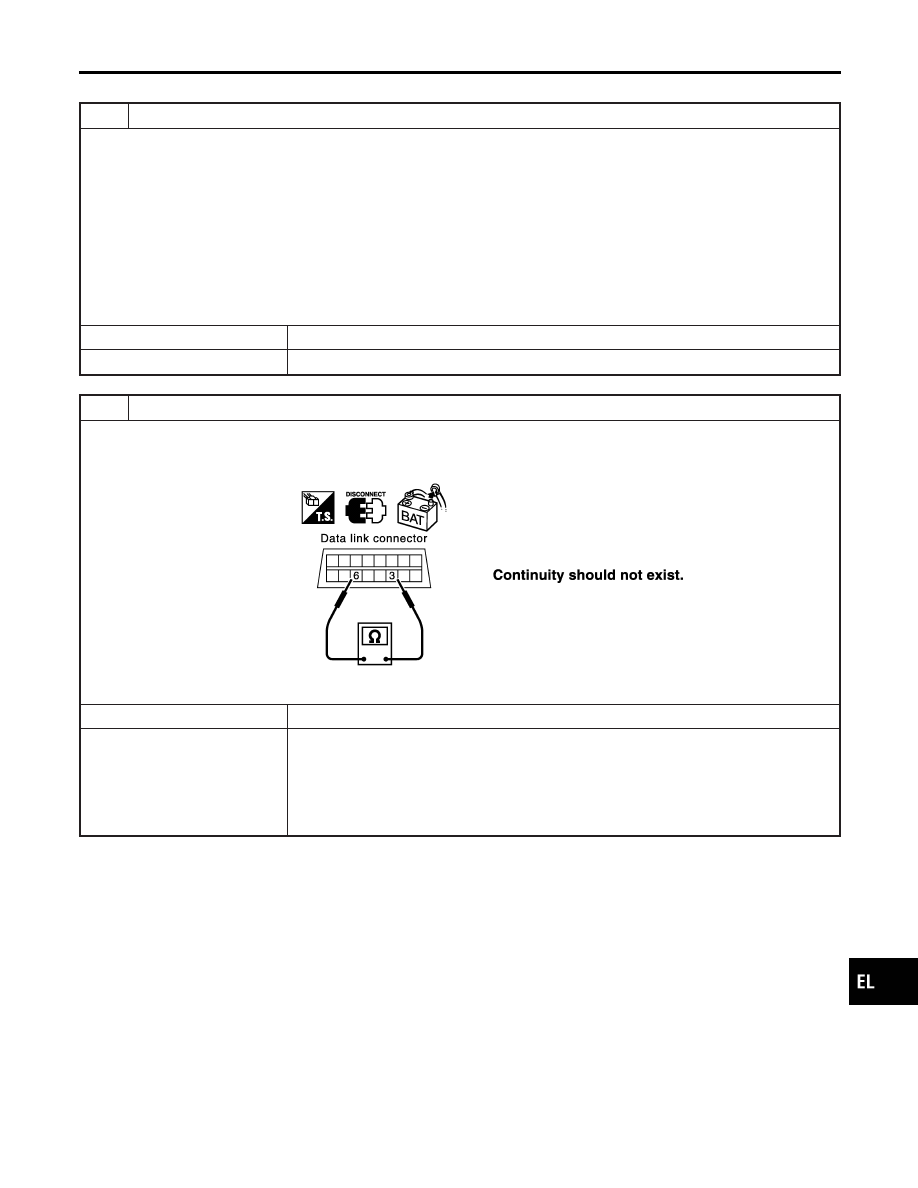

CHECK HARNESS FOR SHORT CIRCUIT

1. Disconnect combination meter connector, smart entrance control unit connector, and harness connector M82 (LHD

models) or harness connector M80 (RHD models).

2. Check continuity between data link connector M6 terminals 6 (L) and 3 (R).

SEL816Y

OK or NG

OK

©

GO TO 3.

NG

©

I

Repair harness between data link connector and harness connector M82 (LHD mod-
els).

I

Repair harness between data link connector and harness connector M80 (RHD mod-
els).

I

Repair harness between data link connector and smart entrance control unit.

I

Repair harness between data link connector and combination meter.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-509

3

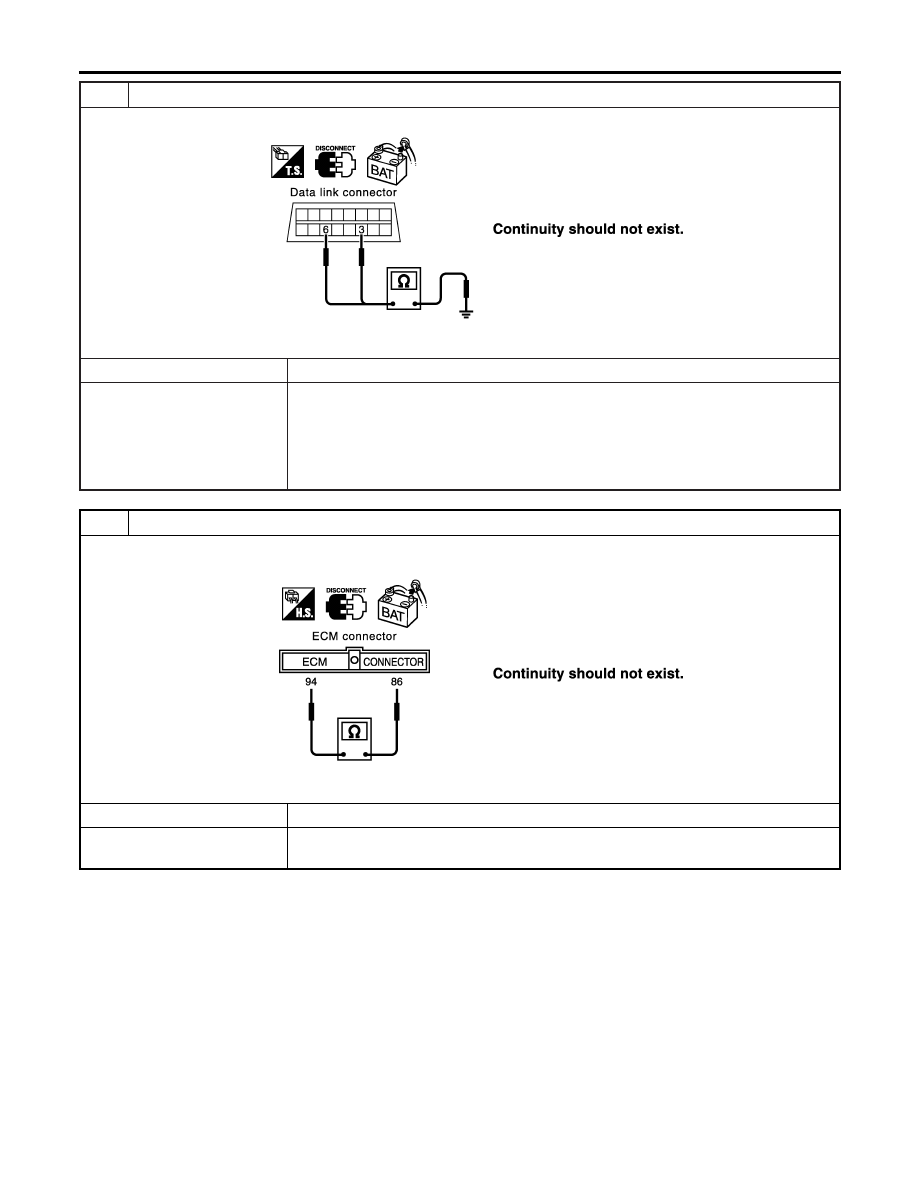

CHECK HARNESS FOR SHORT CIRCUIT

Check continuity between data link connector M6 terminals 6 (L), 3 (R) and ground.

SEL817Y

OK or NG

OK

©

GO TO 4.

NG

©

I

Repair harness between data link connector and harness connector M82 (LHD mod-
els).

I

Repair harness between data link connector and harness connector M80 (RHD mod-
els).

I

Repair harness between data link connector and smart entrance control unit.

I

Repair harness between data link connector and combination meter.

4

CHECK HARNESS FOR SHORT CIRCUIT

1. Disconnect ECM connector and harness connector M11 (LHD models).
2. Check continuity between ECM harness connector M107 terminals 94 (L) and 86 (R).

SEL820Y

OK or NG

OK

©

GO TO 5.

NG

©

I

Repair harness between ECM and harness connector M11 (LHD models).

I

Repair harness between ECM and harness connector M80 (RHD models).

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-510

5

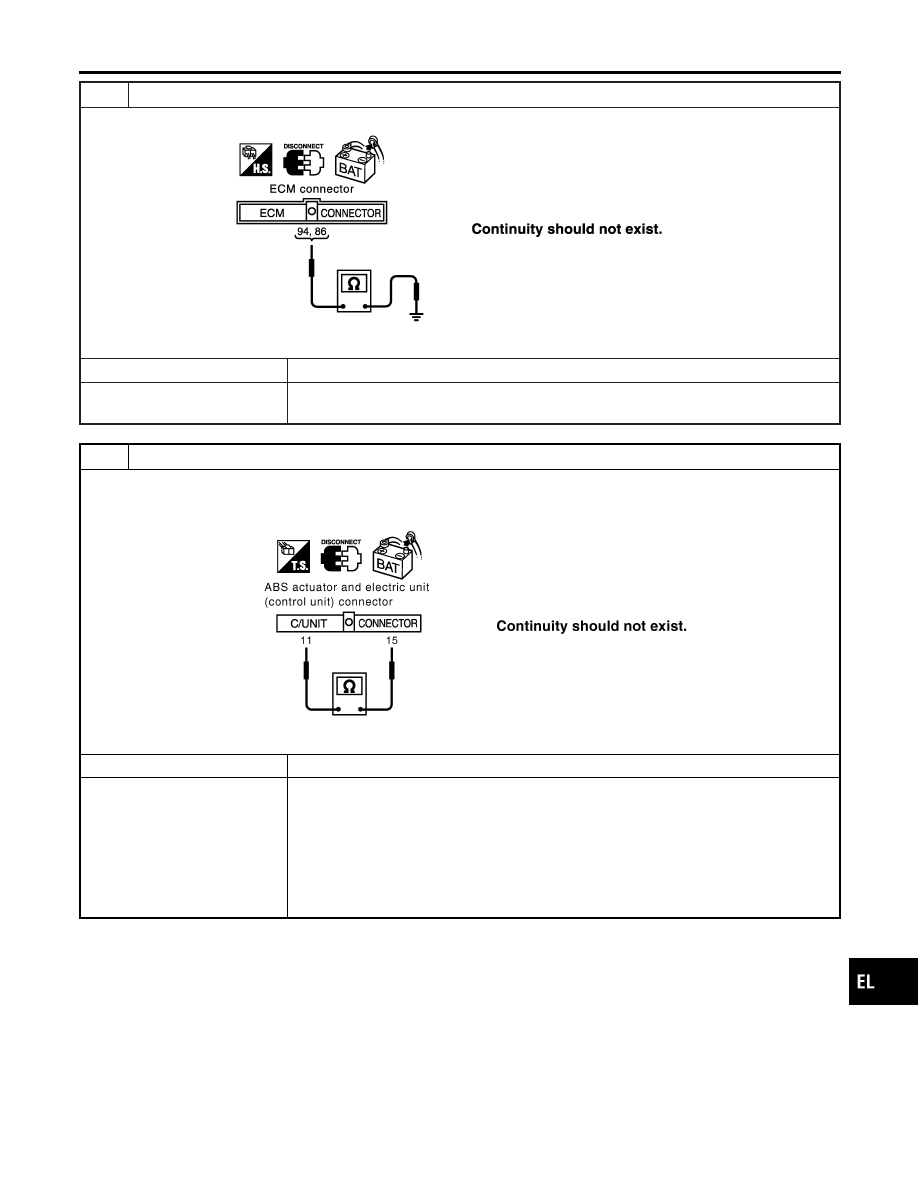

CHECK HARNESS FOR SHORT CIRCUIT

Check continuity between ECM harness connector M107 terminals 94 (L), 86 (R) and ground.

SEL821Y

OK or NG

OK

©

GO TO 6.

NG

©

I

Repair harness between ECM and harness connector M11 (LHD models).

I

Repair harness between ECM and harness connector M80 (RHD models).

6

CHECK HARNESS FOR SHORT CIRCUIT

1. Disconnect ABS actuator and electric unit (control unit) connector and steering angle sensor connector.
2. Check continuity between ABS actuator and electric unit (control unit) harness connector E143 terminals 11 (L) and 15

(R).

YEL426E

OK or NG

OK

©

GO TO 7.

NG

©

I

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E106 (LHD models).

I

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E125 (LHD models).

I

Repair harness between ABS actuator and electric unit (control unit) and steering
angle sensor.

I

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E145 (RHD models).

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)
