Nissan Almera Tino V10. Manual - part 738
2

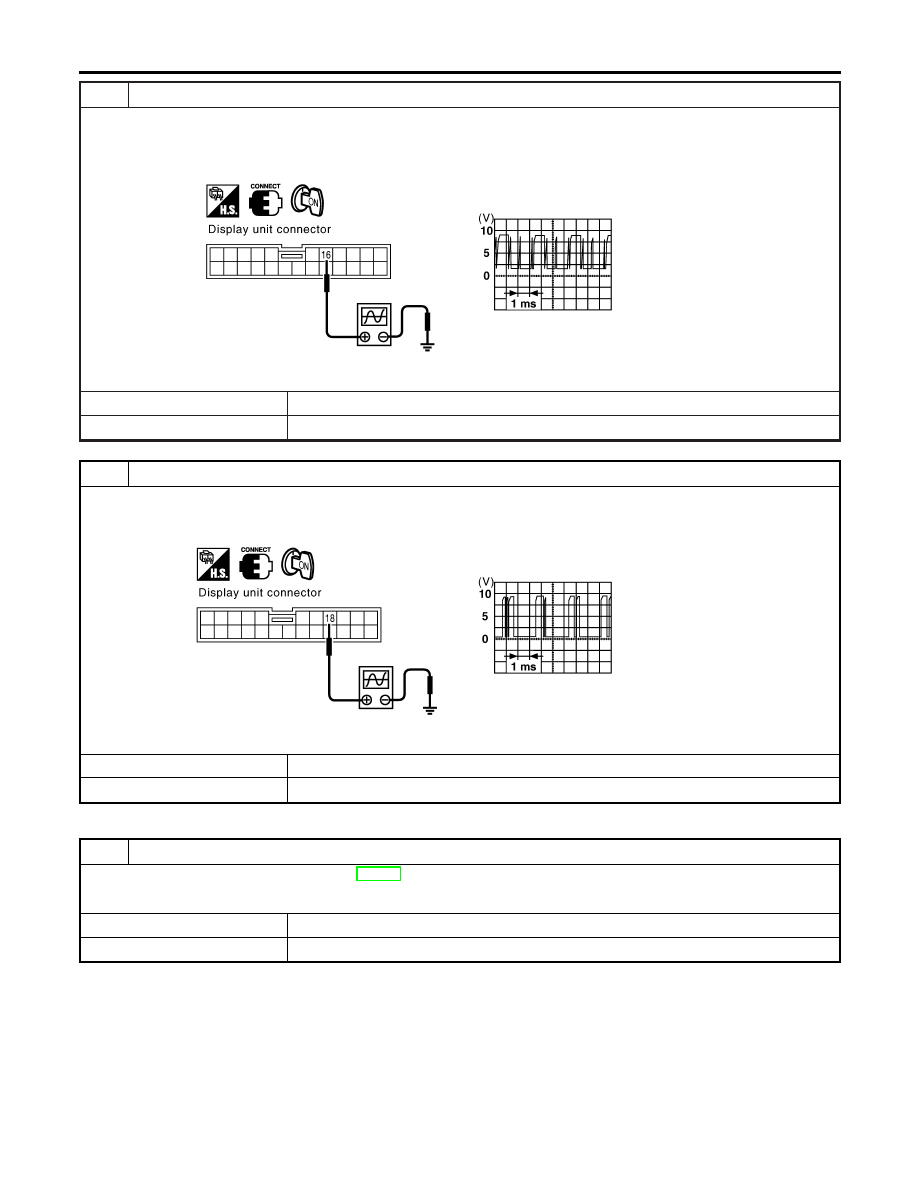

COMMUNICATION SIGNAL (AV-ME) CHECK
1. Connect display unit connector and combination meter connector.
2. Turn ignition switch ON.
3. Check voltage signal between display unit terminal 16 (R) and ground with oscilloscope or CONSULT-II.
YEL406E
OK or NG
OK
©
GO TO 3.
NG
©
Replace display unit.
3
COMMUNICATION SIGNAL (ME-AV) CHECK
1. Turn ignition switch to ON and display.
2. Check voltage signal between display unit connector terminal 18 (G) and ground with oscilloscope or CONSULT-II.
YEL407E
OK or NG
OK
©
Replace display unit.
NG
©
Replace combination meter.
MULTIFUNCTION SWITCH DOES NOT OPERATE.
NLEL0689S15
1
POWER AND GROUND CIRCUIT CHECK
I
Check power and ground circuit. Refer to EL-230.
OK or NG
OK
©
Replace multifunction switch.
NG
©
Repair or replace harness.
LCD (LIQUID CRYSTAL DISPLAY)
Trouble Diagnoses (Cont’d)
EL-248
