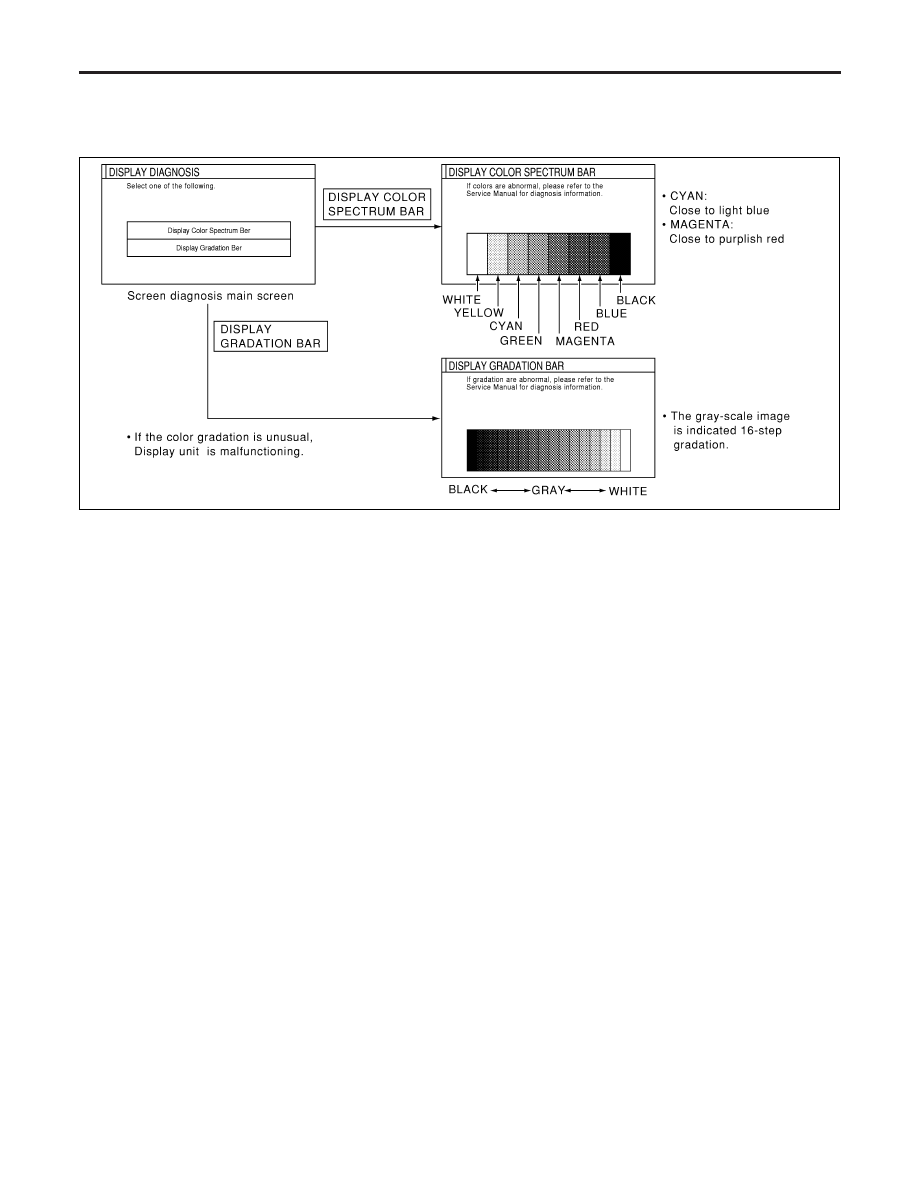

DISPLAY DIAGNOSIS

=NLEL0553S02

Use this mode to check the display color brightness and setting.
The display unit must be replaced if the color brightness and shad-
ing are unusual.

MKIB0134E

CAUTION:

When Display Color Spectrum Bar screen is completed after
“BACK” switch is pressed, the screen color changes once.
This is normal.

LCD (LIQUID CRYSTAL DISPLAY)

Confirmation/Adjustment Mode (Cont’d)

EL-228

MKIB0136E

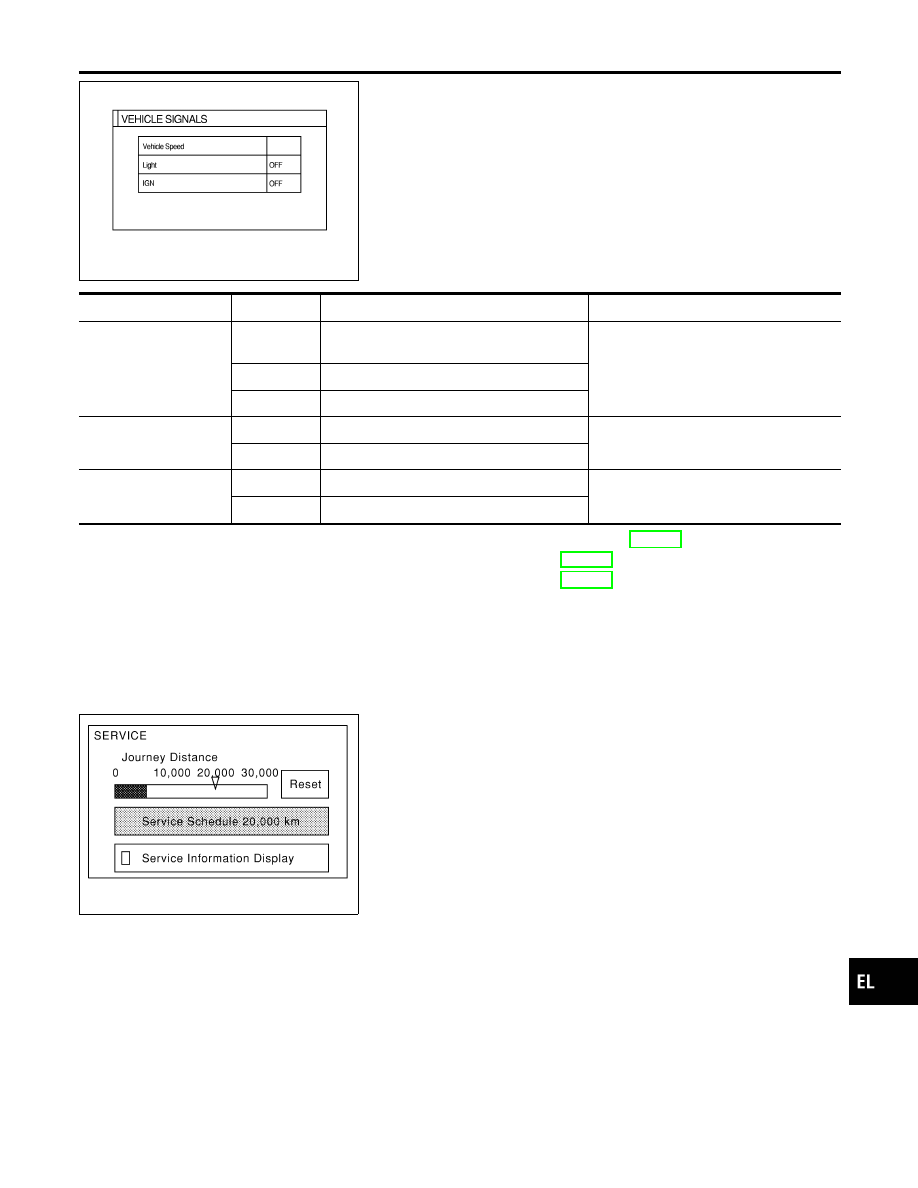

VEHICLE SIGNALS

=NLEL0553S03

I

In this mode, following input signals to the display unit can be
checked on the display.

Diagnosis item

Display

Condition

Remarks

Vehicle speed

ON

Vehicle speed is greater than 0 km/h (0
MPH).

Changes in indication may be delayed by
approx. 1.5 seconds. This is normal.

OFF

Vehicle speed is 0 km /h (0 MPH).

Ignition switch is in “ACC” position.

Light

ON

Lighting switch is 1st or 2nd position.

OFF

Lighting switch is “OFF” position.

IGN

ON

Ignition switch is in “ON” position.

OFF

Ignition switch is in “ACC” or “OFF” position.

I

If vehicle speed is NG, refer to EL-234.

I

If light is NG, refer to EL-236.

I

If IGN is NG, refer to EL-236.

MKIB0148E

SERVICE

NLEL0553S04

I

In this mode, service schedule can be set on this display.

NOTE:

I

To set service schedule, change journey distance.

I

When the indicator of “Service Information Display” is set
green, the color of the journey distance marker will be red. And
automatically service information screen will be displayed
when journey distance is reached on service schedule.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Confirmation/Adjustment Mode (Cont’d)

EL-229

Trouble Diagnoses

=NLEL0689

POWER SUPPLY AND GROUND CIRCUIT CHECK FOR
DISPLAY UNIT

NLEL0689S01

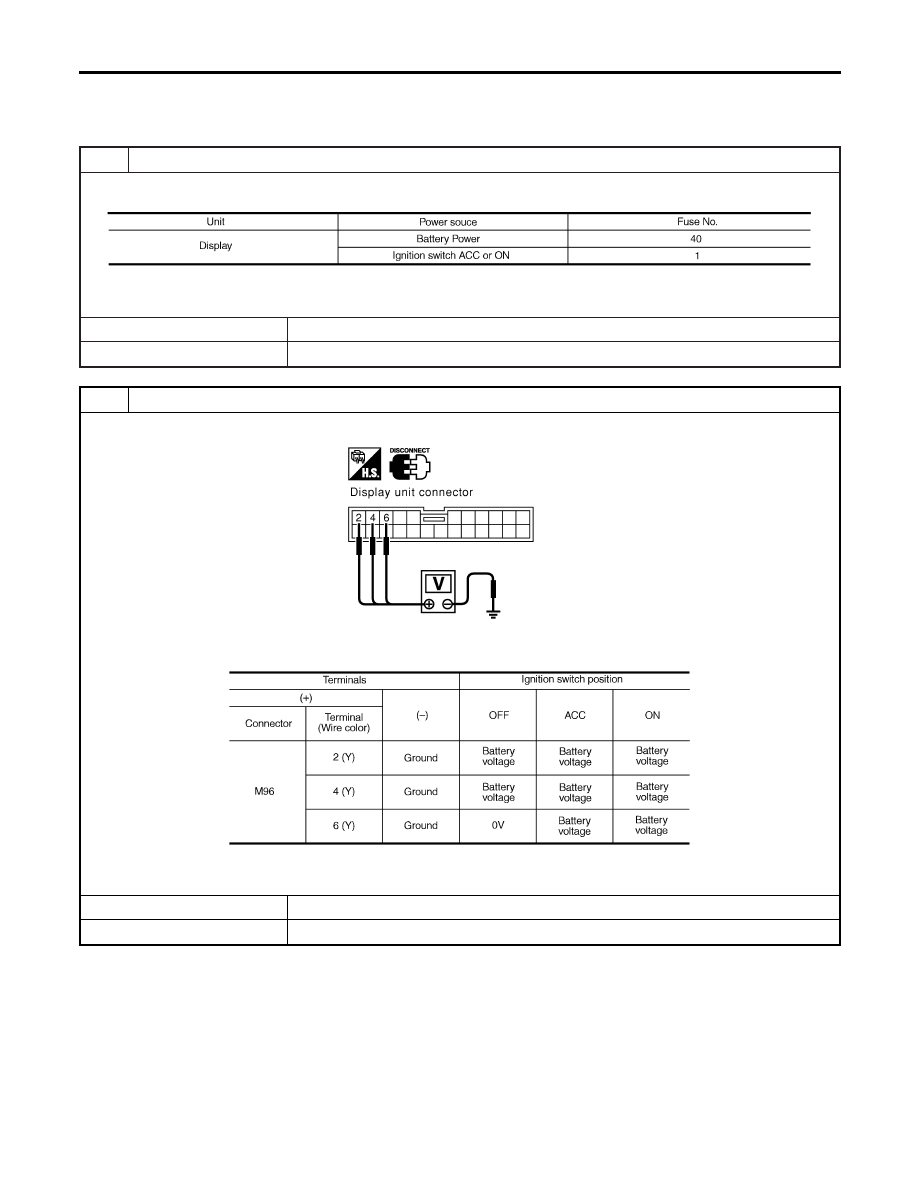

1

CHECK FUSE

Check that the following fuses in display are blown.

MTBL1650

OK or NG

OK

©

GO TO 2.

NG

©

If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2

POWER SUPPLY CIRCUIT CHECK

1. Disconnect display connector.

MKIB0101E

2. Check voltage between display unit connector and ground.

MTBL1651

OK or NG

OK

©

GO TO 3.

NG

©

Check harness for open or short between display and fuse.

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses

EL-230

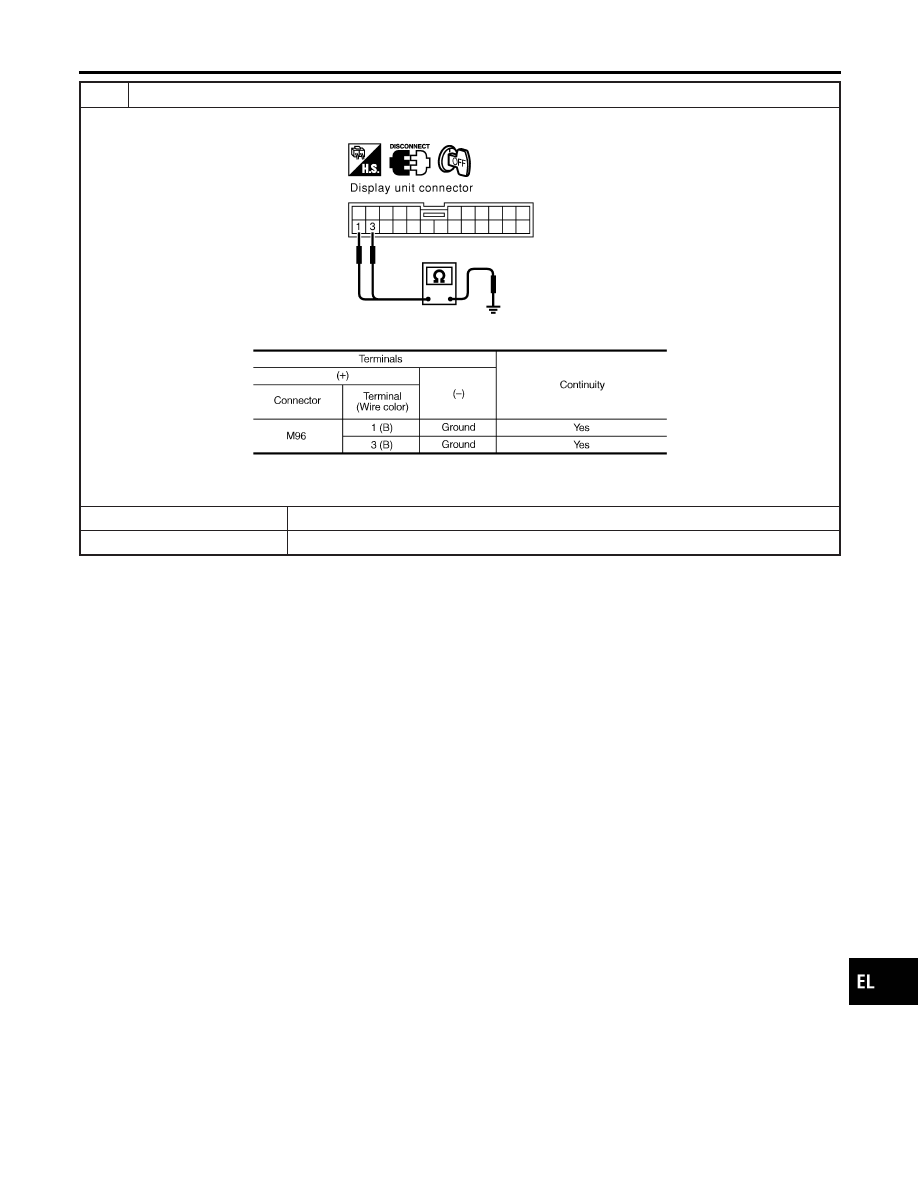

3

GROUND CIRCUIT CHECK

Check continuity between display unit and ground.

MKIB0102E

MTBL1652

OK or NG

OK

©

INSPECTION END

NG

©

Check ground harness.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-231
