Nissan Almera Tino V10. Manual - part 703





Check items

Display

Remarks

F)

PCB code

MKIB0006E

This information is not used for service. Please skip this
step.

G)

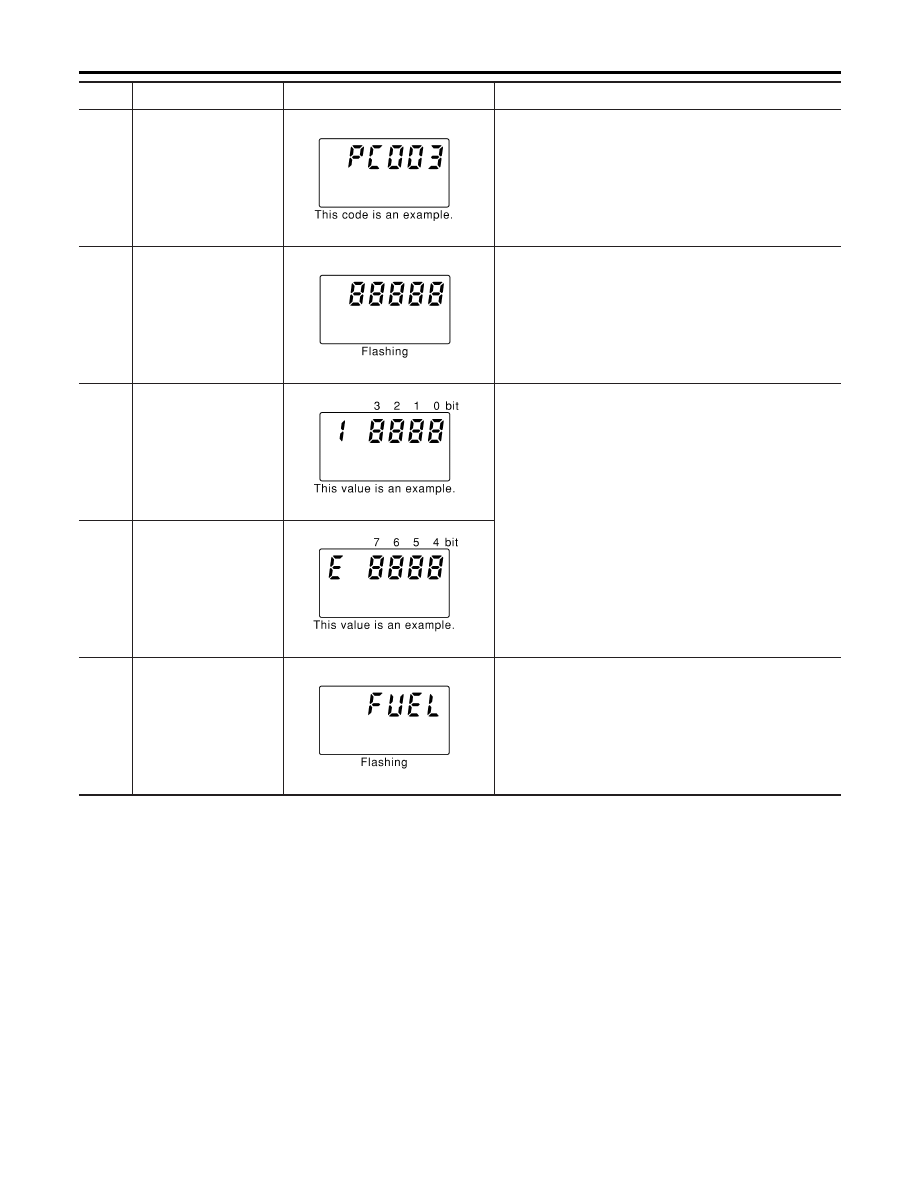

Meter/gauge test
(Sweeping movement)

MKIB0007E

Tachometer, speedometer, fuel level gauge and water
temperature gauge have sweeping movement test.
(The meter/gauges operate MIN.

,

MAX., MAX.

,

MIN.

for 2 times)
The odo trip meter segment flashes during the sweep
movement.

H)

Error 1
(Bit 0 - Bit 3)

MKIB0008E

The segment of each bit displays “0”, meaning no failure.
If the bit(s) displays figures other than “0”, the item of the
bit has failed.
For details, refer to “Failure chart for Error 1 and Error E”
below.

I)

Error E
(Bit 4 - Bit 7)

MKIB0009E

J)

Fuel warning lamp test

MKIB0010E

All warning lamps and indicator lamps (except security
indicator) are on and odo trip meter segment “FUEL”
flashes.

METERS AND GAUGES

Combination Meter Self-Diagnosis (Cont’d)

EL-108

Failure Chart for “Error 1” and “Error E”

=NLEL0447S0101

Bit

Detectable items

Description of the failure

Displayed figure on the

bit

Failure

No failure

0

Speedometer input sig-
nal

No input signal
When no signal is detected for 30 minutes continuously with
the ignition ON, it should be judged as signal failure.
(If input signal is detected later, then the judgement will be can-
celed immediately.)

1

0

Unusual input signal
When any signal of frequency which would not exist in normal
conditions is detected, it should be judged as signal failure.

2

1

Tachometer input signal

No input signal
When no signal is detected for 30 minutes continuously with
the ignition ON, it should be judged as signal failure.
(If input signal is detected later, then the judgement will be can-
celed immediately.)

1

0

Unusual input signal
When any signal of frequency which would not exist in normal
conditions is detected, it should be judged as signal failure.

2

2

Fuel level input signal

Short circuit
When short circuit of the signal line is detected for 5 seconds
or more, it should be judged as short-circuit failure.

1

0

Open circuit
When open circuit of the signal line is detected for 5 seconds
or more, it should be judged as open-circuit failure.

2

3

Water temperature input
signal

Short circuit
When short circuit of the signal line is detected for 5 seconds
or more, it should be judged as short-circuit failure.

1

0

Open circuit
When open circuit of the signal line is detected for 5 seconds
or more, it should be judged as open-circuit failure.

2

4

0

0

5

Reset buttons

Short circuit for reset buttons
When the short circuit is continuously detected for 5 minutes or
more, it should be judged as short-circuit failure.

1

0

6

0

0

7

0

0

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

METERS AND GAUGES

Combination Meter Self-Diagnosis (Cont’d)

EL-109

Trouble Diagnoses

NLEL0448

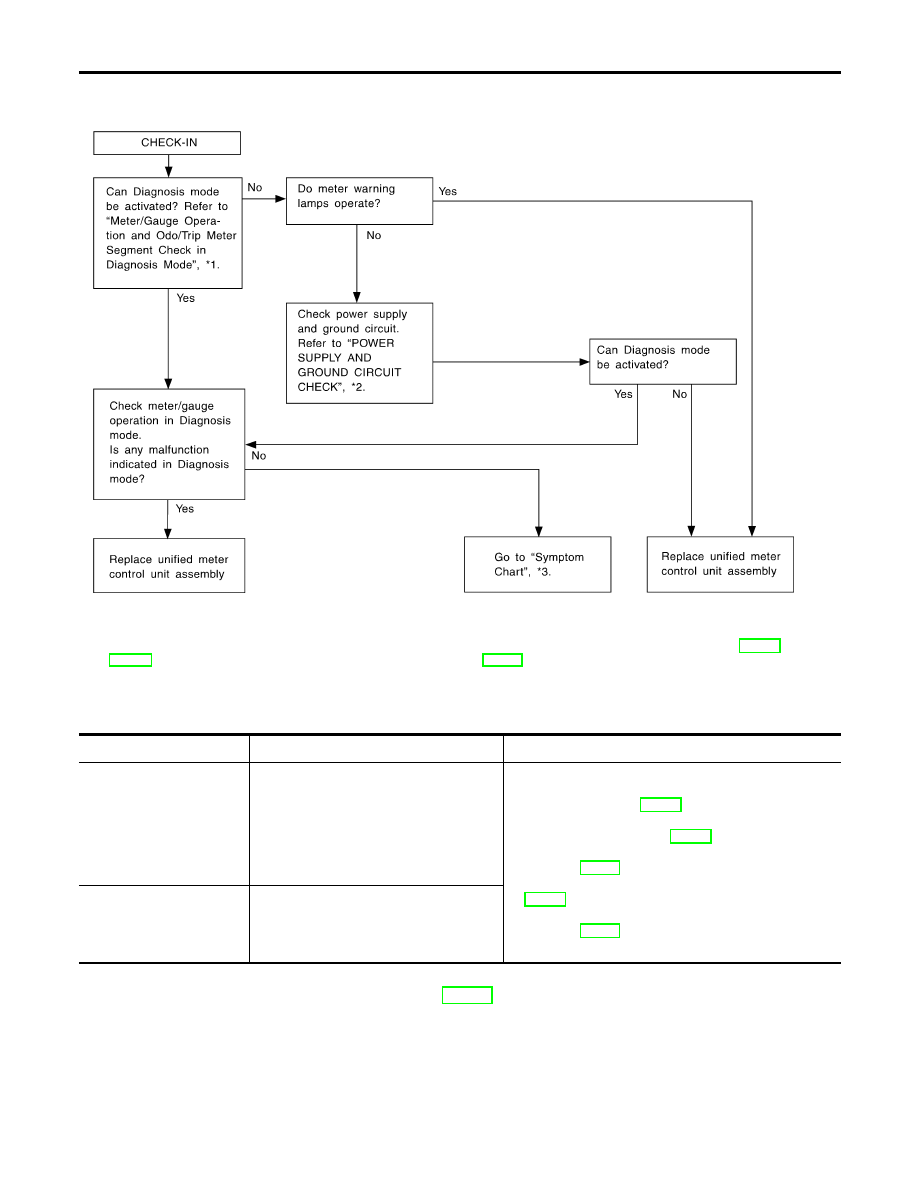

PRELIMINARY CHECK

NLEL0448S01

SEL494Y

*1: Combination Meter Self-Diagnosis

(EL-107)

*2: POWER SUPPLY AND GROUND

CIRCUIT CHECK (EL-111)

*3: Symptom Chart (EL-110)

SYMPTOM CHART

NLEL0448S02

Symptom

Possible causes

Repair order

One of speedometer/
tachometer/fuel gauge/
water temp. gauge is mal-
functioning.

1. Sensor signal

- Vehicle speed signal
- Engine speed signal
- Fuel gauge
- Water temp. gauge

2. Unified meter control unit

1. Check the sensor for malfunctioning meter/gauge.

INSPECTION/VEHICLE SPEED SIGNAL (WITH ESP
SYSTEM) (Refer to EL-112.)
INSPECTION/VEHICLE SPEED SIGNAL (WITHOUT
ESP SYSTEM) (Refer to EL-112.)
INSPECTION/ENGINE REVOLUTION SIGNAL
(Refer to EL-112.)
INSPECTION/FUEL LEVEL SENSOR UNIT (Refer to
EL-113.)
INSPECTION/WATER TEMPERATURE SIGNAL
(Refer to EL-114.)

2. Replace unified meter control unit assembly.

Multiple meter/gauge are
malfunctioning. (except
odo/trip meter)

Unified meter control unit

Before starting trouble diagnoses below, perform PRELIMINARY
CHECK, EL-110.

METERS AND GAUGES

Trouble Diagnoses

EL-110

YEL330E

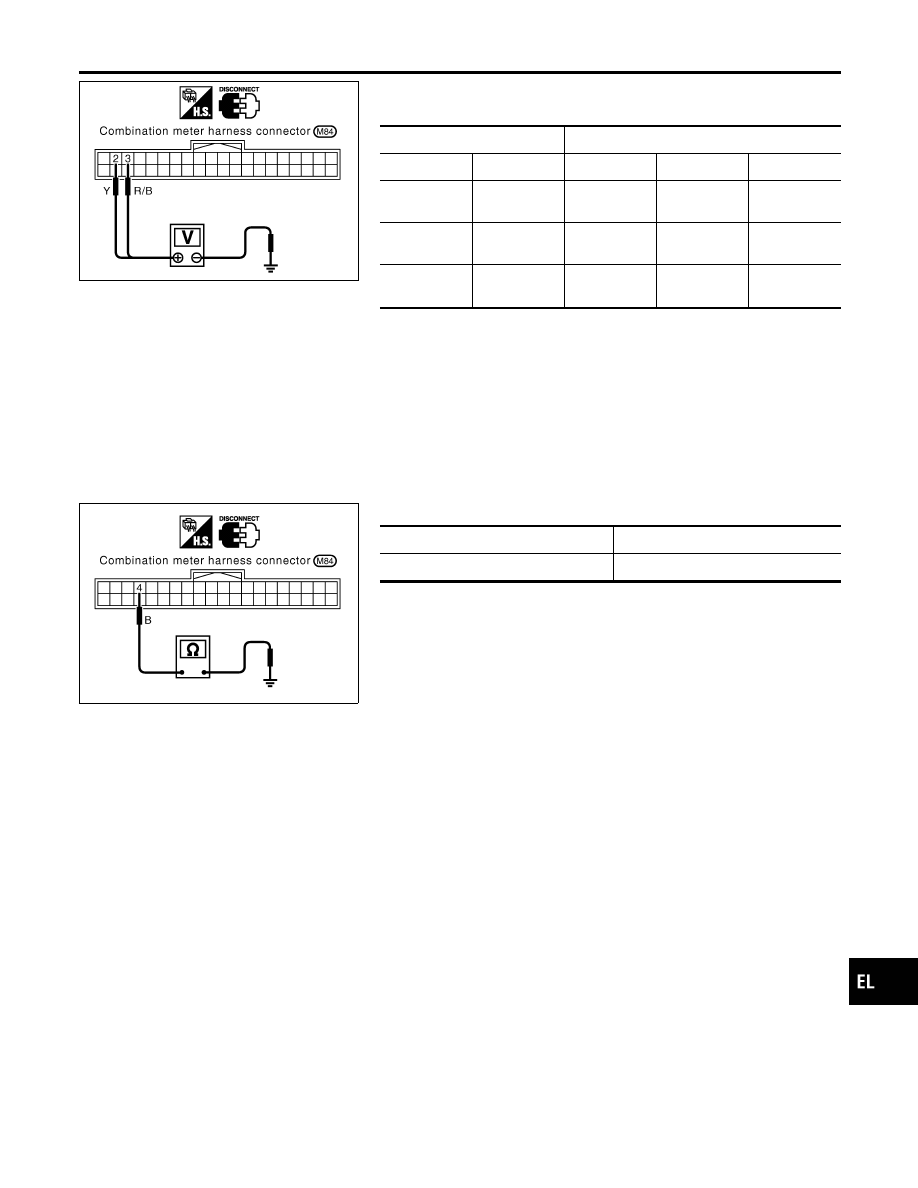

POWER SUPPLY AND GROUND CIRCUIT CHECK

=NLEL0448S03

Power Supply Circuit Check

NLEL0448S0301

Terminals

Ignition switch position

(+)

(−)

OFF

ACC

ON

3

Ground

Battery
voltage

Battery
voltage

Battery
voltage

2

Ground

0V

0V

Battery
voltage

5

Ground

0V

Battery
voltage

Battery
voltage

If NG, check the following.

I

10A fuse [No. 12, located in fuse block (J/B)]

I

10A fuse [No. 30, located in fuse block (J/B)]

I

10A fuse [No. 1, located in fuse block (J/B)]

I

Harness for open or short between fuse and combination
meter

YEL331E

Ground Circuit Check

NLEL0448S0302

Terminals

Continuity

4 - Ground

Yes

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

METERS AND GAUGES

Trouble Diagnoses (Cont’d)
