DTC P0404 EGR VOLUME CONTROL VALVE

DTC P0404 EGR VOLUME CONTROL VALVE

PFP:14710

Description

EBS013DQ

SYSTEM DESCRIPTION

*: This signal is sent to the ECM through CAN communication line.

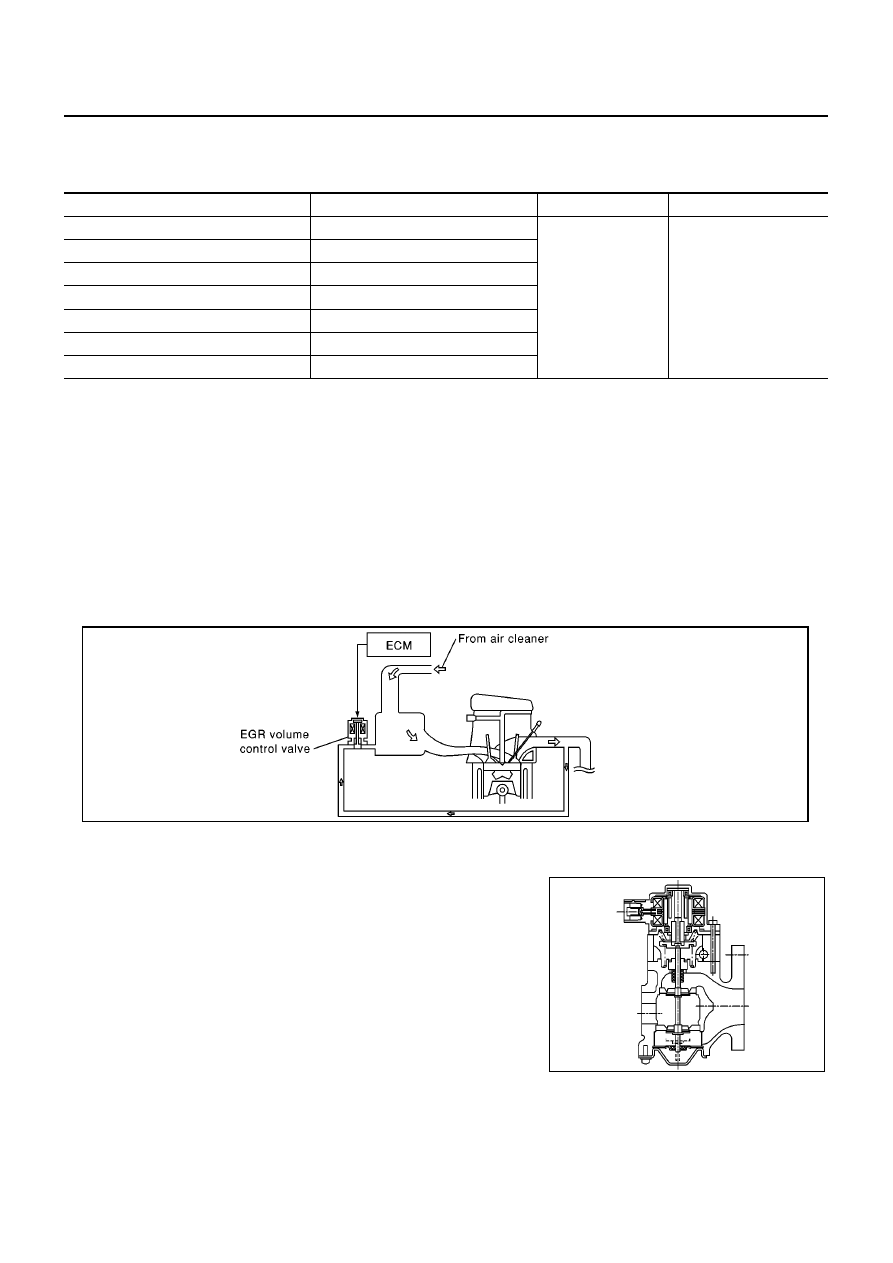

This system controls flow rate of EGR led from exhaust manifold to intake manifold. The opening of the EGR
by-pass passage in the EGR volume control valve changes to control the flow rate. A built-in step motor
moves the valve in steps corresponding to the ECM output pulses. The opening of the valve varies for opti-
mum engine control. The optimum value stored in the ECM is determined by considering various engine con-
ditions.
The EGR volume control valve remains close under the following conditions.

Engine stopped

Engine starting

Low engine coolant temperature

High engine speed

Accelerator pedal fully depressed

COMPONENT DESCRIPTION
EGR Volume Control Valve

The EGR volume control valve uses a step motor to control the flow
rate of EGR from exhaust manifold. This motor has four winding
phases. It operates according to the output pulse signal of the ECM.
Two windings are turned ON and OFF in sequence. Each time an
ON pulse is issued, the valve opens or closes, changing the flow
rate. When no change in the flow rate is needed, the ECM does not
issue the pulse signal. A certain voltage signal is issued so that the
valve remains at that particular opening.

Sensor

Input Signal to ECM

ECM Function

Actuator

Crankshaft position sensor

Engine speed

EGR volume control

EGR volume control valve

Vehicle speed sensor*

Vehicle speed

Engine coolant temperature sensor

Engine coolant temperature

Ignition switch

Start signal

Accelerator pedal position sensor

Accelerator pedal position

Mass air flow sensor

Amount of intake air

Air conditioner switch*

Air conditioner operation

SEF908Y

SEF411Y

DTC P0404 EGR VOLUME CONTROL VALVE

EC-1143

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

CONSULT-II Reference Value in Data Monitor Mode

EBS013DR

Specification data are reference values.

ECM Terminals and Reference Value

EBS013DS

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

On Board Diagnosis Logic

EBS013DT

DTC Confirmation Procedure

EBS013DU

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

2.

Start engine.

MONITOR ITEM

CONDITION

SPECIFICATION

EGR VOL CON/V

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-load

After 1 minute at idle

More than 10 steps

Revving engine from idle to 3,600
rpm

0 step

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

25
26
27
28

GY
W/L
OR/B
GY/B

EGR volume control valve

[Engine is running]

Warm-up condition

Idle speed

0.1 - 14V
(Voltage signals of each ECM termi-
nals differ according to the control
position of EGR volume control valve.)

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0404

Exhaust gas recirculation control
circuit range/performance

An improper voltage signal is sent to
ECM through EGR volume control valve.

Harness or connectors
(The EGR volume control valve circuit is
open or shorted.)

EGR volume control valve stuck closed

PBIB2156E

EC-1144

[YD (WITH EURO-OBD)]

DTC P0404 EGR VOLUME CONTROL VALVE

3.

Maintain the following conditions for at least 20 consecutive sec-
onds.

4.

If 1st trip DTC is detected, go to

EC-1146, "Diagnostic Proce-

dure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

COOLAN TEMP/S

22 - 87

°

C (72 - 189

°

F)

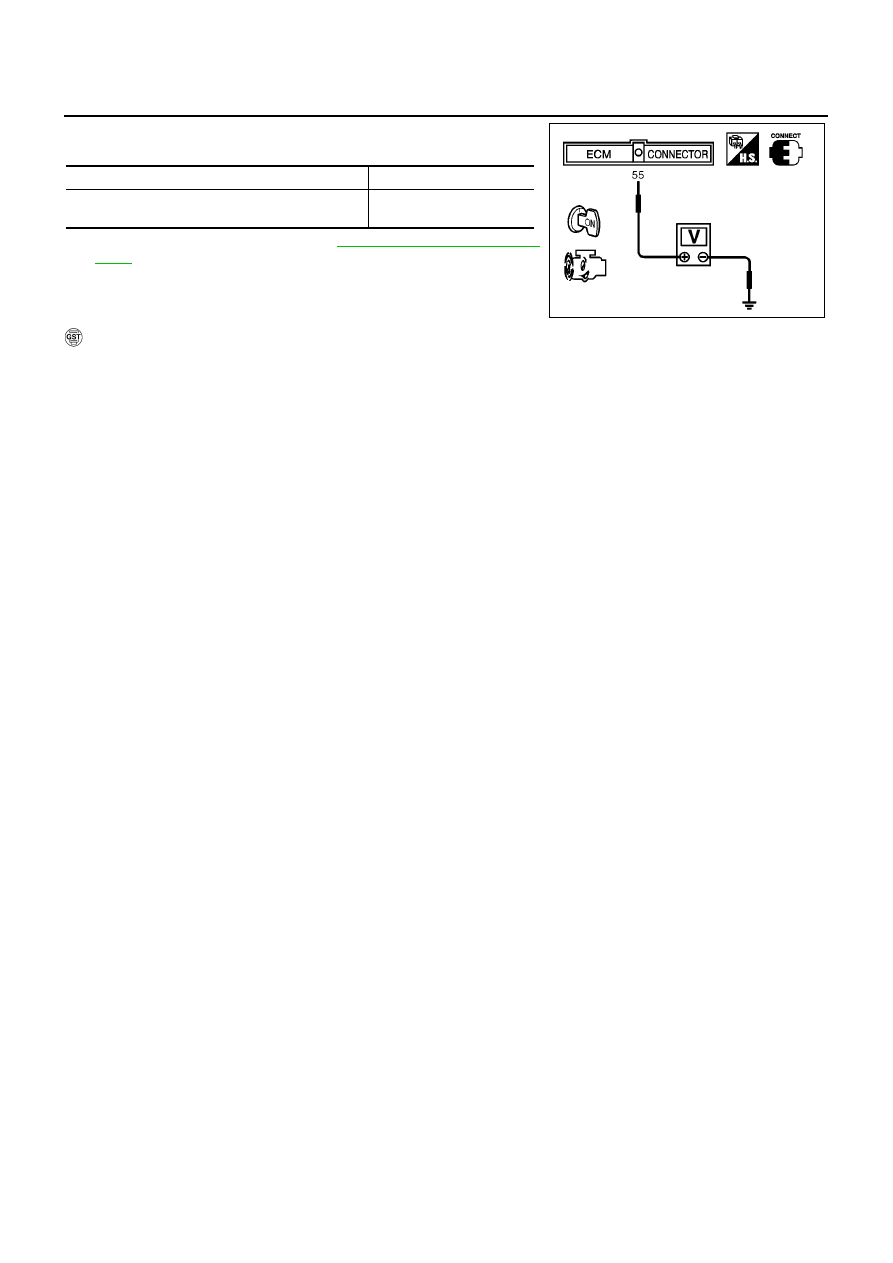

Voltage between ECM terminal 55 (Intake air tem-
perature sensor) and ground

0.9 - 4.0V

PBIB2017E

DTC P0404 EGR VOLUME CONTROL VALVE

EC-1145

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

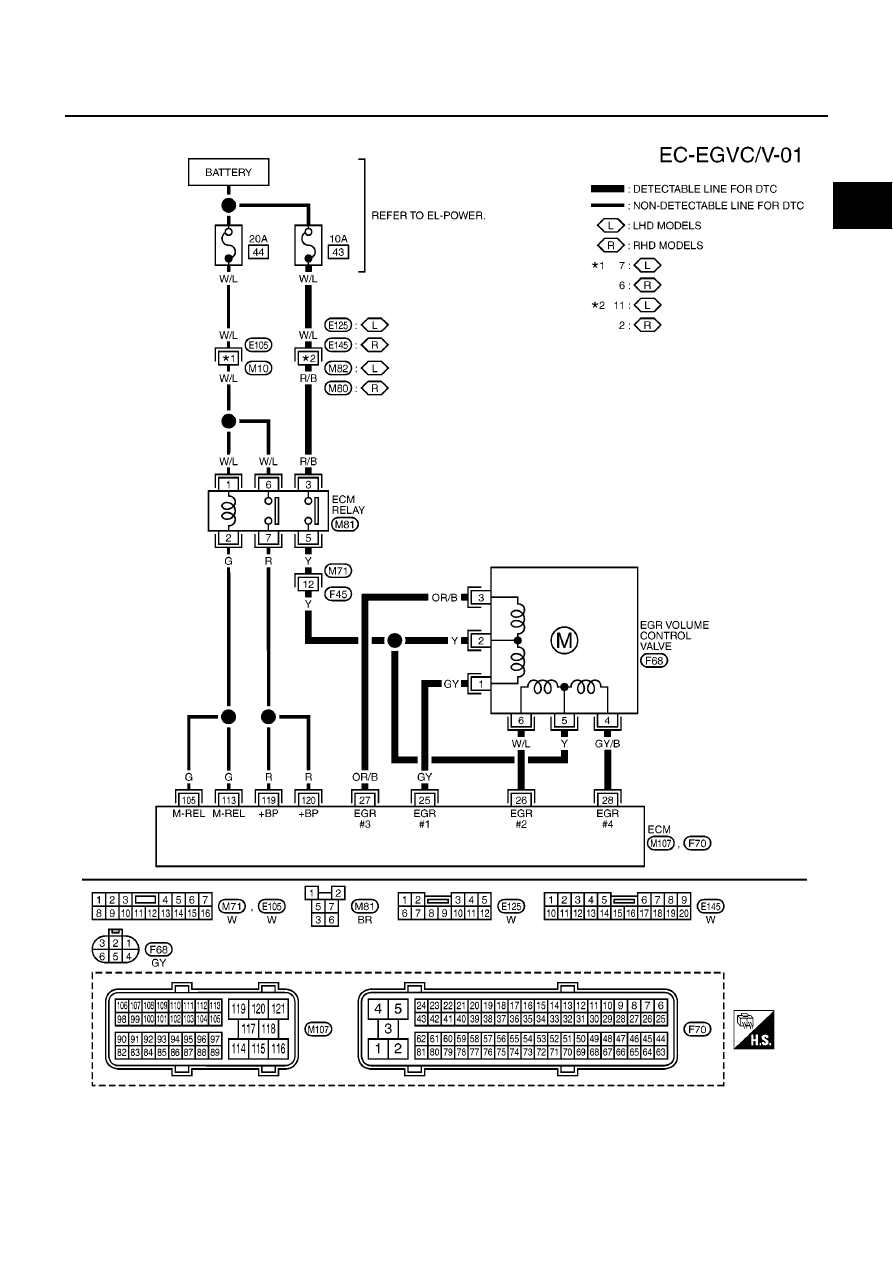

Wiring Diagram

EBS013DV

MBWA0621E
