Nissan Almera Tino V10. Manual - part 544





EC-1002

[YD (WITH EURO-OBD)]

TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT

TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT

PFP:00006

Description

EBS0138J

Intermittent incidents (I/I) may occur. In many cases, the incident resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the customer's
complaint often do not recur on (1st/2nd trip) DTC visits. Realize also that the most frequent cause of I/I occur-
rences is poor electrical connections. Because of this, the conditions under which the incident occurred may
not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may not indicate the
specific malfunctioning area.

COMMON I/I REPORT SITUATIONS

Diagnostic Procedure

EBS0138K

1.

INSPECTION START

Erase (1st/2nd trip) DTCs. Refer to

EC-961, "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFOR-

MATION"

.

>> GO TO 2.

2.

CHECK GROUND TERMINALS

Check ground terminals for corroding or loose connection.
Refer to GI-21, “HOW TO PERFORM EFFICIENT DIAGNOSES FOR AN ELECTRICAL INCIDENT”, “Circuit
Inspection”, “GROUND INSPECTION”.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace.

3.

SEARCH FOR ELECTRICAL INCIDENT

Perform GI-21, “HOW TO PERFORM EFFICIENT DIAGNOSES FOR AN ELECTRICAL INCIDENT”, “Incident
Simulation Tests”.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace.

STEP in Work Flow

Situation

II

The CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than “0”.

III

The symptom described by the customer does not recur.

IV

(1st/2nd trip) DTC does not appear during the DTC Confirmation Procedure.

VI

The Diagnostic Procedure for XXXX does not indicate the malfunctioning area.

MAIN POWER SUPPLY AND GROUND CIRCUIT

EC-1003

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

MAIN POWER SUPPLY AND GROUND CIRCUIT

PFP:24110

ECM Terminals and Reference Value

EBS0138L

Remarks: Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

1
2
3

B
B
B

ECM ground

[Engine is running]

Idle speed

Approximately 0V

105

113

G
G

ECM relay (self-shutoff)

[Ignition switch ON]
[Ignition switch OFF]

For a few seconds after turning ignition
switch OFF

Approximately 1.2V

[Ignition switch OFF]

More than a few seconds after turning
ignition switch OFF

BATTERY VOLTAGE
(11 - 14V)

107
108

W/R
W/R

Ignition switch

[Ignition switch ON]

BATTERY VOLTAGE
(11 - 14V)

114

B

ECM ground

[Engine is running]

Idle speed

Approximately 0V

119

120

R
R

Power supply for ECM

[Ignition switch ON]

BATTERY VOLTAGE
(11 - 14V)

121

W/L

Power supply for ECM
(Back-up)

[Ignition switch OFF]

BATTERY VOLTAGE
(11 - 14V)

EC-1004

[YD (WITH EURO-OBD)]

MAIN POWER SUPPLY AND GROUND CIRCUIT

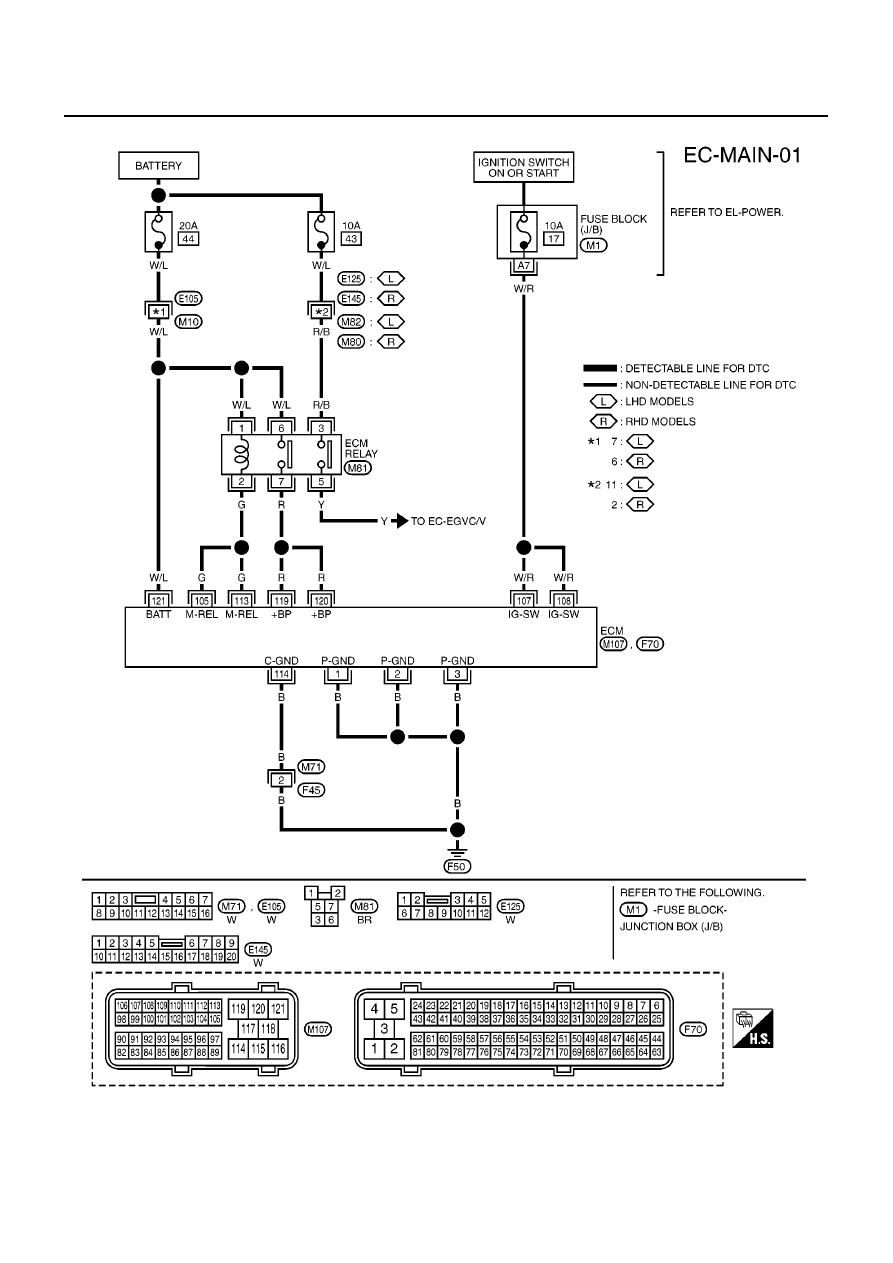

Wiring Diagram

EBS0138M

MBWA0650E

MAIN POWER SUPPLY AND GROUND CIRCUIT

EC-1005

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

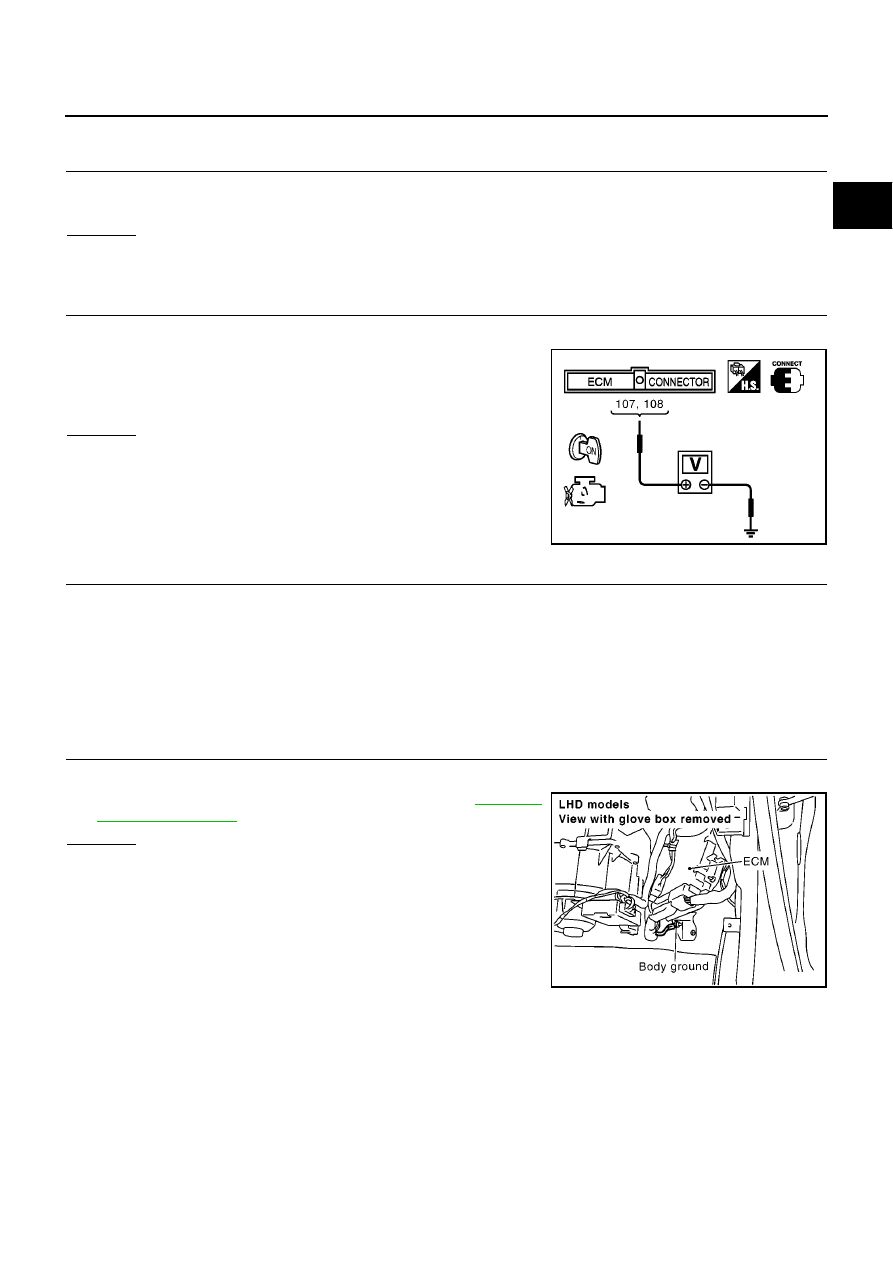

Diagnostic Procedure

EBS0138N

1.

INSPECTION START

Start engine.
Is engine running?

Yes or No

Yes

>> GO TO 7.

No

>> GO TO 2.

2.

CHECK ECM POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch OFF, wait at least 10 seconds and then turn ON.

2.

Check voltage between ECM terminals 107, 108 and ground
with CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

Fuse block (J/B) connector M1

10A fuse

Harness for open or short between ECM and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten body ground screw. Refer to

EC-1010,

"Ground Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace ground connection.

Voltage: Battery voltage

MBIB0610E

MBIB0915E
