EC-758

[QG (WITHOUT EURO-OBD)]

DTC P1065 ECM POWER SUPPLY

4.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT-II

1.

Turn ignition switch “ON”.

2.

Select “SELF DIAG RESULTS” mode with CONSULT-II.

3.

Touch “ERASE”.

4.

Perform “DTC Confirmation Procedure”.
See

EC-755

.

5.

Is the 1st trip DTC P1065 displayed again?

Without CONSULT-II

1.

Turn ignition switch “ON”.

2.

Erase the “Diagnostic Test Mode II (Self-diagnostic results)” memory. Refer to

EC-582, "HOW TO ERASE

EMISSION-RELATED DIAGNOSTIC INFORMATION"

.

3.

Perform “DTC Confirmation Procedure”.
See

EC-755

.

4.

Is the 1st trip DTC P1065 displayed again?

Yes or No

Yes

>> GO TO 5.

No

>> INSPECTION END

5.

REPLACE ECM

1.

Replace ECM.

2.

Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to

EC-583,

"NATS (Nissan Anti-theft System)"

.

3.

Perform

EC-576, "Accelerator Pedal Released Position Learning"

.

4.

Perform

EC-576, "Throttle Valve Closed Position Learning"

.

5.

Perform

EC-576, "Idle Air Volume Learning"

.

>> INSPECTION END

DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR

EC-759

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR

PFP:16119

Component Description

EBS00QZE

Electric Throttle Control Actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. The ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the throttle control motor to make the throttle valve opening
angle properly in response to driving condition.

On Board Diagnosis Logic

EBS00QZF

FAIL-SAFE MODE

When the malfunction A or B is detected in the two consecutive trips, the ECM enters fail-safe mode and MI
lights up.
When the malfunction C is detected even in the 1st trip, the ECM enters fail-safe mode and the MI lights up.

DTC Confirmation Procedure

EBS00QZG

NOTE:

Perform “PROCEDURE FOR MALFUNCTION A AND B” first. If the 1st trip DTC cannot be con-
firmed, perform “PROCEDURE FOR MALFUNCTION C”.
If there is no problem on “PROCEDURE FOR MALFUNCTION A AND B”, perform “PROCEDURE
FOR MALFUNCTION C”.

If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and
wait at least 10 seconds before conducting the next test.

PROCEDURE FOR MALFUNCTION A AND B

With CONSULT-II

1.

Turn ignition witch “ON” and wait at least 1 second.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Shift selector lever to “D” position (A/T models), “1st” position
(M/T models) and wait at least 2 seconds.

4.

Turn ignition switch “OFF”, wait at least 10 seconds, and then
turn “ON”.

5.

If 1st trip DTC is detected, go to

EC-760, "Diagnostic Procedure"

.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1121
1121

Electric throttle control
actuator

A)

Electric throttle control actuator does not function
properly due to the return spring malfunction.

Electric throttle control actuator

B)

Throttle valve opening angle in fail-safe mode is
not in specified range.

C)

ECM detect the throttle valve is stuck open.
This self-diagnosis has the one trip detection
logic.

Detected items

Engine operating condition in fail-safe mode

Malfunction A

The ECM controls the electric throttle actuator by regulating the throttle opening around the idle position.
The engine speed will not rise more than 2,000 rpm.

Malfunction B

ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.

Malfunction C

While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in “N” or “P” position, and engine speed will not exceed 1,000 rpm or more.

SEF058Y

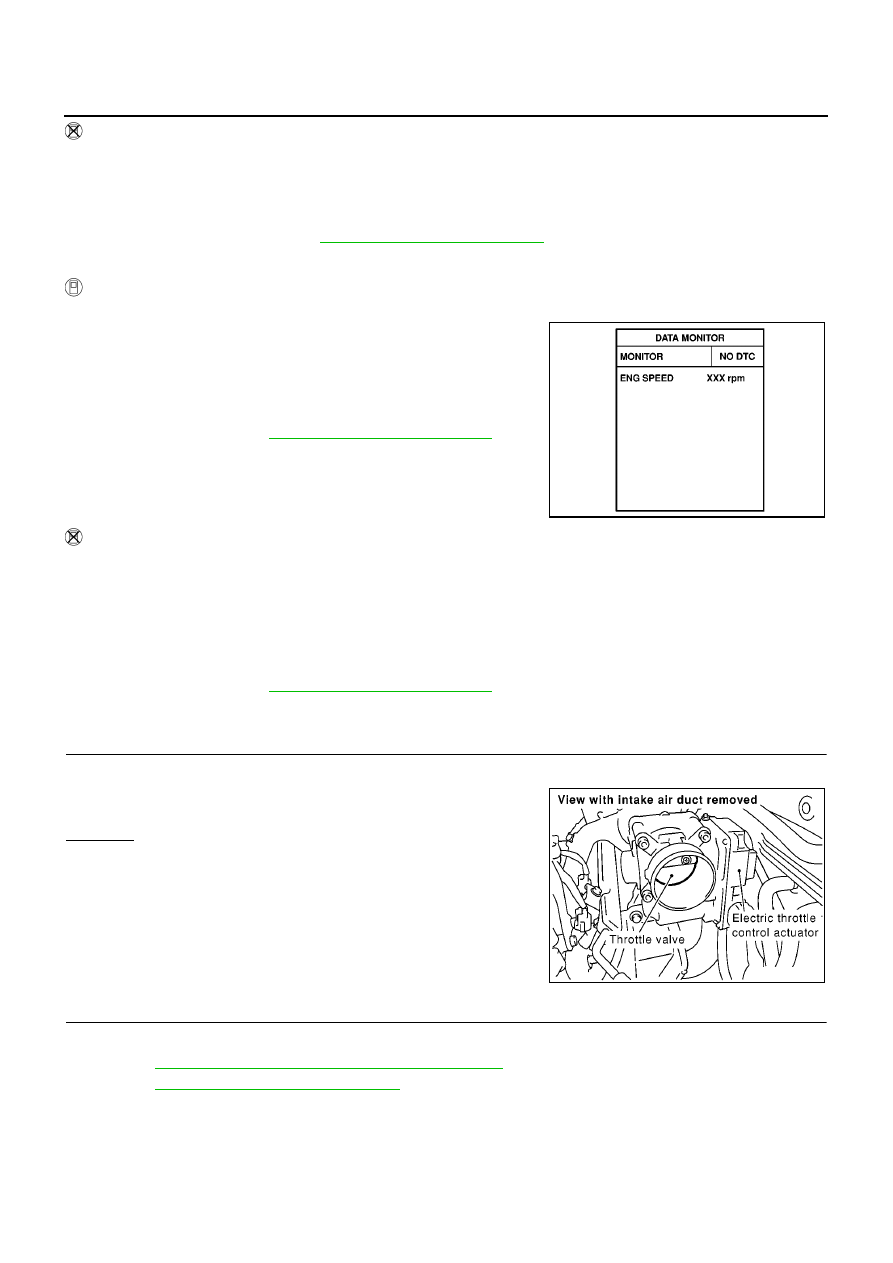

EC-760

[QG (WITHOUT EURO-OBD)]

DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR

Without CONSULT-II

1.

Turn ignition switch “ON” and wait at least 1 second.

2.

Shift selector lever to “D” position (A/T models), “1st” position (M/T models) and wait at least 2 seconds.

3.

Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.

4.

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.

5.

If 1st trip DTC is detected, go to

EC-760, "Diagnostic Procedure"

.

PROCEDURE FOR MALFUNCTION C

With CONSULT-II

1.

Turn ignition switch “ON” and wait at least 1 second.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Shift selector lever to “D” position (A/T models), “1st” position
(M/T models) and wait at least 2 seconds.

4.

Shift selector lever to “N” or “P” position.

5.

Start engine and let it idle for 3 seconds.

6.

If DTC is detected, go to

EC-760, "Diagnostic Procedure"

.

Without CONSULT-II

1.

Turn ignition switch “ON” and wait at least 1 second.

2.

Shift selector lever to “D” position (A/T models), “1st” position (M/T models) and wait at least 2 seconds.

3.

Shift selector lever to “N” or “P” position.

4.

Start engine and let it idle for the 3 seconds.

5.

Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.

6.

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.

7.

If DTC is detected, go to

EC-760, "Diagnostic Procedure"

.

Diagnostic Procedure

EBS00QZH

1.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Remove the intake air duct.

2.

Check if a foreign matter is caught between the throttle valve
and the housing.

OK or NG

OK

>> GO TO 2.

NG

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace the electric throttle control actuator.

2.

Perform

EC-576, "Throttle Valve Closed Position Learning"

.

3.

Perform

EC-576, "Idle Air Volume Learning"

.

>> INSPECTION END

SEF058Y

MBIB0107E

DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR

EC-761

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Remove and Installation

EBS00QZI

ELECTRIC THROTTLE CONTROL ACTUATOR

Refer to

EM-18, "INTAKE MANIFOLD"

.
