Nissan Almera Tino V10. Manual - part 481





EC-750

[QG (WITHOUT EURO-OBD)]

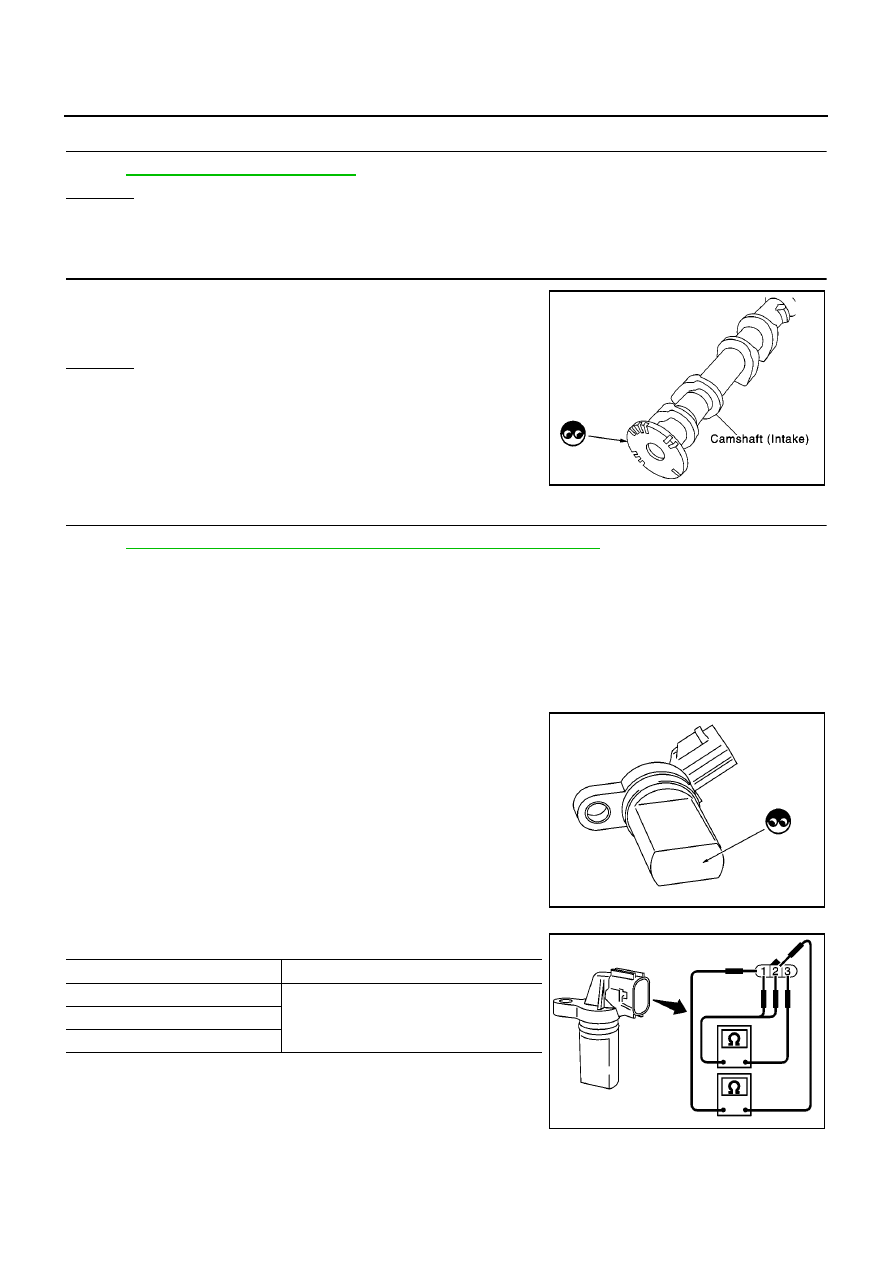

DTC P0340 CMP SENSOR (PHASE)

7.

CHECK CAMSHAFT POSITION SENSOR (PHASE)

Refer to

EC-750, "Component Inspection"

.

OK or NG

OK

>> GO TO 8.

NG

>> Replace camshaft position sensor (PHASE).

8.

CHECK CAMSHAFT (INTAKE)

Check the following.

Accumulation of debris to the signal plate of camshaft rear end

Chipping signal plate of camshaft rear end

OK or NG

OK

>> GO TO 9.

NG

>> Remove debris and clean the signal plate of camshaft

rear end or replace camshaft.

9.

CHECK INTERMITTENT INCIDENT

Refer to

EC-644, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Component Inspection

EBS00QZ3

CAMSHAFT POSITION SENSOR (PHASE)

1.

Loosen the fixing bolt of the sensor.

2.

Disconnect camshaft position sensor (PHASE) harness connector.

3.

Remove the sensor.

4.

Visually check the sensor for chipping.

5.

Check resistance as shown in the figure.

PBIB0565E

PBIB0563E

Terminal No. (Polarity)

Resistance

[at 25

°

C (77

°

F)]

3 (+) - 1 (-)

Except 0 or

3 (+) - 2 (-)

2 (+) - 1 (-)

MBIB0024E

DTC P0340 CMP SENSOR (PHASE)

EC-751

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Removal and Installation

EBS00QZ4

CAMSHAFT POSITION SENSOR (PHASE)

Refer to

EM-32, "ROCKER COVER"

.

EC-752

[QG (WITHOUT EURO-OBD)]

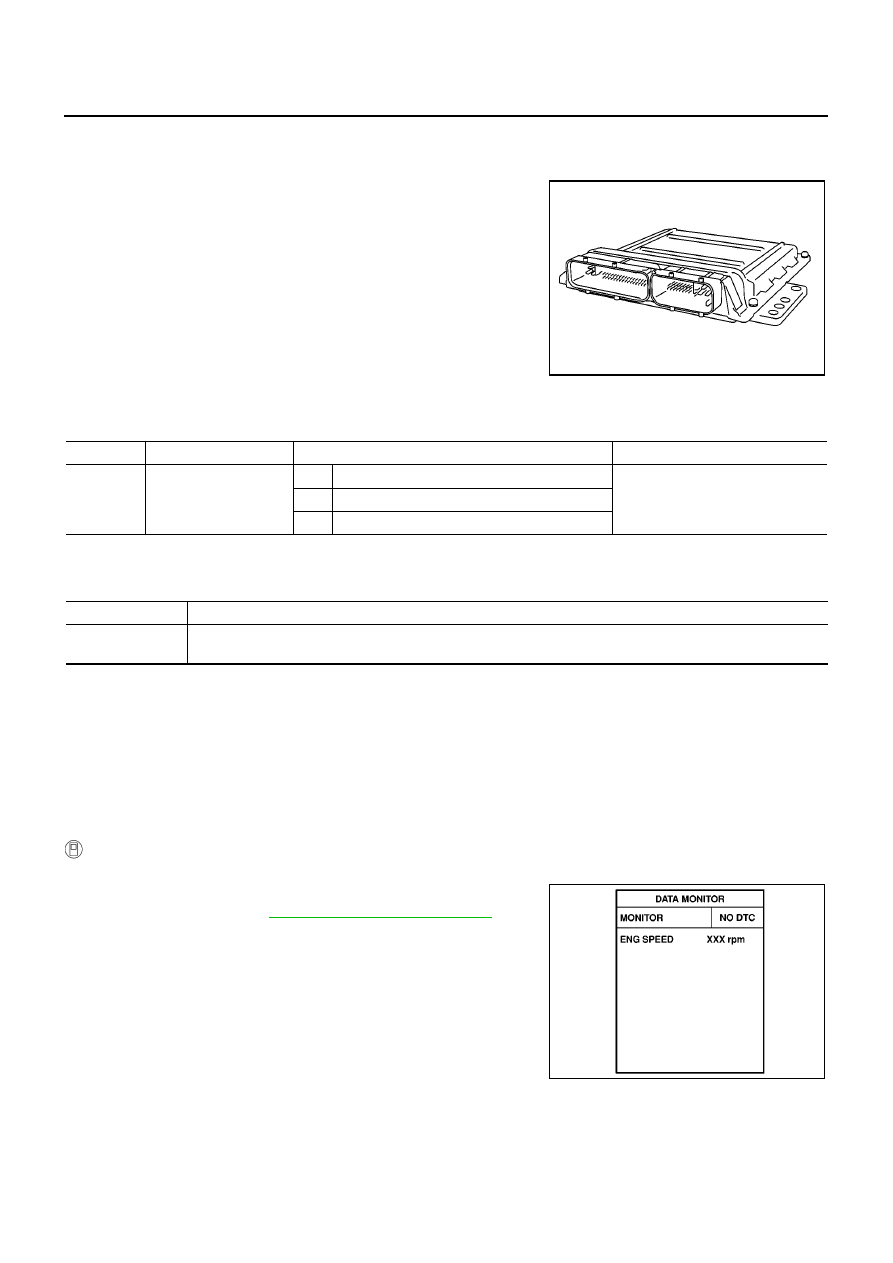

DTC P0605 ECM

DTC P0605 ECM

PFP:23710

Component Description

EBS00QZ5

The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.

On Board Diagnosis Logic

EBS00QZ6

This self-diagnosis has one or tow trip detection logic.

FAIL-SAFE MODE

ECM enters fail-safe mode when malfunction A is detected.

DTC Confirmation Procedure

EBS00QZ7

Perform “PROCEDURE FOR MALFUNCTION A” first. If the DTC cannot be confirmed, perform “PRO-
CEDURE FOR MALFUNCTION B”. If there is no problem on “PROCEDURE FOR MALFUNCTION B”,
perform “PROCEDURE FOR MALFUNCTION C”.

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.

PROCEDURE FOR MALFUNCTION A

With CONSULT-II

1.

Turn ignition switch “ON”.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

If DTC is detected, go to

EC-754, "Diagnostic Procedure"

.

PBIB1164E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0605
0605

Engine control module

A)

ECM calculation function is malfunctioning.

ECM

B)

ECM EEP-ROM system is malfunctioning.

C)

ECM self shut-off function is malfunctioning.

Detected items

Engine operation condition in fail-safe mode

Malfunction A

ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5
degrees) by the return spring.

SEF058Y

DTC P0605 ECM

EC-753

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

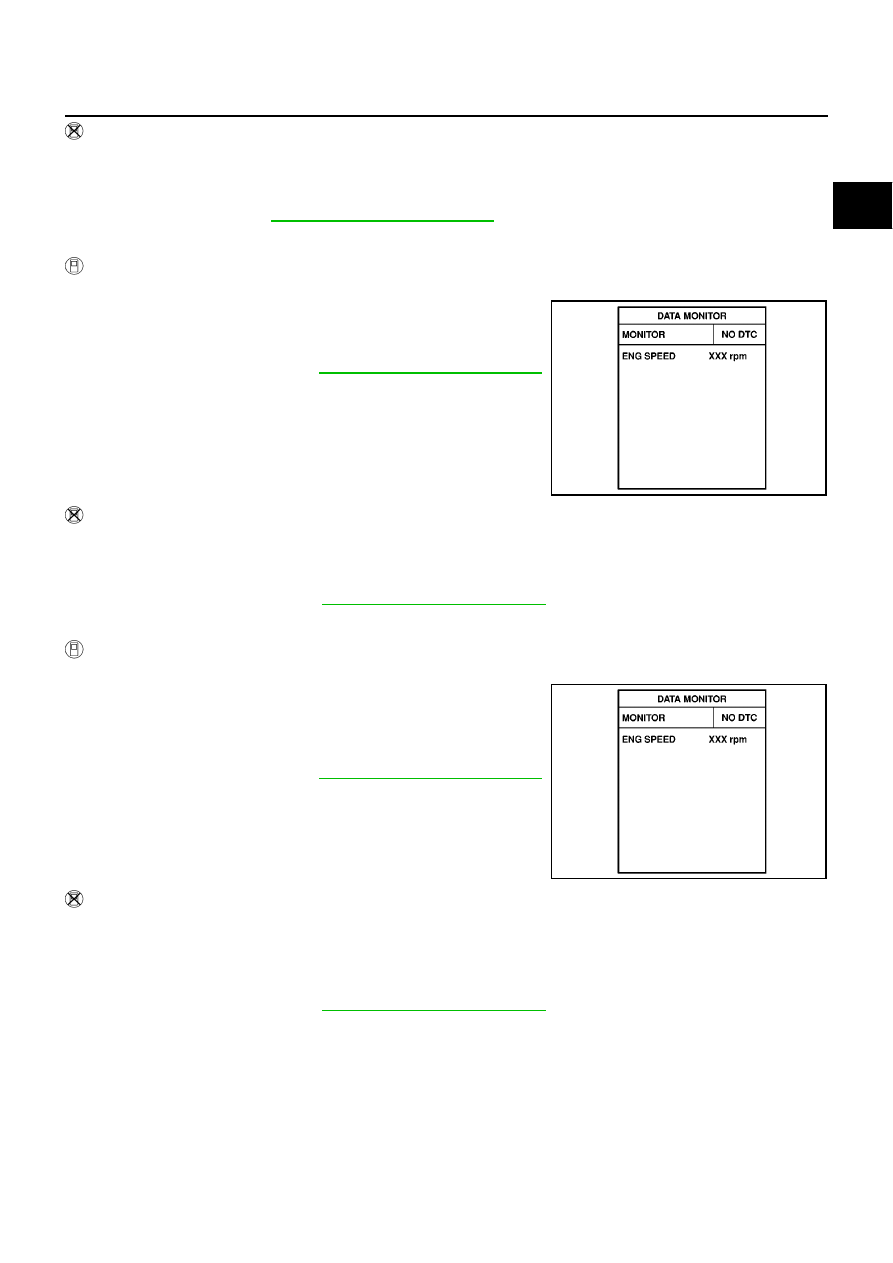

Without CONSULT-II

1.

Turn ignition switch “ON”.

2.

Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.

3.

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.

4.

If DTC is detected, go to

EC-754, "Diagnostic Procedure"

.

PROCEDURE FOR MALFUNCTION B

With CONSULT-II

1.

Turn ignition switch “ON” and wait at least 1 second.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Turn ignition switch “OFF”, wait at least 10 seconds, and then
turn “ON”.

4.

If 1st trip DTC is detected, go to

EC-754, "Diagnostic Procedure"

.

Without CONSULT-II

1.

Turn ignition switch “ON” and wait at least 1 second.

2.

Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.

3.

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.

4.

If 1st trip DTC is detected, go to

EC-754, "Diagnostic Procedure"

.

PROCEDURE FOR MALFUNCTION C

With CONSULT-II

1.

Turn ignition switch “ON” and wait at least 1 second.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Turn ignition switch “OFF”, wait at least 10 seconds, and then
turn “ON”.

4.

Repeat step 3 for 32 times.

5.

If 1st trip DTC is detected, go to

EC-754, "Diagnostic Procedure"

.

Without CONSULT-II

1.

Turn ignition switch “ON” and wait at least 1 second.

2.

Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.

3.

Repeat step 2 for 32 times.

4.

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.

5.

If 1st trip DTC is detected, go to

EC-754, "Diagnostic Procedure"

.

SEF058Y

SEF058Y
