EC-526

[QG (WITH EURO-OBD)]

INJECTOR CIRCUIT

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

EBS00QTF

1.

INSPECTION START

Turn ignition switch to “START”.
Is any cylinder ignited?

Yes or No

Yes

>> GO TO 2.

No

>> GO TO 3.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

22
23
41
42

G/B
R/B
L/B
Y/B

Injector No. 3
Injector No. 1
Injector No. 4
Injector No. 2

[Engine is running]

Warm-up condition

Idle speed

BATTERY VOLTAGE

(11 - 14V)

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

BATTERY VOLTAGE

(11 - 14V)

PBIB0529E

PBIB0530E

INJECTOR CIRCUIT

EC-527

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

2.

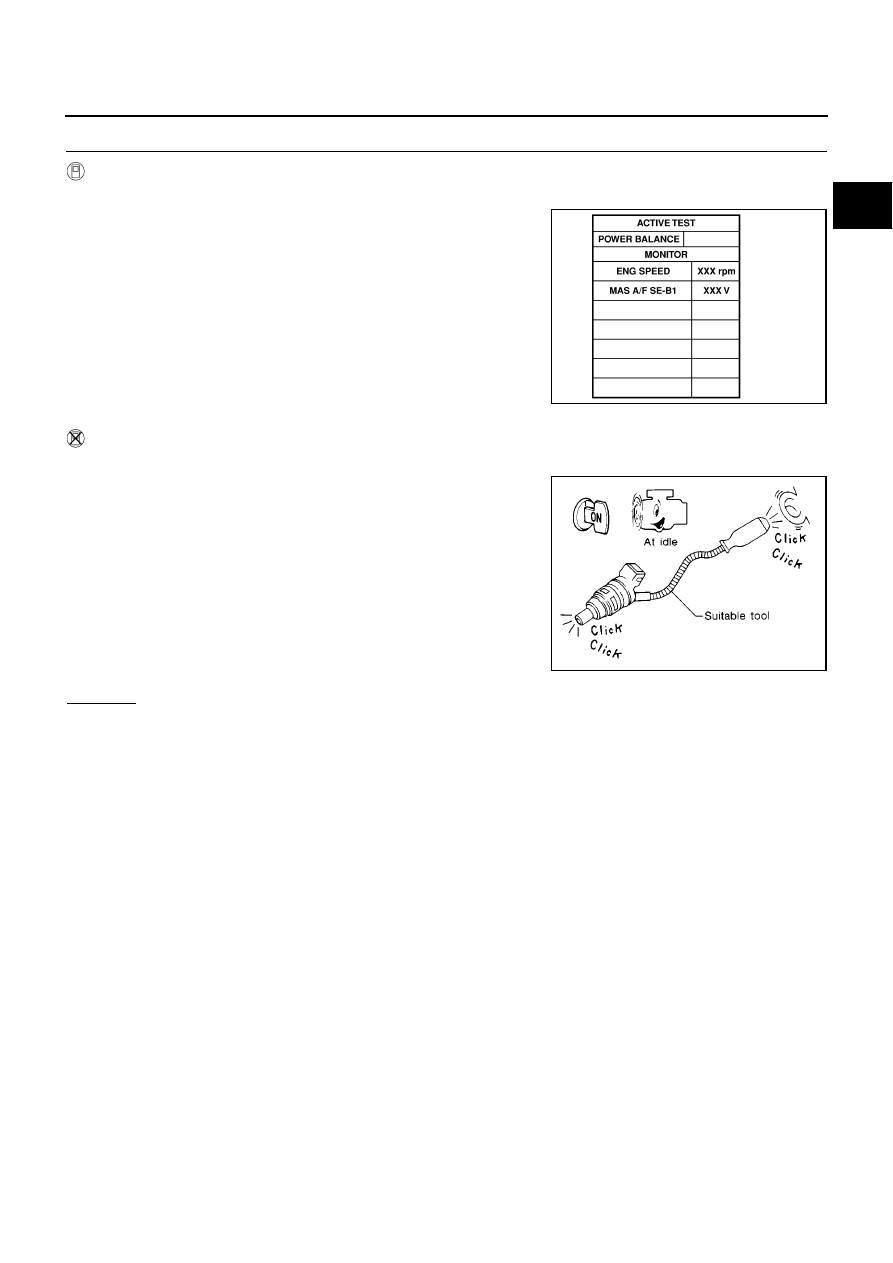

CHECK OVERALL FUNCTION

With CONSULT-II

1.

Start engine.

2.

Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.

3.

Make sure that each circuit produces a momentary engine
speed drop.

Without CONSULT-II

1.

Start engine.

2.

Listen to each injector operating sound.
Clicking noise should be heard.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 3.

PBIB0133E

MEC703B

EC-528

[QG (WITH EURO-OBD)]

INJECTOR CIRCUIT

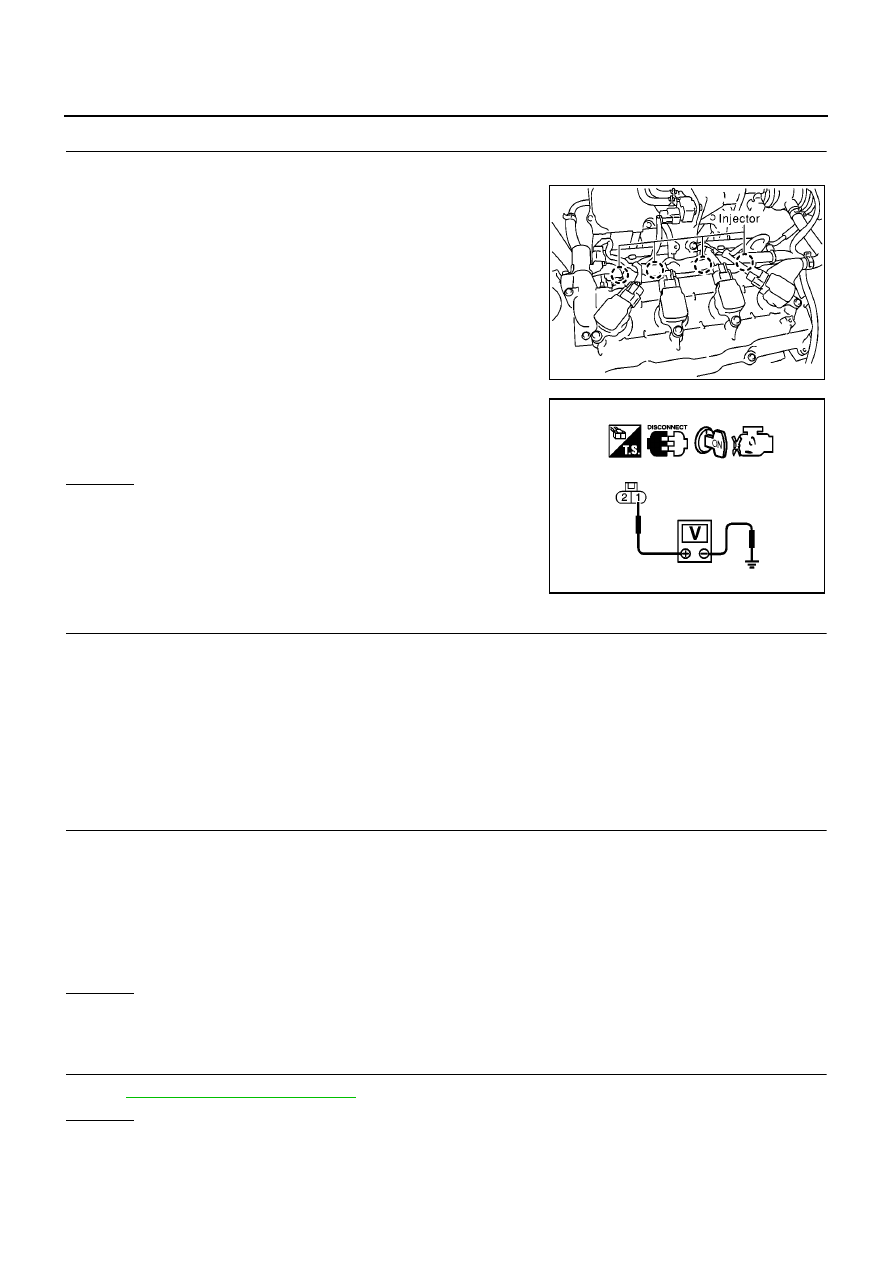

3.

CHECK INJECTOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch “OFF”.

2.

Disconnect injector harness connector.

3.

Turn ignition switch “ON”.

4.

Check voltage between injector terminal 1 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors M71, F45

Fuse block (J/B) connector M1

10A fuse

Harness for open or short between injector and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch “OFF”.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between injector terminal 2 and ECM terminals 22, 23, 41, 42.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK INJECTOR

Refer to

EC-529, "Component Inspection"

.

OK or NG

OK

>> GO TO 7.

NG

>> Replace injector.

MBIB0101E

Voltage: Battery voltage

PBIB0582E

Continuity should exist.

INJECTOR CIRCUIT

EC-529

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

7.

CHECK INTERMITTENT INCIDENT

Refer to

EC-138, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Component Inspection

EBS00QTG

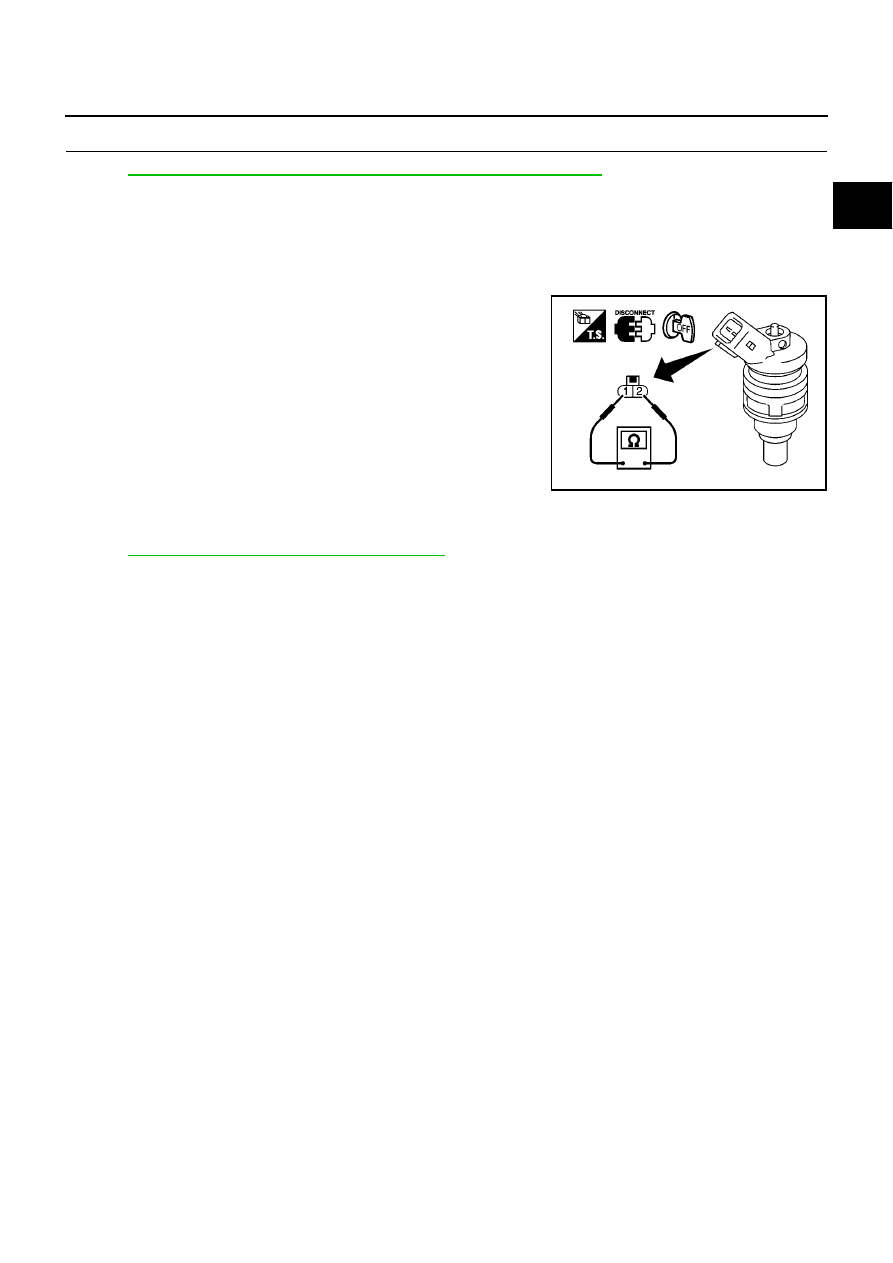

INJECTOR

1.

Disconnect injector harness connector.

2.

Check resistance between terminals as shown in the figure.

Removal and Installation

EBS00QTH

INJECTOR

Refer to

EM-29, "FUEL INJECTOR AND FUEL TUBE"

.

Resistance: 13.5 - 17.5

[at 20

°

C (68

°

F)]

PBIB0181E
