EC-518

[QG (WITH EURO-OBD)]

IGNITION SIGNAL

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

EBS00QT9

1.

CHECK ENGINE START

Turn ignition switch “OFF”, and restart engine.
Is engine running?
Yes or No

Yes (With CONSULT-II)>>GO TO 2.
Yes (Without CONSULT-II)>>GO TO 3.
No

>> GO TO 4.

2.

CHECK OVERALL FUNCTION

With CONSULT-II

1.

Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-II.

2.

Make sure that each circuit produces a momentary engine
speed drop.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 10.

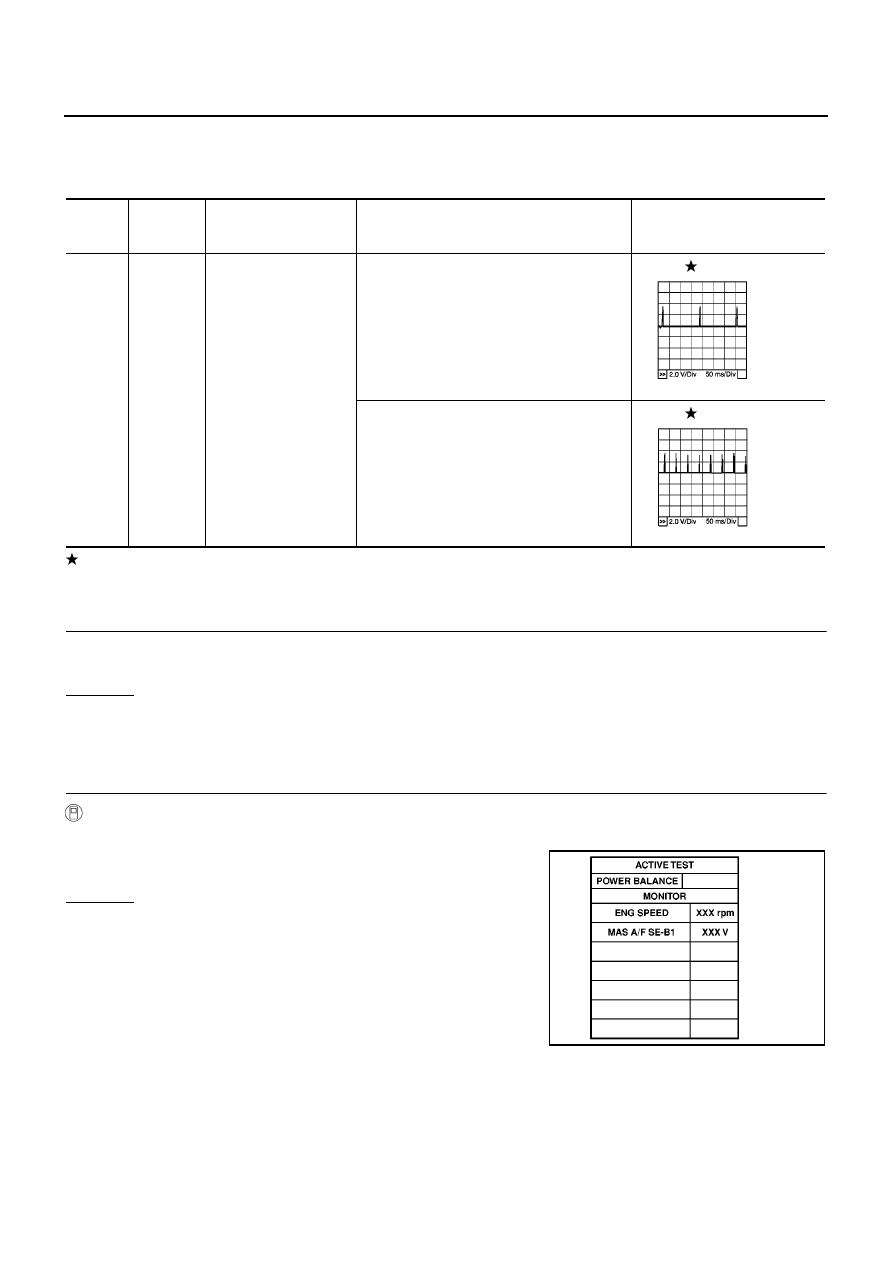

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

60
61
79
80

L/R
BR
GY/R
PU

Ignition signal No. 3
Ignition signal No. 1
Ignition signal No. 4
Ignition signal No. 2

[Engine is running]

Warm-up condition

Idle speed

0 - 0.1V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm.

0 - 0.2V

PBIB0521E

PBIB0522E

PBIB0133E

IGNITION SIGNAL

EC-519

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

CHECK OVERALL FUNCTION

Without CONSULT-II

1.

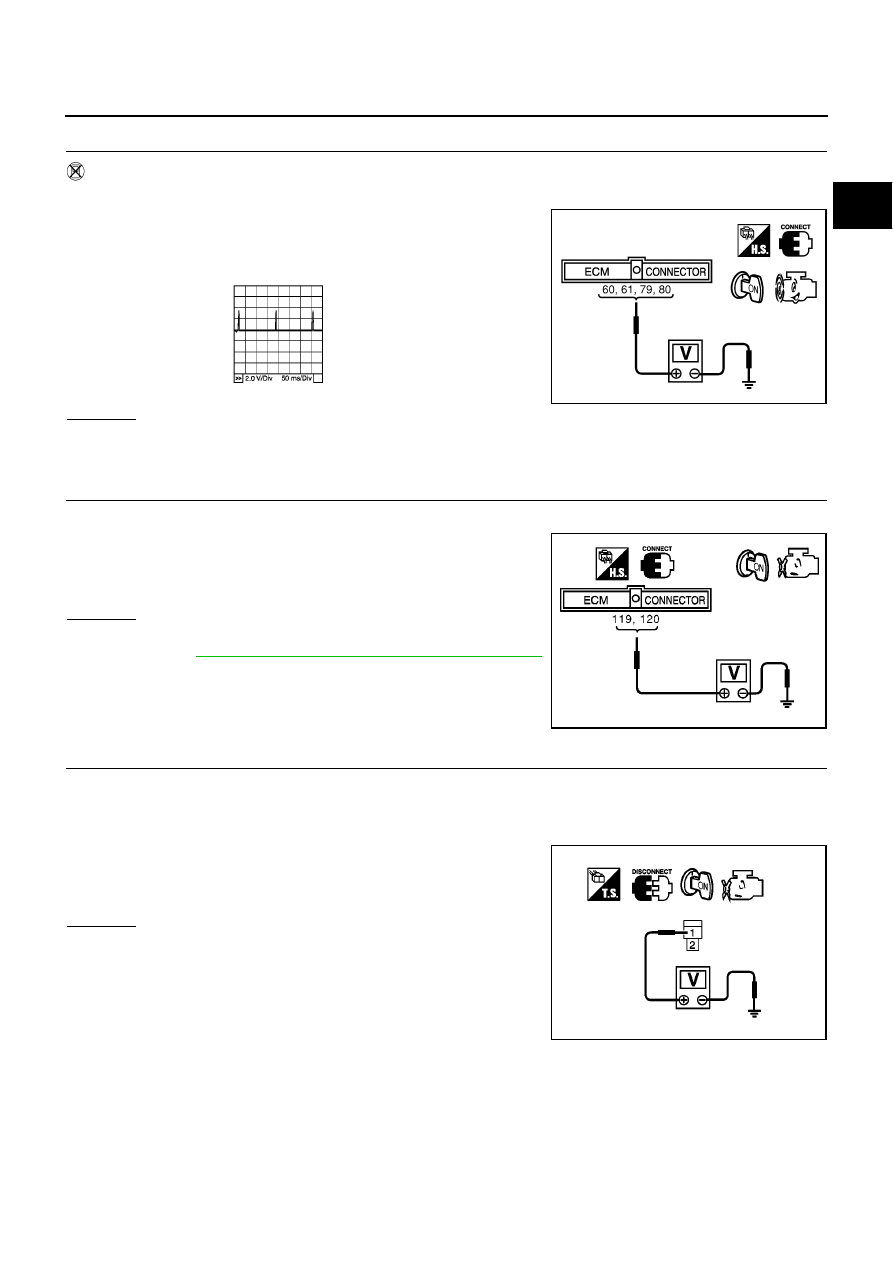

Let engine idle.

2.

Read the voltage signal between ECM terminals 60, 61, 79, 80
and ground with an oscilloscope.

3.

Verify that the oscilloscope screen shows the signal wave as
shown below.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 11.

4.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch “ON”.

2.

Check voltage between ECM terminals 119, 120 and ground
with CONSULT-II or tester.

OK or NG

OK

>> GO TO 5.

NG

>> Go to

EC-139, "POWER SUPPLY CIRCUIT FOR ECM"

.

5.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II

1.

Turn ignition switch “OFF”.

2.

Disconnect condenser harness connector.

3.

Turn ignition switch “ON”.

4.

Check voltage between condenser terminal 1 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 11.

NG

>> GO TO 6.

MBIB0033E

PBIB0521E

Voltage: Battery voltage

MBIB0034E

Voltage: Battery voltage

PBIB0624E

EC-520

[QG (WITH EURO-OBD)]

IGNITION SIGNAL

6.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III

1.

Turn ignition switch “OFF”.

2.

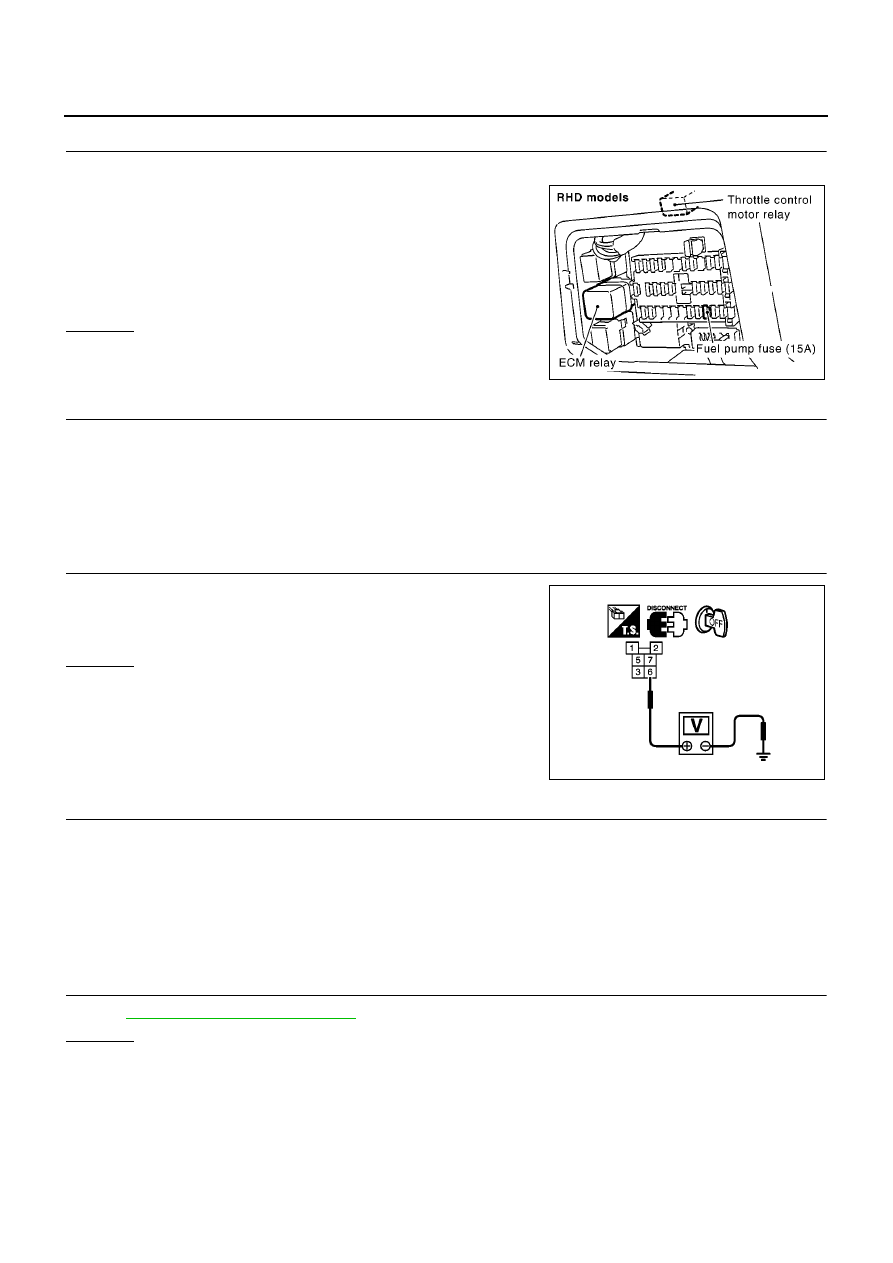

Disconnect ECM relay.

3.

Check harness continuity between ECM relay terminal 7 and
condenser terminal 1.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors M71, F45

Harness for open or short between condenser and ECM relay

>> Repair open circuit or short to ground or short to power in harness or connectors.

8.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-IV

Check voltage between ECM relay terminal 6 and ground with CON-
SULT-II or tester.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 9.

9.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors E105, M10

15A fuse

Harness for open or short between ECM relay and battery

>> Repair or replace harness or connectors.

10.

CHECK ECM RELAY

Refer to

EC-522, "Component Inspection"

.

OK or NG

OK

>> GO TO 18.

NG

>> Replace ECM relay.

Continuity should exist.

MBIB0999E

Voltage: Battery voltage

PBIB0625E

IGNITION SIGNAL

EC-521

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

11.

CHECK CONDENSER GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch “OFF”.

2.

Disconnect condenser harness connector.

3.

Check harness continuity between condenser terminal 2 and ground.
Refer to Wiring diagram.

4.

Also check harness for short to power.

OK or NG

OK

>> GO TO 12.

NG

>> Repair open circuit or short to power in harness or connector.

12.

CHECK CONDENSER

Refer to

EC-522, "Component Inspection"

.

OK or NG

OK

>> GO TO 13.

NG

>> Replace condenser.

13.

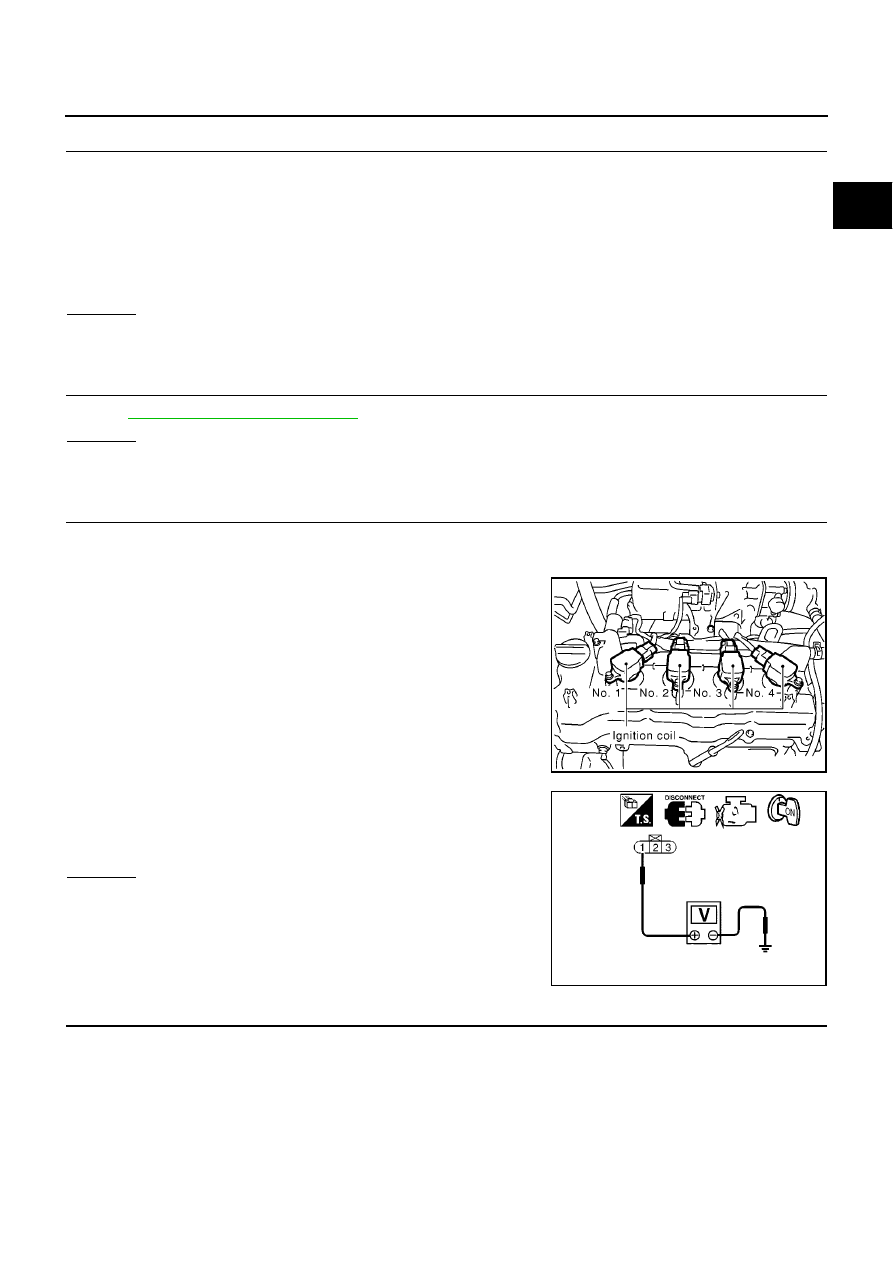

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V

1.

Turn ignition switch “OFF”.

2.

Reconnect all harness connectors disconnected.

3.

Disconnect ignition coil harness connector.

4.

Turn ignition switch “ON”.

5.

Check voltage between ignition coil terminal 1 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 15.

NG

>> GO TO 14.

14.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors M71, F45

Harness for open or short between ignition coil and ECM relay

>> Repair open circuit or short to ground or short to power in harness or connectors.

Continuity should exist.

MBIB0111E

Voltage: Battery voltage

SEF107S
