Nissan Almera Tino V10. Manual - part 304





EC-42

[QG (WITH EURO-OBD)]

ENGINE CONTROL SYSTEM

SYSTEM DESCRIPTION

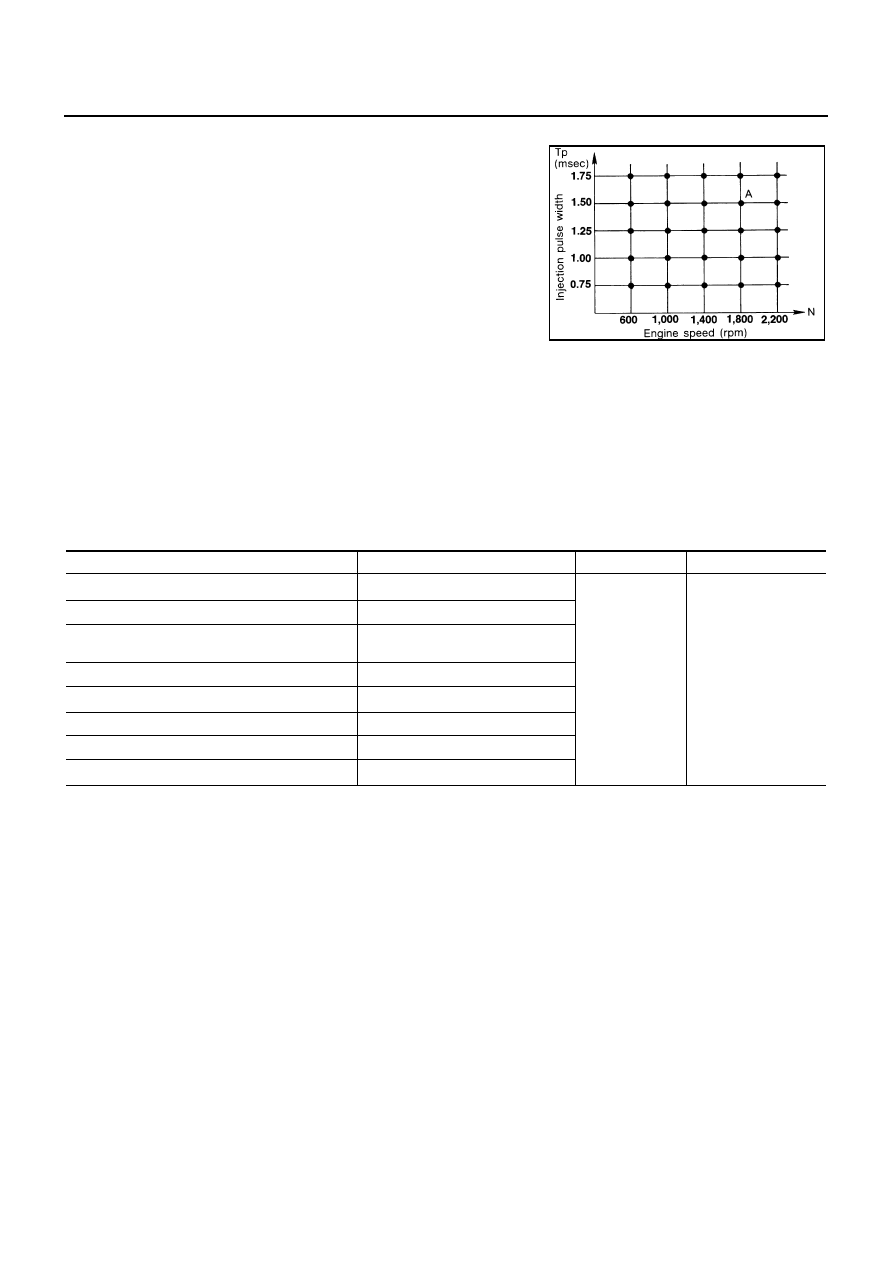

The ignition timing is controlled by the ECM to maintain the best air-
fuel ratio for every running condition of the engine. The ignition tim-
ing data is stored in the ECM. This data forms the map shown.
The ECM receives information such as the injection pulse width and
camshaft position sensor signal. Computing this information, ignition
signals are transmitted to the power transistor.
e.g., N: 1,800 rpm, Tp: 1.50 msec
A

°

BTDC

During the following conditions, the ignition timing is revised by the
ECM according to the other data stored in the ECM.

At starting

During warm-up

At idle

At low battery voltage

During acceleration

The knock sensor retard system is designed only for emergencies. The basic ignition timing is programmed
within the anti-knocking zone, if recommended fuel is used under dry conditions. The retard system does not
operate under normal driving conditions. If engine knocking occurs, the knock sensor monitors the condition.
The signal is transmitted to the ECM. The ECM retards the ignition timing to eliminate the knocking condition.

Air Conditioning Cut Control

EBS00QGH

INPUT/OUTPUT SIGNAL CHART

*1: These signals are sent to the ECM through CAN communication line.
*2: ECM determines the start signal status by the signals of engine speed and battery voltage.

SYSTEM DESCRIPTION

This system improves engine operation when the air conditioner is used.
Under the following conditions, the air conditioner is turned off.

When the accelerator pedal is fully depressed.

When cranking the engine.

At high engine speeds.

When the engine coolant temperature becomes excessively high.

When operating power steering during low engine speed or low vehicle speed.

When engine speed is excessively low.

When refrigerant pressure is excessively low or high.

SEF742M

Sensor

Input Signal to ECM

ECM Function

Actuator

Air conditioner switch*

1

Air conditioner “ON” signal

Air conditioner
cut control

Air conditioner relay

Throttle position sensor

Throttle valve opening angle

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed

*2

Engine coolant temperature sensor

Engine coolant temperature

Battery

Battery voltage

*2

Refrigerant pressure sensor

Refrigerant pressure

Power steering pressure sensor

Power steering operation

Vehicle speed signal

*1

Vehicle speed

ENGINE CONTROL SYSTEM

EC-43

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Fuel Cut Control (at No Load and High Engine Speed)

EBS00QGI

INPUT/OUTPUT SIGNAL CHART

*1: This signal is sent to the ECM through CAN communication line.

SYSTEM DESCRIPTION

If the engine speed is above 3,950 rpm with no load (for example, in neutral and engine speed over 3,950
rpm) fuel will be cut off after some time. The exact time when the fuel is cut off varies based on engine speed.
Fuel cut will operate until the engine speed reaches 1,500 rpm, then fuel cut is cancelled.

NOTE:
This function is different from deceleration control listed under “Multiport Fuel Injection (MFI) System”,

EC-39

.

CAN Communication

EBS00QGJ

SYSTEM DESCRIPTION

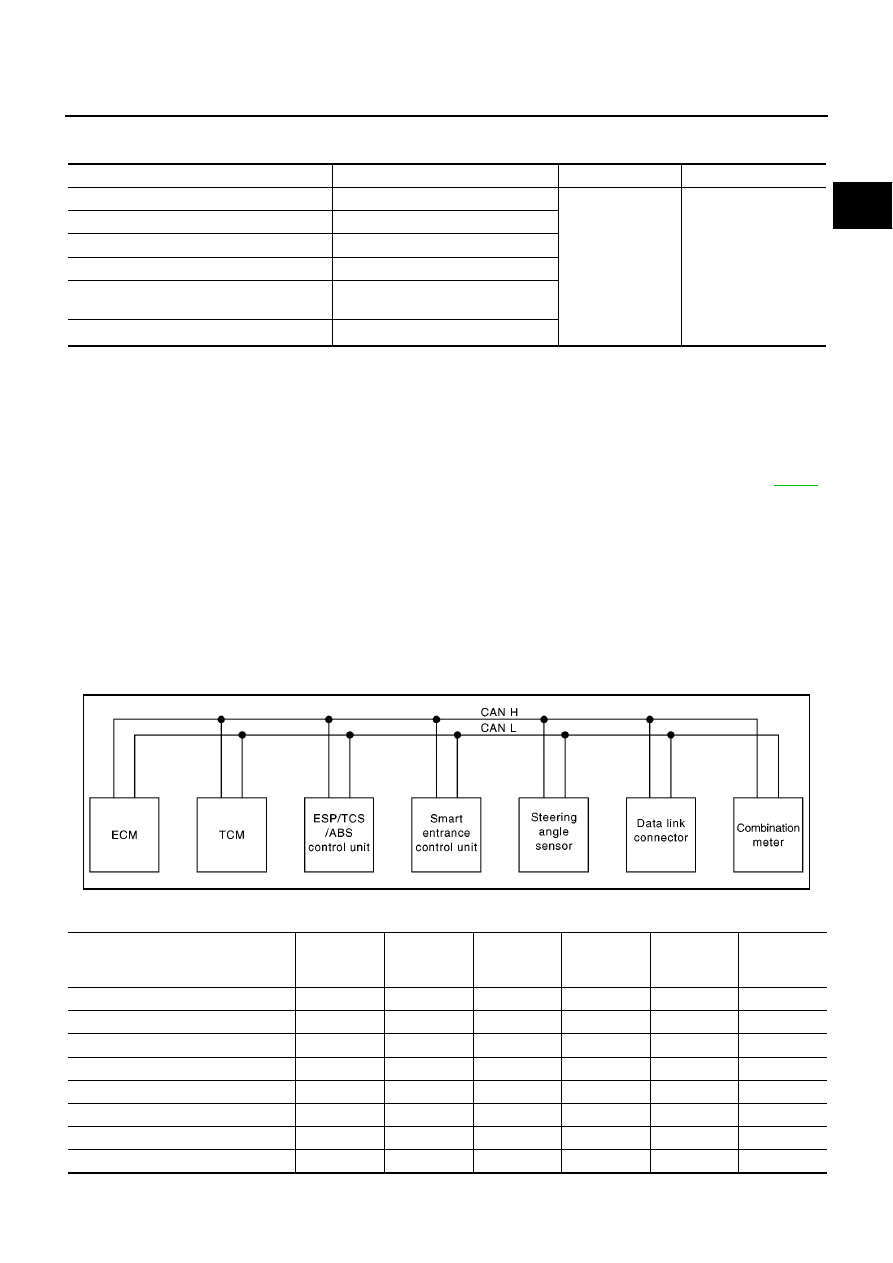

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

A/T MODELS WITH ESP
System diagram

Input/output signal chart

T: Transmit R: Receive

Sensor

Input Signal to ECM

ECM Function

Actuator

Park/neutral position (PNP) switch

Neutral position

Fuel cut control

Fuel injectors

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

Engine coolant temperature sensor

Engine coolant temperature

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed

Vehicle speed signal

*1

Vehicle speed

YEL465E

Signals

ECM

TCM

ESP/TCS/

ABS control

unit

Smart

entrance

control unit

Steering

angle sensor

Combination

meter

Engine speed signal

T

R

R

Brake switch signal

R

T

Rear window defogger signal

R

T

Heater fan switch signal

R

T

Air conditioner switch signal

R

T

MI signal

T

R

Engine coolant temperature signal

T

R

Fuel consumption signal

T

R

EC-44

[QG (WITH EURO-OBD)]

ENGINE CONTROL SYSTEM

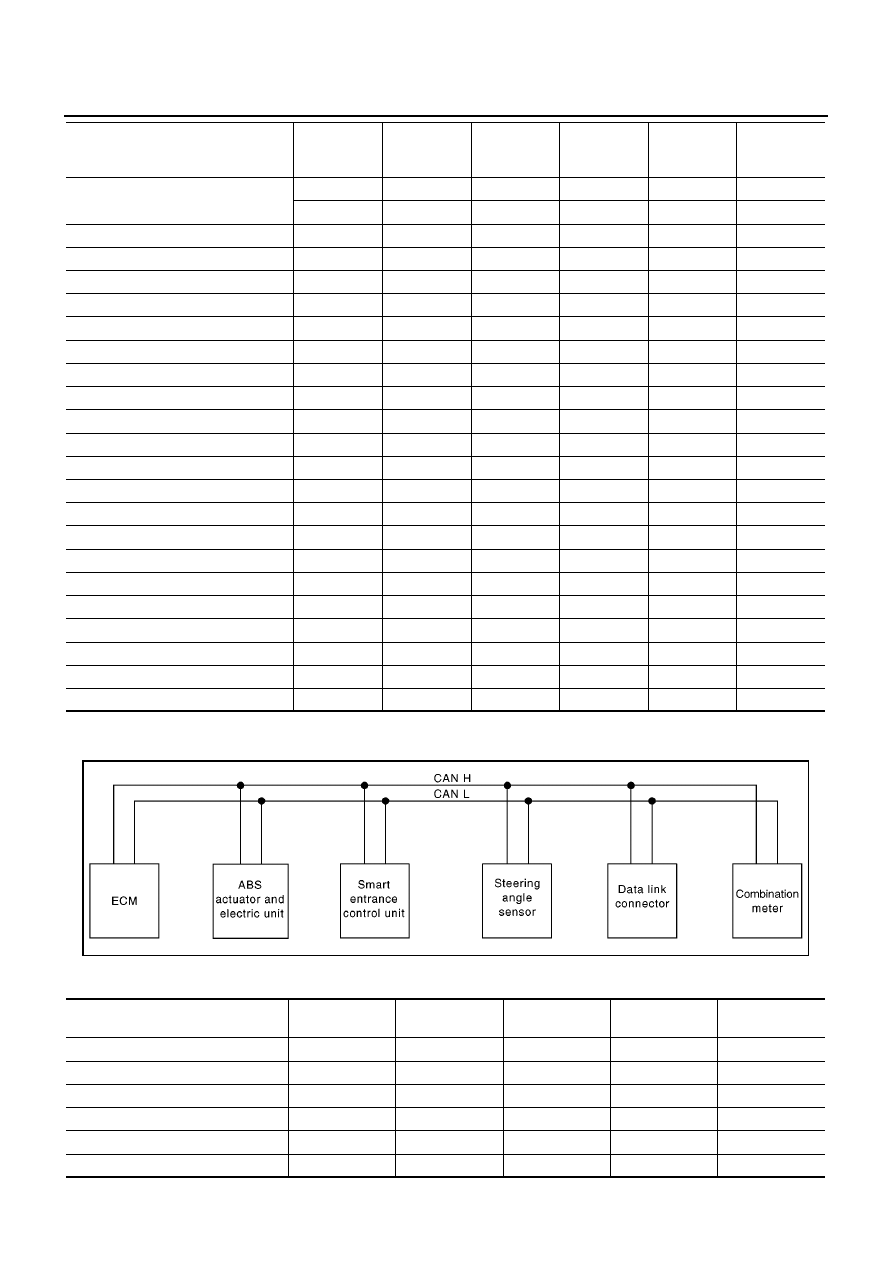

M/T MODELS WITH ESP
System diagram

Input/output signal chart

T: Transmit R: Receive

Vehicle speed signal

T

R

R

T

Seat belt reminder signal

R

T

Headlamp switch signal

T

R

Flashing indicator signal

T

R

Engine cooling fan speed signal

T

R

Door switches state signal

T

R

A/C compressor signal

T

R

A/C compressor feedback signal

T

R

Accelerator pedal position signal

T

R

Output shaft revolution signal

R

T

OD OFF switch signal

R

T

OD OFF indicator signal

T

R

A/T self-diagnosis signal

R

T

P range signal

T

R

Steering angle sensor signal

R

T

A/T position indicator signal

R

T

R

R

ABS warning lamp signal

T

R

Slip indicator lamp signal

T

R

VDC Off indicator lamp signal

T

R

Brake warning lamp signal

T

R

N range switch signal

R

T

P range switch signal

R

T

Signals

ECM

TCM

ESP/TCS/

ABS control

unit

Smart

entrance

control unit

Steering

angle sensor

Combination

meter

YEL466E

Signals

ECM

ESP/TCS/ABS

control unit

Smart entrance

control unit

Steering angle

sensor

Combination

meter

Engine speed signal

T

R

R

Rear window defogger signal

R

T

Heater fan switch signal

R

T

Air conditioner switch signal

R

T

MI signal

T

R

Engine coolant temperature signal

T

R

ENGINE CONTROL SYSTEM

EC-45

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

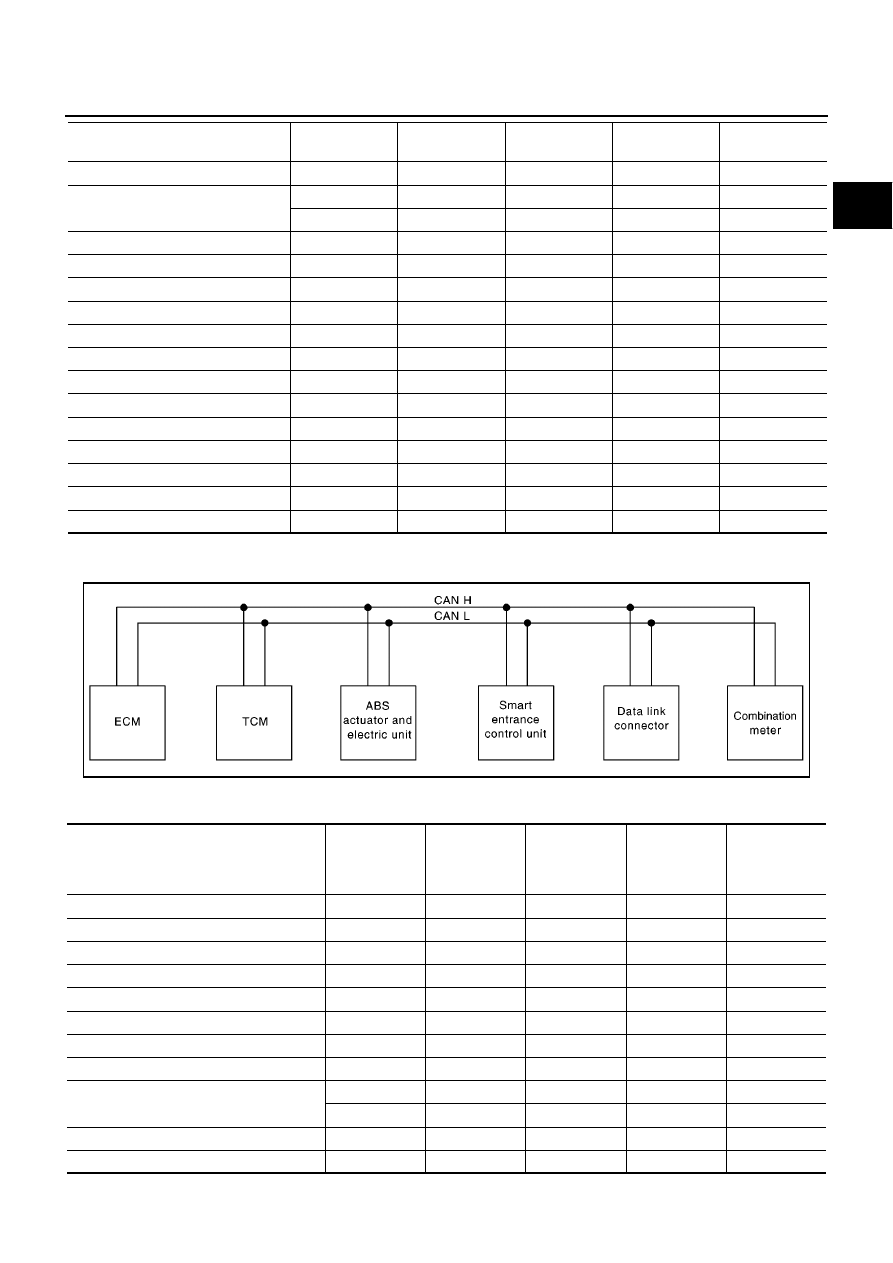

A/T MODELS WITHOUT ESP
System diagram

Input/output signal chart

T: Transmit R: Receive

Fuel consumption signal

T

R

Vehicle speed signal

T

R

R

T

Seat belt reminder signal

R

T

Headlamp switch signal

T

R

Flashing indicator signal

T

R

Engine cooling fan speed signal

T

R

Door switches state signal

T

R

A/C compressor signal

T

R

A/C compressor feedback signal

T

R

Accelerator pedal position signal

T

R

Steering angle sensor signal

R

T

ABS warning lamp signal

T

R

Slip indicator lamp signal

T

R

VDC off indicator lamp signal

T

R

Brake warning lamp signal

T

R

Signals

ECM

ESP/TCS/ABS

control unit

Smart entrance

control unit

Steering angle

sensor

Combination

meter

YEL468E

Signals

ECM

TCM

ABS actuator

and electric

unit (control

unit)

Smart entrance

control unit

Combination

meter

Engine speed signal

T

R

Brake switch signal

R

T

Rear window defogger signal

R

T

Heater fan switch signal

R

T

Air conditioner switch signal

R

T

MI signal

T

R

Engine coolant temperature signal

T

R

Fuel consumption signal

T

R

Vehicle speed signal

T

R

R

T

Seat belt reminder signal

R

T

Headlamp switch signal

T

R
