EC-34

[QG (WITH EURO-OBD)]

PREPARATION

PREPARATION

PFP:00002

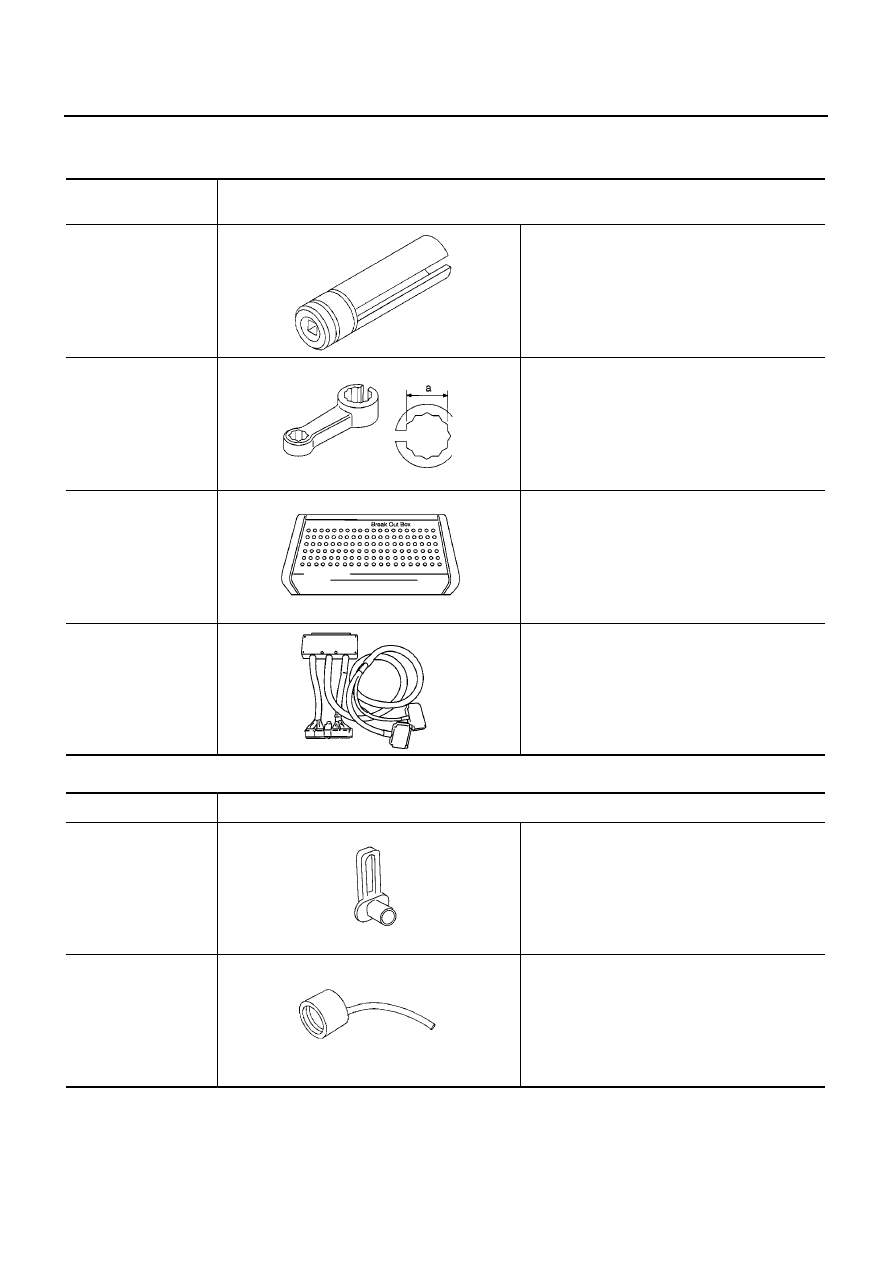

Special Service Tools

EBS00QG9

Commercial Service Tools

EBS00QGA

Tool number
Tool name

Description

KV10117100
Heated oxygen
sensor wrench

Loosening or tightening heated oxygen sensors
with 22 mm (0.87 in) hexagon nut

KV10114400
Heated oxygen
sensor wrench

Loosening or tightening heated oxygen sensors
a: 22 mm (0.87 in)

KV109E0010
Break-out box

Measuring the ECM signals with a circuit tester

KV109E0080
Y-cable adapter

Measuring the ECM signals with a circuit tester

S-NT379

S-NT636

S-NT825

S-NT826

Tool name

Description

Quick connector
release

Removing fuel tube quick connectors in engine
room
(Available in SEC. 164 of PARTS CATALOG: Part
No. 16441 6N210)

Fuel filler cap adapter

Checking fuel tank vacuum relief valve opening
pressure

PBIC0198E

S-NT653

PREPARATION

EC-35

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

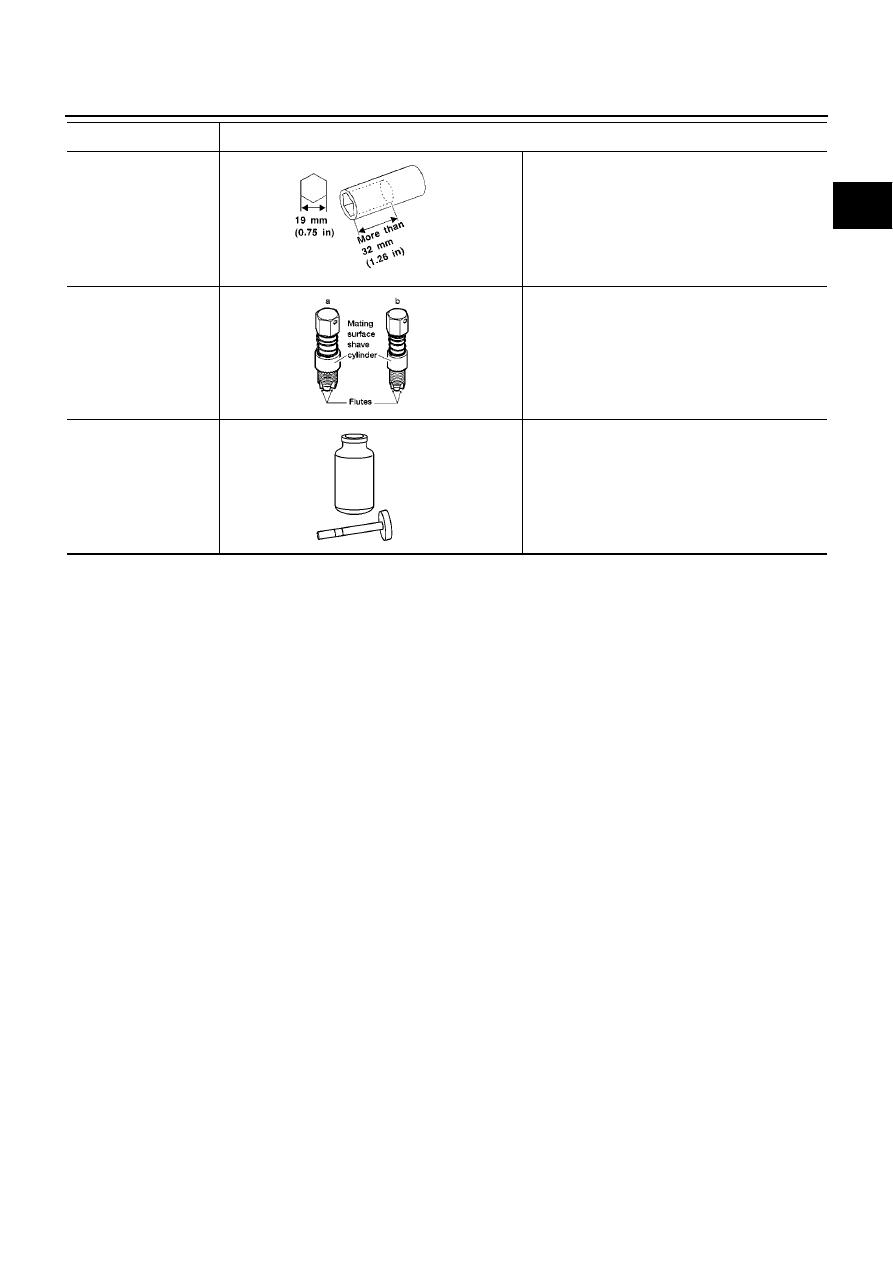

Socket wrench

Removing and installing engine coolant
temperature sensor

Oxygen sensor thread
cleaner
ie: (J-43897-18)
(J-43897-12)

Reconditioning the exhaust system threads
before installing a new oxygen sensor. Use with
anti-seize lubricant shown below.
a: 18 mm diameter with pitch 1.5 mm for
Zirconia Oxygen Sensor
b: 12 mm diameter with pitch 1.25 mm for
Titania Oxygen Sensor

Anti-seize lubricant

ie: (Permatex

TM

133AR or equivalent
meeting MIL
specification MIL-A-
907)

Lubricating oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.

Tool name

Description

S-NT705

AEM488

S-NT779

EC-36

[QG (WITH EURO-OBD)]

ENGINE CONTROL SYSTEM

ENGINE CONTROL SYSTEM

PFP:23710

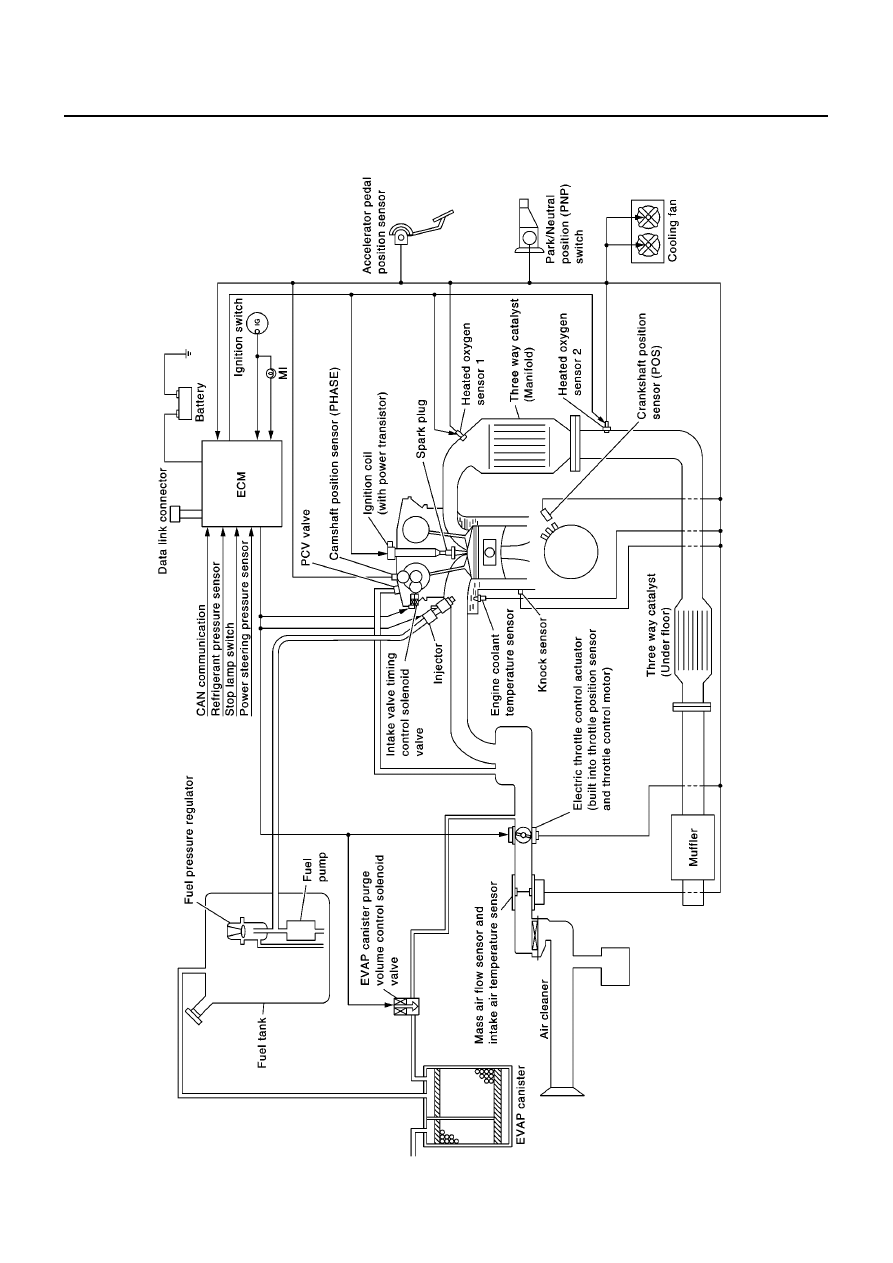

System Diagram - M/T Models

EBS00QGB

MBIB0239E

ENGINE CONTROL SYSTEM

EC-37

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

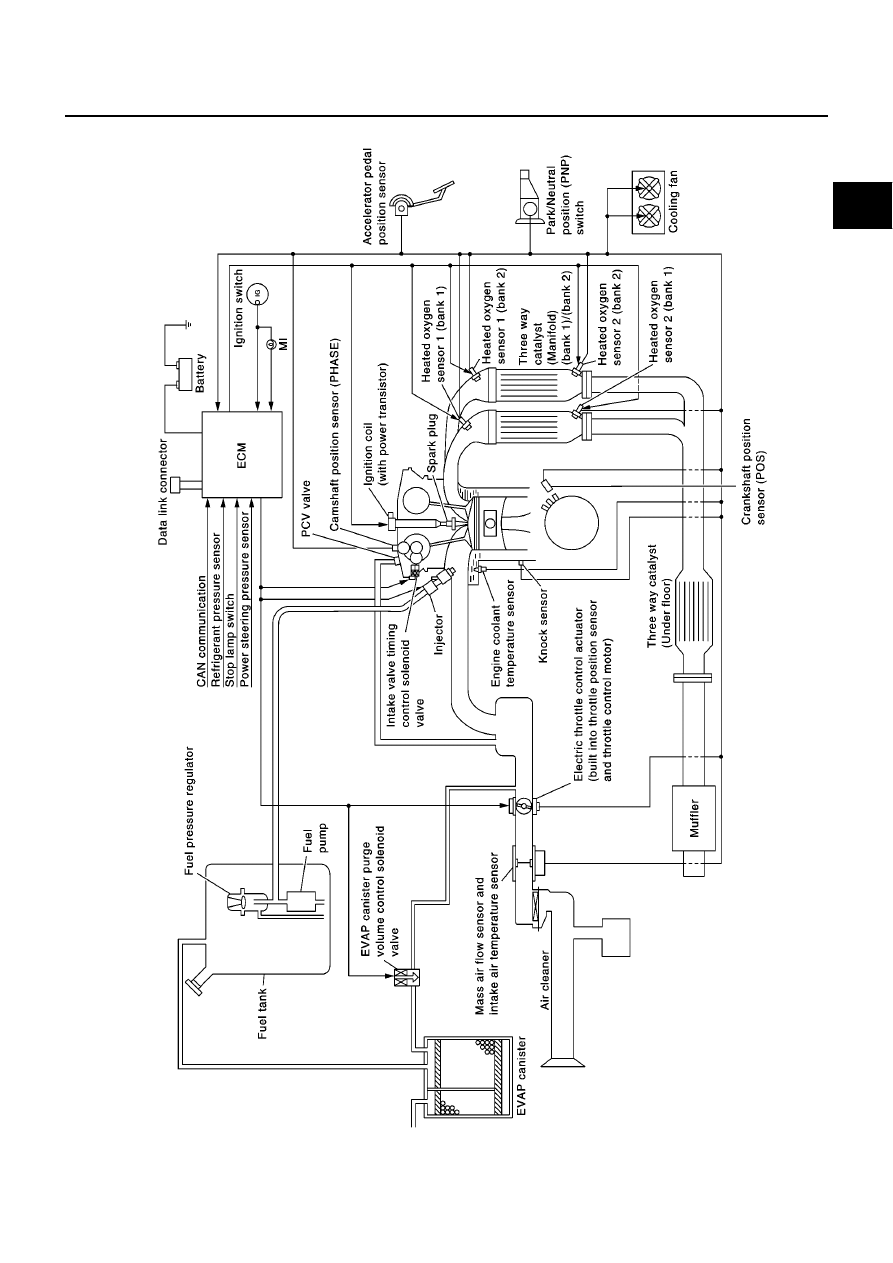

System Diagram - A/T Models

EBS00QGC

MBIB0240E
