Nissan Almera Tino V10. Manual - part 278





Checking Body Corrosion

NLBT0033

Visually check the body sheet metal panel for corrosion, paint damage (scratches, chipping, rubbing, etc.) or
damage to the anti-corrosion materials. In particular, check the following locations.
Hemmed portion
Hood front end, door lower end, trunk lid rear end, etc.
Panel joint
Side sill of rear fender and center pillar, rear wheel housing of rear fender, around strut tower in engine
compartment, etc.
Panel edge
Trunk lid opening, sunroof opening, fender wheelarch flange, fuel filler lid flange, around holes in panel, etc.
Parts contact
Waist molding, windshield molding, bumper, etc.
Protectors
Damage or condition of mudguard, fender protector, chipping protector, etc.
Anti-corrosion materials
Damage or separation of anti-corrosion materials under the body.
Drain holes
Condition of drain holes at door and side sill.
When repairing corroded areas, refer to the Corrosion Repair Manual.

CHASSIS AND BODY MAINTENANCE

Checking Body Corrosion

BT-6

Removal and Installation

NLBT0004

I

When removing or installing hood, place a cloth or other padding on hood. This prevents vehicle body from
being scratched.

I

Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.

I

Hood adjustment: Adjust at hinge portion.

I

Hood lock adjustment: After adjusting, check hood lock control operation. Apply a coat of grease to hood
locks engaging mechanism.

I

Hood opener: Do not attempt to bend cable forcibly. Doing so increases effort required to unlock hood.

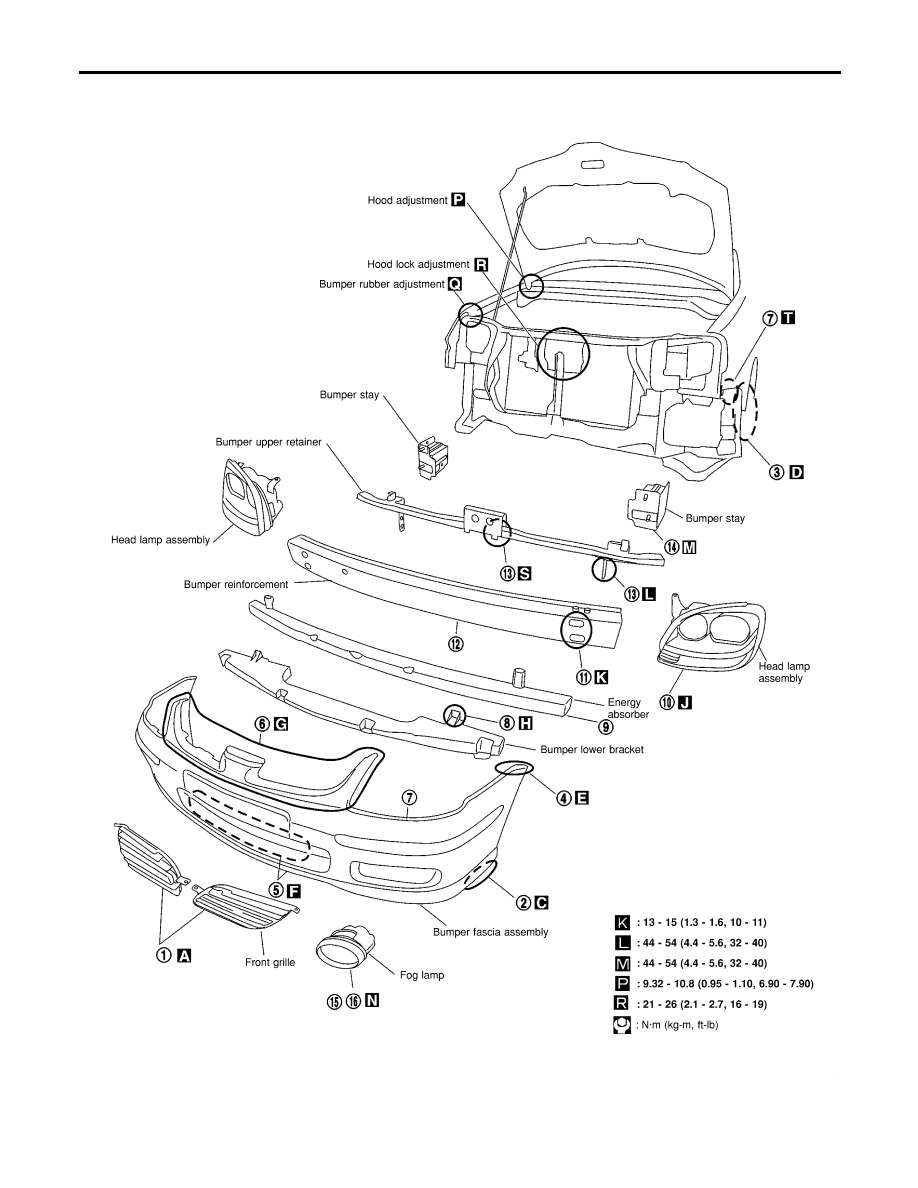

FRONT BUMPER ASSEMBLY

NLBT0004S01

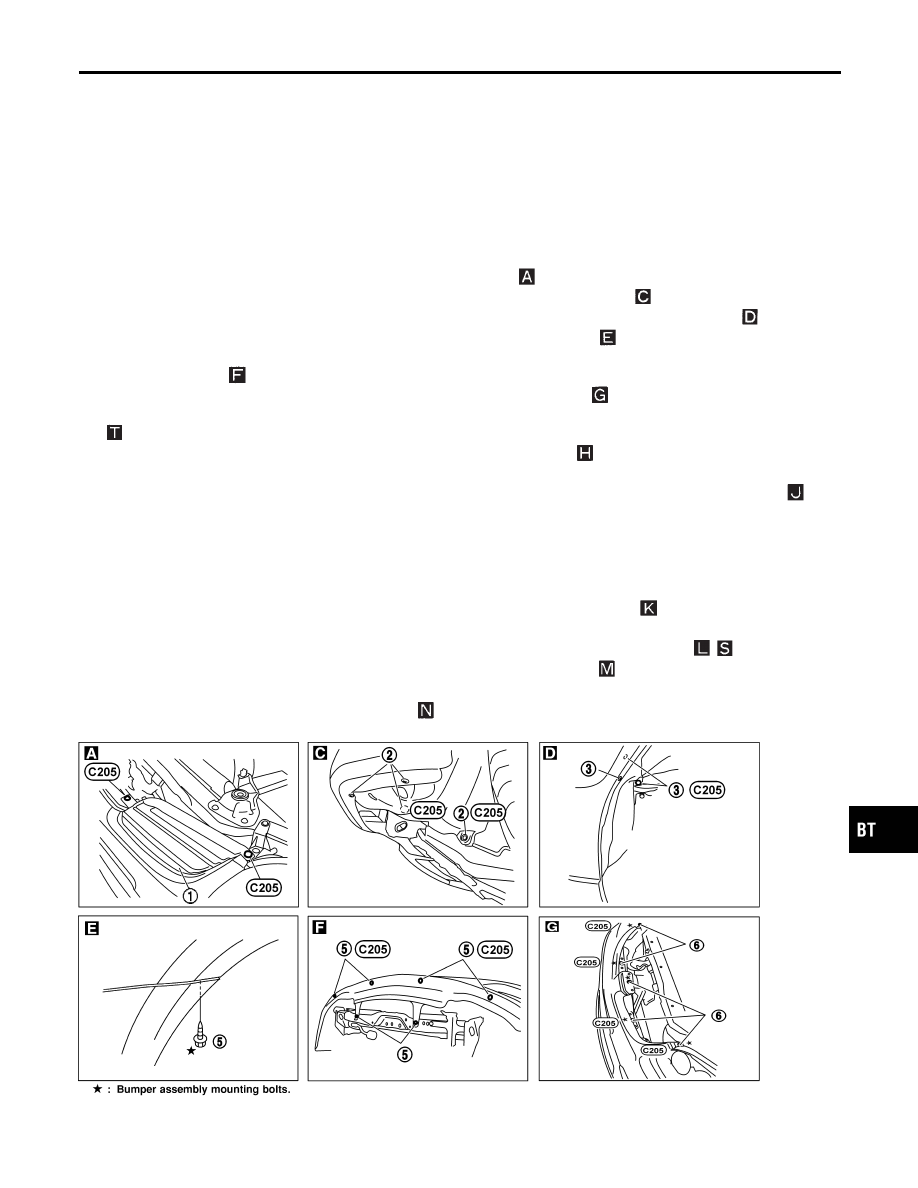

1. Remove clips securing front grille, then remove front grille.
2. Remove clips and screws securing left and right sides of fender protectors.
3. Remove clips and screws securing left and right sides of fender protectors in wheelhouse.
4. Remove screws securing left and right front fenders to bumper fascia.
5. Remove bolts securing radiator core support lower to bumper fascia and remove clips securing lower side

of bumper fascia.

6. Remove clips securing radiator core support upper to bumper fascia.
7. Extract bumper fascia assembly. Then disconnect harness connectors. (Models with fog lamp assembly)

8. Remove bolts securing left and right side of bumper lower bracket.
9. Remove energy absorber.
10. Remove bolts and hooks securing the headlamp assembly, then disconnect harness connectors.

In case of headlamp bracket breakage, repair of the headlamp unit is possible by means of the bracket
repair kit.

Headlamp bracket repair kit part number:

KE260–BU125 (RH side)
KE260–BU025 (LH side)

11. Remove nuts securing bumper reinforcement to left and right bumper stays.
12. Extract bumper reinforcement.
13. Remove bolts securing bumper upper retainer, then remove bumper upper retainer.
14. Remove bolts securing bumper stays, then remove the bumper stays.
Fog lamp assembly (Models with fog lamp assembly)
15. Remove screw securing fog lamp assembly.
16. Extract fog lamp assembly.

NBT137

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

BODY FRONT END

Removal and Installation

BT-7

NBT138

BODY FRONT END

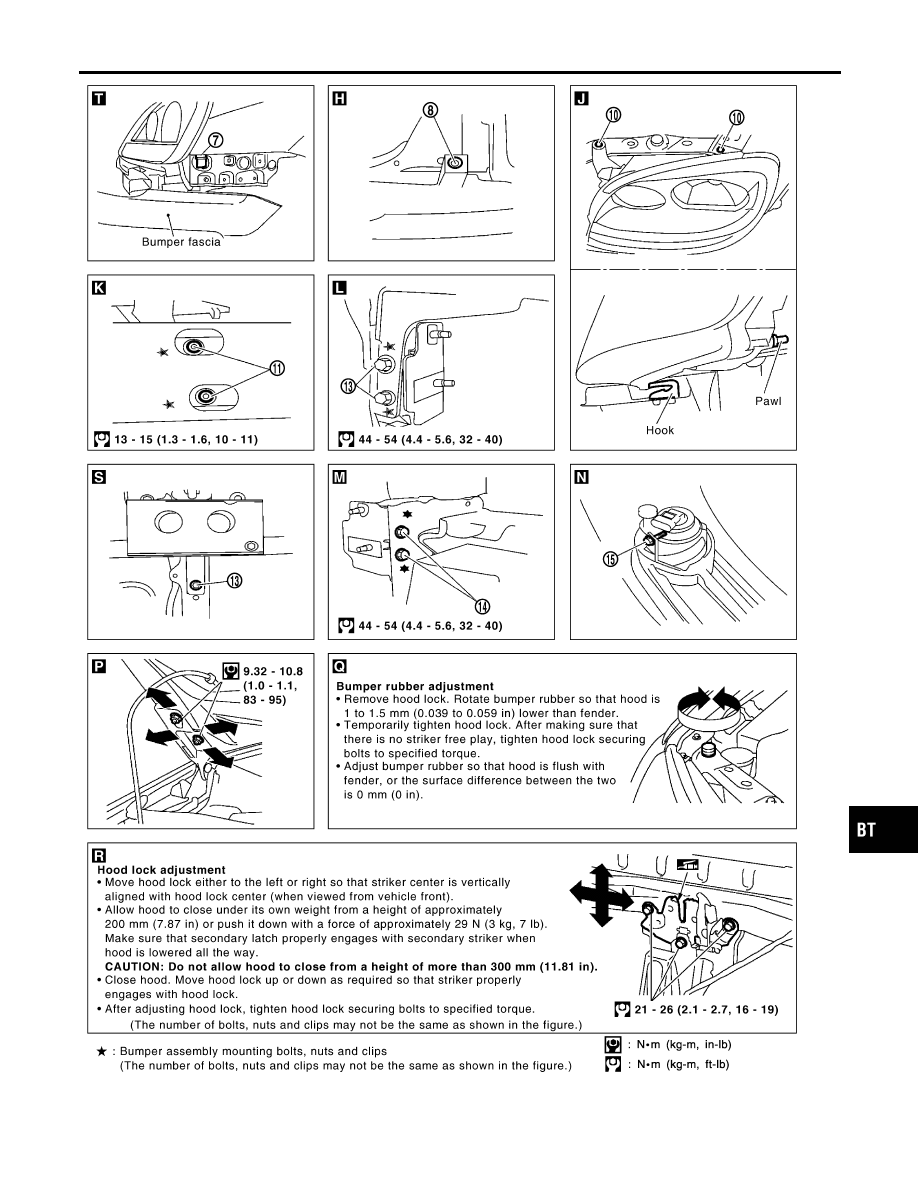

Removal and Installation (Cont’d)

BT-8

YBT113

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

BODY FRONT END

Removal and Installation (Cont’d)

BT-9
