Nissan Almera Tino V10. Manual - part 276





YBR379

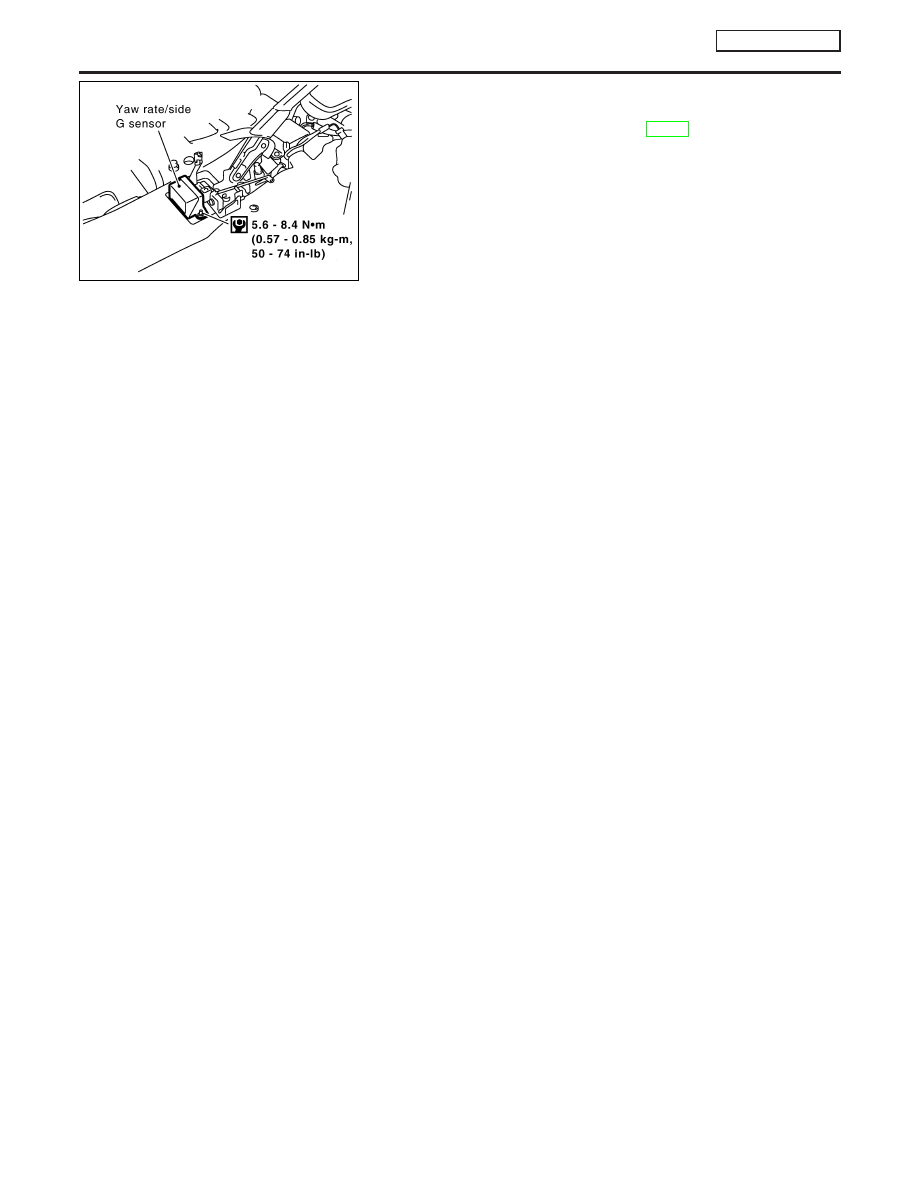

Removal and Installation

NLBR0206

REMOVAL

NLBR0206S01

1.

Remove center console. Refer to BT-27.

2.

Disconnect harness connector.

3.

Remove installation nuts. Remove yaw rate/side G sensor.

CAUTION:

I

Do not drop or strike the yaw rate/side G sensor, because
it has little endurance to impact.

I

Do not use power tool etc., because Yaw rate/side G sen-
sor is weak for the impact.

INSTALLATION

NLBR0206S02

Install in the revers order of removal.

CAUTION:

I

Do not drop or strike the yaw rate/side G sensor, because
it has little endurance to impact.

G SENSOR

ESP/TCS/ABS

Removal and Installation

BR-152

YBR355

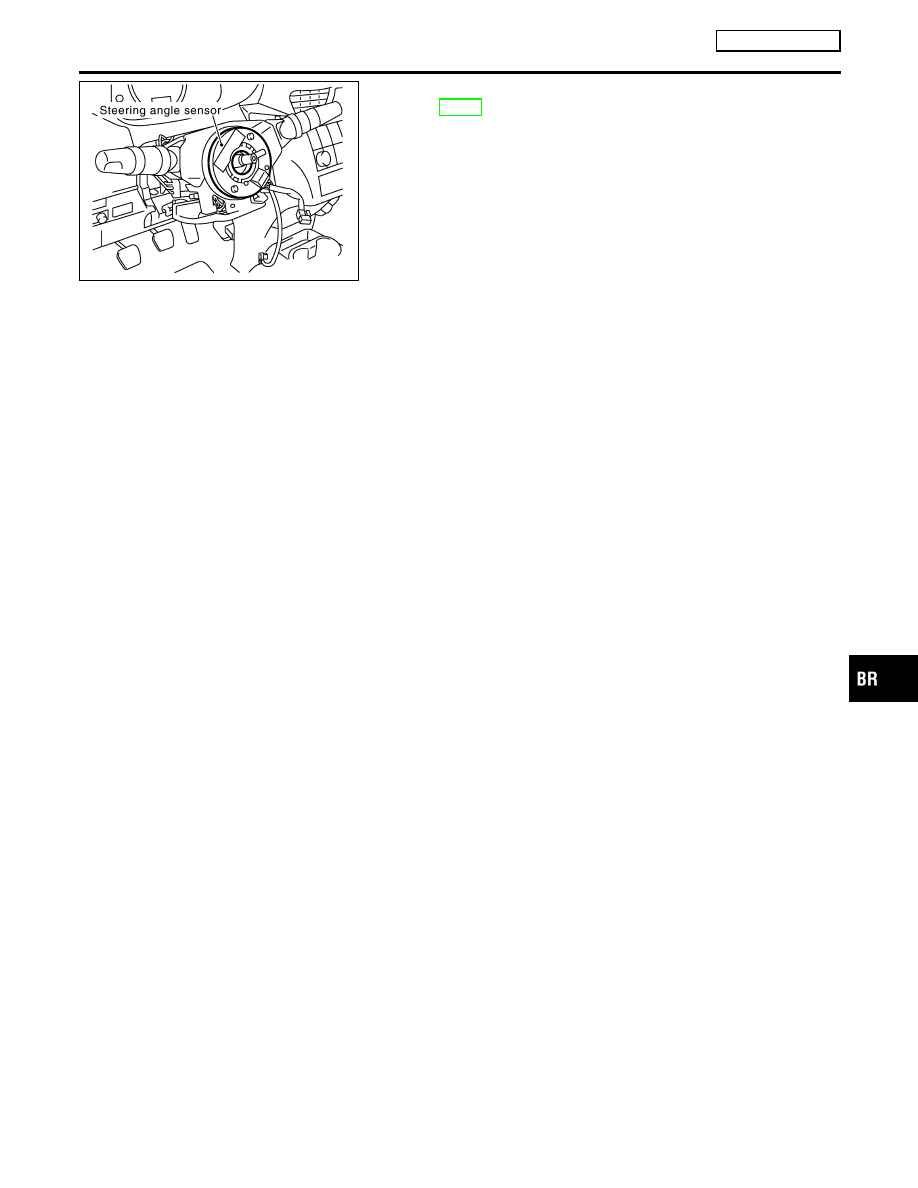

Removal and Installation

NLBR0207

Refer to ST-10.
NOTE:
Steering angle sensor is built into the spiral cable.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

STEERING ANGLE SENSOR

ESP/TCS/ABS

Removal and Installation

BR-153

General Specifications

NLBR0077

Unit: mm (in)

Engine

QG18DE

YD22DDT

YD22DDTi

Front Brake

Brake model

CL25VCG

Cylinder bore diameter

57.2 (2.2529)

Pad
Length

×

width

×

thickness

110.6

×

54.2

×

11.0 (4.35

×

2.13

×

0.433)

Rotor outer
diameter

×

thickness

280

×

28 (11.02

×

1.10)

Rear Brake

Brake model

CL11HDG (disc brake)

Cylinder bore diam-
eter

Cam & Strut type

38 (1.496)

Ball & Ramp type

38.2 (1.504)

Pad
Length

×

width

×

thickness

79.8

×

38.5

×

9.3 (3.142

×

1.516

×

0.37)

Rotor outer diameter

×

thickness

278

×

10 (10.94

×

0.39)

Master cylinder

Cylinder bore diameter

23.81 (15/16)

Brake booster

Booster model

S255

M215T

Diaphragm

Primary

255 (10.04)

230 (9.06)

Secondary

205 (8.07)

Specified brake fluid

DOT 4

Disc Brake

NLBR0078

Unit: mm (in)

Brake model

CL25VCG

CL11HDG

Pad wear limit

Minimum thickness

2.0 (0.078)

2.0 (0.079)

Rotor repair limit

Maximum runout

0.07 (0.0028)

0.07 (0.0028)

Minimum thickness

26.0 (1.024)

9 (0.35)

Brake Pedal

NLBR0079

Unit: mm (in)

Free height “H”*

LHD

M/T

155.9 - 164.8 (6.14 - 6.49)

A/T

164.7 - 173.9 (6.48 - 6.85)

RHD

M/T

154.8 - 164.6 (6.09 - 6.48)

A/T

164.0 - 173.4 (6.46 - 6.83)

Clearance “C” between pedal stopper and threaded end of stop lamp switch or brake switch

0.75 - 2.00 (0.0295 - 0.0787)

*: Measured from surface of dash panel to surface of pedal pad

Parking Brake

NLBR0080

Type

Center lever

Number of notches
[under force of 196 N (20 kg, 44 lb)]

5 - 6

Number of notches
when warning lamp switch comes on

1

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

BR-154

BODY & TRIM

SECTION

BT

CONTENTS

PRECAUTIONS ...............................................................3

Service Notice..............................................................3
Supplemental Restraint System (SRS)

AIR

BAG

and

SEAT BELT PRE-TENSIONER

...............3

CLIP AND FASTENER....................................................4

Description ...................................................................4

CHASSIS AND BODY MAINTENANCE .........................6

Checking Body Corrosion............................................6

BODY FRONT END.........................................................7

Removal and Installation .............................................7

FRONT BUMPER ASSEMBLY

....................................7

BODY REAR END AND OPENER................................10

Removal and Installation ...........................................10

REAR BUMPER ASSEMBLY

....................................10

DOOR.............................................................................13

Adjustment .................................................................13

STRIKER ADJUSTMENT

..........................................13

Front Door Glass .......................................................14

FRONT DOOR GLASS AND REGULATOR

................14

Front Door Limit Switch Reset (Driver side only)......15

RESET CONDITIONS

..............................................15

RESET PROCEDURES

............................................15

Rear Door Glass........................................................16

REAR DOOR GLASS AND REGULATOR

..................16

Front Door Lock.........................................................18

OUTSIDE HANDLE ROD ADJUSTMENT

...................18

REMOVAL

...............................................................18

Rear Door Lock .........................................................20

OUTSIDE HANDLE ROD ADJUSTMENT

...................20

REMOVAL

...............................................................21

INSTRUMENT PANEL ASSEMBLY .............................22

Removal and Installation ...........................................22

SIDE AND FLOOR TRIM...............................................27

Removal and Installation ...........................................27

LUGGAGE ROOM TRIM ...............................................30

Removal and Installation ...........................................30

DOOR TRIM ...................................................................31

Removal and Installation ...........................................31

ROOF TRIM ...................................................................34

Removal and Installation ...........................................34

BACK DOOR TRIM .......................................................36

Removal and Installation ...........................................36

EXTERIOR .....................................................................37

Removal and Installation ...........................................37

FRONT SEAT ................................................................45

Removal and Installation ...........................................45

MANUAL SEAT

........................................................46

Heated Seat...............................................................47
Active Head Restraint................................................47

OPERATION OUTLINE

............................................47

REAR SEAT...................................................................48

Removal and Installation ...........................................48

REAR OUTSIDE SEAT

.............................................48

REAR CENTER SEAT

..............................................49

SUNROOF......................................................................50

Adjustment .................................................................50
Removal.....................................................................50
Trouble Diagnoses.....................................................54

DIAGNOSTIC TABLE

................................................54

WIND DEFLECTOR (WHERE FITTED)

......................54

ADJUSTMENT

.........................................................55

DRAIN HOSES

........................................................56

WEATHERSTRIP

.....................................................56

LINK AND WIRE ASSEMBLY

....................................57

WINDSHIELD AND WINDOWS ....................................58

Removal and Installation ...........................................58

REMOVAL

...............................................................58

INSTALLATION

........................................................58

WINDSHIELD

..........................................................59

SIDE WINDOW

........................................................60

BACK DOOR WINDOW

............................................61

DOOR MIRROR .............................................................62

Removal and Installation ...........................................62

REAR VIEW MIRROR ...................................................63

Removal and Installation ...........................................63

REMOVAL

...............................................................63

INSTALLATION

........................................................63

BODY (ALIGNMENT) ....................................................64

Alignment ...................................................................64

ENGINE COMPARTMENT

........................................65

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX
