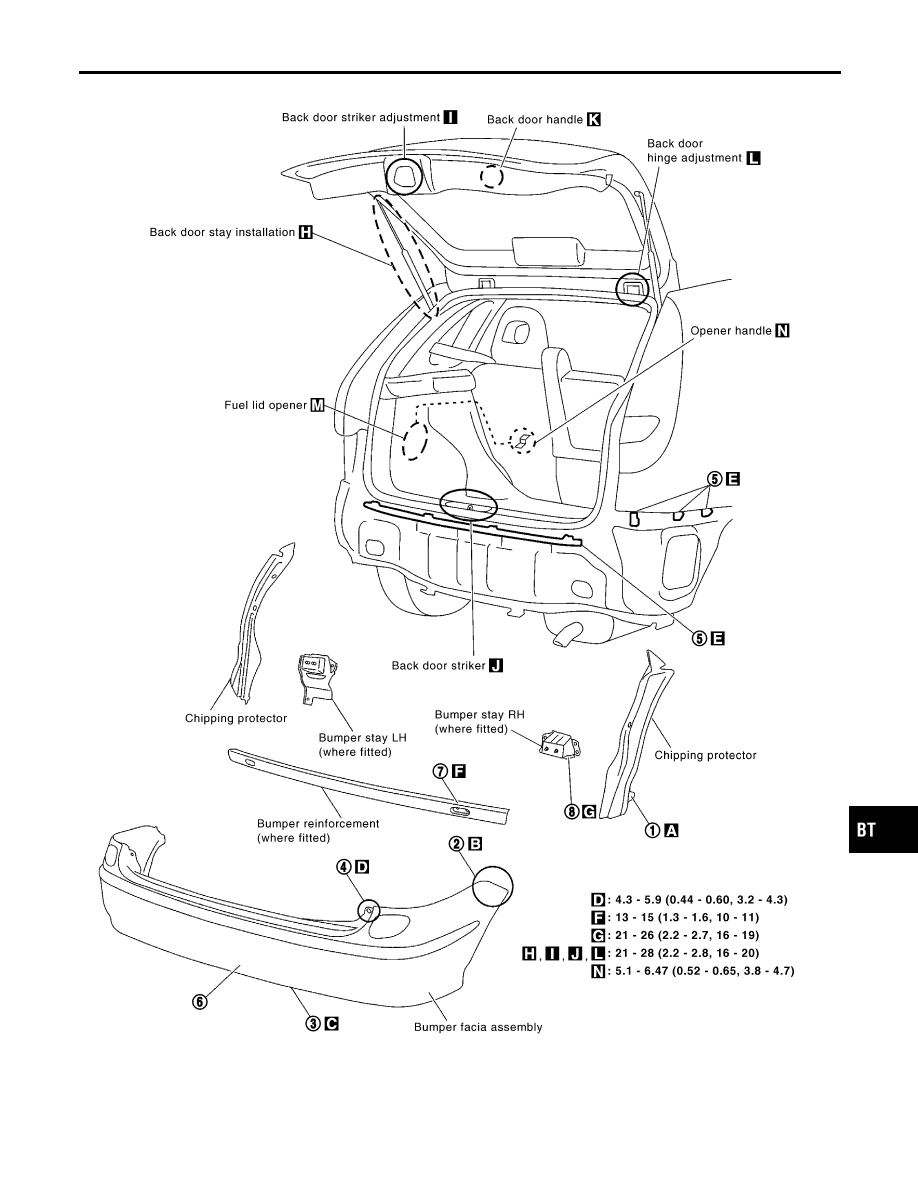

Removal and Installation
NLBT0034
I
When removing or installing back door, place a cloth or other padding on back door. This prevents vehicle
body from being scratched.
I
Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.
I

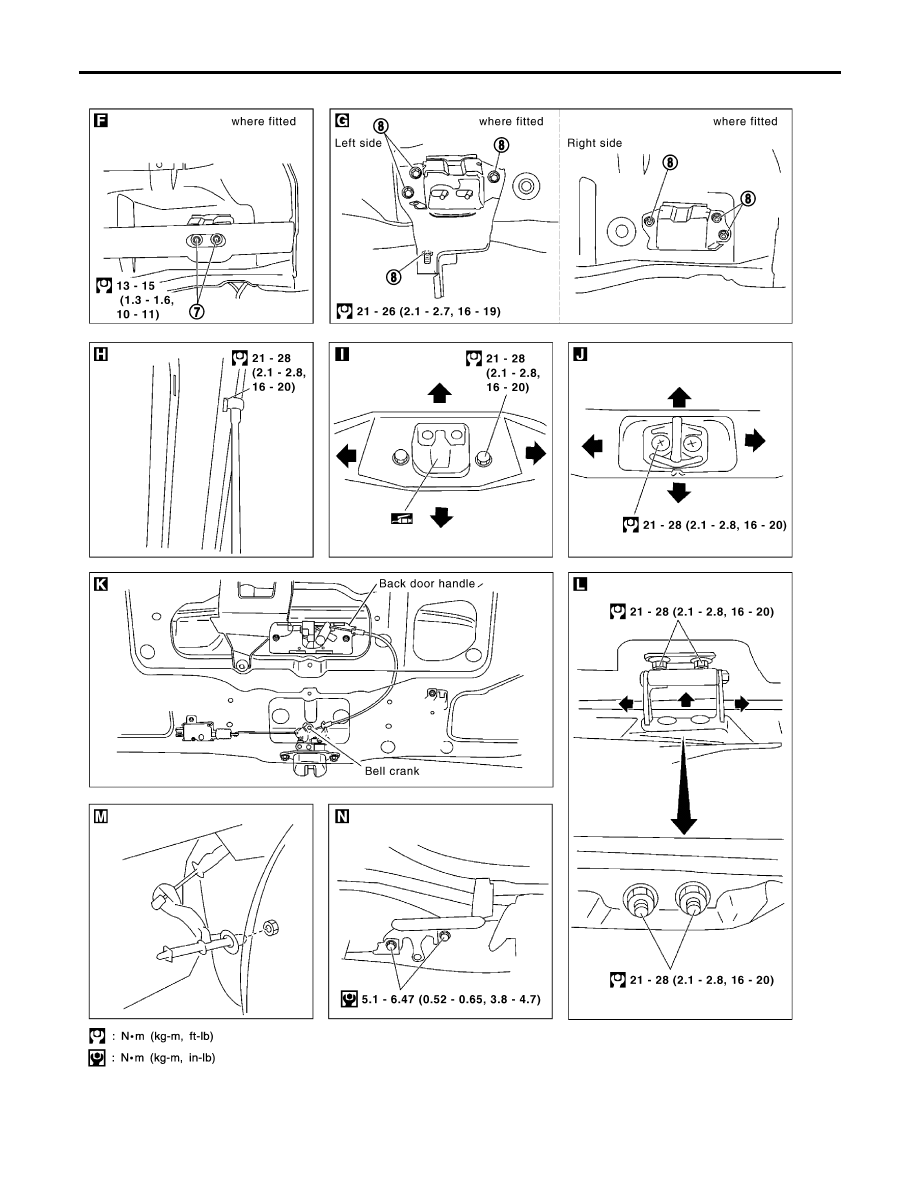

Back door adjustment: Adjust at hinge-back door portion for proper back door fit.
I
Back door lock system adjustment: Adjust striker so that it is in the center of the lock. After adjustment,
check back door lock operation.
I
After installation, make sure that back door and fuel filler lid open smoothly.
REAR BUMPER ASSEMBLY
NLBT0034S01
1. Remove clips securing left and right chipping protectors.
2. Remove screws securing left and right rear fenders to bumper fascia.
3. Remove clips securing bumper fascia assembly.
4. Remove bolts securing left and right rear body to bumper fascia.
5. Open the bumper fascia side outward to disengage from side clips.
6. Extract bumper fascia assembly.
7. Remove nuts securing bumper reinforcement to left and right bumper stays.
8. Remove bolts securing bumper stays, then remove the bumper stays.
NBT168
BODY REAR END AND OPENER
Removal and Installation
BT-10
