MENU”. Refer to following information.

3.

When “START” is touched, data monitor screen is displayed.

Display Item List

NLBR0177S0402

Monitor item

Monitor item selection

Remarks

ECU INPUT

SIGNALS

MAIN

SIGNALS

SELECTION

FROM MENU

CAN DIAG

SUPPORT

MNTR

FR RH SENSOR
(km/h)

×

×

×

–

Wheel speed calculated by
front RH wheel sensor signal is
displayed.

FR LH SENSOR
(km/h)

×

×

×

–

Wheel speed calculated by
front LH wheel sensor signal is
displayed.

RR RH SENSOR
(km/h)

×

×

×

–

Wheel speed calculated by
rear RH wheel sensor signal is
displayed.

RR LH SENSOR
(km/h)

×

×

×

–

Wheel speed calculated by
rear LH wheel sensor signal is
displayed.

BATTERY VOLT
(V)

×

×

×

–

Voltage supplied to ABS actua-
tor and electric unit (control
unit).

SLCT LVR POSI

×

×

×

–

Shift position judged by A/T
PNP switch signal.

ACCEL POS SIG
(%)

×

–

×

–

Throttle valve open/close sta-
tus judged by CAN communi-
cation signal is displayed.

ENGINE SPEED
(rpm)

×

×

×

–

Engine speed judged by CAN
communication signal is dis-
played.

GEAR

×

×

×

–

The gear position determined
from the A/T PNP switch signal
is displayed.

STR ANGLE SIG
(deg)

×

–

×

–

Steering angle detected by
steering angle sensor is dis-
played.

YAW RATE SEN
(d/s)

×

×

×

–

Yaw rate detected by yaw rate
side G sensor is displayed.

SIDE G-SENSOR
(m/s

2

)

×

–

×

–

Lateral acceleration detected
by yaw rate/side G sensor is
displayed.

PRESS SENSOR
(bar)

×

–

×

–

Brake fluid pressure detected
by pressure sensor is dis-
played.

STOP LAMP SW
(ON/OFF)

×

×

×

–

Stop lamp switch (ON/OFF)
status is displayed.

OFF SW
(ON/OFF)

×

×

×

–

ESP OFF switch (ON/OFF)
status is displayed.

ABS WARN LAMP
(ON/OFF)

–

×

×

–

ABS warning lamp (ON/OFF)
status is displayed.

TROUBLE DIAGNOSIS

ESP/TCS/ABS

CONSULT-II Functions (Cont’d)

BR-116

Monitor item

Monitor item selection

Remarks

ECU INPUT

SIGNALS

MAIN

SIGNALS

SELECTION

FROM MENU

CAN DIAG

SUPPORT

MNTR

SLIP LAMP
(ON/OFF)

–

×

×

–

SLIP indicator lamp (ON/OFF)
status is displayed.

FR LH IN SOL
(ON/OFF)

–

×

×

–

Front LH IN ABS solenoid (ON/
OFF) status is displayed.

FR LH OUT SOL
(ON/OFF)

–

×

×

–

Front LH OUT ABS solenoid
(ON/OFF) status is displayed.

RR RH IN SOL
(ON/OFF)

–

×

×

–

Rear RH IN ABS solenoid (ON/
OFF) status is displayed.

RR RH OUT SOL
(ON/OFF)

–

×

×

–

Rear RH OUT ABS solenoid
(ON/OFF) status is displayed.

FR RH IN SOL
(ON/OFF)

–

×

×

–

Front RH IN ABS solenoid
(ON/OFF) status is displayed.

FR RH OUT SOL
(ON/OFF)

–

×

×

–

Front RH OUT ABS solenoid
(ON/OFF) status is displayed.

RR LH IN SOL
(ON/OFF)

–

×

×

–

Rear LH IN ABS solenoid (ON/
OFF) status is displayed.

RR LH OUT SOL
(ON/OFF)

–

×

×

–

Rear LH OUT ABS solenoid
(ON/OFF) status is displayed.

OFF LAMP
(ON/OFF)

–

×

×

–

OFF Lamp (ON/OFF) status is
displayed.

MOTOR RELAY
(ON/OFF)

–

×

×

–

ABS motor relay signal (ON/
OFF) status is displayed.

ACTUATOR RLY
(ON/OFF)

–

×

×

–

ABS actuator relay signal (ON/
OFF) status is displayed.

CV1
(ON/OFF)

–

–

×

–

Front side switch-over solenoid
valve (cut valve 1) (ON/OFF)
status is displayed.

CV2
(ON/OFF)

–

–

×

–

Rear side switch-over solenoid
valve (cut valve 2) (ON/OFF)
status is displayed.

SV1
(ON/OFF)

–

–

×

–

Front side switch-over solenoid
valve (suction valve 1) (ON/
OFF) status is displayed.

SV2
(ON/OFF)

–

–

×

–

Rear side switch-over solenoid
valve (suction valve 2) (ON/
OFF) status is displayed.

ESP FAIL SIG
(ON/OFF)

–

–

×

–

ESP fail signal (ON/OFF) sta-
tus is displayed.

TCS FAIL SIG
(ON/OFF)

–

–

×

–

TCS fail signal (ON/OFF) sta-
tus is displayed.

ABS FAIL SIG
(ON/OFF)

–

–

×

–

ABS fail signal (ON/OFF) sta-
tus is displayed.

EBD FAIL SIG
(ON/OFF)

–

–

×

–

EBD fail signal (ON/OFF) sta-
tus is displayed.

FLUID LEV SW
(ON/OFF)

×

–

×

–

Brake fluid level switch (ON/
OFF) status is displayed.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS

ESP/TCS/ABS

CONSULT-II Functions (Cont’d)

BR-117

Monitor item

Monitor item selection

Remarks

ECU INPUT

SIGNALS

MAIN

SIGNALS

SELECTION

FROM MENU

CAN DIAG

SUPPORT

MNTR

EBD SIGNAL
(ON/OFF)

–

–

×

–

EBD operation (ON/OFF) sta-
tus is displayed.

ABS SIGNAL
(ON/OFF)

–

–

×

–

ABS operation (ON/OFF) sta-
tus is displayed.

TCS SIGNAL
(ON/OFF)

–

–

×

–

TCS operation (ON/OFF) sta-
tus is displayed.

ESP SIGNAL
(ON/OFF)

–

–

×

–

ESP operation (ON/OFF) sta-
tus is displayed.

CAN COMM
(OK/NG)

–

–

–

×

CAN communication signal
(OK/NG) status is displayed.

CAN CIRC 1
(OK/UNKWN)

–

–

–

×

CAN communication signal
(OK/UNKWN) status is dis-
played.

CAN CIRC 2
(OK/UNKWN)

–

–

–

×

CAN CIRC 3
(OK/UNKWN)

–

–

–

×

CAN CIRC 4
(OK/UNKWN)

–

–

–

×

CAN CIRC 5
(OK/UNKWN)

–

–

–

×

CAN CIRC 6
(OK/UNKWN)

–

–

–

×

CAN CIRC 7
(OK/UNKWN)

–

–

–

×

EBD WARN LAMP
(ON/OFF)

–

–

×

–

Brake warning lamp (ON/OFF)
status is displayed. (Note)

CRANKING SIG
(ON/OFF)

–

–

×

–

Cranking condition (ON/OFF)
status is displayed.

×

: Applicable

–: Not applicable
Note: Serves as EBD warning lamp.

ACTIVE TEST

NLBR0177S05

CAUTION:

I

Do not perform active test while driving vehicle.

I

Make sure to completely bleed air from the brake system.

I

Active test cannot be performed when ABS warning lamp
is on.

I

ABS and brake warning lamps turn on during the active
test.

Operation Procedure

NLBR0177S0501

1.

Touch “ABS”.
If “ABS” is not indicated, go to GI-35.

2.

Touch “ACTIVE TEST”.

TROUBLE DIAGNOSIS

ESP/TCS/ABS

CONSULT-II Functions (Cont’d)

BR-118

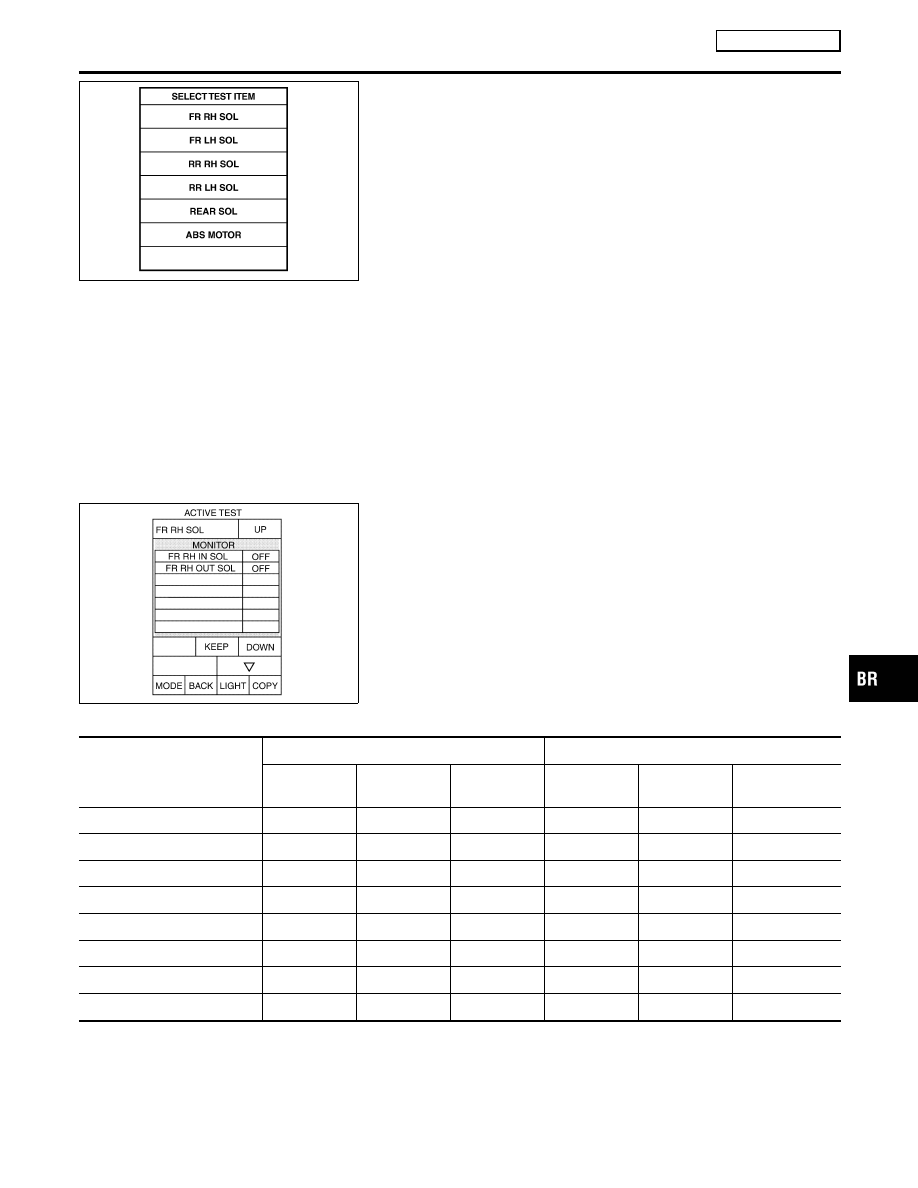

YBR359
