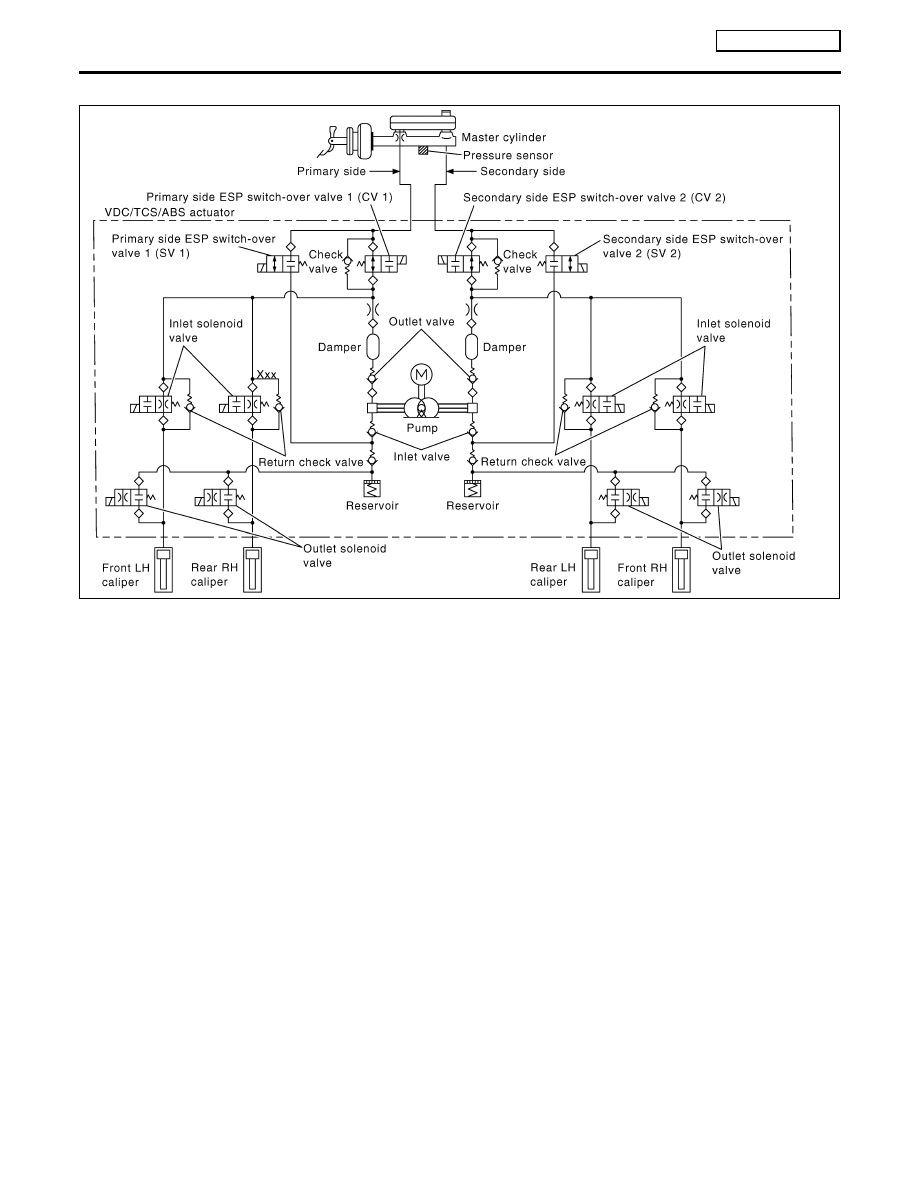

Hydraulic Circuit Diagram

NLBR0168

YBR382

SYSTEM DESCRIPTION

ESP/TCS/ABS

Hydraulic Circuit Diagram

BR-88

System Description

NLBR0224

CAN (Controller Area Network) is a serial communication line for
real time application. It is an on-vehicle multiplex communication
line with high data communication speed and excellent error detec-
tion ability. Many electronic control units are equipped onto a
vehicle, and each control unit shares information and links with
other control units during operation (not independent). In CAN
communication, control units are connected with 2 communication
lines (CAN H line, CAN L line) allowing a high rate of information
transmission with less wiring. Each control unit transmits/receives
data but selectively reads required data only.

CAN Communication Unit

NLBR0225

Body type

MPV

Axle

2WD

Engine

QG18DE

YD22

QG18DE

YD22

Transmission

A/T

M/T

A/T

M/T

Brake control

ESP

ABS

CAN communication unit

ECM

×

×

×

×

×

×

TCM

×

×

ABS actuator
and electric unit
(control unit)

×

×

×

ESP/TCS/ABS
control unit

×

×

×

Steering angle
sensor

×

×

×

Smart entrance
control unit

×

×

×

×

×

×

Data link con-
nector

×

×

×

×

×

×

Combination
meter

×

×

×

×

×

×

CAN communi-
cation type

Type 1 (BR-90)

Type 2/Type 3 (BR-92)

Type 4 (BR-94)

Type 5/Type 6 (BR-96)

×

: Applicable

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

CAN COMMUNICATION

ESP/TCS/ABS

System Description

BR-89

TYPE 1

=NLBR0225S01

System Diagram

NLBR0225S0101

YEL465E

Input/Output Signal Chart

NLBR0225S0102

T: Transmit R: Receive

Signals

ECM

TCM

ESP/TCS/ABS

control unit

Smart entrance

control unit

Steering angle

sensor

Combination

meter

Engine speed
signal

T

R

R

Brake switch sig-
nal

R

T

Rear window
defogger signal

R

T

Heater fan
switch signal

R

T

Air conditioner
switch signal

R

T

MI signal

T

R

Engine coolant
temperature sig-
nal

T

R

Fuel consump-
tion signal

T

R

Vehicle speed
signal

T

R

R

T

Seat belt
reminder signal

R

T

Headlamp switch
signal

T

R

Flashing indica-
tor signal

T

R

Cooling fan
speed signal

T

R

Door switches
state signal

T

R

A/C compressor
signal

T

R

A/C compressor
feedback signal

T

R

CAN COMMUNICATION

ESP/TCS/ABS

CAN Communication Unit (Cont’d)

BR-90

Signals

ECM

TCM

ESP/TCS/ABS

control unit

Smart entrance

control unit

Steering angle

sensor

Combination

meter

Accelerator
pedal position
signal

T

R

Output shaft
revolution signal

R

T

OD OFF switch
signal

R

T

OD OFF indica-
tor signal

T

R

A/T self-diagno-
sis signal

R

T

P position signal

T

R

Steering angle
sensor signal

R

T

A/T position indi-
cator signal

R

T

R

R

ABS warning
lamp signal

T

R

Slip indicator
lamp signal

T

R

VDC OFF indica-
tor lamp signal

T

R

Brake warning
lamp signal

T

R

N position switch
signal

R

T

P position switch
signal

R

T

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

CAN COMMUNICATION

ESP/TCS/ABS

CAN Communication Unit (Cont’d)

BR-91
