Nissan Almera Tino V10. Manual - part 245





SBR976B

SBR932C

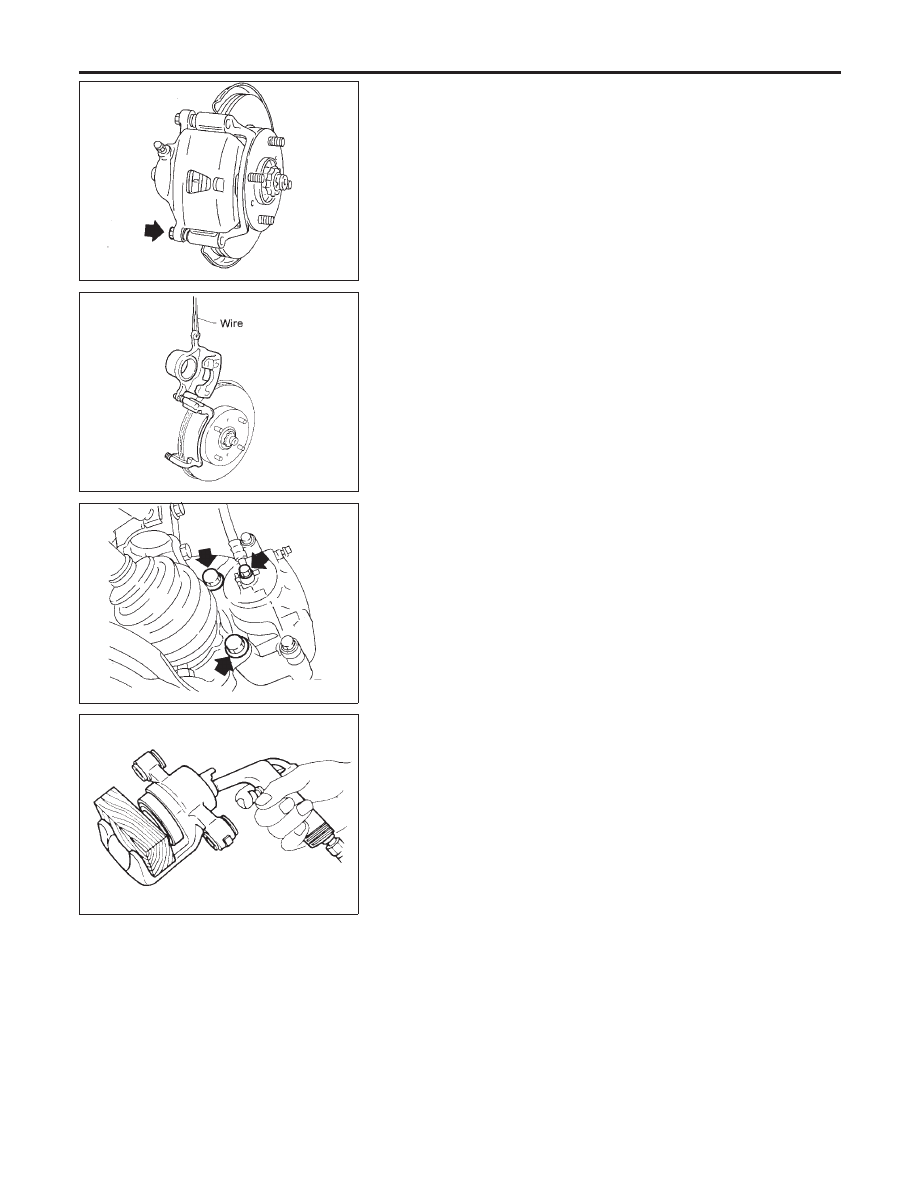

1.

Remove master cylinder reservoir cap.

2.

Remove pin bolt.

3.

Open cylinder body upward. Then remove pad with retainers,
inner and outer shims.

Standard pad thickness:

11 mm (0.43 in)

Pad wear limit:

2.0 mm (0.079 in)

Carefully monitor brake fluid level because brake fluid will
return to reservoir when pushing back piston.

SBR979B

Removal

NLBR0031

WARNING:

Clean brake pads with a vacuum dust collector to minimize the
hazard of airborne particles or other materials.
Remove torque member fixing bolts and connecting bolt.
It is not necessary to remove connecting bolt except for dis-
assembly or replacement of caliper assembly. In this case,
suspend caliper assembly with wire so as not to stretch brake
hose.

SBR772

Disassembly

NLBR0032

WARNING:

Do not place your fingers in front of piston.

CAUTION:

Do not scratch or score cylinder wall.
1.

Push out piston with piston boot with compressed air.

2.

Remove piston seal with a suitable tool.

Inspection

NLBR0033

CALIPER

NLBR0033S01

Cylinder Body

NLBR0033S0101

I

Check inside surface of cylinder for score, rust, wear, damage
or presence of foreign materials. If any of the above conditions
are observed, replace cylinder body.

I

Minor damage from rust or foreign materials may be eliminated
by polishing surface with a fine emery paper. Replace cylinder
body if necessary.

FRONT DISC BRAKE

Pad Replacement (Cont’d)

BR-28

CAUTION:

Use brake fluid to clean. Never use mineral oil.

Piston

NLBR0033S0102

CAUTION:

Piston sliding surface is plated. Do not polish with emery
paper even if rust or foreign materials are stuck to sliding
surface.
Check piston for score, rust, wear, damage or presence of foreign
materials. Replace if any of the above conditions are observed.

Slide Pin, Pin Bolt and Pin Boot

NLBR0033S0103

Check for wear, cracks or other damage. Replace if any of the
above conditions are observed.

ROTOR

NLBR0033S02

Rubbing Surface

NLBR0033S0201

Check rotor for roughness, cracks or chips.

SBR219C

Runout

NLBR0033S0202

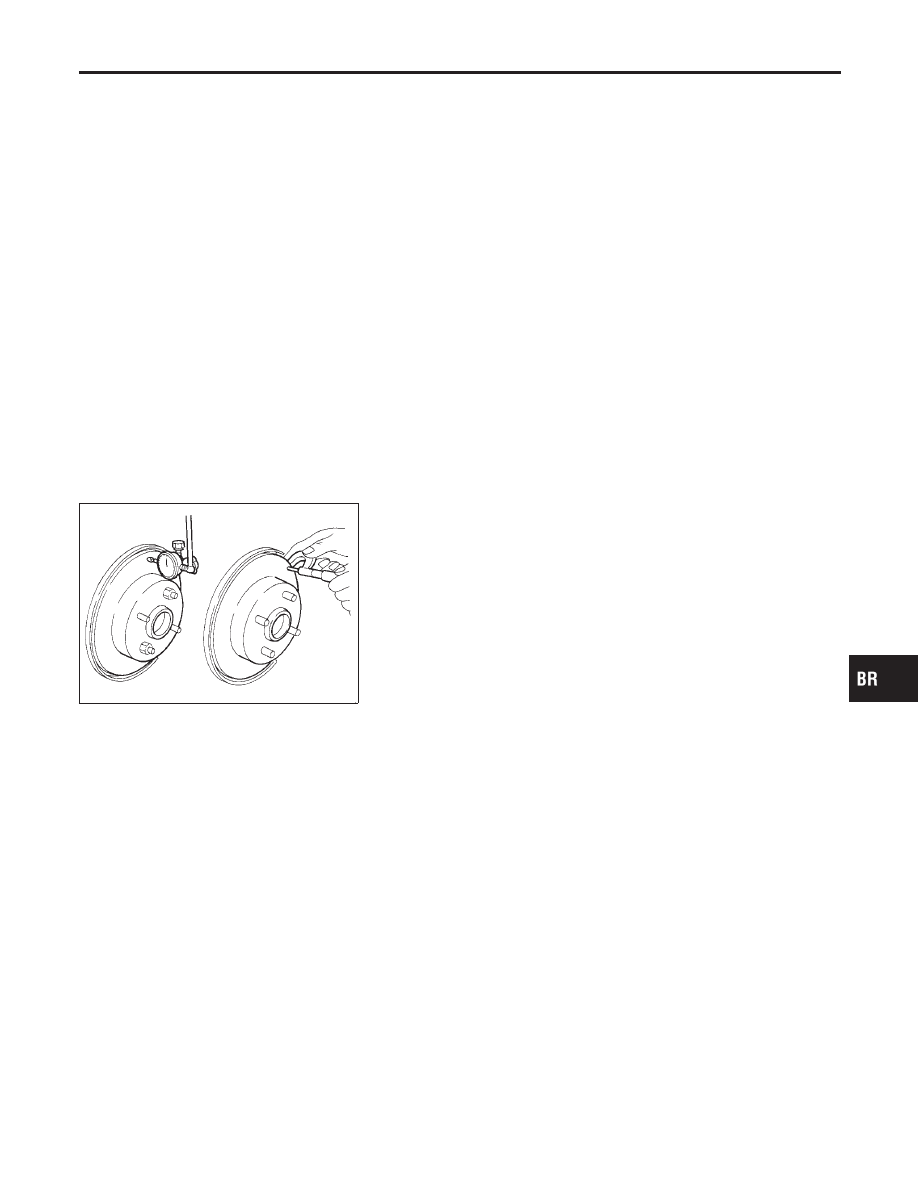

1.

Secure rotor to wheel hub with at least two nuts (M12 x 1.25).

2.

Check runout using a dial indicator.
Make sure that wheel bearing axial end play is within the
specifications before measuring. Refer to AX section
(“Front Wheel Bearing”, “ON-VEHICLE SERVICE”).

Maximum runout:

0.08 mm (0.0031 in)

3.

If the runout is out of specification, find minimum runout posi-
tion as follows:

a.

Remove nuts and rotor from wheel hub.

b.

Shift the rotor one hole and secure rotor to wheel hub with
nuts.

c.

Measure runout.

d.

Repeat steps a. to c. so that minimum runout position can be
found.

4.

If the runout is still out of specification, turn rotor with on-car
brake lathe (“MAD, DL-8700”, “AMMCO 700 and 705” or
equivalent).

Thickness

NLBR0033S0203

Thickness variation (At least 8 positions):

Maximum 0.02 mm (0.0008 in)

If thickness variation exceeds the specification, turn rotor with on-
car brake lathe.

Rotor repair limit:

26.0 mm (1.024 in)

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

FRONT DISC BRAKE

Inspection (Cont’d)

BR-29

SBR574

Assembly

NLBR0034

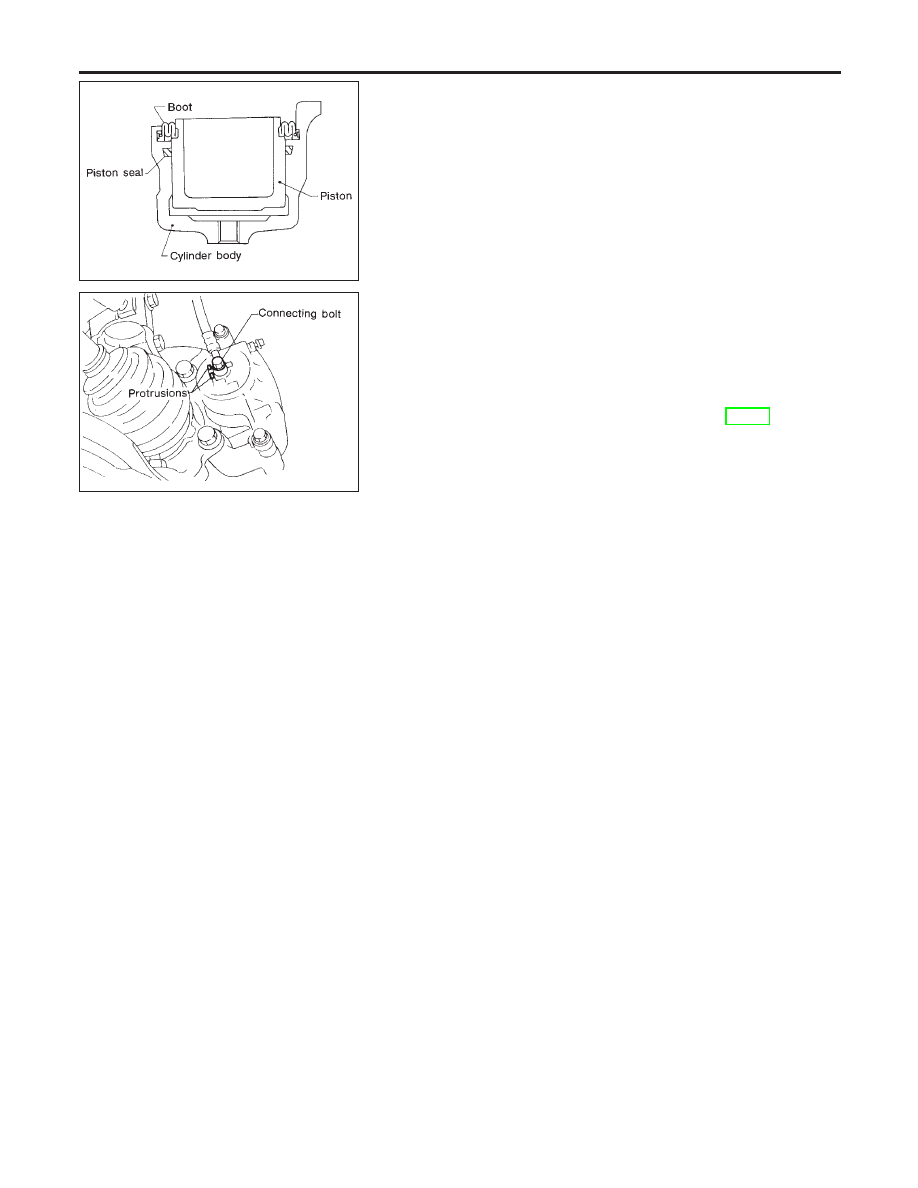

1.

Insert piston seal into groove on cylinder body.

2.

With piston boot fitted to piston, insert piston boot into groove
on cylinder body and install piston.

3.

Properly secure piston boot.

SBR980B

Installation

NLBR0035

CAUTION:

I

Refill with new brake fluid “DOT 3” or “DOT 4”.

I

Never reuse drained brake fluid.

1.

Install brake hose to caliper securely.

2.

Install all parts and secure all bolts.

3.

Bleed air. Refer to “Bleeding Brake System”, BR-11.

FRONT DISC BRAKE

Assembly

BR-30

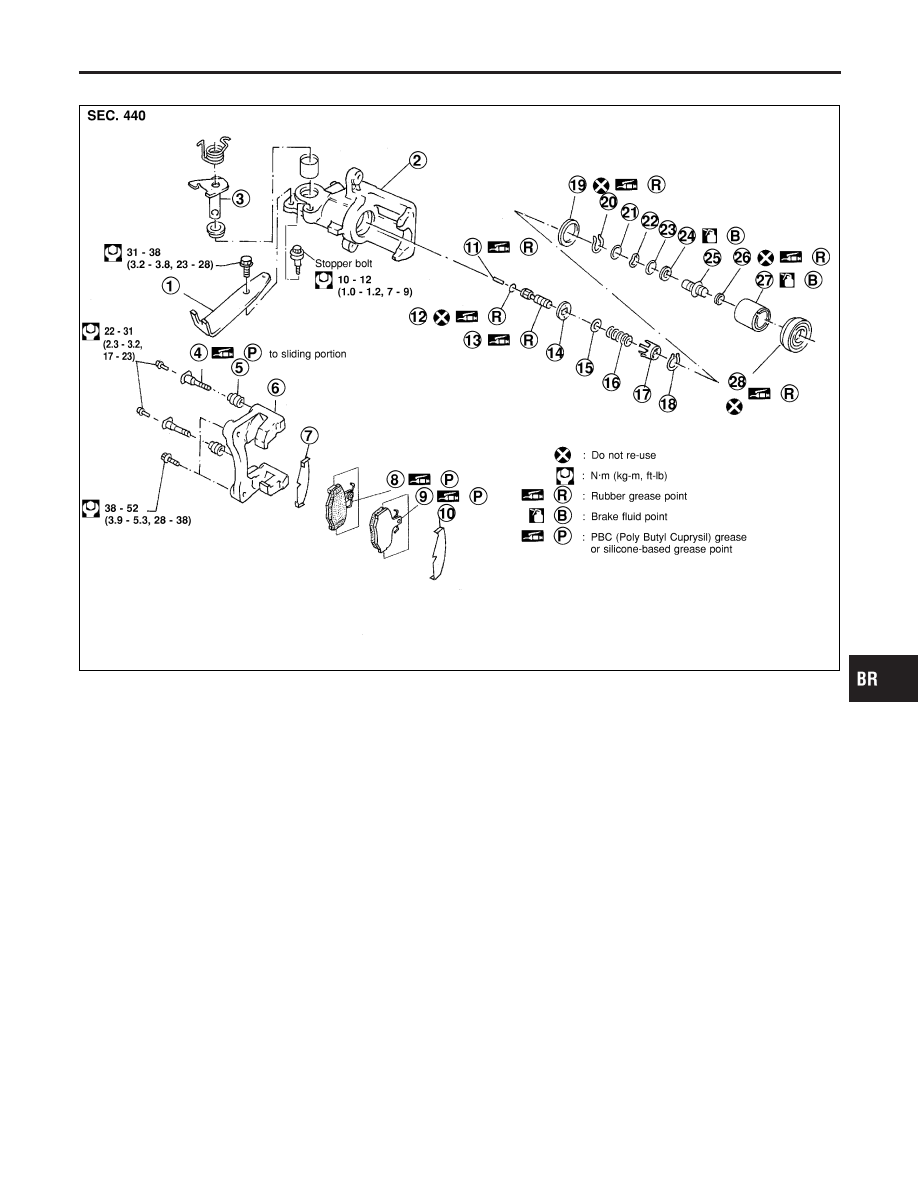

Component

NLBR0038

NBR366

1.

Cable guide

2.

Cylinder

3.

Toggle lever

4.

Pin

5.

Pin boot

6.

Torque member

7.

Inner shim

8.

Inner pad

9.

Outer pad

10. Outer shim

11. Strut
12. O-ring
13. Push rod
14. Key plate
15. Retaining washer
16. Spring
17. Spring cover
18. Snap ring B
19. Piston seal
20. Snap ring A

21. Washer
22. Wave washer
23. Washer
24. Bearing
25. Adjuster
26. Cup
27. Piston
28. Piston boot
29. Sleeve

Pad Replacement

NLBR0037

WARNING:

Clean brake pads with a vacuum dust collector to minimize the
hazard of airborne particles or other materials.

CAUTION:

I

When cylinder body is open, do not depress brake pedal
because piston will pop out.

I

Be careful not to damage piston boot or get oil on rotor.
Always replace shims in replacing pads.

I

If shims are rusted or show peeling of rubber coat, replace
them with new shims.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

REAR DISC BRAKE (CAM & STRUT TYPE)

Component

BR-31
