Nissan Almera Tino V10. Manual - part 234





ATC-132

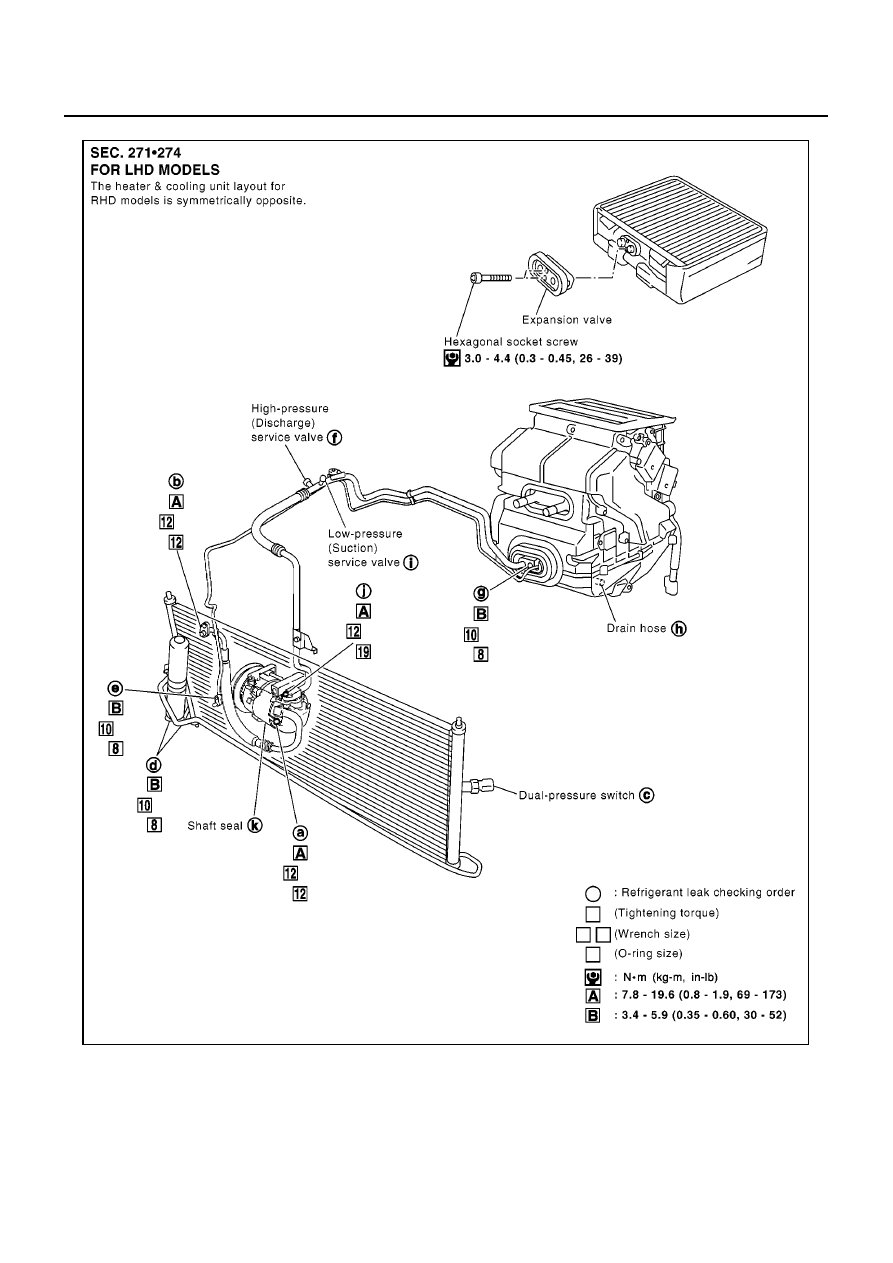

REFRIGERANT LINES

YD22DDTI ENGINE MODELS

RJIA2341E

REFRIGERANT LINES

ATC-133

C

D

E

F

G

H

I

K

L

M

A

B

ATC

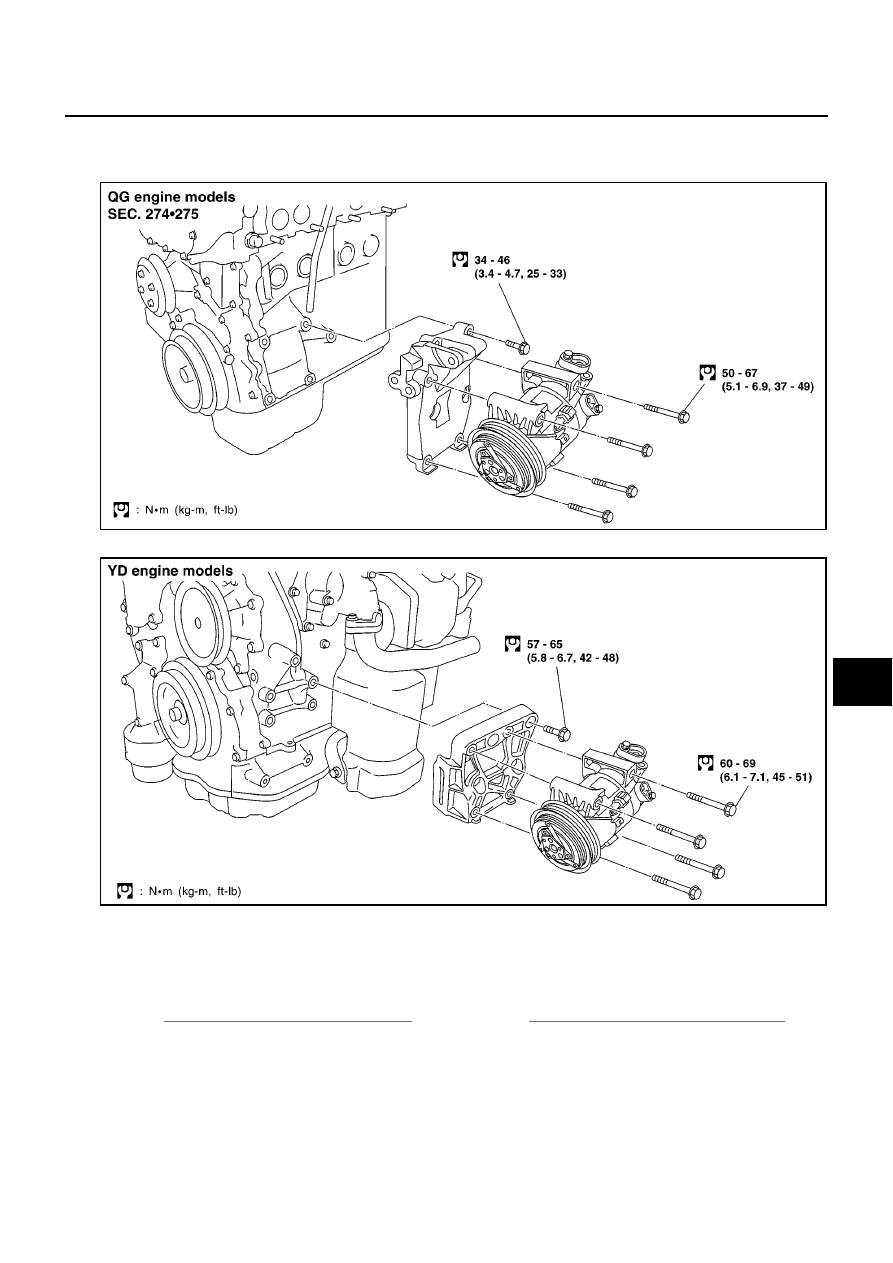

Compressor

EJS0031C

REMOVAL
With QG Engine

With YD Engine

1.

Use refrigerant collecting equipment (for HFC-134a) to discharge refrigerant.

2.

Disconnect the compressor connector.

3.

Remove the engine under cover (right side).

4.

Remove the compressor-alternator belt.
Refer to

EM-15, "Removal and Installation"

(QG engine),

EM-118, "Removal and Installation"

(YD

engine).

RJIA0833E

RJIA0834E

ATC-134

REFRIGERANT LINES

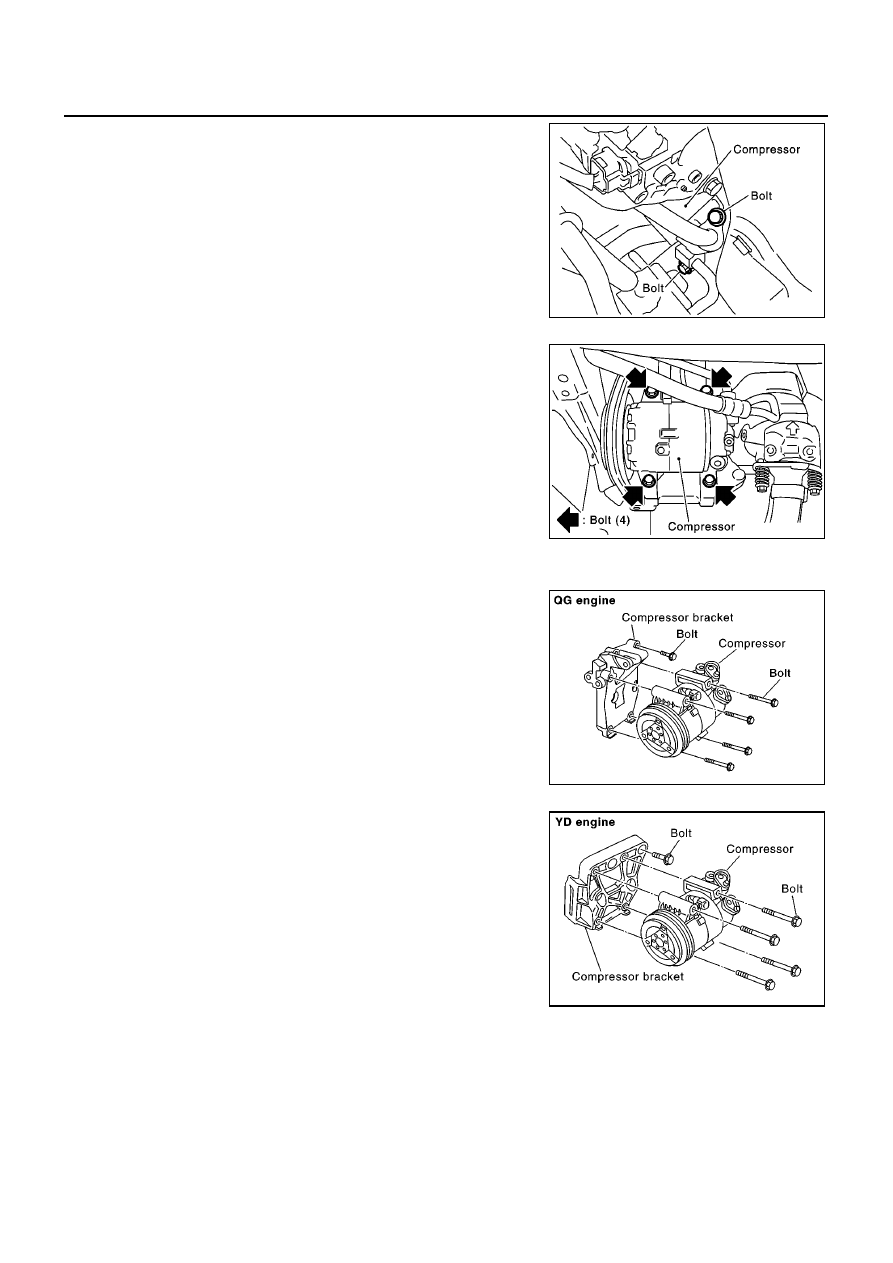

5.

Remove the mounting nuts (bolts) from the high-pressure flexi-
ble hose and low-pressure flexible hose.

CAUTION:

Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.

6.

Remove the mounting bolts from compressor.

7.

Remove the compressor from the lower side of the vehicle.

INSTALLATION

CAUTION:

Replace the O-ring of the low-pressure flexible hose and
high-pressure flexible hose with a new one, then apply
compressor oil to it when installing it.

When pouring refrigerant, check for leaks.

RJIA1729E

RJIA1730E

RJIA0837E

Compressor mounting bolt (QG engine)

Tightening torque

: 50 - 60 N·m (5.1 - 6.9 kg-m, 37 - 49
ft-lb)

Compressor mounting bolt (YD engine)

Tightening torque

: 60 - 69 N·m (6.1 - 7.1 kg-m, 45 - 51
ft-lb)

Compressor bracket mounting bolt (QG engine)

Tightening torque

: 34 - 46 N·m (3.4 - 4.7 kg-m, 25 - 33
ft-lb)

Compressor bracket mounting bolt (YD engine)

Tightening torque

: 57 - 65 N·m (5.8 - 6.7 kg-m, 42 - 48
ft-lb)

Nut (bolt) mounting the high-pressure flexible hose

Tightening torque

: 7.8 - 19.6 N·m (0.8 - 2.0 kg-m, 69 -
173 in-lb)

RJIA0838E

REFRIGERANT LINES

ATC-135

C

D

E

F

G

H

I

K

L

M

A

B

ATC

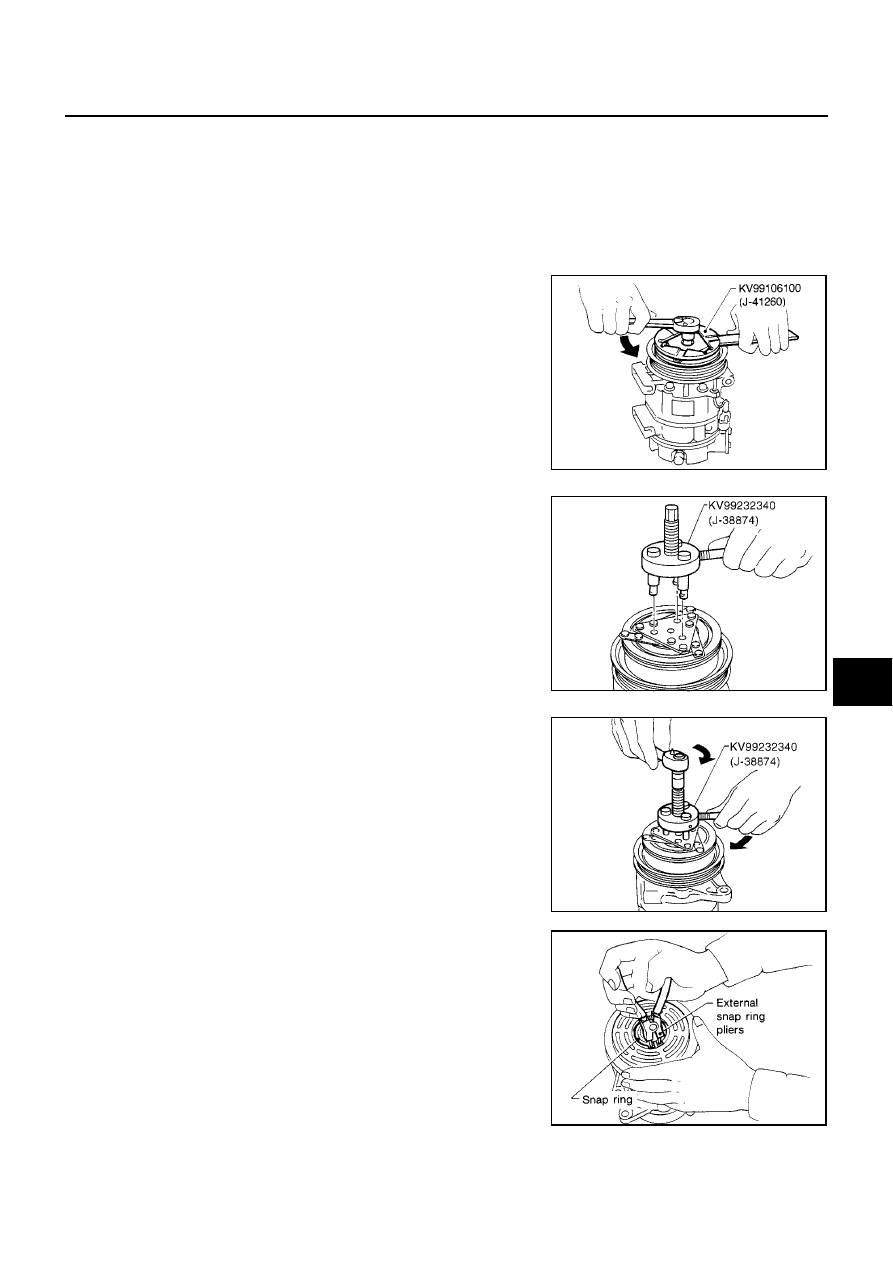

Compressor Clutch

EJS0031D

REMOVAL
Overhaul

1.

When removing center bolt, hold clutch disc with wrench.

2.

Remove the clutch disc using the clutch disc puller.

3.

Remove the snap ring using external snap ring pliers.

Nut (bolt) mounting the low-pressure flexible hose

Tightening torque

: 7.8 - 19.6 N·m (0.8 - 2.0 kg-m, 69 -
173 in-lb)

RHA136EB

RHA399F

RHA124F

RHA138E
