OVERRUN CLUTCH SOLENOID VALVE

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE

After the repair, perform the following procedure to confirm the malfunction is eliminated.

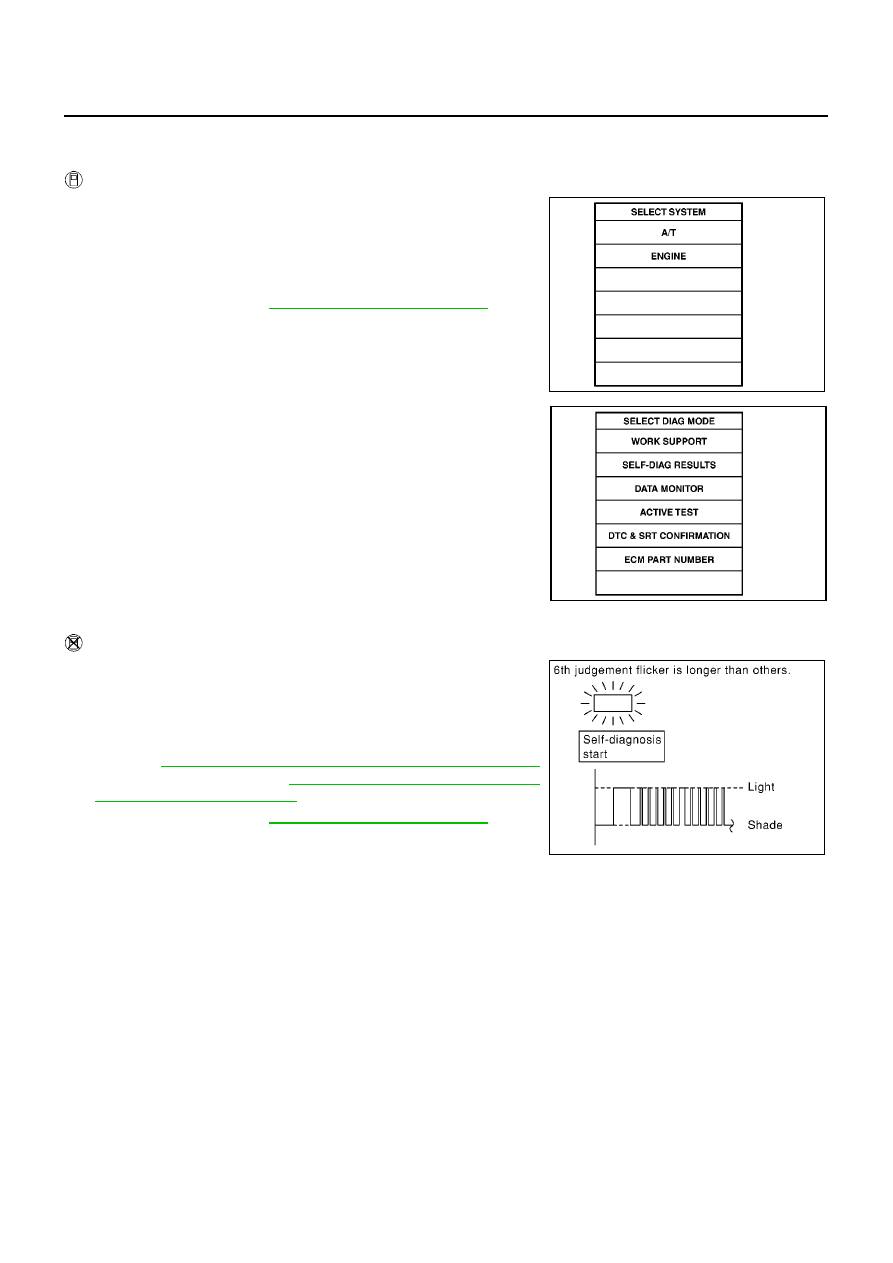

With CONSULT-II

1.

Start engine.

2.

Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.

3.

Drive vehicle under the following conditions:
Selector lever in “D” position, overdrive control switch in “OFF”
position and vehicle speed higher than 10 km/h (6 MPH).

4.

If DTC is detected, go to

AT-374, "Diagnostic Procedure"

.

Without CONSULT-II

1.

Start engine.

2.

Drive vehicle under the following conditions:
Selector lever in “D” position, overdrive control switch in “OFF”
position and vehicle speed higher than 10 km/h (6 MPH).

3.

Perform self-diagnosis.
Refer to

AT-252, "Diagnostic Procedure Without CONSULT-II"

for EXC. F/EURO-OBD,

AT-51, "TCM SELF-DIAGNOSTIC

PROCEDURE (NO TOOLS)"

for EURO-OBD.

4.

If DTC is detected, go to

AT-374, "Diagnostic Procedure"

.

SAT014K

SAT020K

MCIB9030E

OVERRUN CLUTCH SOLENOID VALVE

AT-373

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

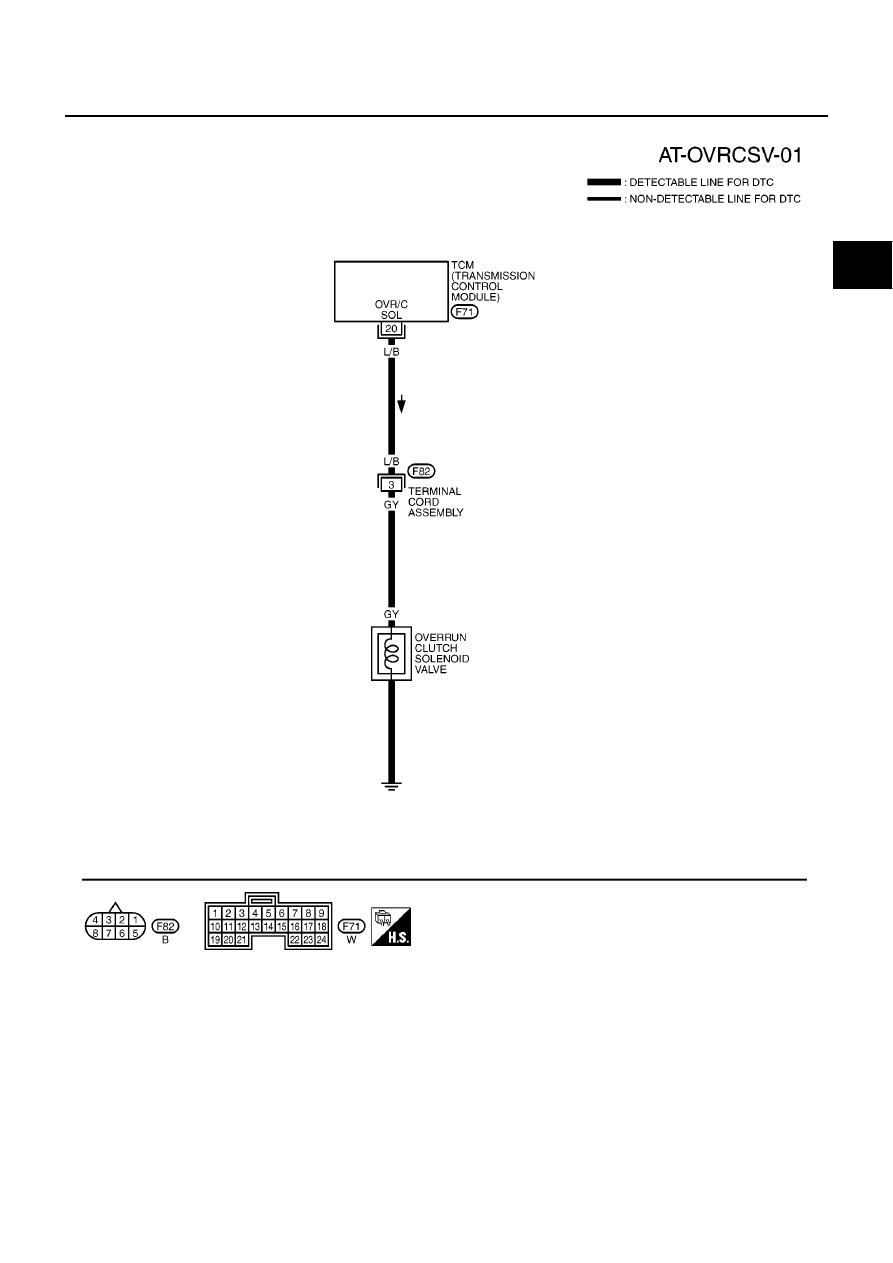

Wiring Diagram — AT — OVRCSV

ECS009BC

YAT382A

AT-374

[ALL]

OVERRUN CLUTCH SOLENOID VALVE

Diagnostic Procedure

ECS009BD

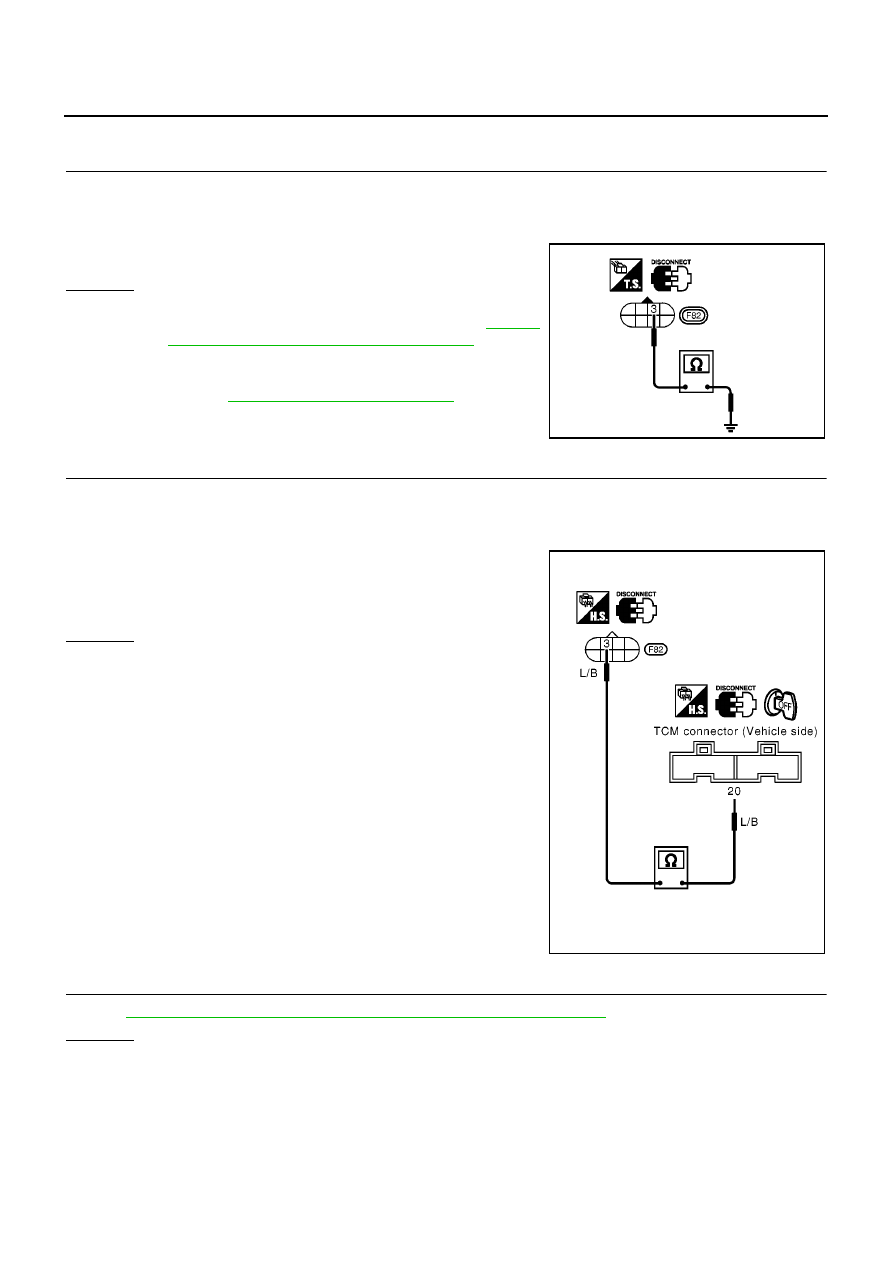

1.

CHECK VALVE RESISTANCE

1.

Turn ignition switch to “OFF” position.

2.

Disconnect terminal cord assembly connector in engine compartment.

3.

Check resistance between terminal 3 and ground.

OK or NG

OK

>> GO TO 2

NG

>> 1. Remove control valve assembly. Refer to

AT-410,

"Control Valve Assembly and Accumulators"

.

2. Check the following items:

Overrun clutch solenoid valve
Refer to

AT-375, "Component Inspection"

.

Harness of terminal cord assembly for short or open

2.

CHECK POWER SOURCE CIRCUIT

1.

Turn ignition switch to “OFF” position.

2.

Disconnect TCM harness connector.

3.

Check continuity between terminal 3 and TCM harness connector terminal 20.

If OK, check harness for short to ground and short to power.

4.

Reinstall any part removed.

OK or NG

OK

>> GO TO 3

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

3.

CHECK DTC

Perform

AT-372, "SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE"

.

OK or NG

OK

>> INSPECTION END

NG

>> 1. Perform TCM input/output signal inspection.

2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

Resistance

: 20 - 30

Ω

MCIA0097E

Continuity should exist.

MCIA0098E

OVERRUN CLUTCH SOLENOID VALVE

AT-375

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

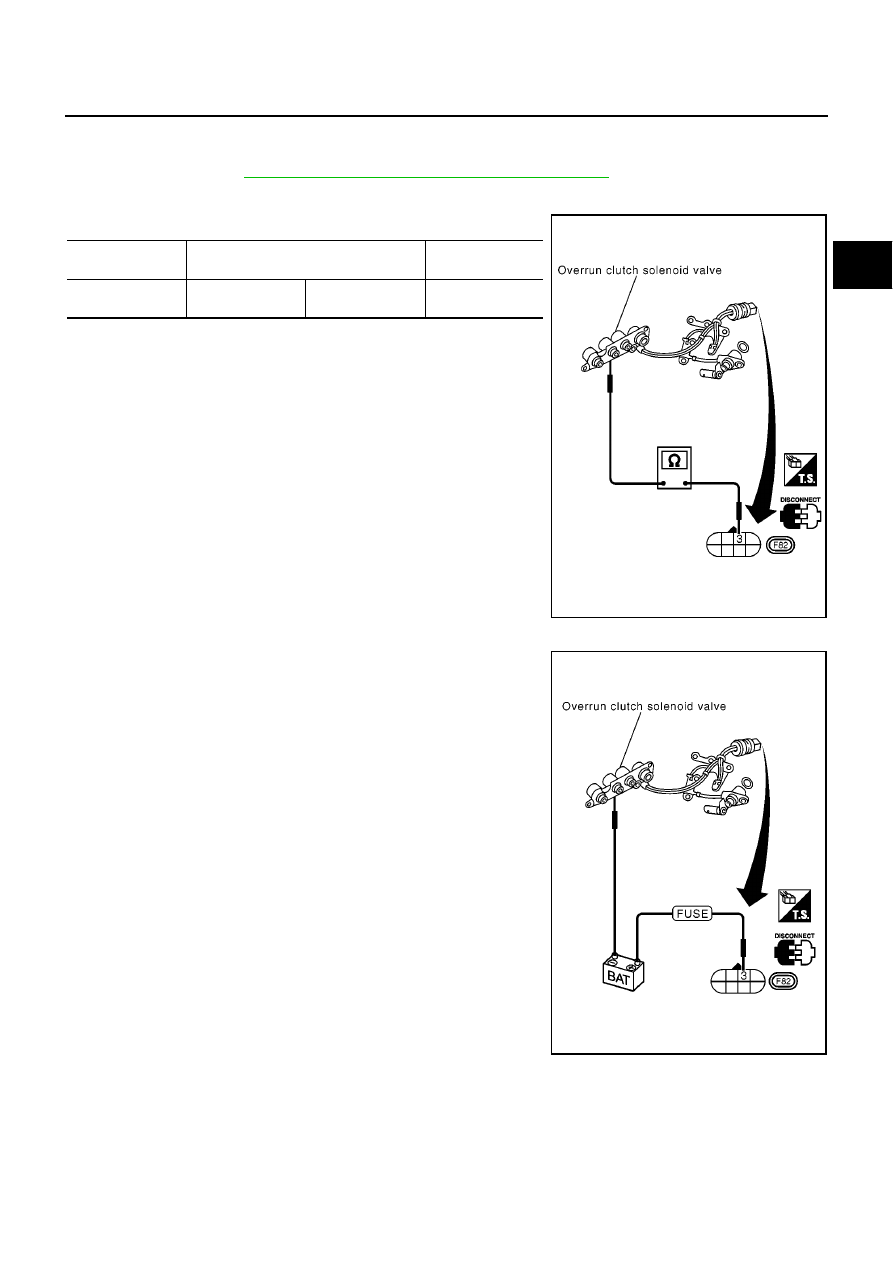

Component Inspection

ECS009BE

OVERRUN CLUTCH SOLENOID VALVE

●

For removal, refer to

AT-410, "Control Valve Assembly and Accumulators"

.

Resistance Check

●

Check resistance between two terminals.

Operation Check

●

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.

Solenoid valve

Terminal No.

Resistance

(Approx.)

Overrun clutch
solenoid valve

3

Ground

20 - 30

Ω

MCIA0099E

MCIA0100E
