Nissan Almera Tino V10. Manual - part 153





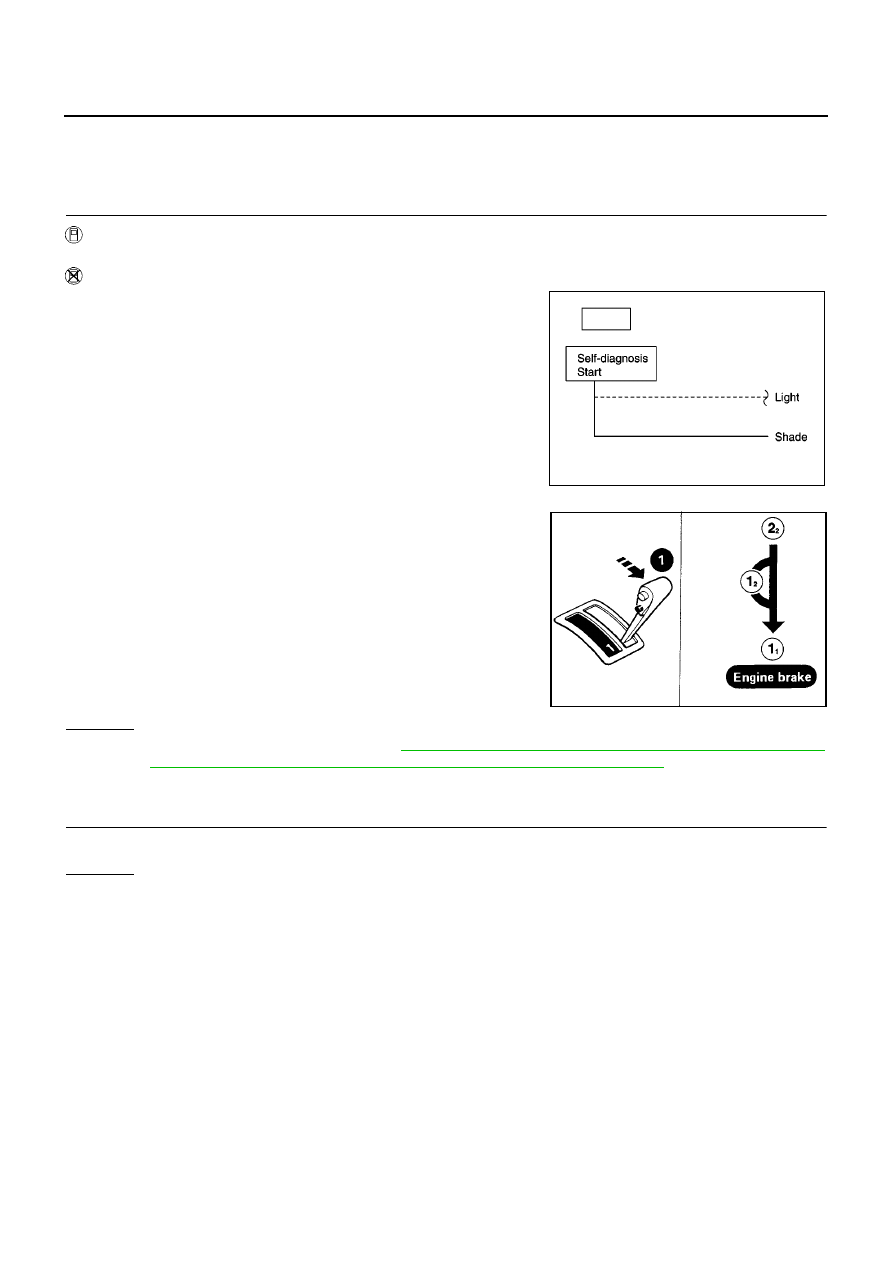

AT-336

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSES FOR SYMPTOMS

19. A/T Does Not Shift: 2

2

1

1

, When Selector Lever “2”

“1” Position

ECS009AP

SYMPTOM:
A/T does not shift from 2

2

to 1

1

when changing selector lever from “2” to “1” position.

1.

CHECK PNP SWITCH CIRCUIT

With CONSULT-II

Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?

Without CONSULT-II

Does self-diagnosis show damage to PNP switch circuit?

Yes or No

Yes

>> Check PNP switch circuit. Refer to

AT-337, "21. TCM Self-diagnosis Does Not Activate (PNP &

Overdrive Control Switches, and Throttle Position Sensor Circuit Checks)"

.

No

>> GO TO 2

2.

CHECK SYMPTOM

Check again.
OK or NG

OK

>> INSPECTION END

NG

>> 1. Perform TCM input/output signal inspection.

2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

SCIA0706E

SAT778B

TROUBLE DIAGNOSES FOR SYMPTOMS

AT-337

[EXC.F/EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

20. Vehicle Does Not Decelerate By Engine Brake

ECS009AQ

SYMPTOM:
Vehicle does not decelerate by engine brake when shifting from 2

2

(1

2

) to 1

1

.

1.

CHECK SYMPTOM

Is 6. Vehicle Does Not Creep Backward In “R” Position OK?

Yes or No

Yes

>> Go to

AT-332, "15. Engine Speed Does Not Return To Idle (Light Braking D

4

D

3

)"

.

No

>> Go to

AT-317, "6. Vehicle Does Not Creep Backward In “R” Position"

.

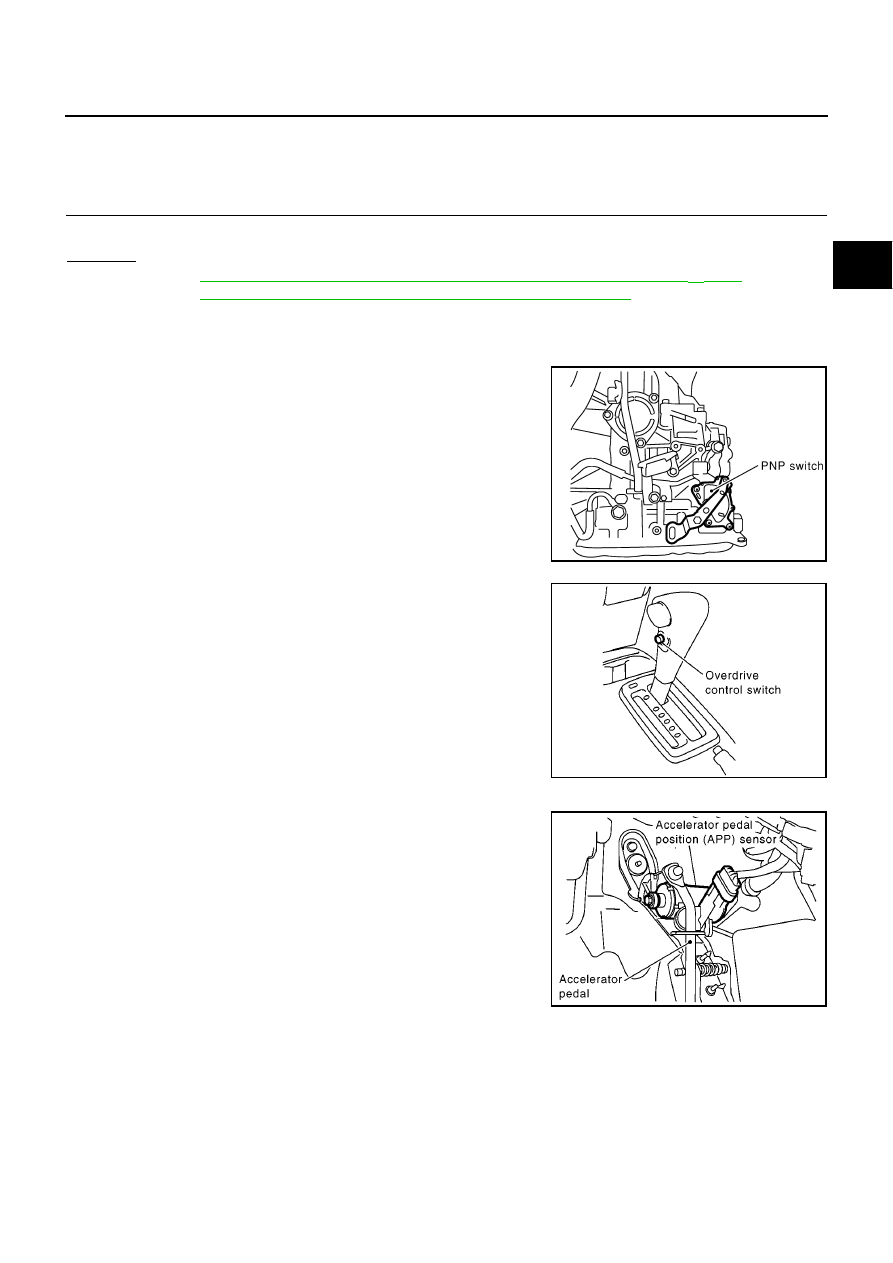

21. TCM Self-diagnosis Does Not Activate (PNP & Overdrive Control Switches,
and Throttle Position Sensor Circuit Checks)

ECS009AR

SYMPTOM:
O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.

DESCRIPTION

PNP switch
The PNP switch assembly includes a transmission position switch. The transmission position switch
detects the selector lever position and sends a signal to the TCM.

Overdrive control switch

SCIA0752E

MCIA0103E

MCIA0096E

AT-338

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSES FOR SYMPTOMS

Detects the overdrive control switch position (ON or OFF) and sends a signal to the TCM.

Throttle position sensor *
*: This sensor means accelerator pedal position (APP) sensor.

Electric throttle control actuator consists of throttle control motor, acceleration pedal position sensor, throt-
tle position sensor, etc. The actuator sends a signal to the TCM.

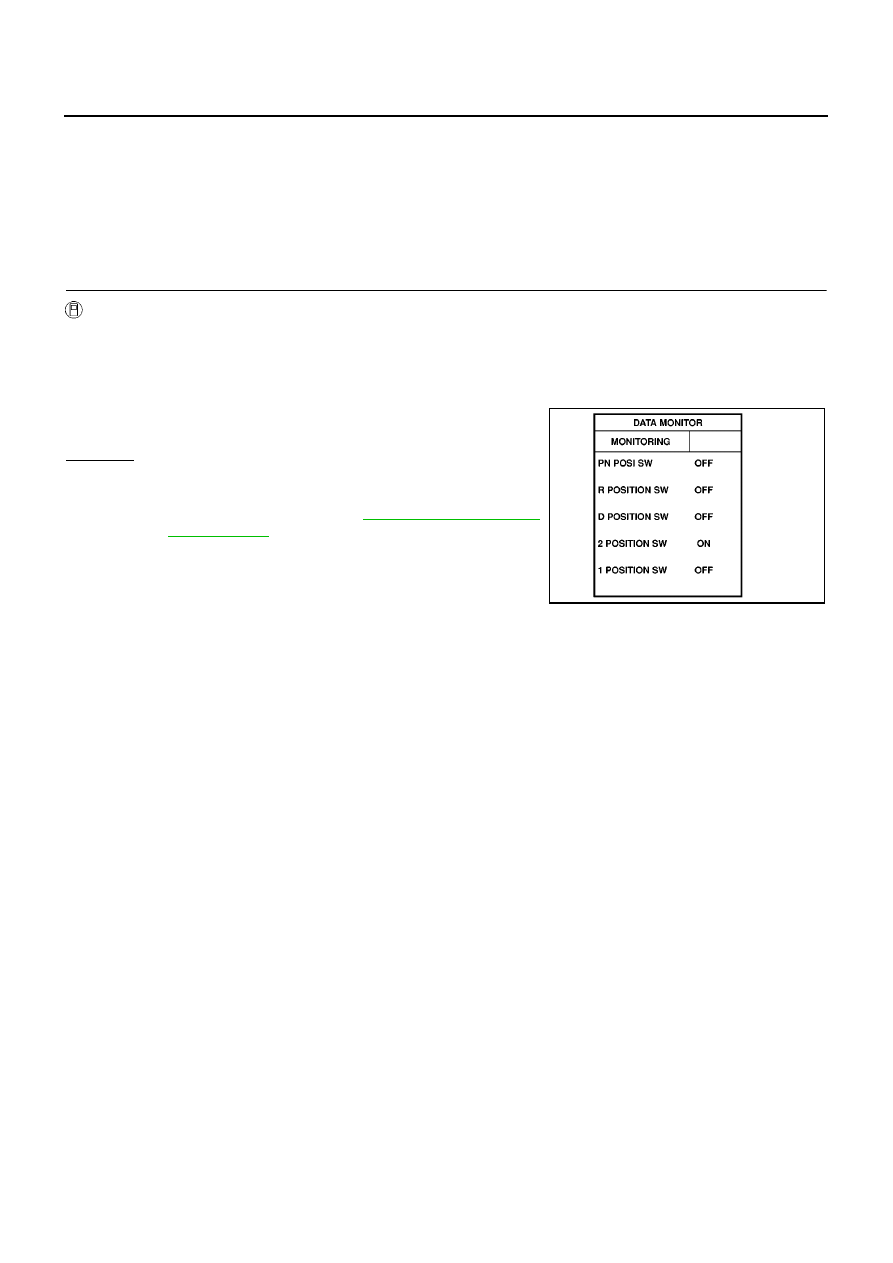

DIAGNOSTIC PROCEDURE

1.

CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)

With CONSULT-II

1.

Turn ignition switch to “ON” position.
(Do not start engine.)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Read out “P/N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.
Check that the signal of the selector lever position is indicated
properly.

OK or NG

OK

>> GO TO 3

NG

>> Check the following items:

PNP

switch

(Refer

to

AT-342,

"COMPONENT

INSPECTION"

.)

Harness for short or open between ignition switch and
PNP switch (Main harness)

Harness for short or open between PNP switch and
TCM (Main harness)

Diode (P, N positions)

SAT701J

TROUBLE DIAGNOSES FOR SYMPTOMS

AT-339

[EXC.F/EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

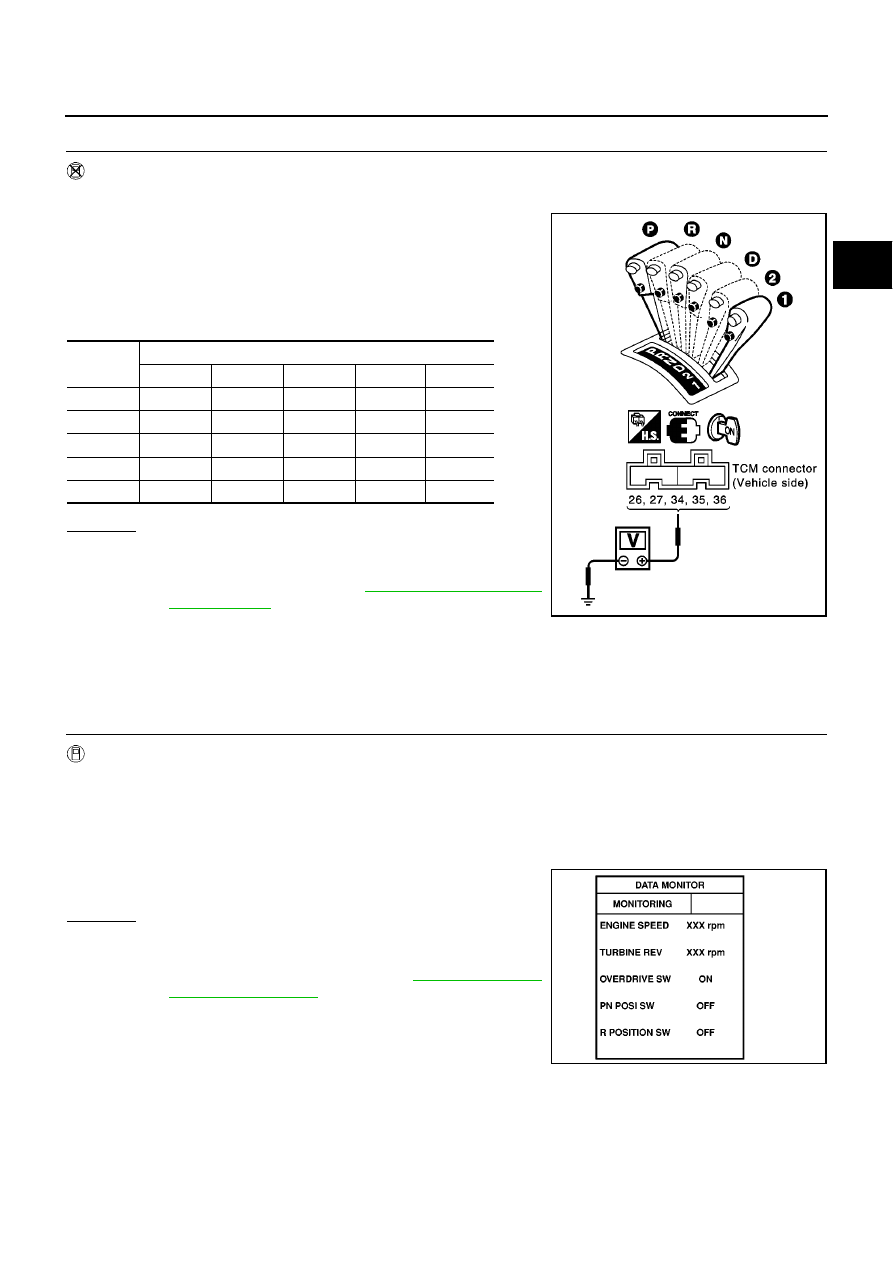

2.

CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)

Without CONSULT-II

1.

Turn ignition switch to “ON” position. (Do not start engine.)

2.

Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.

OK or NG

OK

>> GO TO 4

NG

>> Check the following items:

PNP

switch

(Refer

to

AT-342,

"COMPONENT

INSPECTION"

.)

Harness for short or open between ignition switch and
PNP switch (Main harness)

Harness for short or open between PNP switch and TCM (Main harness)

Diode (P, N positions)

3.

CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITH CONSULT-II)

With CONSULT-II

1.

Turn ignition switch to “ON” position.
(Do not start engine.)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch “ON” displayed on CONSULT-II means
overdrive “OFF”.)

OK or NG

OK

>> GO TO 5

NG

>> Check the following items:

Overdrive control switch (Refer to

AT-342, "COMPO-

NENT INSPECTION"

.)

Harness for short or open between TCM and over-
drive control switch (Main harness)

Harness of ground circuit for overdrive control switch
(Main harness) for short or open

Voltage:

B: Battery voltage

0: 0V

Lever

position

Terminal No.

36

35

34

27

26

P, N

B

0

0

0

0

R

0

B

0

0

0

D

0

0

B

0

0

2

0

0

0

B

0

1

0

0

0

0

B

SCIA0777E

SAT645J
