Nissan Almera Tino V10. Manual - part 140





AT-284

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSIS — BASIC INSPECTION

6.

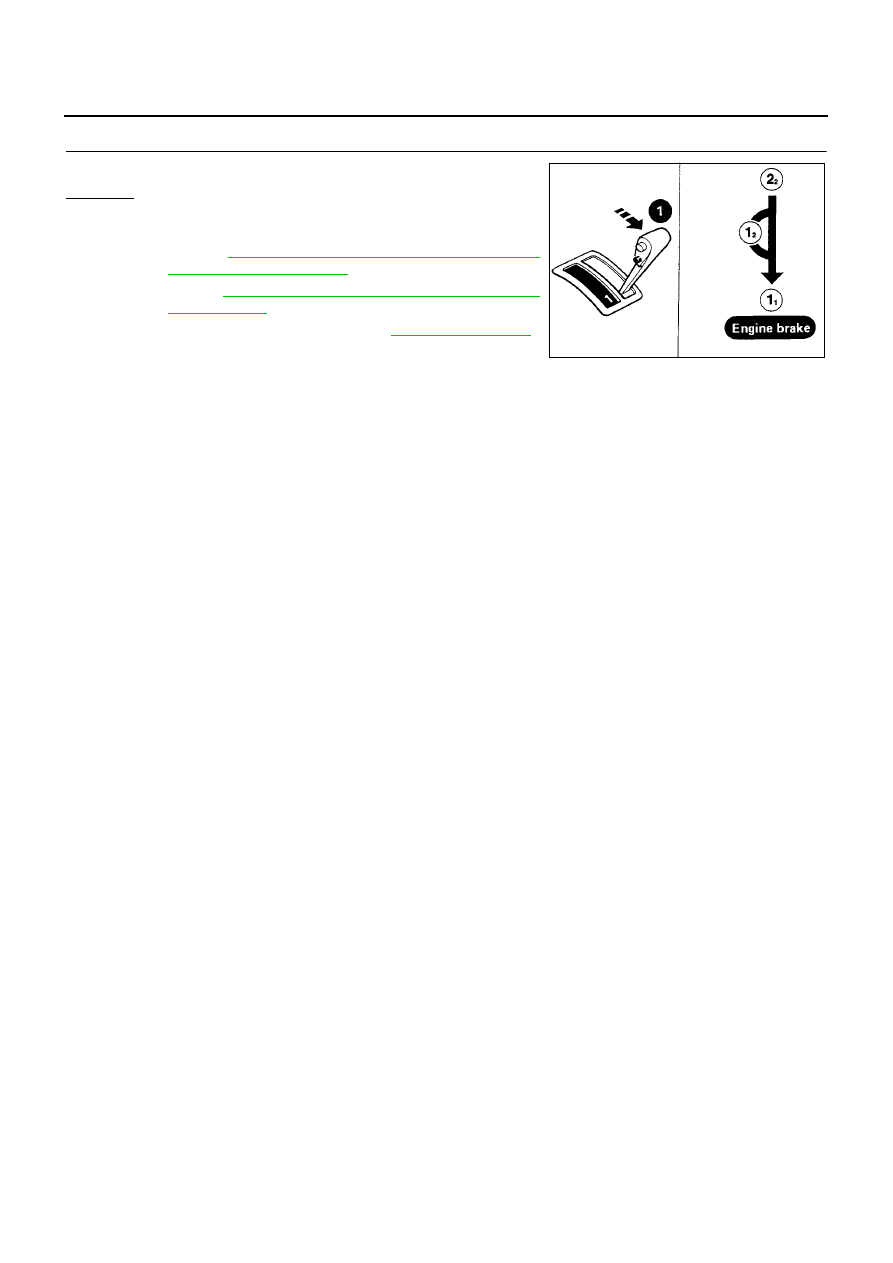

CHECK ENGINE BRAKE

Does vehicle decelerate by engine brake?

Yes or No

Yes

>> 1. Stop vehicle.

2. Perform self-diagnosis.

Refer to

AT-252, "SELF-DIAGNOSTIC PROCEDURE

(WITHOUT CONSULT-II)"

,

No

>>

GO TO

AT-337, "20. Vehicle Does Not Decelerate By

Engine Brake"

.

Continue ROAD TEST. Refer to

AT-268, "Road Test"

.

SAT778B

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

AT-285

[EXC.F/EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

PFP:00000

Symptom Chart

ECS009A2

Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.

Symptom

Condition

Diagnostic Item

Reference Page

Engine cannot start in “P” and “N”
positions.

AT-313, "2. Engine Cannot Be Started
In “P” and “N” Position"

ON vehicle

1. Ignition switch and starter

EL-11, “Power Supply
Routing”, SC-13, “Start-
ing System”.

2. Control cable adjustment

AT-412, "Control Cable
Adjustment"

3. PNP switch adjustment

AT-412, "Park/Neutral
Position (PNP) Switch
Adjustment"

Engine starts in position other than
“N” and “P” positions.

AT-313, "2. Engine Cannot Be Started
In “P” and “N” Position"

ON vehicle

1. Control cable adjustment

AT-412, "Control Cable
Adjustment"

2. PNP switch adjustment

AT-412, "Park/Neutral
Position (PNP) Switch
Adjustment"

Transaxle noise in “P” and “N” posi-
tions.

ON vehicle

1. Fluid level

AT-263, "FLUID LEVEL
CHECK"

2. Line pressure test

AT-267, "Line Pressure
Test"

3. Throttle position sensor (Accelerator
pedal position (APP) sensor)

AT-356, "ACCELE
RATOR PEDAL POSI-
TION (APP) SENSOR"

4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTR

AT-347, "VEHICLE
SPEED SENSOR - A/T
(REVOLUTION SEN-
SOR)"
AT-352, "DTC VEHICLE
SPEED SENSOR MTR"

5. Engine speed signal

AT-387, "ENGINE SPEED
SIGNAL"

OFF vehicle

6. Oil pump

AT-439, "Oil Pump"

7. Torque converter

AT-421, "Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"

Vehicle moves when changing into “P”
position, or parking gear does not dis-
engage when shifted out of “P” posi-
tion.

AT-313, "3. In “P” Position, Vehicle
Moves Forward Or Backward When
Pushed"

ON vehicle

1. Control cable adjustment

AT-412, "Control Cable
Adjustment"

OFF vehicle

2. Parking components

AT-482, "Output Shaft,
Idler Gear, Reduction Pin-
ion Gear and Bearing
Retainer"

Vehicle runs in “N” position.

AT-315, "4. In “N” Position, Vehicle
Moves"

ON vehicle

1. Control cable adjustment

AT-412, "Control Cable
Adjustment"

OFF vehicle

2. Forward clutch

AT-468, "Forward and
Overrun Clutches"

3. Reverse clutch

AT-459, "Reverse Clutch"

4. Overrun clutch

AT-468, "Forward and
Overrun Clutches"

AT-286

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

Vehicle will not run in “R” position (but
runs in “D”, “2” and “1” positions).
Clutch slips.
Very poor acceleration.

AT-317, "6. Vehicle Does Not Creep
Backward In “R” Position"

ON vehicle

1. Control cable adjustment

AT-412, "Control Cable
Adjustment"

2. Line pressure test

AT-267, "Line Pressure
Test"

3. Line pressure solenoid valve

AT-392, "LINE PRES-
SURE SOLENOID
VALVE"

4. Control valve assembly

AT-410, "Control Valve
Assembly and Accumula-
tors"

OFF vehicle

5. Reverse clutch

AT-459, "Reverse Clutch"

6. High clutch

AT-463, "High Clutch"

7. Forward clutch

AT-468, "Forward and
Overrun Clutches"

8. Overrun clutch

AT-468, "Forward and
Overrun Clutches"

9. Low & reverse brake

AT-474, "Low & Reverse
Brake"

Vehicle braked when shifting into “R”
position.

ON vehicle

1. Fluid level

AT-263, "A/T Fluid Check"

2. Control cable adjustment

AT-412, "Control Cable
Adjustment"

3. Line pressure test

AT-267, "Line Pressure
Test"

4. Line pressure solenoid valve

AT-392, "LINE PRES-
SURE SOLENOID
VALVE"

5. Control valve assembly

AT-410, "Control Valve
Assembly and Accumula-
tors"

OFF vehicle

6. High clutch

AT-463, "High Clutch"

7. Brake band

AT-487, "Band Servo Pis-
ton Assembly"

8. Forward clutch

AT-468, "Forward and
Overrun Clutches"

9. Overrun clutch

AT-468, "Forward and
Overrun Clutches"

Symptom

Condition

Diagnostic Item

Reference Page

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

AT-287

[EXC.F/EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

Sharp shock in shifting from “N” to “D”
position.

ON vehicle

1. Engine idling rpm

EC-936, "Idle Speed and
Ignition Timing"

2. Throttle position sensor Accelerator
pedal position (APP) sensor Adjustment

AT-356, "ACCELE
RATOR PEDAL POSI-
TION (APP) SENSOR"

3. Line pressure test

AT-267, "Line Pressure
Test"

4. A/T fluid temp sen circ and TCM pow
sour

AT-381, "BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIR-
CUIT AND TCM POWER
SOURCE)"

5. Engine speed signal

AT-387, "ENGINE SPEED
SIGNAL"

6. Line pressure solenoid valve

AT-392, "LINE PRES-
SURE SOLENOID
VALVE"

7. Control valve assembly

AT-410, "Control Valve
Assembly and Accumula-
tors"

8. Accumulator N-D

AT-410, "Control Valve
Assembly and Accumula-
tors"

OFF vehicle

9. Forward clutch

AT-468, "Forward and
Overrun Clutches"

Vehicle will not run in “D” and “2” posi-
tions (but runs in “1” and “R” posi-
tions).

ON vehicle

1. Control cable adjustment

AT-412, "Control Cable
Adjustment"

OFF vehicle

2. Low one-way clutch

AT-417, "OVERHAUL"

,

AT-421, "Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"

Vehicle will not run in “D”, “1”, “2” posi-
tions (but runs in “R” position). Clutch
slips. Very poor acceleration.

AT-320, "7. Vehicle Does Not Creep
Forward In “D”, “2” Or “1” Position"

ON vehicle

1. Fluid level

AT-263, "FLUID LEVEL
CHECK"

2. Line pressure test

AT-267, "Line Pressure
Test"

3. Line pressure solenoid valve

AT-392, "LINE PRES-
SURE SOLENOID
VALVE"

4. Control valve assembly

AT-410, "Control Valve
Assembly and Accumula-
tors"

5. Accumulator N-D

AT-410, "Control Valve
Assembly and Accumula-
tors"

OFF vehicle

6. Reverse clutch

AT-459, "Reverse Clutch"

7. High clutch

AT-463, "High Clutch"

8. Forward clutch

AT-468, "Forward and
Overrun Clutches"

9. Forward one-way clutch

AT-417, "OVERHAUL"

10. Low one-way clutch

AT-417, "OVERHAUL"

,

AT-421, "Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"

Symptom

Condition

Diagnostic Item

Reference Page
