Nissan Almera Tino V10. Manual - part 135





AT-264

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSIS — BASIC INSPECTION

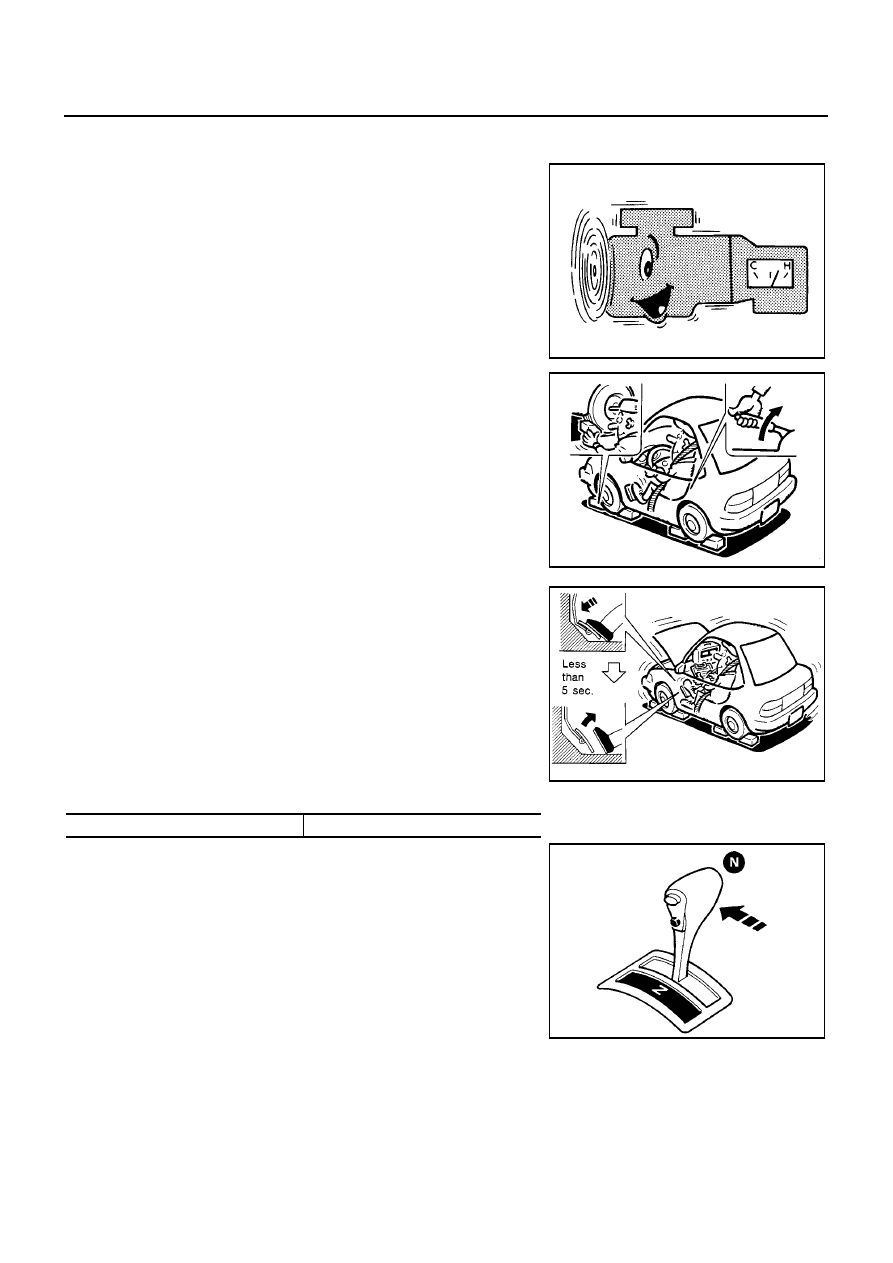

Stall Test

ECS0099Z

STALL TEST PROCEDURE

1.

Check A/T fluid and engine oil levels. If necessary, add.

2.

Drive vehicle for approx. 10 minutes or until fluid and oil reach
operating temperature.

3.

Set parking brake and block wheels.

4.

Install a tachometer where it can be seen by driver during test.

It is good practice to mark the point of specified engine
rpm on indicator.

5.

Start engine, apply foot brake, and place selector lever in D
position.

6.

Accelerate to wide open throttle gradually while applying foot
brake.

7.

Quickly note the engine stall revolution and immediately release
throttle.

During test, never hold throttle wide open for more than 5
seconds.

Stall revolution:

8.

Move selector lever to “N” position.

9.

Cool off ATF.

Run engine at idle for at least one minute.

10. Repeat steps 5 through 9 with selector lever in “2”, “1” and “R”

positions.

ATF operating temperature:

50 - 80

°

C (122 - 176

°

F)

SAT647B

SAT513G

SAT514G

QG18DE

2,300 - 2,750 rpm

SAT771B

TROUBLE DIAGNOSIS — BASIC INSPECTION

AT-265

[EXC.F/EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

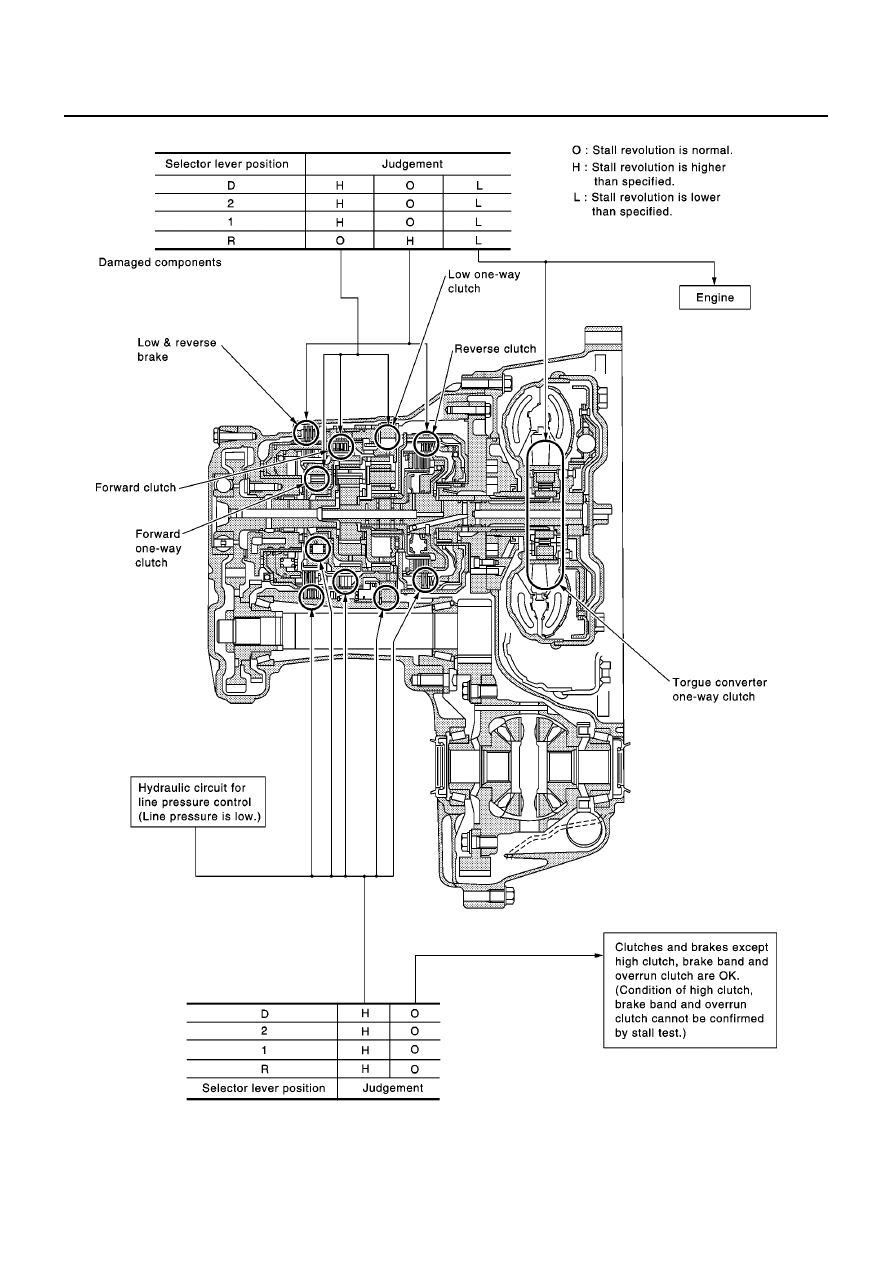

JUDGEMENT OF STALL TEST

The test result and possible damaged components relating to each result are shown in the illustrations on next
page.
In order to pinpoint the possible damaged components, follow the WORK FLOW shown in

AT-261, "Work

Flow"

.

NOTE:
Stall revolution is too high in “D”, “2” or “1” position:

Slippage occurs in 1st gear but not in 2nd and 3rd gears...... Low one-way clutch slippage

Slippage occurs in the following gears:
1st through 3rd gears in “D” position and engine brake functions with overdrive control switch set to
“OFF”.
1st and 2nd gears in “2” position and engine brake functions with accelerator pedal released (fully closed
throttle)...... Forward clutch or forward one-way clutch slippage

Stall revolution is too high in R position:

Engine brake does not function in “1” position...... Low & reverse brake slippage

Engine brake functions in “1” position...... Reverse clutch slippage

Stall revolution within specifications:

Vehicle does not achieve speed of more than 80 km/h (50 MPH)...... One-way clutch seizure in torque
converter housing

CAUTION:

Be careful since automatic fluid temperature increases abnormally.

Slippage occurs in 3rd and 4th gears in “D” position...... High clutch slippage

Slippage occurs in 2nd and 4th gear in “D” position...... Brake band slippage

Engine brake does not function in 2nd and 3rd gears in “D” position, 2nd gear in “2” position, and 1st gear
in “1” position with overdrive control switch set to “OFF”.

Stall revolution less than specifications:

Poor acceleration during starts...... One-way clutch seizure in torque converter

AT-266

[EXC.F/EURO-OBD]

TROUBLE DIAGNOSIS — BASIC INSPECTION

SCIA0707E

TROUBLE DIAGNOSIS — BASIC INSPECTION

AT-267

[EXC.F/EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

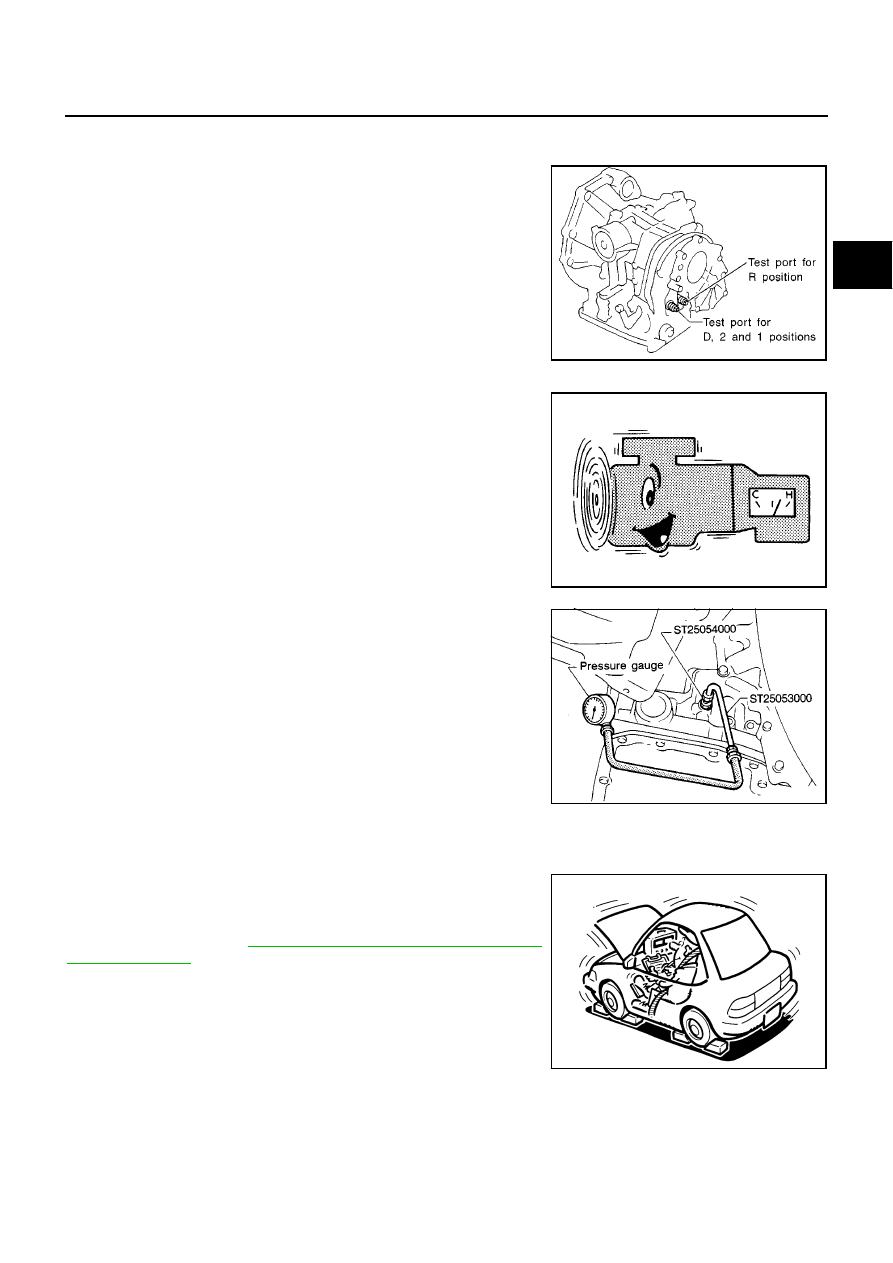

Line Pressure Test

ECS009A0

LINE PRESSURE TEST PORTS

Location of line pressure test ports are shown in the illustration.

Always replace pressure plugs as they are self-sealing
bolts.

LINE PRESSURE TEST PROCEDURE

1.

Check A/T fluid and engine oil levels. If necessary, add fluid or
oil.

2.

Drive vehicle for approx. 10 minutes or until engine oil and ATF
reach operating temperature.

3.

Install pressure gauge to corresponding line pressure port.

4.

Set parking brake and block wheels.

Continue to depress brake pedal fully while line pressure test is being performed at stall speed.

5.

Start engine and measure line pressure at idle and stall speed.

When measuring line pressure at stall speed, follow the
stall test procedure.

Line pressure: Refer to

AT-519, "SERVICE DATA AND SPECIFI-

CATIONS (SDS)"

.

SAT561J

ATF operating temperature:

50 - 80

°

C (122 -176

°

F)

SAT647B

UAT008

SAT493G
