Nissan Almera Tino V10. Manual - part 59





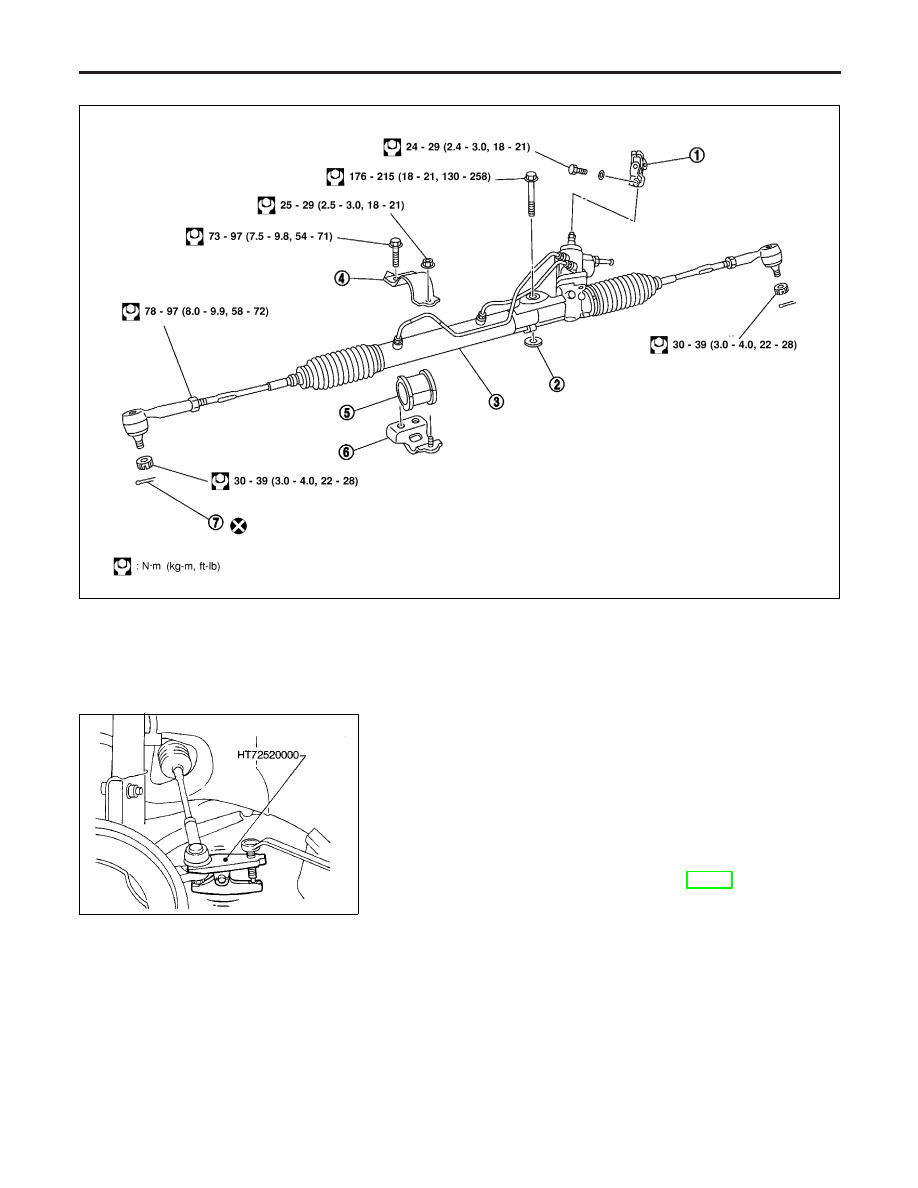

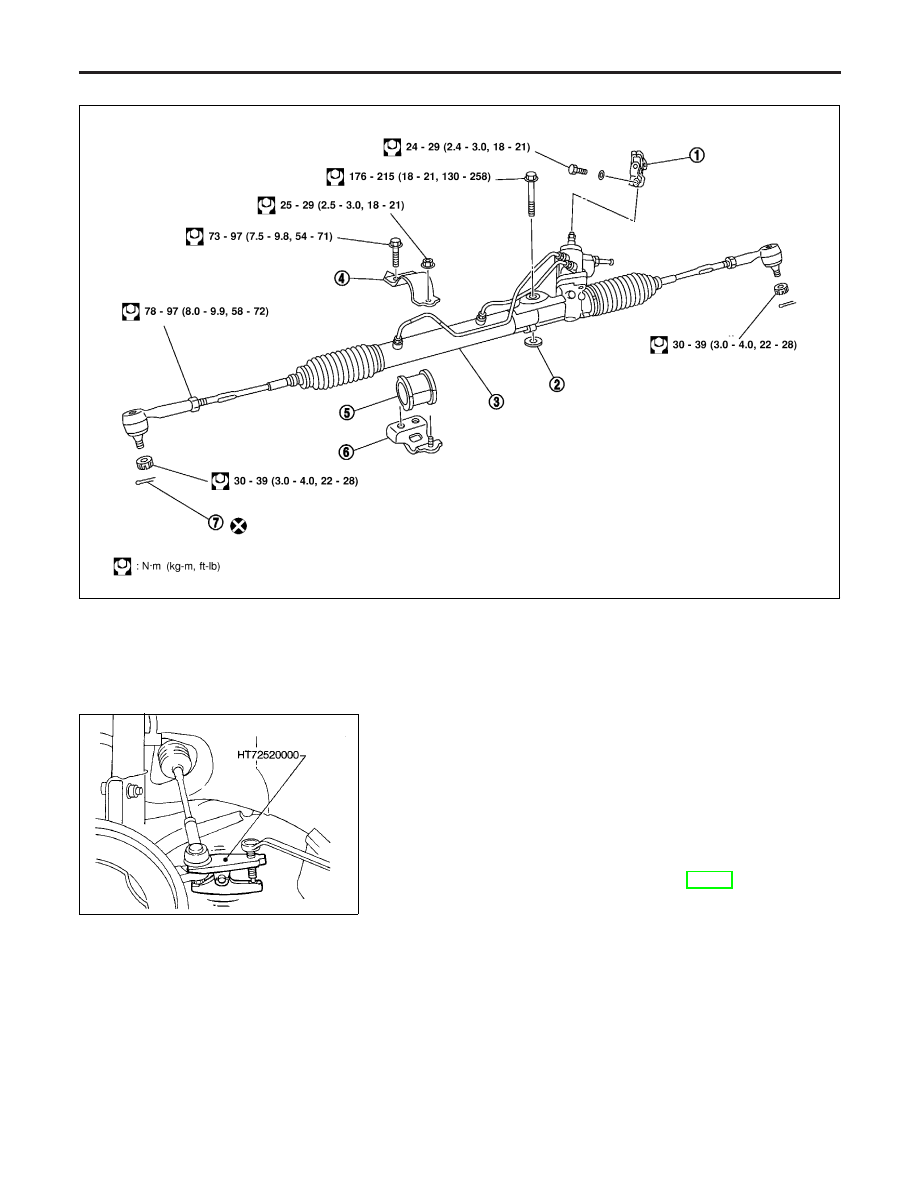

Removal and Installation

NLST0022

NST050

1.

Lower joint

2.

Washer

3.

Gear and linkage assembly

4.

Upper gear housing mounting
bracket

5.

Rack mounting insulator

6.

Lower gear housing mounting
bracket

7.

Cotter pin

SFA455BA

CAUTION:

I

The rotation of the spiral cable (SRS “Air bag” component
part) is limited. If the steering gear must be removed, set
the front wheels in the straight-ahead direction. Do not
rotate the steering column while the steering gear is
removed.

I

Remove the steering wheel before removing the steering
lower joint to avoid damaging the SRS spiral cable.

I

Detach tie-rod outer sockets from knuckle arms with Tool.

1.

Remove stabilizer fixing bolts. Refer to SU-12, “Removal and
Installation”.

2.

Disconnect lower joint.

3.

Remove gear housing mounting bracket fixing bolts.

4.

Remove steering gear assembly.

POWER STEERING GEAR AND LINKAGE

Removal and Installation

ST-16

SST879C

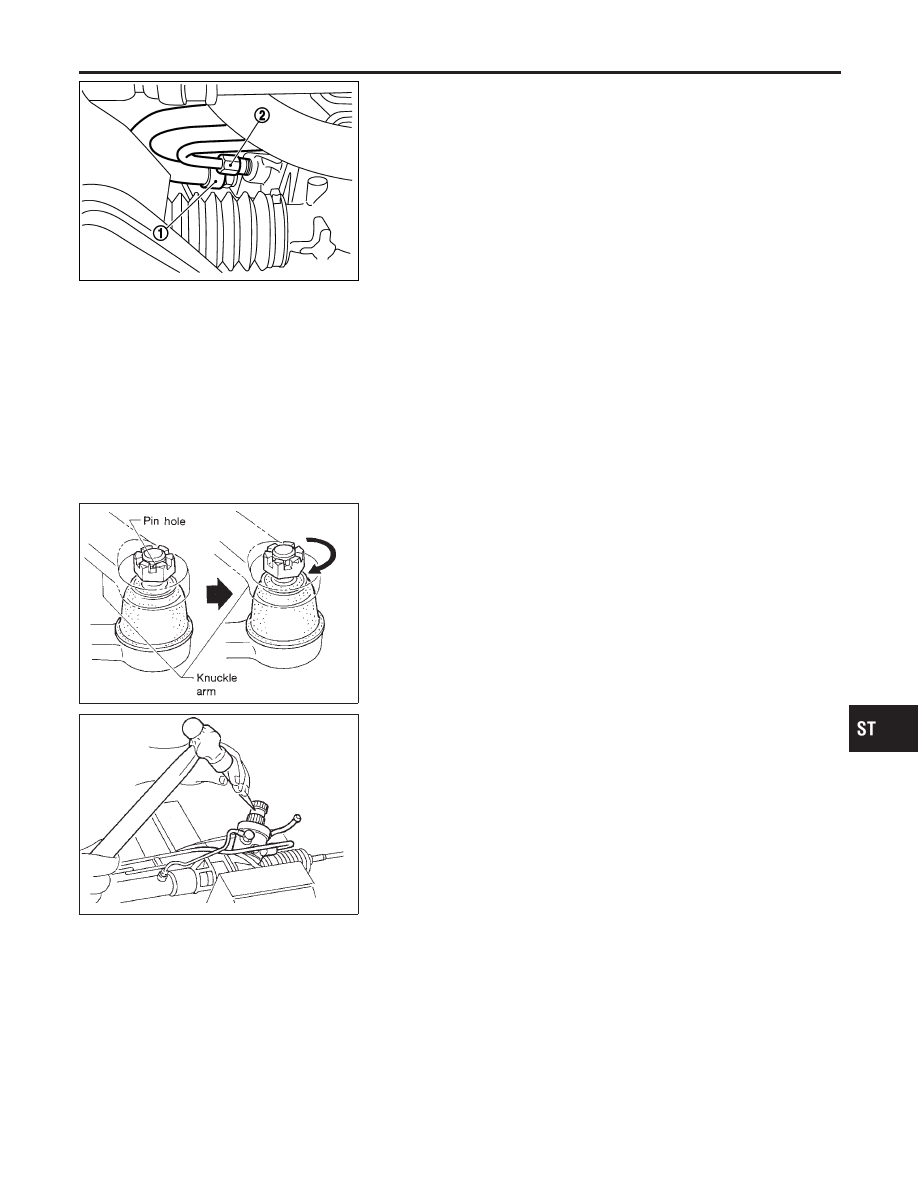

I

Install pipe connector.

I

Observe specified tightening torque when tightening high-pres-
sure and low-pressure pipe connectors. Excessive tightening
will damage threads of connector or O-ring.

Connector tightening torque:

1 Low-pressure side

27 - 39 N·m (2.8 - 4.0 kg-m, 20 - 29 ft-lb)

2 High-pressure side

15 - 25 N·m (1.5 - 2.5 kg-m, 11 - 18 ft-lb)

I

The O-ring in low-pressure pipe connector is larger than that
in high-pressure connector. Take care to install the proper
O-ring.

SST824A

I

Initially, tighten nut on tie-rod outer socket and knuckle arm to
29 to 39 N·m (3 to 4 kg-m, 22 to 29 ft-lb). Then tighten further
to align nut groove with first pin hole so that cotter pin can be
installed.

CAUTION:

Tightening torque must not exceed 49 N·m (5 kg-m, 36 ft-lb).
NOTE:
Only the dust boot, tie-rod inner socket and tie-rod outer socket can
be disassembled on models for Europe.

SST819A

I

Before removing lower joint from gear, set gear in neutral
(wheels in straight-ahead position). After removing lower joint,
put matching mark on pinion shaft and pinion housing to record
neutral position.

I

To install, set left and right dust boots to equal deflection.
Attach lower joint by aligning matching marks of pinion shaft
and pinion housing.

I

Tighten gear housing mounting bracket bolts.

Inspection

NLST0024

Thoroughly clean all parts in cleaning solvent or DEXRON

TM

III or

equivalent. Blow dry with compressed air, if available.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

RS

BT

HA

SC

EL

IDX

POWER STEERING GEAR AND LINKAGE

Removal and Installation (Cont’d)

ST-17

SST090B

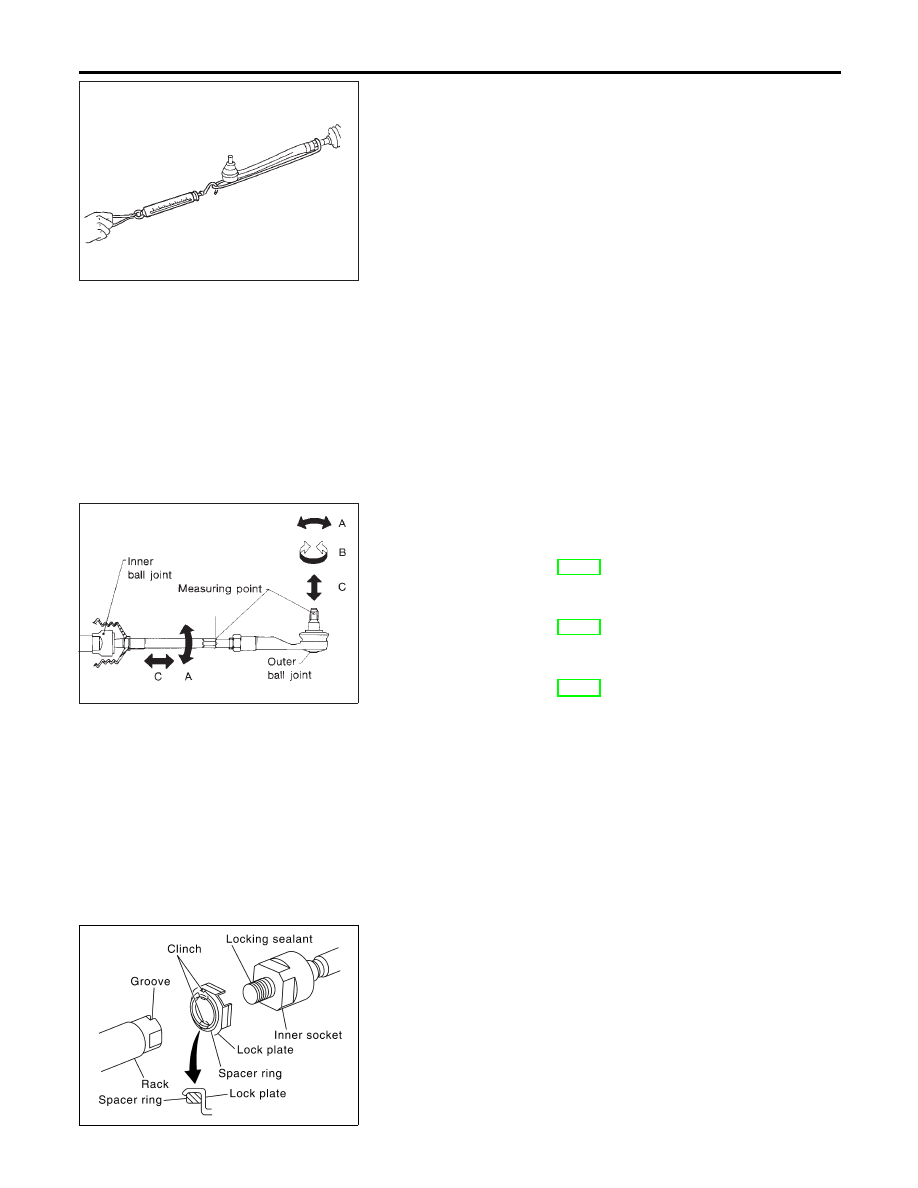

STEERING GEAR

NLST0024S06

1.

Check rack sliding force on vehicle as follows:

a.

Install steering gear onto vehicle, but do not connect tie-rod to
knuckle arm.

b.

Connect all piping and fill with steering fluid.

c.

Start engine and bleed air completely.

d.

Disconnect steering column lower joint from the gear.

e.

Keep engine at idle and make sure steering fluid has reached
normal operating temperature.

f.

Pull tie-rod slowly to move it from neutral position to

±

11.5 mm

(

±

0.453 in) at speed of 3.5 mm (0.138 in)/s. Check that rack

sliding force is within specification.

Average rack sliding force:

197 - 255 N (20.1 - 26.0 kg, 44.3 - 57.3 lb)

BOOT

NLST0024S01

I

Check condition of boot. If cracked excessively, replace it.

I

Check boots for accumulation of power steering fluid.

SST468C

TIE-ROD OUTER AND INNER SOCKETS

NLST0024S05

I

Check ball joints for swinging force.

Tie-rod outer and inner ball joints swinging force “A”:

Refer to SDS, ST-27.

I

Check ball joint for rotating torque.

Tie-rod outer ball joint rotating torque “B”:

Refer to SDS, ST-27.

I

Check ball joints for axial end play.

Tie-rod outer and inner ball joints axial end play “C”:

Refer to SDS, ST-27.

I

Check condition of dust cover. If cracked excessively, replace
outer tie-rod.

SST866C

Assembly

NLST0025

1.

Install lock plate to rack.

a.

Temporarily install spacer ring to rack.

Discard old spacer ring; replace with a new one.
b.

Install lock plate to inner socket.

Discard old lock plate; replace with a new one.
c.

Apply a coat of locking sealant to inner socket threads. Screw
inner socket into rack and tighten to specified torque.

d.

Clinch lock plate at rack groove location (at two points).

e.

Install spacer ring to lock plate as shown in the Figure at left.

POWER STEERING GEAR AND LINKAGE

Inspection (Cont’d)

ST-18

Be careful not to damage spacer ring during installation

SST867C

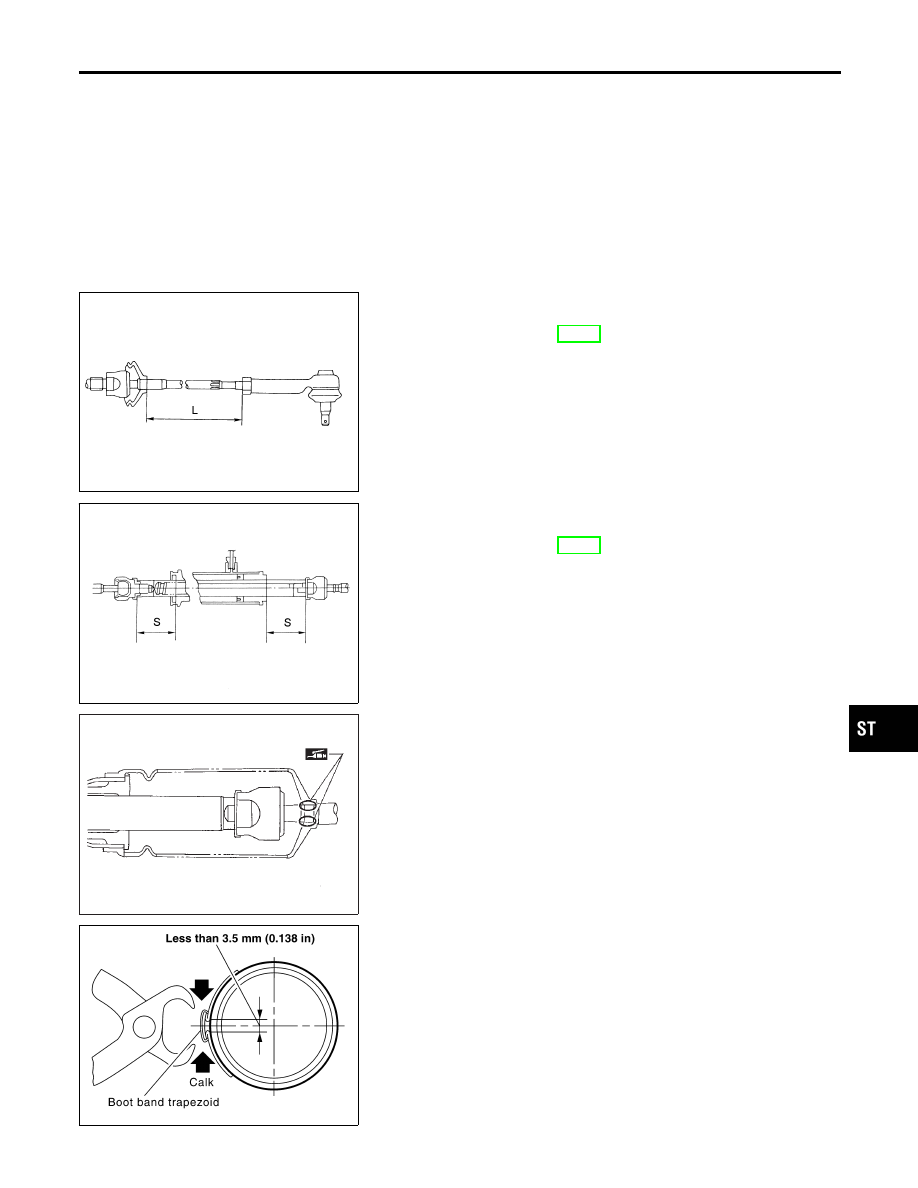

2.

Tighten outer socket lock nut.

Tie-rod length “L”:

Refer to SDS, ST-27.

SST086BA

3.

Measure rack stroke.

Rack stroke “S”:

Refer to SDS, ST-27.

SST967A

4.

Before installing boot, coat the contact surfaces between boot
and tie-rod with grease.

SST868C

5.

Install boot bands.

I

Securely install boot band to boot groove and clinch the root
section of the trapezoidal area.

I

Make sure that there is a clearance of 3.5 mm (0.138 in) or less
at the clinched section of the boot band. Refer to the Figure at
left.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

RS

BT

HA

SC

EL

IDX

POWER STEERING GEAR AND LINKAGE

Assembly (Cont’d)

ST-19
