Nissan Almera Tino V10. Manual - part 58





SST491C

I

Align slit of lower joint with projection on dust cover. Insert joint
until surface A contacts surface B.

CAUTION:

After installation, turn steering wheel to make sure it moves
smoothly. Ensure the number of turns are the same from the
straight forward position to left and right locks. Be sure that
the steering wheel is in a neutral position when driving
straight ahead.

STEERING WHEEL AND STEERING COLUMN

Removal and Installation (Cont’d)

ST-12

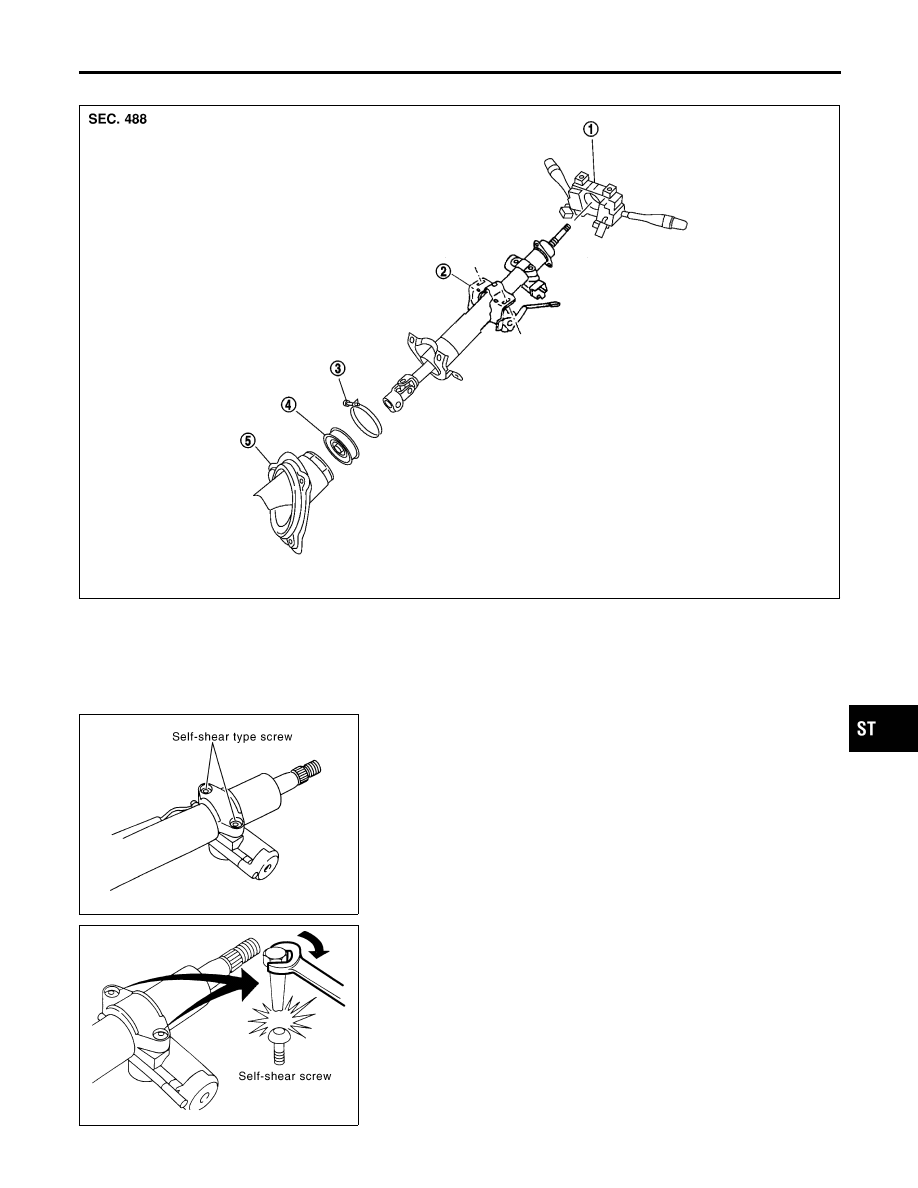

Disassembly and Assembly

=NLST0019

NST048

1.

Combination switch

2.

Column shaft assembly

3.

Clip

4.

Lower seal cover

5.

Hole cover

YST032

I

Steering lock

a)

Break self-shear type screws with a drill or other appropriate
tool.

YST033

b)

Install new self-shear type screws and then cut off self-shear
type screw heads.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

RS

BT

HA

SC

EL

IDX

STEERING WHEEL AND STEERING COLUMN

Disassembly and Assembly

ST-13

SST855C

Inspection

NLST0020

I

When steering wheel does not turn smoothly, check the steer-
ing column as follows and replace damaged parts.

a)

Check column bearings for damage or unevenness. Lubricate
with recommended multi-purpose grease or replace steering
column as an assembly, if necessary.

b)

Check jacket tube for deformation or breakage. Replace if
necessary.

I

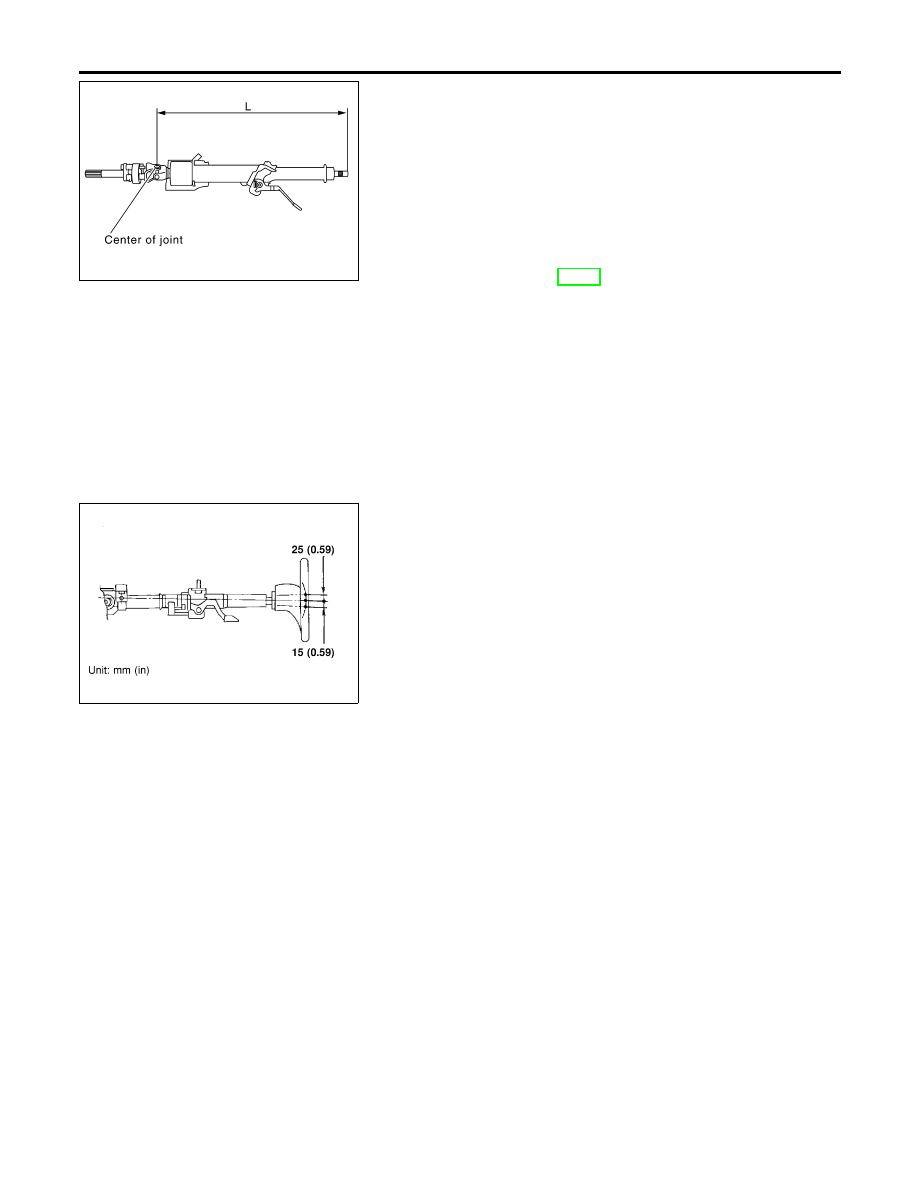

When the vehicle comes into a light collision, check length “L”.

Steering column length “L”:

Refer to SDS, ST-26.

If out of the specifications, replace steering column as an assem-
bly.

NST049

TILT MECHANISM

NLST0020S01

I

After installing steering column, check tilt mechanism opera-
tion.

STEERING WHEEL AND STEERING COLUMN

Inspection

ST-14

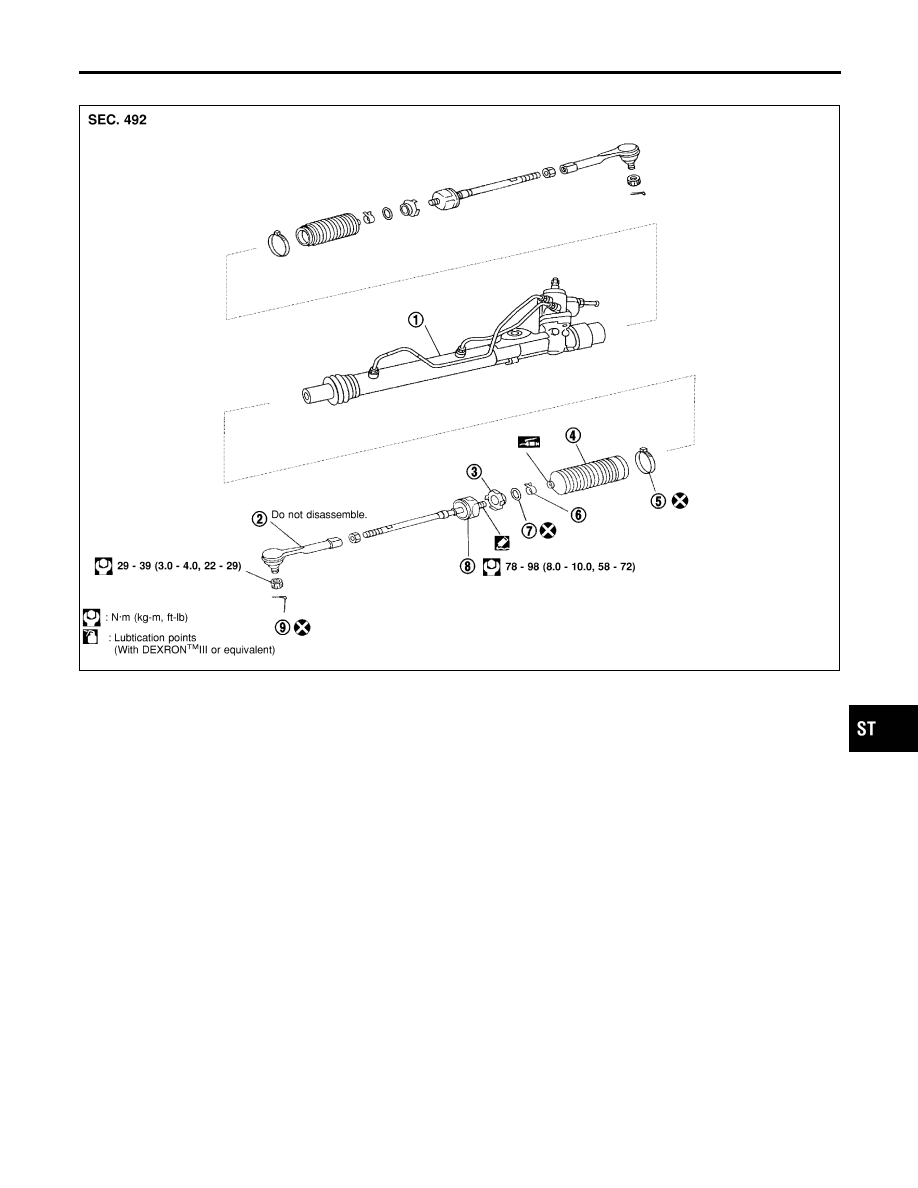

Components

NLST0021

NST054

1.

Gear assembly

2.

Tie-rod outer socket

3.

Lock plate

4.

Dust boot

5.

Boot band

6.

Boot band

7.

Spacer ring

8.

Tie-rod inner socket

9.

Cotter pin

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

RS

BT

HA

SC

EL

IDX

POWER STEERING GEAR AND LINKAGE

Components

ST-15
