RECOMMENDED FLUIDS AND LUBRICANTS

MA-23

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

tor. See precautions in "If your vehicle overheats" found in the "In case of emergency' section of this
manual.

• The radiator is equipped with a pressure type radiator cap. To prevent engine damage, use only a

genuine NISSAN radiator cap.

CAUTION:

• When adding or replacing coolant, be sure to use only Genuine NISSAN Long Life Antifreeze/Cool-

ant (blue) or equivalent. Genuine NISSAN Long Life Antifreeze/Coolant (blue) is pre-diluted to pro-
vide antifreeze protection to -34

°

F (-37

°

C). If additional freeze protection is needed due to weather

where you operate your vehicle, add Genuine NISSAN Long Life Antifreeze/Coolant (blue) concen-
trate following the directions on the container. If an equivalent coolant other than Genuine NISSAN
Long Life Antifreeze/Coolant (blue) is used, follow the coolant manufactur's instructions to maintain
minimum antifreeze protection to -34

°

F (-37

°

C). The use of other types of coolant solutions other

than Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent may damage the engine
cooling system.

• The life expectancy of the factory-fill coolant is 24,000 miles (38,4000 km) or 2 years. Mixing any

other type of coolant other than Genuine NISSAN Long Life Antifreeze/Coolant (blue), including Gen-
uine NISSAN Long Life Antifreeze/Coolant (green), or the use of non-distilled water will reduce the
life expectancy of the factory-fill coolant. Refer to the GT-R Service and Maintenance Guide for more
details.

Revision: 2012 November

2014 GT-R

MA-24

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE

ENGINE MAINTENANCE

DRIVE BELT

DRIVE BELT : Exploded View

INFOID:0000000009161758

DRIVE BELT : Checking

INFOID:0000000009161759

WARNING:

Be sure to perform this step when engine is stopped.
• Check that the indicator (C) (notch on fixed side) of drive belt auto-tensioner is within the possible use range

(A).
NOTE:
• Check the drive belt auto-tensioner indication when the engine is cold.
• When new drive belt is installed, the indicator (notch on fixed side) should be within the range (B) in the fig-

ure.

• Visually check entire drive belt for wear, damage or cracks.
• If the indicator (notch on fixed side) is out of the possible use range or belt is damaged, replace drive belt.

DRIVE BELT : Tension Adjustment (GT-R certified NISSAN dealer)

INFOID:0000000009161760

Refer to

MA-45, "DRIVE BELT : Drive Belt (GT-R certified NISSAN dealer)"

.

ENGINE COOLANT

ENGINE COOLANT : Inspection

INFOID:0000000009190116

BASIC INSPECTION

Checking Engine Room

• Visually check engine room for smears*

1

 and leakage*

2

 of engine coolant when engine is cool.

NOTE:
• *

1

: Engine coolant does not drop.

• *

2

: Engine coolant drop.

JPBIA0002ZZ

1.

Power steering oil pump

2.

Alternator

3.

Drive belt auto-tensioner

4.

Crankshaft pulley

5.

A/C compressor

6.

Idler pulley

7.

Drive belt

8.

Idler pulley

A.

Possible use range

B.

Range when new drive belt is installed

C.

Indicator

D.

View D

Revision: 2012 November

2014 GT-R

ENGINE MAINTENANCE

MA-25

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

- Check engine assembly and cooling system for smears and leakage of engine coolant.
- Observe the clearance between the engine and radiator to check that there is no engine coolant collected on

the front under cover.

Additional Inspection

• Check that engine coolant temperature history is not stored in ECM. (This work is recommended to be per-

formed by GT-R certified NISSAN dealer.)

• Perform this additional inspection after driving under conditions listed below:
- Higher-RPM (approaching redline) operation
- Frequent high pedal force braking from moderate and higher speeds
- Frequent throttle activation
- Fast revving throughout the RPM range

1.

Remove front under cover. Refer to

EXT-37, "FRONT UNDER COVER : Exploded View"

.

2.

Visually check the bottom of the engine for smears and leakage of engine coolant.

LEVEL

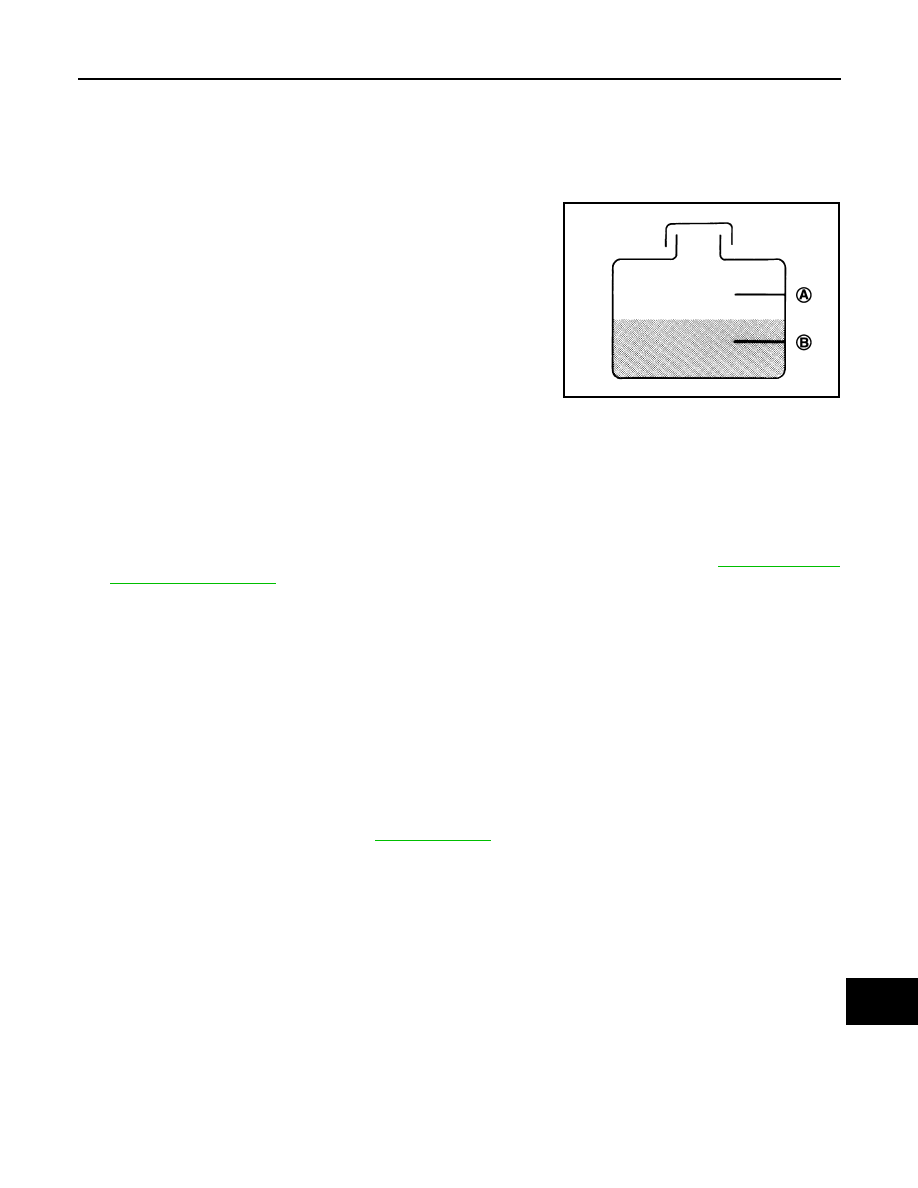

• Check that the reservoir tank engine coolant level is at the mid-

point between the “MIN” (B) to “MAX” (A) with the engine cold.

CAUTION:

• If engine coolant level exceeds the MAX line, leakage of

engine coolant may occur during the rise in internal pres-
sure in the engine coolant path. Therefore, thoroughly
check that engine coolant level is below the MAX line.

• Refill Genuine NISSAN Long Life Antifreeze/Coolant (blue)

or equivalent in its quality mixed with water (distilled or
demineralized). Refer to

MA-22, "Fluids and Lubricants"

.

• Adjust the engine coolant level if necessary.
• Check that the reservoir tank cap is tightened.

LEAKAGE

Engine Assembly

1.

Visually check engine assembly and surround area for smears of engine coolant.

2.

Wipe out smeared engine coolant using part cleaner or the equivalent.

3.

Check again for engine coolant smears.

Radiator and Cooling System

• To check for leakage, apply pressure to the cooling system with the

radiator cap tester (commercial service tool) (A) and radiator cap
tester adapter (commercial service tool) (B).

WARNING:

Never remove radiator cap and reservoir tank cap when
engine is hot. Serious burns could occur from high-pressure
engine coolant escaping from engine cooling system.

CAUTION:

Higher test pressure than that specified may cause radiator
damage.
NOTE:
In a case that engine coolant decreases, fill radiator with engine coolant.

• If anything is found, repair or replace damaged parts.

ENGINE COOLANT : Draining

INFOID:0000000009190117

WARNING:

• Never change engine coolant when the engine is hot to avoid being scalded.
• Wrap a thick cloth around reservoir tank cap and carefully remove reservoir tank cap. First, turn res-

ervoir tank cap a quarter of a turn to release built-up pressure. Then turn reservoir tank cap all the
way.

1.

Remove engine undercover. Refer to

EXT-35, "ENGINE UNDER COVER : Exploded View"

.

NNBIA0235ZZ

Testing pressure

: Refer to

CO-10, "Radiator"

.

PBIC5121J

Revision: 2012 November

2014 GT-R

MA-26

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE

2.

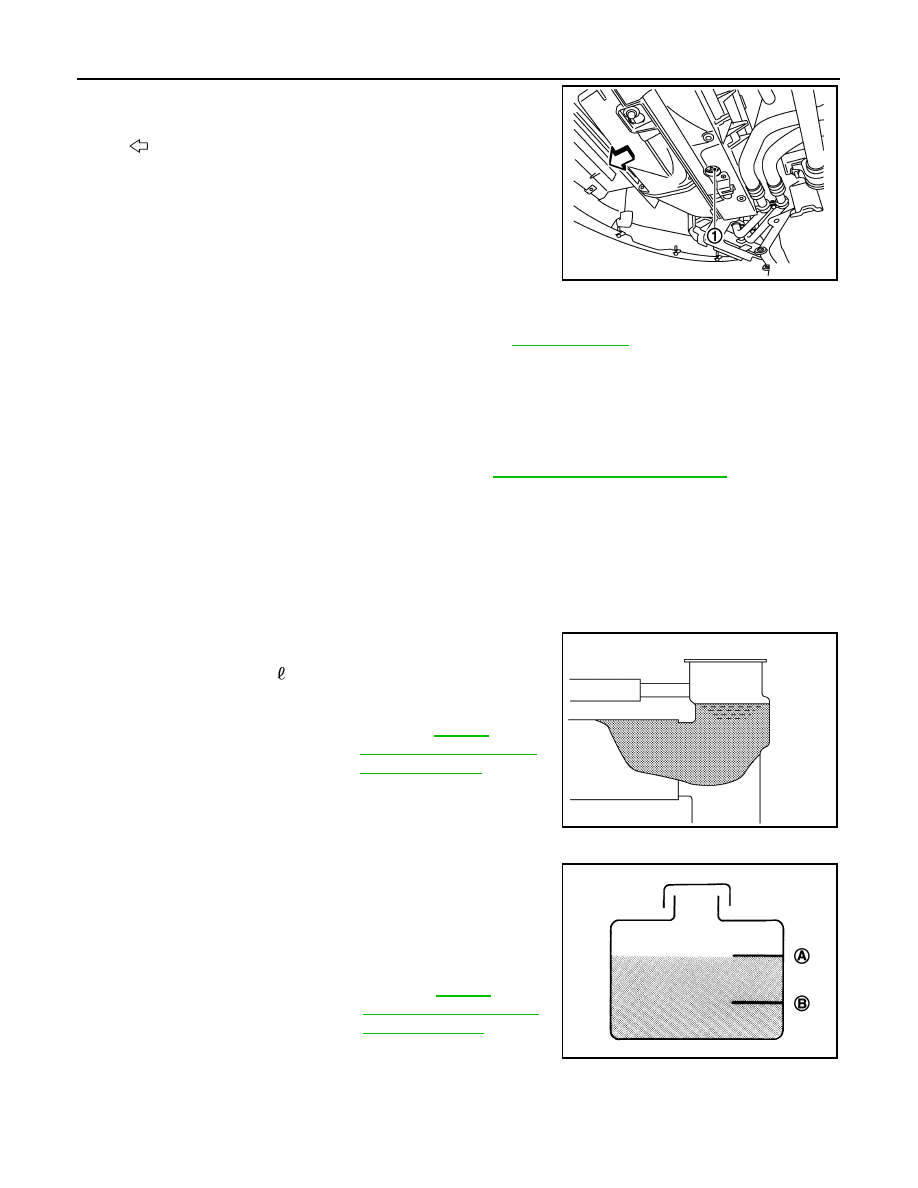

Open radiator drain plug (1) at the bottom of radiator, and then
remove reservoir tank cap.

3.

Remove reservoir tank if necessary, drain engine coolant, and clean reservoir tank before installing.

4.

Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to

CO-6, "Flushing"

.

ENGINE COOLANT : Refilling

INFOID:0000000009190118

CAUTION:

• Do not reuse O-rings.
• Do not put additive such as waterleak preventive, since it may cause cooling waterway clogging.
• When refilling use Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent in its quality

mixed with water (distilled or demineralized). Refer to

MA-22, "Fluids and Lubricants"

.

1.

Install reservoir tank if removed.

2.

Install radiator drain plug.

CAUTION:

Be sure to clean drain plug and install with new O-ring.

3.

Check that each hose clamp has been firmly tightened.

4.

Fill radiator to specified level.
• Pour engine coolant through engine coolant filler neck

slowly of less than 2  (2-1/8 US qt, 1-3/4 lmp qt) a minute
to allow air in system to escape.

5.

Install radiator cap.

6.

Fill reservoir tank to “MAX” level line with engine coolant if nec-
essary.

7.

Install reservoir tank cap, and then start the engine.

8.

Warm up engine until thermostat opens. Standard for warming-up time is approximately 10 minutes at
3,000 rpm.
• Check thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.

CAUTION:

: Vehicle front

NNBIA0164ZZ

Tightening torque

: 1.2 N·m (0.12 kg-m, 11 in-lb)

Engine coolant capacity

: Refer to

CO-10,

"Periodical Maintenanc
e Specification"

.

(With reservoir tank at
“MAX” level)

JPBIA0412ZZ

A

:  MAX

B

:  MIN

Reservoir tank engine cool-
ant capacity

: Refer to

CO-10,

"Periodical Maintenanc
e Specification"

.

(At “MAX” level)

JPBIA0102ZZ

Revision: 2012 November

2014 GT-R

ENGINE MAINTENANCE

MA-27

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

Watch water temperature gauge so as not to overheat engine.

9.

Stop the engine and cool down to less than approximately 50

°

C (122

°

F).

• Cool down using fan to reduce the time.
• If necessary, refill radiator up to filler neck with engine coolant.

10. Repeat steps 6 through 9 two or more times with radiator cap and reservoir tank cap installed until engine

coolant level no longer drops.

11. When the coolant level of the radiator stops lowering, refill reser-

voir tank to the midpoint between the “MIN” (B) and “MAX” (A) of
the reservoir tank.

12. Check cooling system for leakage with engine running.
13. Warm up the engine, and check for sound of engine coolant flow while running engine from idle up to

3,000 rpm with heater temperature controller set at several positions between “COOL” and “WARM”.
• Sound may be noticeable at heater unit.

14. Repeat step 13 three times.

15. If sound is heard, bleed air from cooling system by repeating steps from 3 to 13 until engine coolant level

no longer drops.

16. Recheck reservoir tank engine coolant level with the engine completely cold. Refer to

MA-24, "ENGINE

COOLANT : Inspection"

.

ENGINE COOLANT : Flushing

INFOID:0000000009190119

1.

Install reservoir tank if removed, and radiator drain plug.

CAUTION:

Be sure to clean drain plug and install with new O-ring.

2.

Fill radiator and reservoir tank with water.

3.

Run the engine and warm it up to normal operating temperature.

4.

Rev the engine two or three times under no-load.

5.

Stop the engine and wait until it cools down.

6.

Drain water from the system. Refer to

CO-5, "Draining"

.

7.

Repeat steps 1 through 6 until clear water begins to drain from radiator.

AIR CLEANER FILTER

AIR CLEANER FILTER : Removal and Installation

INFOID:0000000009161766

REMOVAL

NNBIA0235ZZ

Tightening torque

: 1.2 N·m (0.12 kg-m, 11 in-lb)

Revision: 2012 November

2014 GT-R

MA-28

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE

1.

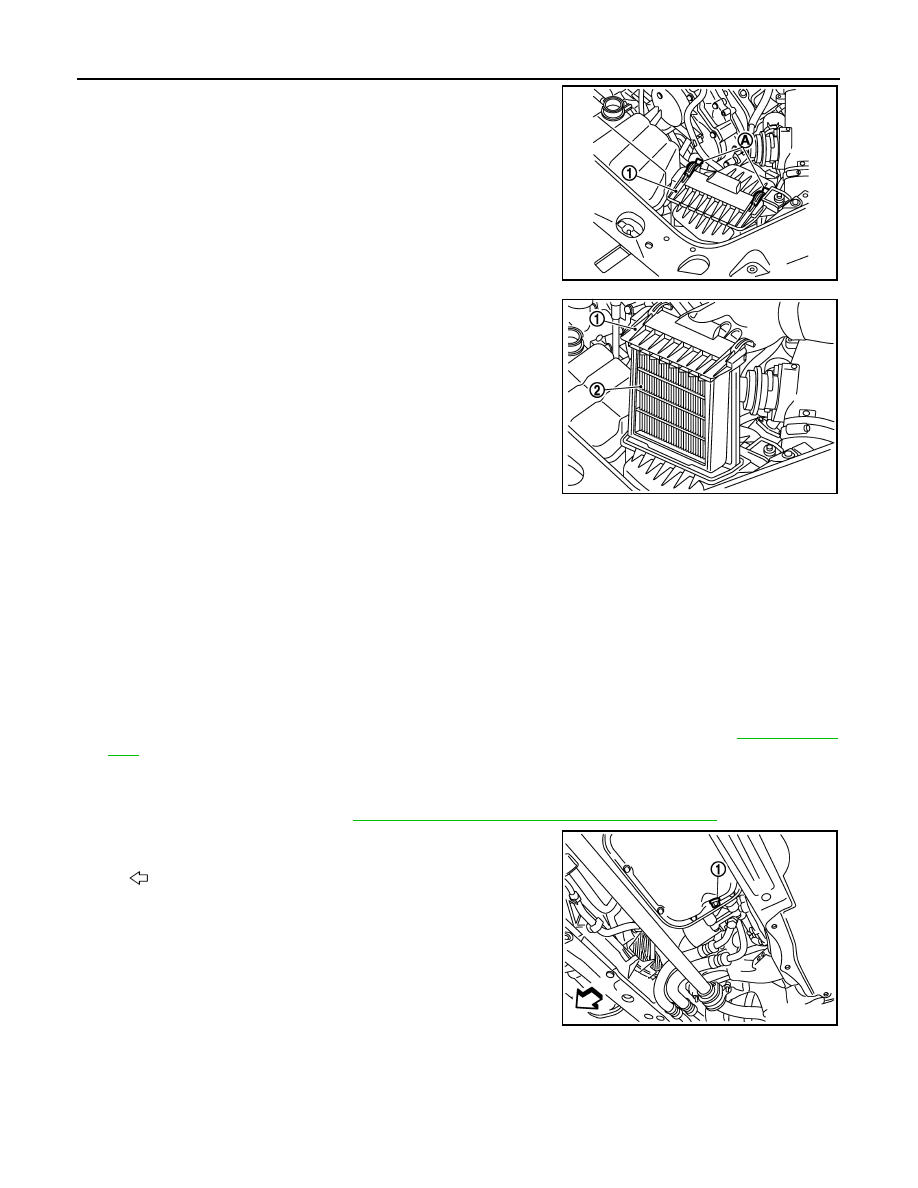

Unhook clips (A) and remove holder (1) from air cleaner case.

2.

Remove air cleaner filter (2) from holder (1).

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install the air cleaner filter by aligning the seal with the notch of air cleaner case.

ENGINE OIL

ENGINE OIL : Draining

INFOID:0000000009161767

WARNING:

• Be careful not to get burned, as engine oil may be hot.
• Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin

contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as
soon as possible.

1.

Warm up the engine, and check for engine oil leakage from engine components. Refer to

LU-4, "Inspec-

tion"

.

2.

Stop the engine and wait for 5 minutes.

3.

Loosen oil filler cap.

4.

Remove front undercover. Refer to

EXT-37, "FRONT UNDER COVER : Exploded View"

.

5.

Remove drain plug (1) and then drain engine oil.

ENGINE OIL : Refilling

INFOID:0000000009190114

1.

Install drain plug with new washer.

CAUTION:

Be sure to clean drain plug and install with new washer.

NNBIA0177ZZ

NNBIA0178ZZ

: Vehicle front

NNBIA0115ZZ

Revision: 2012 November

2014 GT-R

ENGINE MAINTENANCE

MA-29

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

2.

Refill with new engine oil.
Engine oil specification and viscosity: Refer to

MA-22, "Fluids and Lubricants"

.

CAUTION:

• When filling engine oil, never pull out oil level gauge.
• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-

tions for reference only.

• Always use oil level gauge to determine the proper amount of engine oil in engine.

3.

Warm up the engine and check area around drain plug and oil filter for engine oil leakage.

4.

Stop the engine and wait for 5 minutes.

5.

Check the engine oil level. Refer to

LU-4, "Inspection"

.

OIL FILTER

OIL FILTER : Removal and Installation

INFOID:0000000009161769

REMOVAL

CAUTION:

• Oil filter is provided with relief valve. Use genuine NISSAN oil filter or equivalent.
• Be careful not to get burned when engine and engine oil may be hot.
• When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
• Never allow engine oil to adhere to drive belt.
• Completely wipe off any engine oil that adheres to engine and vehicle.

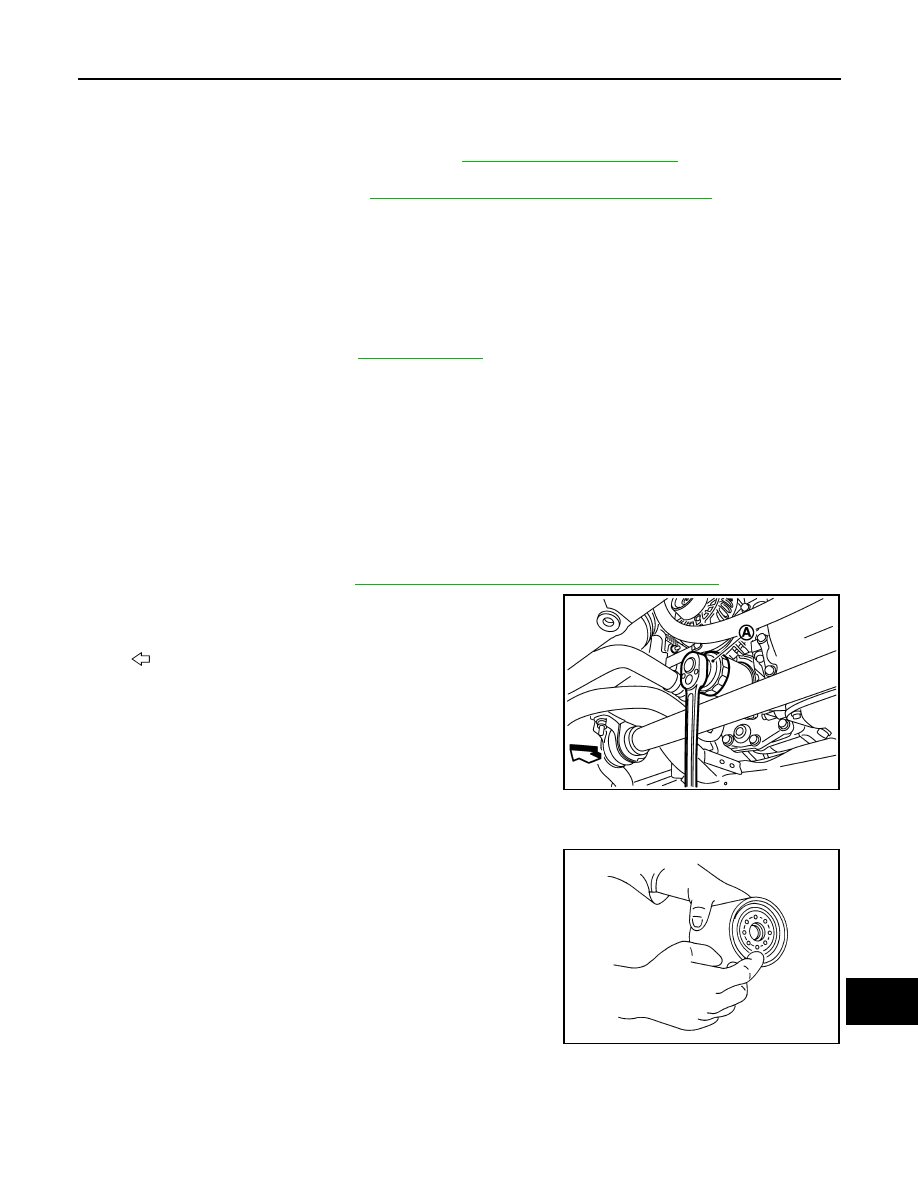

1.

Remove front undercover. Refer to

EXT-37, "FRONT UNDER COVER : Exploded View"

.

2.

Using oil filter wrench [SST: KV10115801 (J-38956)] (A), remove
oil filter.

INSTALLATION

1.

Remove foreign materials adhering to oil filter installation surface.

2.

Apply engine oil to the oil seal contact surface of new oil filter.

Tightening torque

: 34.3 N·m (3.5 kg-m, 25 ft-lb)

Engine oil capacity

Refer to

LU-9, "Periodical Maintenance Specification"

.

: Vehicle front

NNBIA0116ZZ

SMA010

Revision: 2012 November

2014 GT-R

MA-30

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE

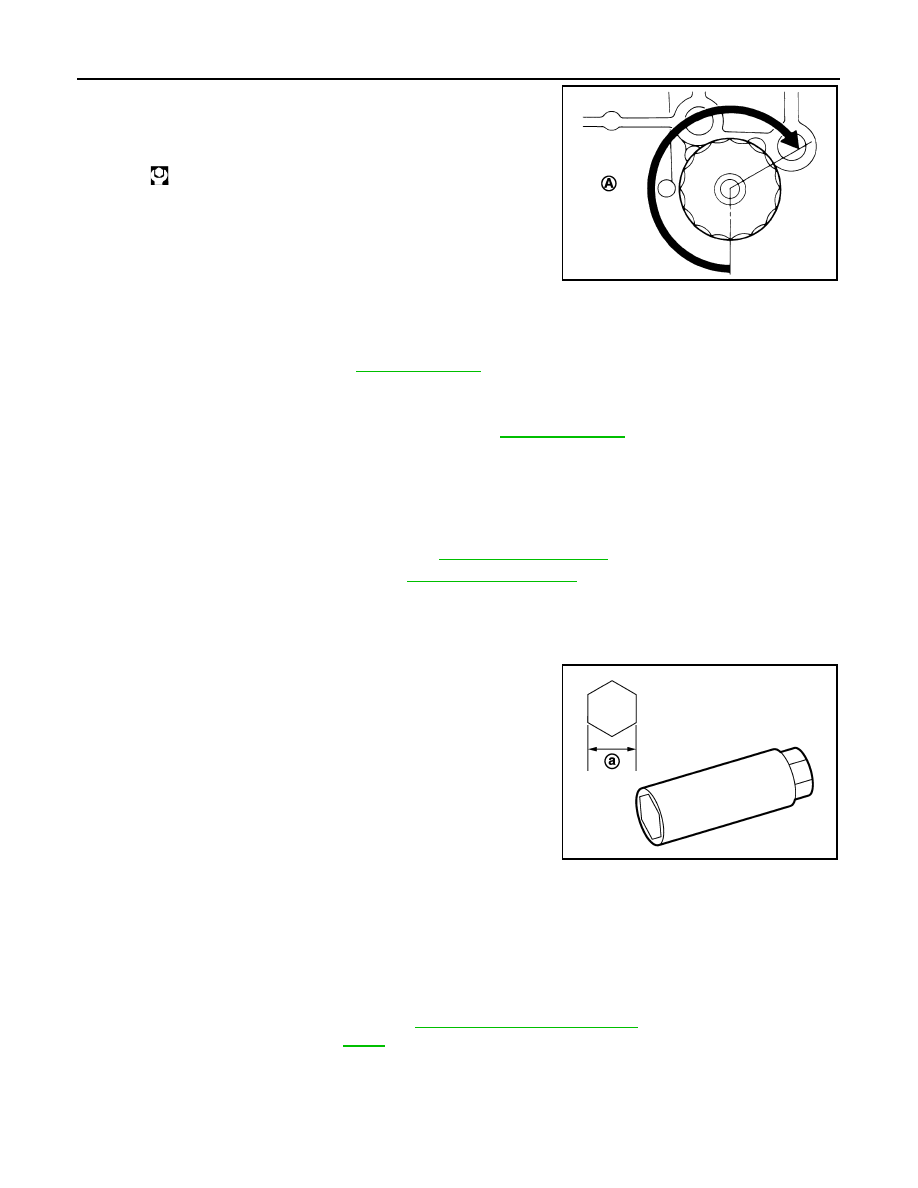

3.

Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn (A). Or tighten to the specification.

OIL FILTER : Inspection

INFOID:0000000009161770

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-4, "Inspection"

.

2.

Start the engine, and check there is no leakage of engine oil.

3.

Stop the engine and wait for 5 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

LU-4, "Inspection"

.

SPARK PLUG

SPARK PLUG : Removal and Installation

INFOID:0000000009161771

REMOVAL

1.

Remove engine cover with power tool. Refer to

EM-10, "Exploded View"

.

2.

Remove intake manifold collector. Refer to

EM-17, "Exploded View"

.

CAUTION:

Mark the parts with paint in advance of the reinstallation to prevent misalignment between the
intake manifold collector and intake manifold.

3.

Remove ignition coil.

4.

Remove spark plug with a spark plug wrench (commercial ser-
vice tool).

CAUTION:

Never drop or shock spark plug.

INSTALLATION

Installation is the reverse order of removal.

SPARK PLUG : Inspection

INFOID:0000000009161772

INSPECTION AFTER REMOVAL

Use the standard type spark plug for normal condition.

CAUTION:

Oil filter:

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

JPBIA0077ZZ

a

: 14 mm (0.55 in)

JPBIA0030ZZ

Spark plug (Standard type)

: Refer to

MA-45, "SPARK PLUG : Spark

Plug"

.

Revision: 2012 November

2014 GT-R

ENGINE MAINTENANCE

MA-31

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

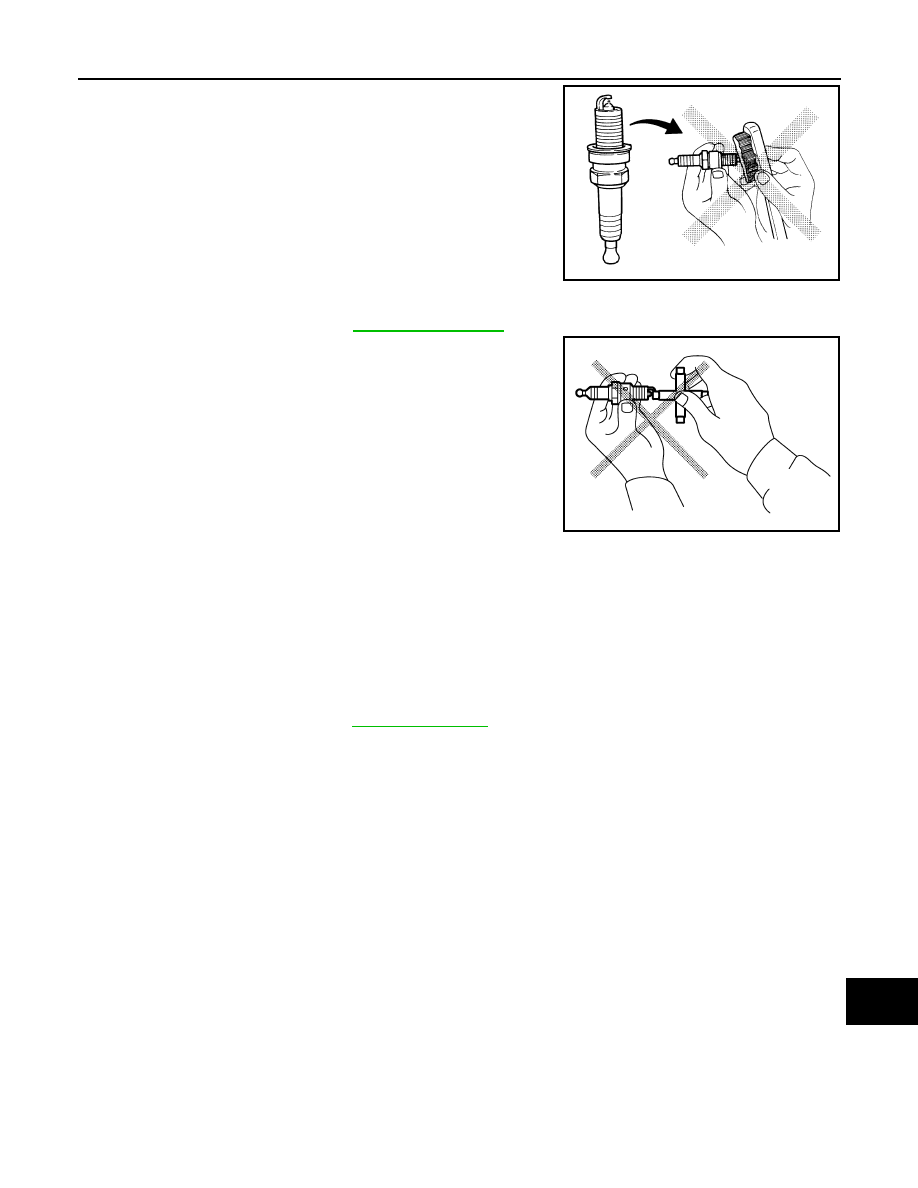

• Never drop or shock spark plug.
• Never use a wire brush for cleaning.
• If plug tip is covered with carbon, spark plug cleaner may be

used.

• Measure spark plug gap. When it exceeds the limit, replace spark plug even if it is within the speci-

fied replacement mileage. Refer to

EM-28, "Spark Plug"

.

• Spark plug gap adjustment is not required between replace-

ment intervals.

THROTTLE CHAMBER

THROTTLE CHAMBER : Inspection

INFOID:0000000009161773

Visually inspect the throttle chamber for deposits and clean as necessary.

EVAP VAPOR LINES

EVAP VAPOR LINES : Inspection

INFOID:0000000009161774

1.

Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,
chafing and deterioration. Refer to

EC-24, "Inspection"

.

2.

Inspect fuel tank filler cap vacuum relief valve for clogging, sticking, etc.

Cleaner air pressure:

Less than 588 kPa (6 kg/cm

2

, 85 psi)

Cleaning time:

Less than 20 seconds

SMA773C

JPBIA0031ZZ

Revision: 2012 November

2014 GT-R

MA-32

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

CHASSIS MAINTENANCE

TRANSMISSION OIL

TRANSMISSION OIL : Inspection

INFOID:0000000009190111

LEAKAGE CHECK

• Visually check transmission assembly surrounding area (oil seal, drain plug, filler plug, transmission case,

etc.) for smears and leakage of transmission oil.

• Check also the leakage or bleeding around rear final drive. For rear final drive check, refer to

MA-37, "REAR

DIFFERENTIAL GEAR OIL : Inspection"

.

JSDIA2641ZZ

Revision: 2012 November

2014 GT-R

CHASSIS MAINTENANCE

MA-33

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

• *1: When the oil drops

• *2: If oil leakage is detected, perform necessary procedures, check for oil leakage, and adjust oil level to the proper level.

• *3: When the oil does not drop

• *4: The grease applied to parking cable part can melt to generate a drop due to heat. Be careful not to confuse it with transmission oil

leakage.

CONDITION CHECK

Remove the filler plug, insert a finger into the filler hole, and judge the oil conditions from the transmission oil
applied to the inside of the transmission case.

CAUTION:

 Be careful not to cut the finger with edges.

Status

Parts

Required operation

Reference

Oil leak-

age

*1, *2

Trans-
mission
assem-
bly (on-
board/
single
unit)

A: Mating surface between oil pan and
case

Check the seal surface condition. Replace the oil
pan gasket only if there is a non-standard condi-
tion. Check for oil leakage.

This work is

recom-

mened to be

performed

by GT-R cer-

tified NIS-

SAN dealer.

B: Park position switch

Check the mounting surface condition. Replace
the plain washer only if there is not any other mal-
functioning condition. Check for oil leakage.

• C: Heat exchanger & bracket mounting

surface and heat exchanger mounting
bolt

• D: Water hose connection (Engine cool-

ant)

• C: Check the seal surface condition. If it is nor-

mal, replace the O-ring of the part where oil
leakage arises and the single-use parts re-
moved during procedure. Check for oil leakage.

• D: Check the seal surface condition. If it is nor-

mal, replace the clamp of the part where engine
coolant leakage arises. Check for engine cool-
ant leakage.

E: Front oil seal

Check the oil seal mounting surface and sliding
surface condition. Replace the front oil seal only if
there is not any other malfunctioning condition.
Check for oil leakage.

F: Drain plug

Replace the drain plug. Check for oil leakage.

TM-19

G: Filler plug

Replace the filler plug gasket. Check for oil leak-
age.

TM-20

• H: Transmission harness connector
• I: Oil seal of parking lever
• J: Oil seal of companion flange (trans-

mission side) of main propeller shaft as-
sembly

• K: Transmission case joining portion
• L: AWD solenoid

Replace the transmission assembly.

This work is

recom-

mened to be

performed

by GT-R cer-

tified NIS-

SAN dealer.

M: 3rd-5th check pin

Replace the plain washer. Check for oil leakage.

Trans-
mission
assem-
bly (sin-
gle unit)

N: Filler plug

Replace the filler plug gasket. Check for oil leak-
age.

O: Transmission case joining portion

Replace the transmission assembly.

• P: Idler bolt
• Q:  Plug

Replace the plain washer or O-ring. Check for oil
leakage.

R: Breather

Clean and wipe spouted oil with a part cleaner. Fill
with oil to the specified oil level, if necessary.

Oil

smears

*3

Each part of the transmission assembly, including the
parts requiring oil leakage check.

Use part cleaner or the equivalent to wipe out
smeared oil. Then, check for oil leakage.

Grease

drop

*4

S: Parking cable

Wipe excess grease off.

Revision: 2012 November

2014 GT-R

MA-34

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

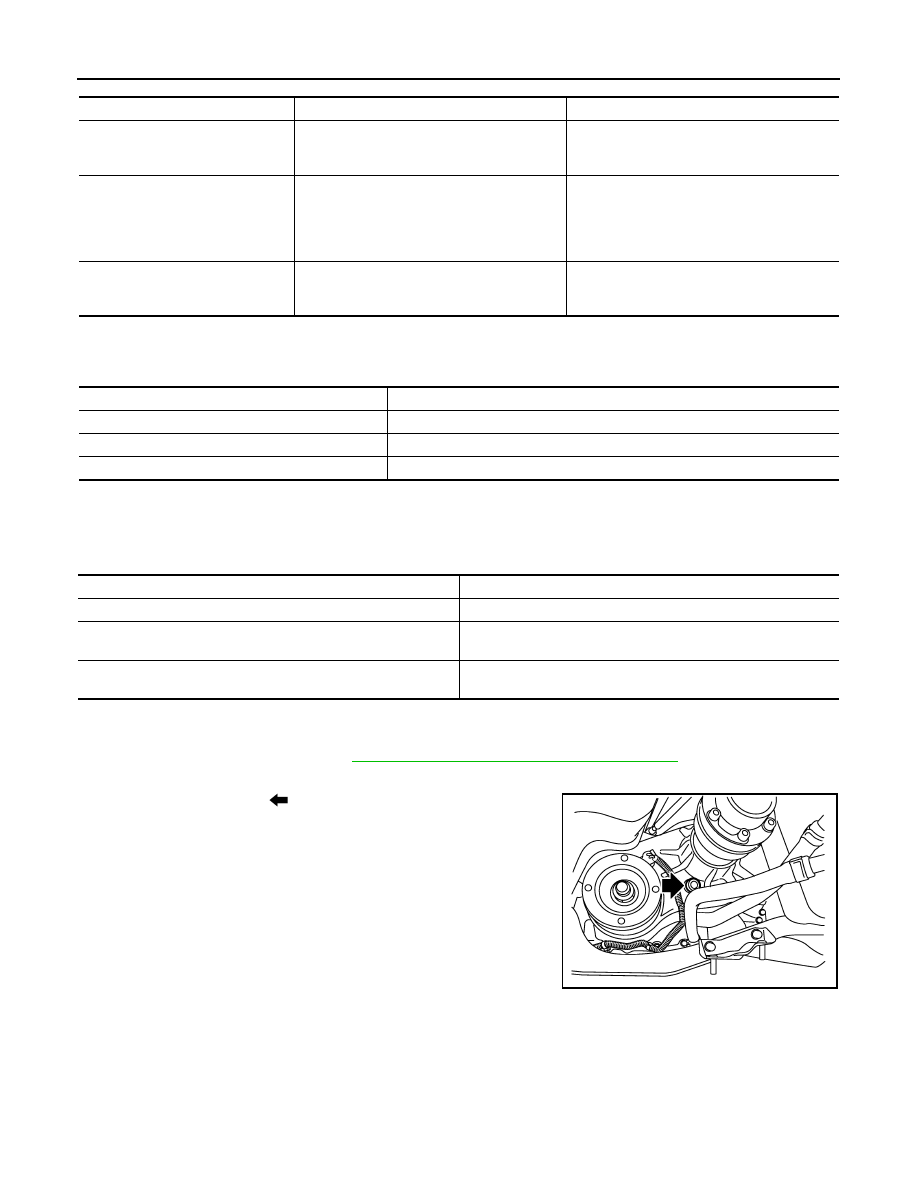

OIL CHANGE TIMING

Judging When to Change Transmission Oil by Oil Temperature

How to Check Transmission Oil Temperature History With CONSULT

1.

Turn ignition switch ON.

2.

Select “SHOW OIL TEMP HISTORY” in “Work support” in “TRANSMISSION”.

3.

Check transmission oil temperature frequency history to judge the timing of oil change.

TRANSMISSION OIL : Draining

INFOID:0000000009190112

1.

Remove the front diffuser. Refer to

EXT-39, "FRONT DIFFUSER : Exploded View"

.

2.

Remove the heat insulator.

3.

Remove the filler plug (

).

Transmission oil status

Possible cause

Required operation

Varnish-like condition (It is as thick
as varnish).

Clutch is burned.

Change the transmission oil. Check the trans-
mission assembly or any other parts on the ve-
hicle.

Milky or cloudy

Water is mixed in the fluid.
Example:
• Inflow of engine coolant by internal explo-

sion of heat exchanger

• Inflow of water from breather by flood, etc.

Change the transmission oil. Check for flooded
area.

A large amount of metal particles are
contained in the fluid.

Sliding portions in the transmission assembly
are excessively worn.

Change the transmission oil. Check the trans-
mission assembly operation for any malfunc-
tioning condition.

Transmission oil temperature while driving

Interval of transmission oil change

Not exceeding 120

°

C (248

°

F)

Change both transmission oil and differential oil every 60,000 km (36,000 miles)

From 120

°

C (248

°

F) – 140

°

C (284

°

F)

Change both transmission oil and differential oil every 5,000 km (3,000 miles)

Higher than 140

°

C (284

°

F)

Change both transmission oil and differential oil immediately.

Transmission oil temperature frequency history

Timing of oil chang

At least one count in “Oil Temperature Frequency 5”

Change both transmission oil and differential oil immediately.

At least one count in “Oil Temperature Frequency 4”

Change both transmission oil and differential oil ever 5,000 km
(3,000 miles).

No count in both “Oil Temperature Frequency 4” and “Oil Temper-
ature Frequency 5”

Change both transmission oil and differential oil ever 60,000 km
(36,000 miles).

NNDIA0018ZZ

Revision: 2012 November

2014 GT-R

CHASSIS MAINTENANCE

MA-35

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

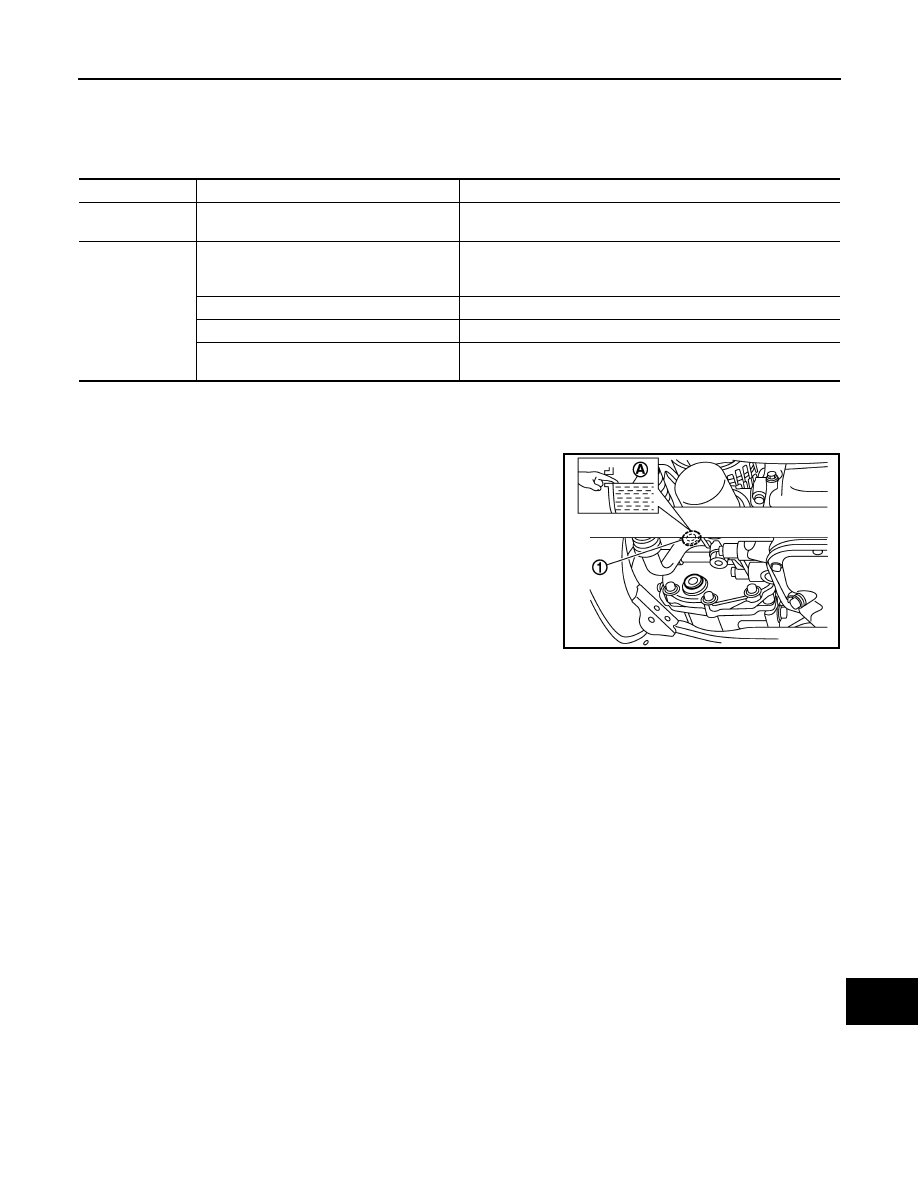

4.

Remove the drain plug (1) and drain tube (2) from the oil pan,
and then drain the transmission oil.

5.

Install the drain tube to the oil pan. Refer to

TM-19, "Exploded

View"

.

TRANSMISSION OIL : Filling

INFOID:0000000009190113

REPLACEMENT/ADJUSTMENT PROCEDURE

NOTE:
Replace the filler plug gasket and drain plug with new ones after oil level adjustment.

1.

Remove the filler plug (

) and drain plug, and then fill with the

transmission oil until it leaks from the drain hole.

CAUTION:

• Always use the specified transmission oil. In addition,

always use the filler after cleaning. If use/mixed use/mis-
use of the transmission oil other than the specified brand
occurs, the original performance cannot be obtained or it
may cause serious malfunctions.

• Check that dust does not mix.
• Always use paper towels. Never use waste cloth.

2.

Install the filler plug and drain plug. Refer to

TM-20, "Exploded View"

 (filler plug),

TM-19, "Exploded View"

(drain plug).

3.

Start engine with shift position in P range and keep it until transmission system check is complete.

CAUTION:

• If the oil does not fully circulate in transmission oil line after engine start, it could cause an oil

flowing sound (such as hissing sound). Keep it at idle for several minutes in that case.

• Because of incomplete oil circuit in transmission oil line, a transmission warning light could illu-

minate at transmission system check. In this case, keep it at idle for several minutes, and then
restart the engine.

4.

With depressing the brake pedal, shift the selectro lever to A range (wait for 5 seconds)

 N range (wait

for 5 seconds)

 R range (wait for 5 seconds)

 P range.

5.

Stop the engine.

6.

Remove the filler plug and drain plug, and then fill with the transmission oil until it leaks from the drain
hole.

7.

Install the filler plug and drain plug. Refer to

TM-20, "Exploded View"

 (filler plug),

TM-19, "Exploded View"

(drain plug).

8.

Install the heat insulator.

9.

Start the engine and run it at idle. Run the engine until the oil temperature reaches 50

°

C (122

°

F) while

checking FLUID TEMP in “DATA MONITOR” of CONSULT.

10. With depressing the brake pedal, shift the selectro lever to A range (wait for 5 seconds)

 N range (wait

for 5 seconds)

 R range (wait for 5 seconds)

 P range.

11. Stop the engine and wait for 5 minutes.
12. Remove the drain plug. Install the drain plug when the transmission oil begins to drip (1 drop/1 second).

Refer to

TM-19, "Exploded View"

.

CAUTION:

• Perform from step 11 to step 12 within 25 minutes.
• Repeat the procedure from step 6 if the transmission oil does not leak from the drain hole.

NNDIA0033ZZ

Transmission oil

: Refer to

TM-21, "General Spec-

ification"

.

NNDIA0018ZZ

Revision: 2012 November

2014 GT-R

MA-36

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

• Never reuse drain plug.

13. Replace the filler plug gasket with new ones.

CAUTION:

Never reuse filler plug gasket.

14. Install the front diffuser. Refer to

EXT-39, "FRONT DIFFUSER : Exploded View"

.

15. Select “OIL TEMP HISTORY RESET” in “WORK SUPPORT” of CONSULT.

16. Touch “START” to reset oil temperature history.

REFILL ADJUSTMENT PROCEDURE

NOTE:
Replace the filler plug gasket and drain plug with new ones after oil level adjustment.

1.

Remove the front diffuser. Refer to

EXT-39, "FRONT DIFFUSER : Exploded View"

.

2.

Remove the heat insulator.

3.

Start engine with shift position in P range and keep it until transmission system check is complete.

4.

With depressing the brake pedal, shift the selectro lever to A range (wait for 5 seconds)

 N range (wait

for 5 seconds)

 R range (wait for 5 seconds)

 P range.

5.

Stop the engine.

6.

Remove the filler plug (

) and drain plug, and then fill with the

transmission oil until it leaks from the drain hole.

CAUTION:

• Always use the specified transmission oil. In addition,

always use the filler after cleaning. If use/mixed use/mis-
use of non-specified transmission oil other than the spec-
ified brand occurs, the original performance cannot be
obtained or it may cause serious malfunctions.

• Check that dust does not mix.
• Always use paper towels. Never use waste cloth.

7.

Install the filler plug and drain plug. Refer to

TM-20, "Exploded View"

 (filler plug),

TM-19, "Exploded View"

(drain plug).

8.

Install the heat insulator.

9.

Start the engine and run it at idle. Run the engine until the oil temperature reaches 50

°

C (122

°

F) while

checking FLUID TEMP in “DATA MONITOR” of CONSULT.

10. With depressing the brake pedal, shift the selectro lever to A range (wait for 5 seconds)

 N range (wait

for 5 seconds)

 R range (wait for 5 seconds)

 P range.

11. Stop the engine and wait for 5 minutes.
12. Remove the drain plug. Install the drain plug when the transmission oil begins to drip the drop status (1

drop/1 second). Refer to

TM-19, "Exploded View"

.

CAUTION:

• Perform from step 11 to step 12 within 25 minutes.
• Repeat the procedure from step 6 if the transmission oil does not leak from the drain hole.
• Never reuse drain plug.

13. Replace the filler plug gasket with new ones.

CAUTION:

Never reuse filler plug gasket.

14. Install the front diffuser. Refer to

EXT-39, "FRONT DIFFUSER : Exploded View"

.

TRANSFER FLUID

TRANSFER FLUID : Transfer Fluid

INFOID:0000000009161780

CAUTION:

Refer to

TM-13, "Filling"

 because the transfer is integrated with the transmission.

FRONT DIFFERENTIAL GEAR OIL: F160A

Transmission oil

: Refer to

TM-21, "General Spec-

ification"

.

NNDIA0018ZZ

Revision: 2012 November

2014 GT-R

CHASSIS MAINTENANCE

MA-37

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

FRONT DIFFERENTIAL GEAR OIL: F160A : Inspection

INFOID:0000000009190109

OIL LEAKAGE

Visually check final drive assembly surrounding area for smears and leakage of defferential gear oil.

*1: When the oil does not drop

*2: When the oil drops

OIL LEVEL

• Remove filler plug (1) and gasket. Then check that oil is filled up

(A) from mounting hole for the filler plug.

CAUTION:

Never start engine while checking oil level.

• Set a gasket on filler plug (1) and install it on final drive, and then

tighten to the specified torque.

CAUTION:

Never reuse gasket.

REAR DIFFERENTIAL GEAR OIL

REAR DIFFERENTIAL GEAR OIL : Inspection

INFOID:0000000009190110

OIL LEAKAGE

Status

Parts

Required operation

Smears

*1

Each part on the final drive assembly

Use part cleaner or the equivalent to wipe out smeared oil. Then,
check for oil leakage.

Leakage

*2

Oil seal

Check the oil seal mounting surface and sliding surface for abnor-
malities. If it is normal, replace only oil seal. Then, check for oil
leakage.

Filler plug

Replace the filler plug gasket. Then, check for oil leakage.

Drain plug

Replace the drain plug gasket. Then, check for oil leakage.

Mating surface between Gear carrier and
rear cover.

Check the seal surface for abnormalities. If it is normal, replace
only rear cover gasket. Then, check for oil leakage.

Standard

Filler plug tightening
torque

: 35 N·m (3.6 kg-m, 26 ft-lb)

NNDID0017ZZ

Revision: 2012 November

2014 GT-R

MA-38

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

• Visually check final drive assembly surrounding area for smears

and leakage of differential gear oil.

*1: When the oil drops

*2: If oil leakage is detected, perform necessary procedures, check for oil leakage, and adjust oil level to the proper level.

JPDID0431ZZ

Status

Parts

Required operation

Leakage

*1, 2

Transmission assembly
(on-board/single unit)

A: Filler plug

1.

Replace gasket.

2.

If oil leakage continues even after replace the transmission as-
sembly. (This work is recommended to be performed by GT-R
certified NISSAN dealer.)

B: Side cover

Replace the transmission assembly. (This work is recommended to be
performed by GT-R certified NISSAN dealer.)

C: Oil seal

Replace side oil seal. (This work is recommended to be performed by
GT-R certified NISSAN dealer.)

CAUTION:

Always replace side oil seal together with side flange. (If side oil
seal is abnormal, then side flange may also be abnormal.)

D: Drain plug

1.

Replace gasket.

2.

If oil leakage continues even after replace the transmission as-
sembly. (This work is recommended to be performed by GT-R
certified NISSAN dealer.)

E: Guide hole

1.

Replace side oil seal (left side). (This work is recommended to be
performed by GT-R certified NISSAN dealer.)

CAUTION:

Always replace side oil seal (left side) together with side
flange (left side). [If side oil seal (left side) is abnormal, then
side flange (left side) may also be abnormal.]

2.

If oil leakage continues even after replacing side oil seal, check
guide hole. If guide hole is abnormal, replace transmission as-
sembly. (This work is recommended to be performed by GT-R
certified NISSAN dealer.)

F: Air vent

Replace the transmission assembly. (This work is recommended to be
performed by GT-R certified NISSAN dealer.)

Transmission assembly
(single unit)

G: Breather

Clean and wipe spouted oil with a part cleaner. Fill with oil to the spec-
ified oil level, if necessary.

Smears

*3

Each part on the final drive assembly, includ-
ing the parts requiring oil leakage check.

Use part cleaner or the equivalent to wipe out smeared oil. Then, check
for oil leakage.

Revision: 2012 November

2014 GT-R















Content      ..     3      4      5      6     ..
