Nissan GT-R (2007-2014 year). EXHAUST SYSTEM / EXTERIOR LIGHTING SYSTEM. Service Manual - part 3





EXL-30

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

OPTICAL SENSOR

NO

>> Replace BCM.

Revision: 2012 November

2014 GT-R

HEADLAMP SYSTEM

EXL-31

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP SYSTEM

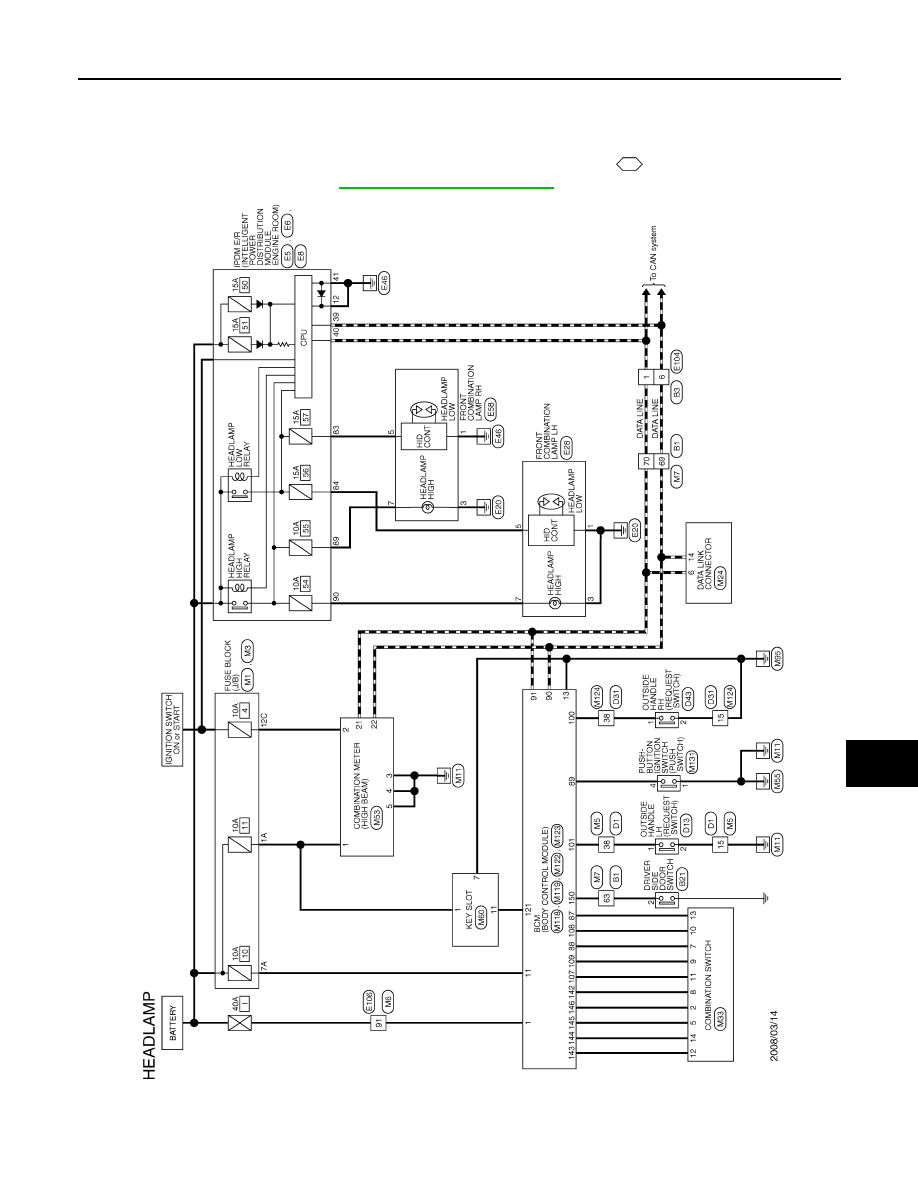

Wiring Diagram - HEADLAMP -

INFOID:0000000009160349

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCLWA1666GB

Revision: 2012 November

2014 GT-R

EXL-32

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

AUTO LIGHT SYSTEM

AUTO LIGHT SYSTEM

Wiring Diagram - AUTO LIGHT SYSTEM -

INFOID:0000000009160350

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCLWA4080GB

Revision: 2012 November

2014 GT-R

DAYTIME RUNNING LIGHT SYSTEM

EXL-33

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DAYTIME RUNNING LIGHT SYSTEM

Wiring Diagram - DAYTIME LIGHT SYSTEM -

INFOID:0000000009160351

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCLWA4662GB

Revision: 2012 November

2014 GT-R

EXL-34

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

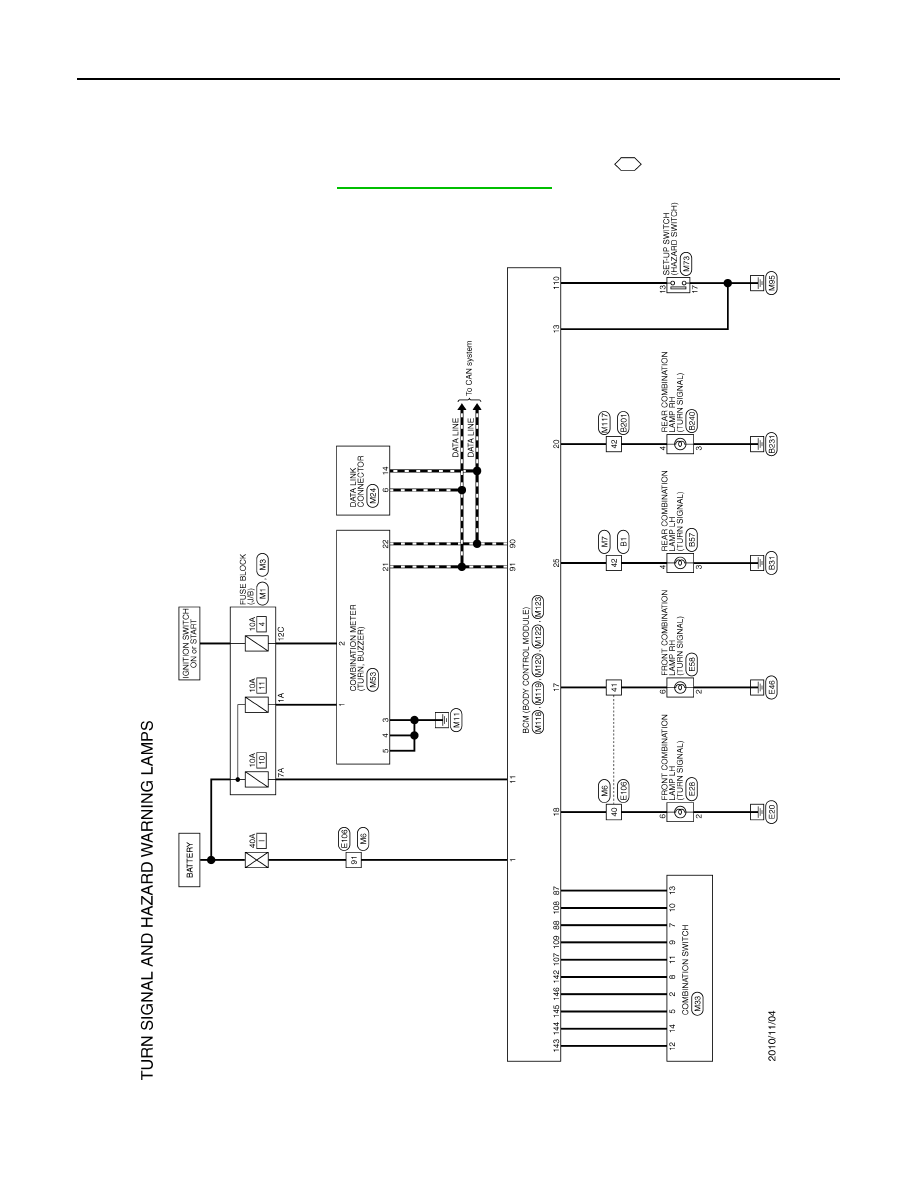

Wiring Diagram - TURN AND HAZARD WARNING LAMPS -

INFOID:0000000009160352

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCLWA4676GB

Revision: 2012 November

2014 GT-R

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

EXL-35

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

Wiring Diagram - PARKING LICENSE PLATE AND TAIL LAMPS -

INFOID:0000000009160353

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JRLWC1407GB

Revision: 2012 November

2014 GT-R

EXL-36

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

JRLWC1408GB

Revision: 2012 November

2014 GT-R

STOP LAMP

EXL-37

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

STOP LAMP

Wiring Diagram - STOP LAMP -

INFOID:0000000009160354

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCLWA1680GB

Revision: 2012 November

2014 GT-R

EXL-38

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

BACK-UP LAMP

BACK-UP LAMP

Wiring Diagram - BACK-UP LAMP -

INFOID:0000000009160355

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCLWA1683GB

Revision: 2012 November

2014 GT-R

NORMAL OPERATING CONDITION

EXL-39

< SYMPTOM DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SYMPTOM DIAGNOSIS

NORMAL OPERATING CONDITION

Description

INFOID:0000000009160366

XENON HEADLAMP

• Brightness and the color of light may change slightly immediately after turning the headlamp ON until the

xenon bulb becomes stable. This is normal.

• Illumination time lag may occur between right and left. This is normal.

AUTO LIGHT SYSTEM

The headlamp may not be turned ON/OFF immediately after passing dark area or bright area (short tunnel,
sky bridge, shadowed area etc.) while using the auto light system. This causes the control difference. This is
normal.

Revision: 2012 November

2014 GT-R

EXL-40

< PRECAUTION >

[XENON TYPE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Working Range at a Regular Dealership

INFOID:0000000009164366

CAUTION:

The service items unmentioned on this manual are recommended to be performed by a GT-R certified
NISSAN dealer. Because those service items require special equipment and a GT-R certified technical
staff who completed special training.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009160373

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Battery Service

INFOID:0000000009160374

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

Precautions Necessary for Steering Wheel Rotation After Battery Disconnection

INFOID:0000000009160375

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition switch to the LOCK position,

then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

Revision: 2012 November

2014 GT-R

PRECAUTIONS

EXL-41

< PRECAUTION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from ACC position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT.

Precautions For Xenon Headlamp Service

INFOID:0000000009160376

WARNING:

Comply with the following warnings to prevent any serious accident.
• Disconnect the battery cable (negative terminal) or the power supply fuse before installing, remov-

ing, or touching the xenon headlamp (bulb included). The xenon headlamp contains high-voltage
generated parts.

• Never work with wet hands.
• Check the xenon headlamp ON-OFF status after assembling it to the vehicle. Never turn the xenon

headlamp ON in other conditions. Connect the power supply to the vehicle-side connector.
(Turning it ON outside the lamp case may cause fire or visual impairments.)

• Never touch the bulb glass immediately after turning it OFF. It is extremely hot.

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Install the xenon bulb securely. (Insufficient bulb socket installation may melt the bulb, the connec-

tor, the housing, etc. by high-voltage leakage or corona discharge.)

• Never perform HID circuit inspection with a tester.
• Never touch the xenon bulb glass with hands. Never put oil and grease on it.
• Dispose of the used xenon bulb after packing it in thick vinyl without breaking it.
• Never wipe out dirt and contamination with organic solvent (thinner, gasoline, etc.).

Revision: 2012 November

2014 GT-R

EXL-42

< PERIODIC MAINTENANCE >

[XENON TYPE]

HEADLAMP AIMING ADJUSTMENT

PERIODIC MAINTENANCE

HEADLAMP AIMING ADJUSTMENT

Description

INFOID:0000000009160377

PREPARATION BEFORE ADJUSTING

NOTE:
• For details, refer to the regulations in your own country.
• Perform aiming if the vehicle front body has been repaired and/or the headlamp assembly has been

replaced.

Before performing aiming adjustment, check the following.

• Adjust the tire pressure to the specification.
• Fill with fuel, engine coolant and each oil.
• Maintain the unloaded vehicle condition. (Remove luggage from the passenger compartment and the trunk

room.)
NOTE:
Do not remove the temporary tire, jack and on-vehicle tool.

• Wipe out dirt on the headlamp.

CAUTION:

Never use organic solvent (thinner, gasoline etc.)

• Ride alone on the driver seat.

AIMING ADJUSTMENT SCREW

JPLIA1162ZZ

A

Headlamp (RH) UP/DOWN
adjustment screw

B.

Headlamp (LH) UP/DOWN
adjustment screw

: Vehicle center

Revision: 2012 November

2014 GT-R

HEADLAMP AIMING ADJUSTMENT

EXL-43

< PERIODIC MAINTENANCE >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Aiming Adjustment Procedure

INFOID:0000000009160378

1.

Place the screen.
NOTE:
• Stop the vehicle facing the wall.
• Place the board on a plain road vertically.

2.

Face the vehicle with the screen. Maintain 10 m (32.8 ft) between the headlamp center and the screen.

3.

Start the engine. Turn the headlamp (LO) ON.
NOTE:
Shut off the headlamp light with the board to prevent from illuminating the adjustment screen.

CAUTION:

Never cover the lens surface with a tape etc. The lens is made of resin.

4.

Measure the distance (X) between the horizontal center line of headlamp (H) and the cutoff line (A) within
the light axis measurement range (R) from the vertical center line ahead of headlamp (V).

Low beam distribution on the screen

5.

Adjust the cutoff line height (X) with the aiming adjustment screw so as to enter in the adjustment range
(M–N) according to the horizontal center line of headlamp (H).

unit: mm (in)

Side view

Adjustment screw

Screw driver rotation

Facing direction

A

Headlamp (RH) UP/DOWN

Clockwise

DOWN

Counterclockwise

UP

B

Headlamp (LH) UP/DOWN

Clockwise

DOWN

Counterclockwise

UP

Light axis measurement
range (R)

: 350

±

 175 mm (13.78

±

 6.89 in)

JSLIA0005ZZ

Horizontal center line of headlamp (H)

Highest cutoff line height (M)

Lowest cutoff line height (N)

700 (27.56) or less

4 (0.16)

30 (1.18)

701(27.60) – 800 (31.50)

4 (0.16)

30 (1.18)

801 (31.54) or more

17 (0.67)

44 (1.73)

JSLIA0006ZZ

Revision: 2012 November

2014 GT-R

EXL-44

< PERIODIC MAINTENANCE >

[XENON TYPE]

HEADLAMP AIMING ADJUSTMENT

Distance between the headlamp
center and the screen (L)

: 10 m (32.8 ft)

Revision: 2012 November

2014 GT-R

FRONT COMBINATION LAMP

EXL-45

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REMOVAL AND INSTALLATION

FRONT COMBINATION LAMP

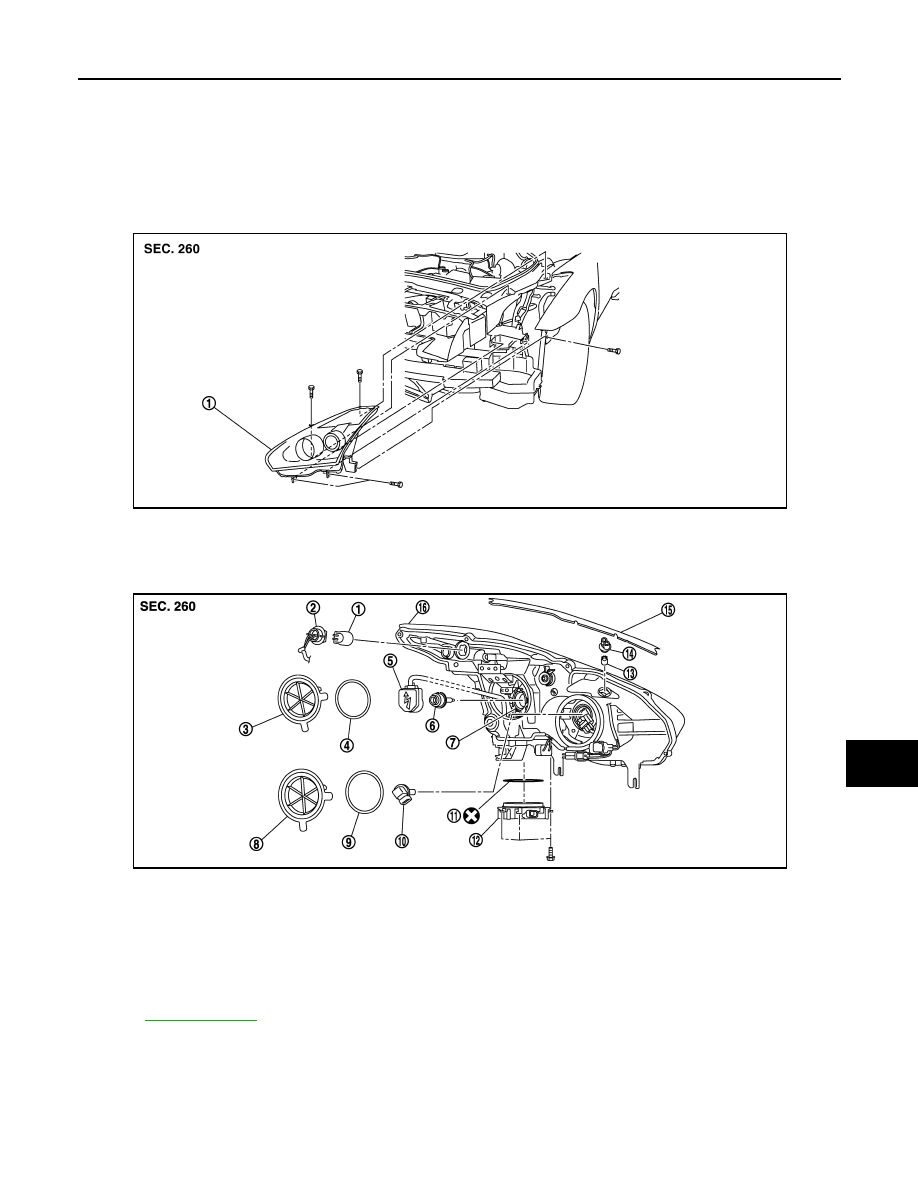

Exploded View

INFOID:0000000009160379

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009160380

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

1.

Front combination lamp

NNLIA0006ZZ

1.

Front turn signal lamp bulb

2.

Front turn signal lamp bulb socket

3.

Resin cap

4.

Seal packing

5.

Xenon bulb socket

6.

Xenon bulb (LO)

7.

Retaining spring

8.

Resin cap

9.

Seal packing

10.

Halogen bulb (HI)

11. Seal packing

12. HID control unit

13.

Parking lamp bulb

14. Parking lamp bulb socket

15. Rubber seal

16.

Headlamp housing assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

NNLIB0022ZZ

Revision: 2012 November

2014 GT-R















Content      ..     1      2      3      4      ..
