AIR CLEANER FILTER

EM-7

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

AIR CLEANER FILTER

Removal and Installation

INFOID:0000000009162819

REMOVAL

1.

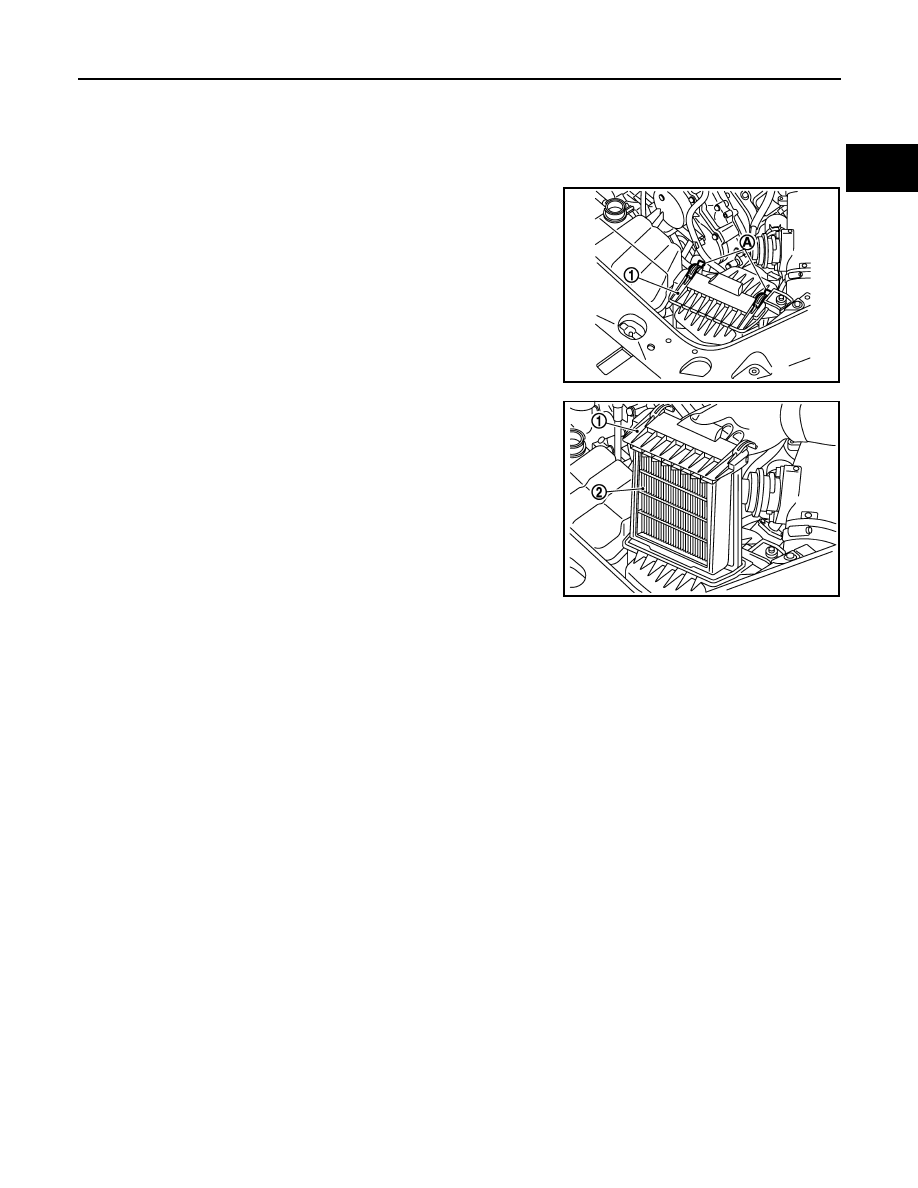

Unhook clips (A) and remove holder (1) from air cleaner case.

2.

Remove air cleaner filter (2) from holder (1).

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install the air cleaner filter by aligning the seal with the notch of air cleaner case.

NNBIA0177ZZ

NNBIA0178ZZ

Revision: 2012 November

2014 GT-R

EM-8

< PERIODIC MAINTENANCE >

SPARK PLUG

SPARK PLUG

Exploded View

INFOID:0000000009162820

Removal and Installation

INFOID:0000000009162821

REMOVAL

1.

Remove engine cover with power tool. Refer to

EM-10, "Exploded View"

.

2.

Remove intake manifold collector. Refer to

EM-17, "Exploded View"

.

CAUTION:

Mark the parts with paint in advance of the reinstallation to prevent misalignment between the
intake manifold collector and intake manifold.

3.

Remove ignition coil.

1.

Ignition coil

2.

Spark plug

3.

Oil filler cap

4.

Oil filler tube

5.

O-ring

6.

Fresh air hose

7.

Rocker cover (bank 1)

8.

Rocker cover gasket (bank 1)

9.

Rocker cover gasket (bank 2)

10.

Fresh air hose

11.

Rocker cover (bank 2)

A.

To fresh air tube (bank 1)

B.

To fresh air tube (bank 2)

C.

This work is recommended to be per-
formed by GT-R certified NISSAN
dealer.

Refer to

GI-4, "Components"

 for symbols in the figure.

NNBIA0067ZZ

Revision: 2012 November

2014 GT-R

SPARK PLUG

EM-9

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

4.

Remove spark plug with a spark plug wrench (commercial ser-
vice tool).

CAUTION:

Never drop or shock spark plug.

INSTALLATION

Installation is the reverse order of removal.

Inspection

INFOID:0000000009162822

INSPECTION AFTER REMOVAL

Use the standard type spark plug for normal condition.

CAUTION:

• Never drop or shock spark plug.
• Never use a wire brush for cleaning.
• If plug tip is covered with carbon, spark plug cleaner may be

used.

• Measure spark plug gap. When it exceeds the limit, replace spark plug even if it is within the speci-

fied replacement mileage. Refer to

EM-28, "Spark Plug"

.

• Spark plug gap adjustment is not required between replace-

ment intervals.

a

: 14 mm (0.55 in)

JPBIA0030ZZ

Spark plug (Standard type)

: Refer to

EM-28, "Spark Plug"

.

Cleaner air pressure:

Less than 588 kPa (6 kg/cm

2

, 85 psi)

Cleaning time:

Less than 20 seconds

SMA773C

JPBIA0031ZZ

Revision: 2012 November

2014 GT-R

EM-10

< REMOVAL AND INSTALLATION >

ENGINE COVER

REMOVAL AND INSTALLATION

ENGINE COVER

Exploded View

INFOID:0000000009162825

Removal and Installation

INFOID:0000000009162826

Removal

Remove engine cover with the following cares.

CAUTION:

•  Perform this step when the engine is cold.
•  Never damage engine cover.
•  Wipe out oil with wasted as soon as possible whenever necessary.
•  Never exert pressure by hand on the surface of engine cover.

Installation

Install engine cover with the following cares.

CAUTION:

•  Never damage engine cover.
•  Never get harnesses and hoses caught between engine cover and intake manifold collector.
•  Wipe out oil with wasted as soon as possible whenever necessary.
•  Never exert pressure by hand on the surface of engine cover.

1.

Engine room cover

Refer to

GI-4, "Components"

 for symbols in the figure.

NNBIA0011GB

Revision: 2012 November

2014 GT-R

DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

EM-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

Exploded View

INFOID:0000000009162827

1.

Front timing chain case

2.

Drive belt auto-tensioner

3.

Idler pulley

4.

Idler pulley

Refer to

GI-4, "Components"

 for symbols in the figure.

NNBIA0010GB

Revision: 2012 November

2014 GT-R

EM-12

< REMOVAL AND INSTALLATION >

AIR CLEANER AND AIR DUCT

AIR CLEANER AND AIR DUCT

Exploded View

INFOID:0000000009162829

Removal and Installation

INFOID:0000000009162830

REMOVAL

NOTE:
Mass air flow sensor is removable under the car-mounted condition.

1.

Disconnect mass air flow sensor harness connector.

2.

Remove radiator cover. (This work is recommended to be performed by GT-R certified NISSAN dealer.)

3.

Remove dust side duct.

4.

Disconnect ground cable at front timing chain case side.

5.

Remove recirculation pipe and air inlet hose. Refer to

EM-14, "Exploded View"

.

6.

Remove air cleaner case with mass air flow sensor and air duct, disconnecting each joints.
• Mark with paint for a reference purpose before removal.

7.

Remove mass air flow sensor from air cleaner case, if necessary.

CAUTION:

Mass air flow sensor is non-reusable. Never mass flow sensor remove unless this is required.

1.

Holder

2.

Air cleaner filter

3.

Mass air flow sensor (bank 1)

4.

Air cleaner case (bank 1)

5.

Dust side duct (bank 1)

6.

Grommet

7.

Clamp

8.

Air duct

9.

Dust side duct (bank 2)

10. Air cleaner case (bank 2)

11.

Mass air flow sensor (bank 2)

A.

To exhaust manifold and turbocharger
(bank 1)

B.

To exhaust manifold and turbocharger
(bank 2)

Refer to

GI-4, "Components"

 for symbols in the figure.

NNBIA0008GB

Revision: 2012 November

2014 GT-R

AIR CLEANER AND AIR DUCT

EM-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

INSTALLATION

Note the following, and install in the reverse order of removal.
• Align marks. Attach each joint. Screw clamps firmly.

CAUTION:

Never use air tool or power tools for tightening.

Clamp tightening torque

: 4.5 N·m (0.46 kg-m, 40 in-lb)

Revision: 2012 November

2014 GT-R

EM-14

< REMOVAL AND INSTALLATION >

CHARGE AIR COOLER

CHARGE AIR COOLER

Exploded View

INFOID:0000000009162832

1.

Air inlet hose (bank 1)

2.

Clamp

3.

Turbocharger boost sensor

4.

Recirculation pipe (bank 1)

5.

Gasket

6.

Clamp

7.

Recirculation hose (bank 1)

8.

Recirculation valve

9.

Clamp

10. Air inlet hose

11.

Air inlet pipe assembly (bank 1)

12. Air inlet hose (bank 1)

13. Charge air cooler assembly (bank 1)

14. Grommet

15. Charge air cooler assembly (bank 2)

16. Air inlet hose (bank 2)

17. Air inlet pipe assembly (bank 2)

18. Recirculation pipe (bank 2)

19. Air inlet hose (bank 2)

20. Recirculation hose (bank 2)

21. Air inlet hose (bank 2)

22. Clamp

23. Air inlet hose

24. Air inlet pipe (bank 2)

25. Bracket

26. Air inlet pipe (bank 1)

27. Air inlet hose (bank 1)

A.

To electric throttle control actuator
(bank 1)

B.

To intake manifold collector

C.

To exhaust manifold and turbocharg-
er assembly (bank 1) (upper)

D.

To exhaust manifold and turbocharg-
er assembly (bank 2) (upper)

E.

To electric throttle control actuator
(bank 2)

F.

To exhaust manifold and turbocharg-
er assembly (bank 2)

G.

To exhaust manifold and turbocharg-
er assembly (bank 1)

Refer to

GI-4, "Components"

 for symbols in the figure.

NNBIA0196GB

Revision: 2012 November

2014 GT-R

CHARGE AIR COOLER

EM-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Removal and Installation

INFOID:0000000009162833

REMOVAL

1.

Remove air cleaner case and air duct assembly. Refer to

EM-12, "Exploded View"

.

2.

Disconnect turbocharger boost sensor harness connector.

3.

Disconnect air inlet hose to remove the turbocharger boost sensor and the integrated recirculation valve
and pipe.
NOTE:
Mark with paint for a reference purpose before removal.

4.

Remove front bumper. Refer to

EXT-14, "Exploded View"

.

5.

Remove air intake duct assembly. (This work is recommended to be performed by GT-R certified NISSAN
dealer.)

6.

Disconnect air inlet hose and pipe to remove the charge air cooler assembly.

CAUTION:

Never damage or scratch charge air cooler core when removing.

INSTALLATION

Note the following, and install in the reverse order of removal.

AIR INLET HOSE ASSEMBLY

• To install each part, refer to the above figure to align the matching marks.
• Temporarily assemble all the removed parts before tightening the clamp.
• Tighten the clamp to the specified torque as shown below:

CAUTION:

Never use air tool or power tools for tightening.

AIR INLET PIPE ASSEMBLY

A.

Matching mark (blue)

B.

Matching mark (yellow)

C.

Matching mark (pink)

: Vehicle front

Clamp tightening torque

: 4.6 N·m (0.47 kg-m, 41 in-lb)

NNBIA0202ZZ

Revision: 2012 November

2014 GT-R

EM-16

< REMOVAL AND INSTALLATION >

CHARGE AIR COOLER

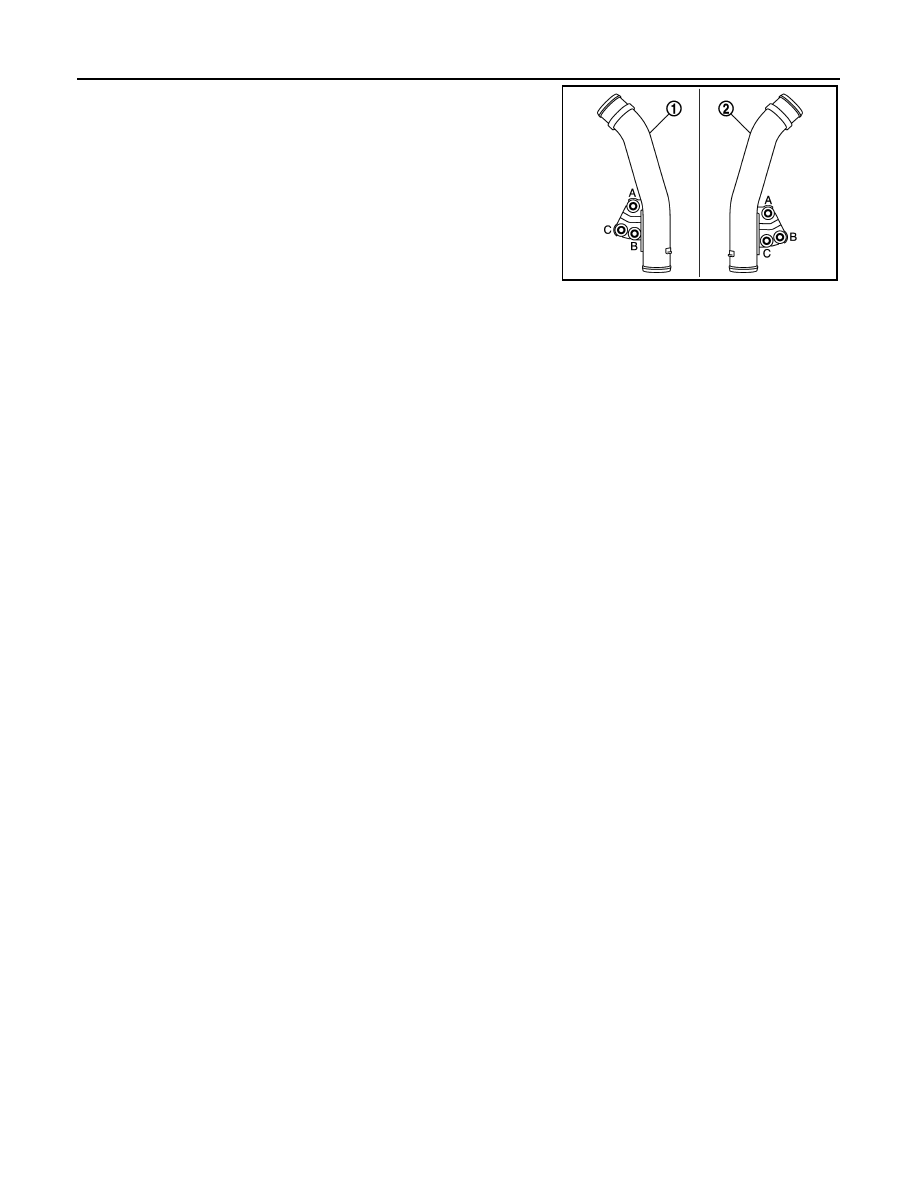

• Install air inlet pipe assembly as follows:

1.

Tighten bolt (A) (temporarily).

2.

Tighten bolt (B) (temporarily).

3.

Tighten bolt (C) (specified torque).

4.

Tighten bolt (A) (specified torque).

5.

Tighten bolt (B) (specified torque).

1

: Air inlet pipe assembly (bank 1)

2

: Air inlet pipe assembly (bank 2)

NNBIA0195ZZ

Revision: 2012 November

2014 GT-R

INTAKE MANIFOLD COLLECTOR

EM-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

INTAKE MANIFOLD COLLECTOR

Exploded View

INFOID:0000000009162837

1.

EVAP hose

2.

Clamp

3.

EVAP tube (bank 1)

4.

EVAP connector hose

5.

EVAP tube (front)

6.

EVAP hose

7.

Vacuum tank (service port)

8.

Clamp

9.

EVAP hose

10.

EVAP canister purge control solenoid
valve

11.

EVAP hose

12. Electric throttle control actuator (bank 1)

13. Gasket

14. Vacuum hose

15. Intake manifold collector

16. Vacuum hose

17. Vacuum tube assembly

18. Vacuum hose

19. Gasket

20. Vacuum hose

21. Electric throttle control actuator (bank 2)

22. Gasket

23. Clamp

24. PCV hose

25. Vacuum hose

26. Vacuum hose

27. Gasket

28. Balance tube

29.

Manifold absolute pressure (MAP)
sensor

30. EVAP tube (bank 2)

31. EVAP connector hose

32. EVAP hose

B.

To centralized under-floor piping

D.

To recirculation valve (bank 1)

E.

To exhaust manifold and turbocharger
(bank 1)

F.

To turbocharger boost control sole-
noid valve

G.

To recirculation valve (bank 2)

H.

To breather separator assembly

NNBIA0221GB

Revision: 2012 November

2014 GT-R

EM-18

< REMOVAL AND INSTALLATION >

INTAKE MANIFOLD COLLECTOR

Removal and Installation

INFOID:0000000009162838

REMOVAL

WARNING:

To avoid the danger of being scalded, never drain engine coolant when the engine is hot.

1.

Remove engine cover. Refer to

EM-10, "Exploded View"

.

2.

Remove recirculation valve and air inlet hose. Refer to

EM-14, "Exploded View"

.

3.

Remove electric throttle control actuator as follows:
• Loosen mounting bolts in reverse order as shown in the figure.

CAUTION:

• Handle carefully to avoid any shock to electric throttle

control actuator.

• Never disassemble and adjust electric throttle control

actuator.

NOTE:
• The figure shows the electric throttle control actuator (bank 2)

viewed from the air duct side.

• Viewed from the air duct side, order of loosening mounting

bolts of electric throttle control actuator (bank 2) is the same
as that of the electric throttle control actuator (bank 1).

4.

Remove EVAP canister purge volume control solenoid valve and EVAP tube (front) from intake manifold
collector.
• Loosen mounting bolts in reverse order as shown in the figure.

5.

Remove vacuum hoses, PCV hoses and EVAP hoses, disconnecting each joints

6.

Remove intake manifold collector.
• Loosen mounting bolts in the reverse order as shown in the

figure with power tool.

CAUTION:

Mark the parts with paint in advance of the reinstallation to
prevent misalignment between the intake manifold collector
and intake manifold.

7.

Remove balance tube.

I.

To pressure regulator and fuel hose
assembly

J.

To brake booster

Refer to

GI-4, "Components"

 for symbols in the figure.

: Engine front

NNBIA0230ZZ

NNBIA0041ZZ

: Engine front

NNBIA0014ZZ

Revision: 2012 November

2014 GT-R

INTAKE MANIFOLD COLLECTOR

EM-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Loosen mounting bolts in the reverse order as shown in the

figure with power tool.

8.

Remove EVAP tube (bank 1 and bank 2), if necessary.

9.

Remove vacuum tube assembly, if necessary.

10. Remove manifold absolute pressure (MAP) sensor, if necessary.

CAUTION:

Handle carefully to avoid any shock to manifold absolute pressure (MAP) sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.

Balance Tube

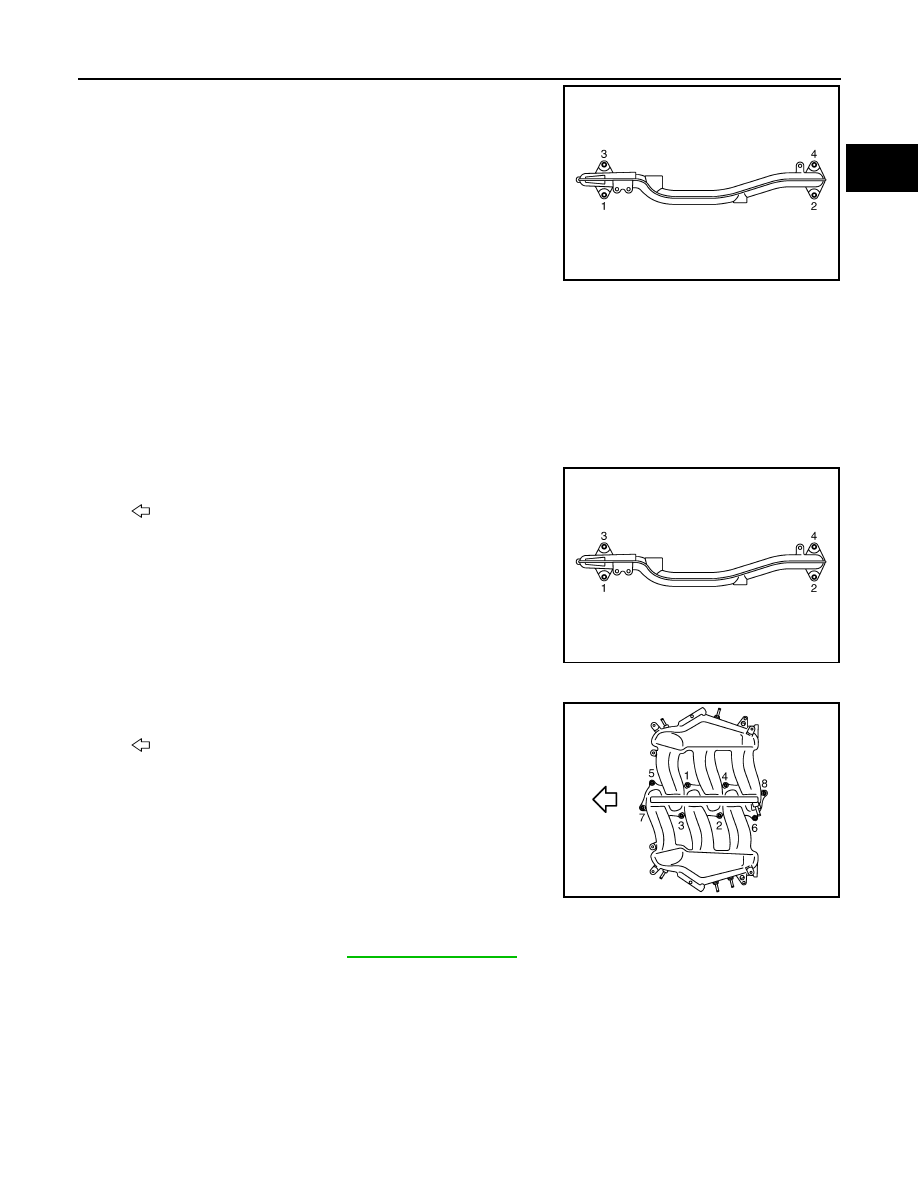

• Tighten mounting bolts in numerical order as shown in the figure.

Intake Manifold Collector

• Tighten mounting bolts in numerical order as shown in the figure.

CAUTION:

• Install each part according to the marks put before removal.
• Tighten mounting bolts with care to avoid misalignment in the

intake manifold collector.

• After replacing an intake manifold collector, be sure to adjust the position as instructed below.

1.

Remove intake manifold. Refer to

EM-21, "Exploded View"

.

CAUTION:

Mark the parts with paint with advance of the reinstallation to prevent misalignment between the
intake manifold and cylinder head.

NNBIA0015ZZ

: Engine front

NNBIA0015ZZ

: Engine front

NNBIA0014ZZ

Revision: 2012 November

2014 GT-R

EM-20

< REMOVAL AND INSTALLATION >

INTAKE MANIFOLD COLLECTOR

2.

Temporarily assemble intake manifold collector (1) and intake
manifold (2).

3.

Check an exact location that the intake manifold collector port
locates inside the intake manifold port and mark each part.
Refer to the arrow (A) shown in the figure to check the location.

4.

After another disassembly, install the parts, aligning with the
marks put before the temporary assembly.

CAUTION:

Tighten mounting bolts with care to avoid misalignment in
the intake manifold collector and intake manifold.

EVAP Tube (front)

• Tighten mounting bolts in numerical order as shown in the figure.

Electric Throttle Control Actuator

• Tighten bolts in numerical order as shown in the figure.

NOTE:
• The figure shows the electric throttle control actuator (bank 2)

viewed from the air duct side.

• Viewed from the air duct side, the order of tightening mounting

bolts of electric throttle control actuator (bank 2) is the same as
that of the electric throttle control actuator (bank 1).

• Perform the “Throttle Valve Closed Position Learning” when har-

ness connector of electric throttle control actuator is discon-
nected. (This work is recommended to be performed by GT-R
certified NISSAN dealer.)

• Perform the “Idle Air Volume Learning” and “Throttle Valve

Closed Position Learning” when electric throttle control actuator is replaced. (This work is recommended to
be performed by GT-R certified NISSAN dealer.)

NNBIA0205ZZ

: Engine front

NNBIA0041ZZ

NNBIA0230ZZ

Revision: 2012 November

2014 GT-R

INTAKE MANIFOLD

EM-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

INTAKE MANIFOLD

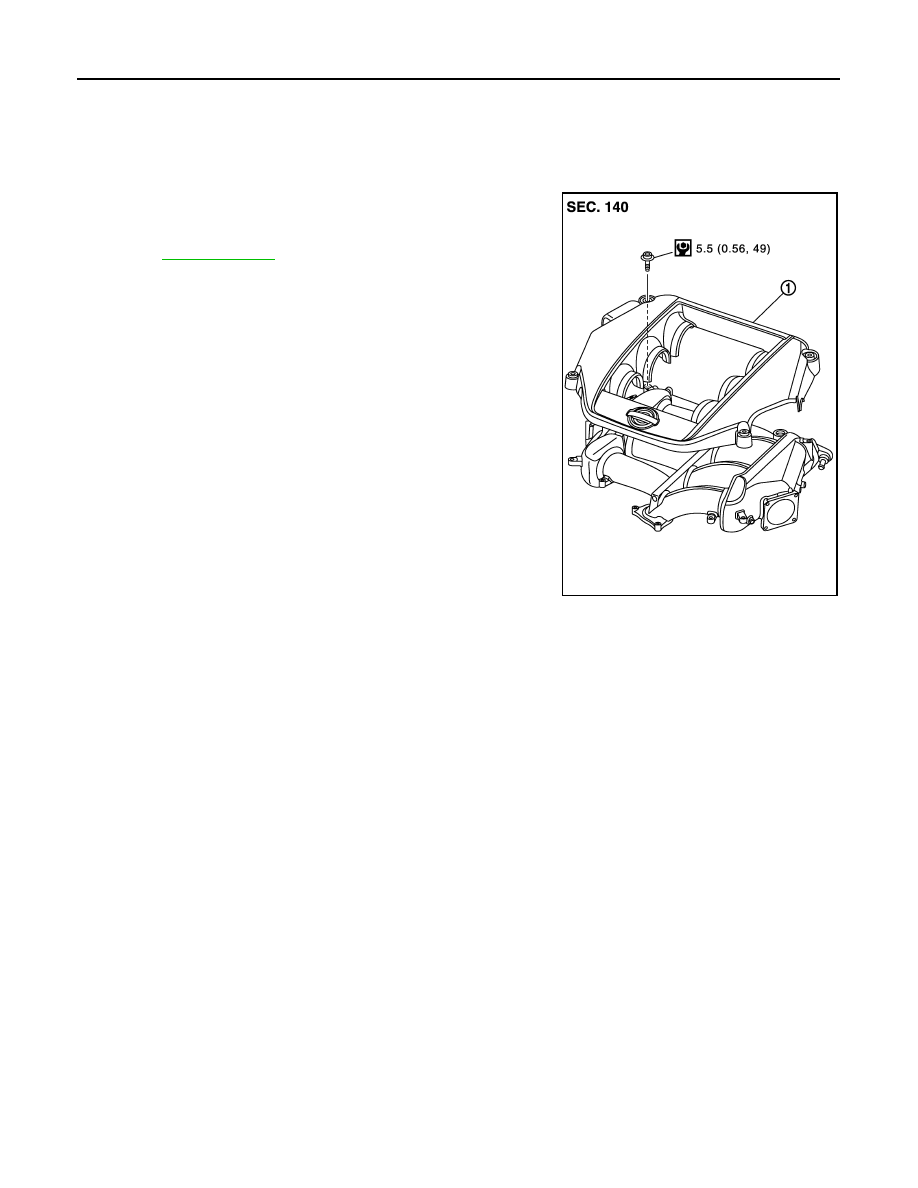

Exploded View

INFOID:0000000009162840

Removal and Installation

INFOID:0000000009162841

REMOVAL

1.

Remove intake manifold collector. Refer to

EM-17, "Exploded View"

.

CAUTION:

Mark the parts with paint in advance of the reinstallation to prevent misalignment between the
intake manifold collector and intake manifold.

2.

Loosen pressure regulator and fuel hose assembly mounting bolt. Refer to

EM-23, "Exploded View"

.

3.

Disconnect harness connector from fuel tube.

4.

Remove intake manifold.
• Loosen mounting bolts in reverse order as shown in the figure

with power tool.

CAUTION:

• Mark the parts with paint in advance of the reinstallation

to prevent misalignment between the intake manifold and
cylinder head.

• Cover engine openings to avoid entry of foreign materi-

als.

5.

Remove gaskets.

INSTALLATION

Note the following, and install in the reverse order of removal.

Intake Manifold

1.

Intake manifold

2.

Gasket

: Engine front

Refer to

GI-4, "Components"

 for symbols in the figure.

NNBIA0012GB

: Engine front

NNBIA0013ZZ

Revision: 2012 November

2014 GT-R

EM-22

< REMOVAL AND INSTALLATION >

INTAKE MANIFOLD

• Tighten mounting bolts in numerical order as shown in the figure.

•  Refer to the figure to check the installation direction of the intake

manifold.

CAUTION:

• Install each part according to the marks put before removal.
• Tighten mounting bolts with care to avoid misalignment in the

intake manifold.

• After replacing an intake manifold, be sure to adjust the position as instructed below.
• Check an exact location that the intake manifold port locates inside

the cylinder head port and mark each part. Refer to the arrow (A)
shown in the figure to check the location.

CAUTION:

Tighten mounting bolts with care to avoid misalignment in the
intake manifold.

: Engine front

NNBIA0013ZZ

1 : Intake manifold

2 : Cylinder head

NNBIA0204ZZ

Revision: 2012 November

2014 GT-R















Content      ..     1      2      3      4      ..
