CURTAIN AIR BAG MODULE

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

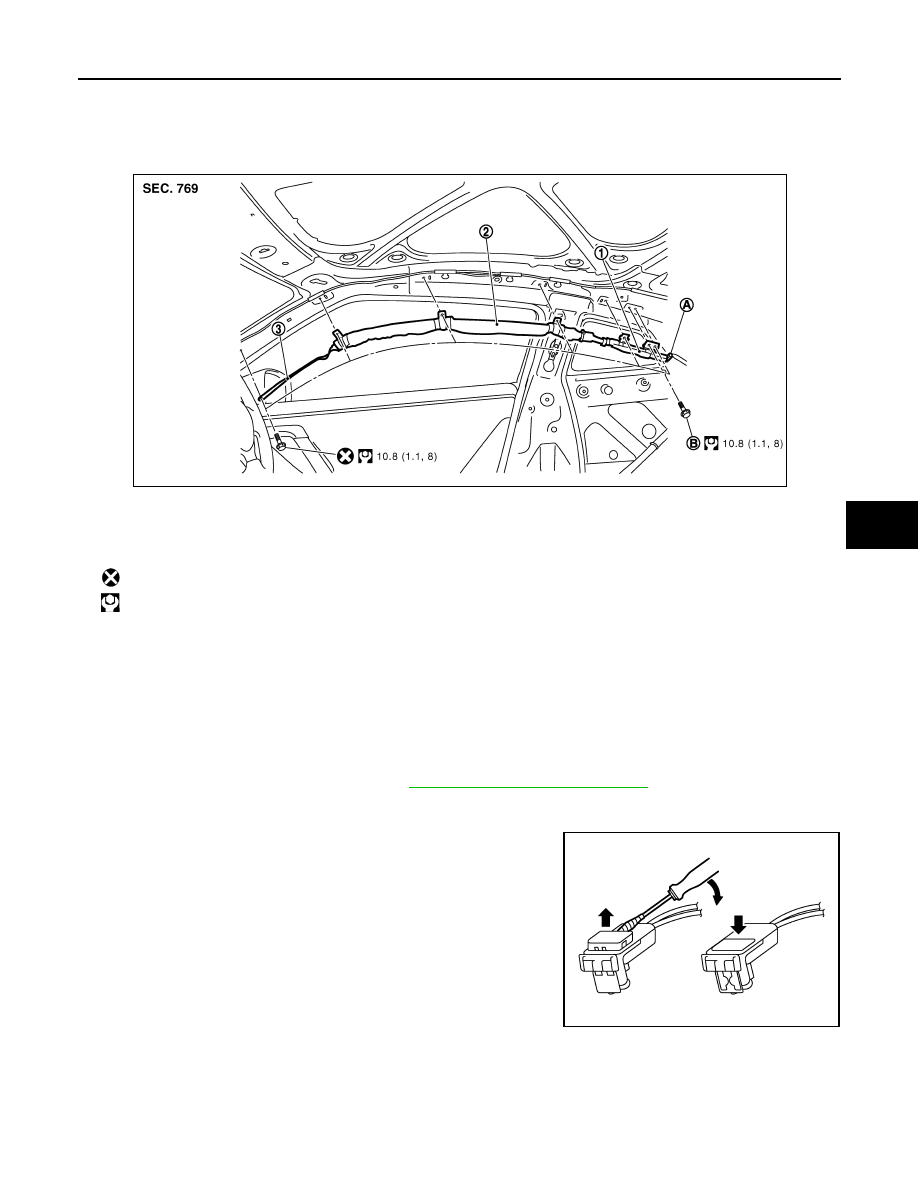

CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000009161533

Removal and Installation

INFOID:0000000009161534

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the headlining assembly. Refer to

INT-24, "Removal and Installation"

.

2.

Disconnect the curtain air bag harness connector.

CAUTION:

• For installing/removing curtain air bag module harness

connector, insert thin screwdriver wrapped in tape into
notch, lift lock and remove connector.

• Install connector with lock raised, and push lock into con-

nector.

• After installing the connector, check that the lock is

pushed securely into it.

3.

Remove the mounting bolt, and then remove the curtain air bag module.

CAUTION:

1.

Curtain air bag inflator

2.

Curtain air bag module

3.

Strap

A

: Curtain air bag harness

B

: Ground bolt

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

NNHIA0010GB

PHIA0953J

SR-20

< REMOVAL AND INSTALLATION >

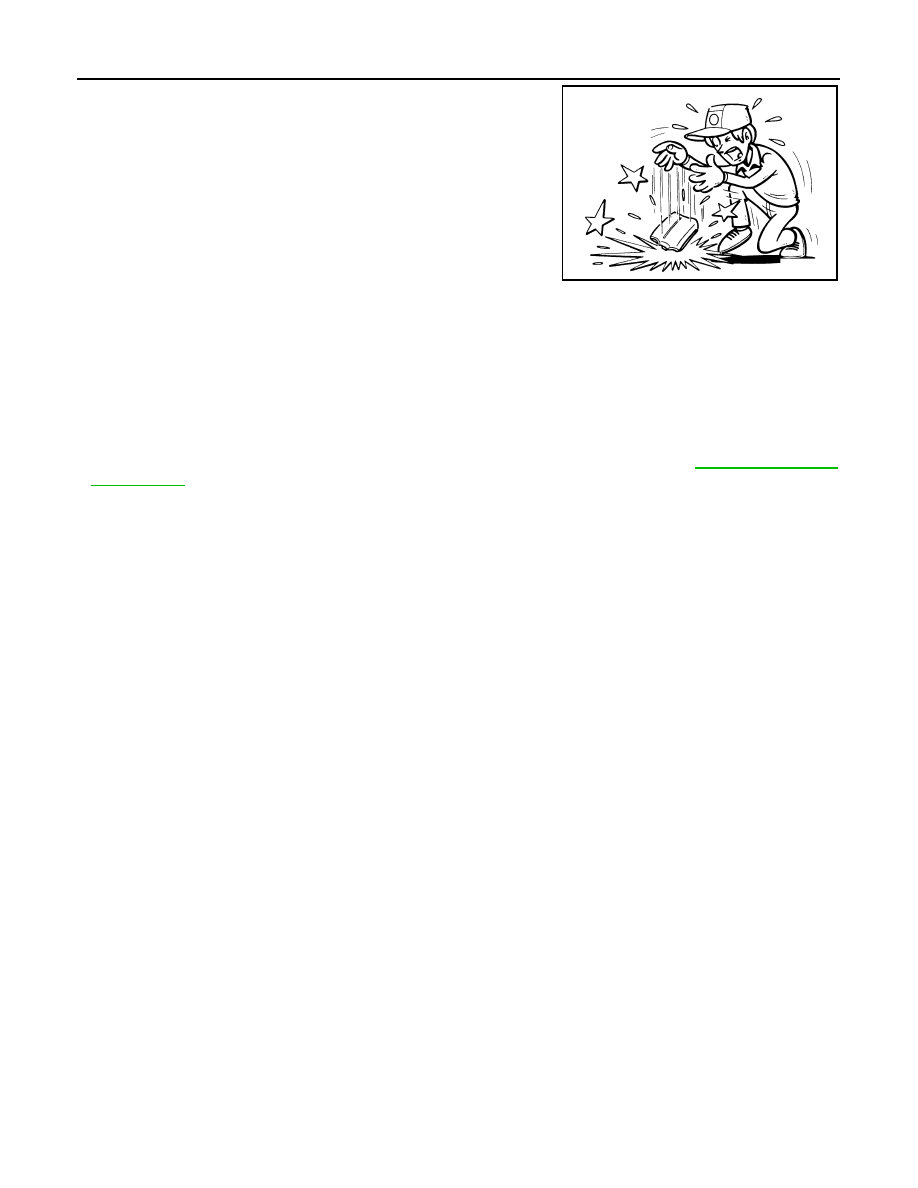

CURTAIN AIR BAG MODULE

• Never impact the curtain air bag module.
• Replace the curtain air bag module if it is dropped or sustains

an impact.

• Never insert any foreign objects (screwdriver, etc.) into the curtain air bag module.
• Never disassemble curtain air bag module.
• Never expose the curtain air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the curtain air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-8, "Diagnosis

Description"

.

• After the work is complete, check that no system malfunction is detected by air bag warning lamp.

JMHIA0009ZZ

CRASH ZONE SENSOR

SR-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

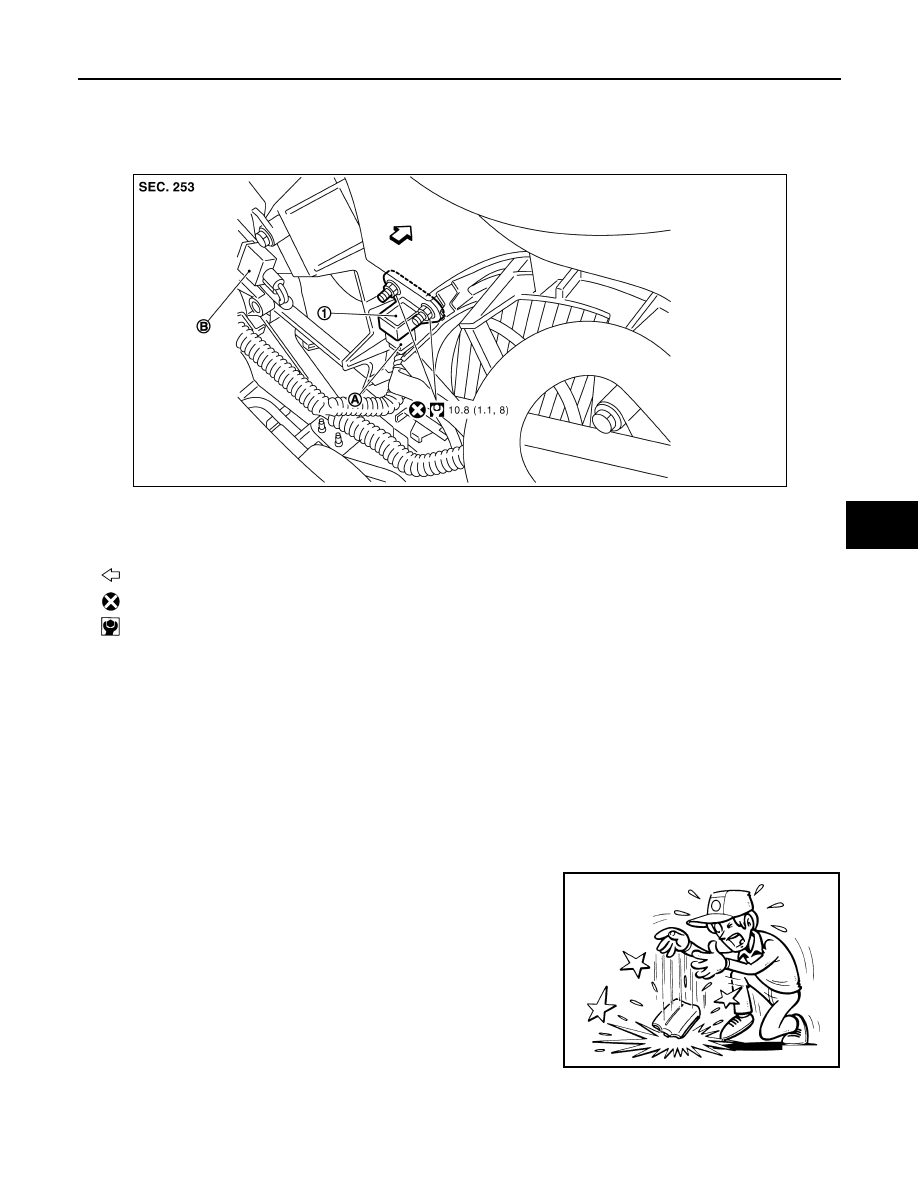

CRASH ZONE SENSOR

Exploded View

INFOID:0000000009161535

Removal and Installation

INFOID:0000000009161536

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the crash zone sensor mounting nut.

2.

Disconnect the crash zone sensor harness connector, and then remove the crash zone sensor.

CAUTION:

• Never impact the crash zone sensor.
• Replace the crash zone sensor if it is dropped or sustains an

impact.

• Replace the crash zone sensor of deployed driver air bag module, deployed passenger air bag mod-

ule, or seat belt pre-tensioner.

1.

Crash zone sensor

A

: Crash zone sensor harness connector

B

: Cooling fan motor

  : Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

NNHIA0023GB

JMHIA0009ZZ

SR-22

< REMOVAL AND INSTALLATION >

CRASH ZONE SENSOR

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use old fixing nuts after removal, replace with new nuts.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-8, "Diagnosis

Description"

.

• After the work is complete, check that no system malfunction is detected by air bag warning lamp.
