SE-10

< ECU DIAGNOSIS INFORMATION >

HEATED SEAT CONTROL UNIT (DRIVER SIDE)

ECU DIAGNOSIS INFORMATION

HEATED SEAT CONTROL UNIT (DRIVER SIDE)

Reference Value

INFOID:0000000009162904

TERMINAL LAYOUT

PHYSICAL VALUES

*: Voltage is repeated within the value shown as per the following list depending on heater unit temperature.

JMJIA5044ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

(+)

(–)

Signal name

Input/

Output

18

(R)

Ground

IGN power supply

Input

Ignition switch

OFF or ACC

0

ON

Battery voltage

21

(B)

Ground

Ground

–

Ignition switch ON

0

40

(W)

Ground

Heat sensor signal

Input

Heated seat
switch

OFF

0

OL

10.87 – 11.02*

HI

11.31 – 11.43*

41

(R/W)

Ground

Seat cushion heater pow-
er supply

Output

Heated seat

Operate

0 – Battery voltage*

Other than above

0

80

(L/W)

Ground

Heated seat operation sig-
nal

Input

Heated seat

Operate

Battery voltage

Other than above

0

81

(R/L)

Ground

Heated seat switch signal

Input

Heated seat
switch

OFF

0

OL

12.24

HI

12.90

POWER SEAT FOR DRIVER SIDE

SE-11

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

WIRING DIAGRAM

POWER SEAT FOR DRIVER SIDE

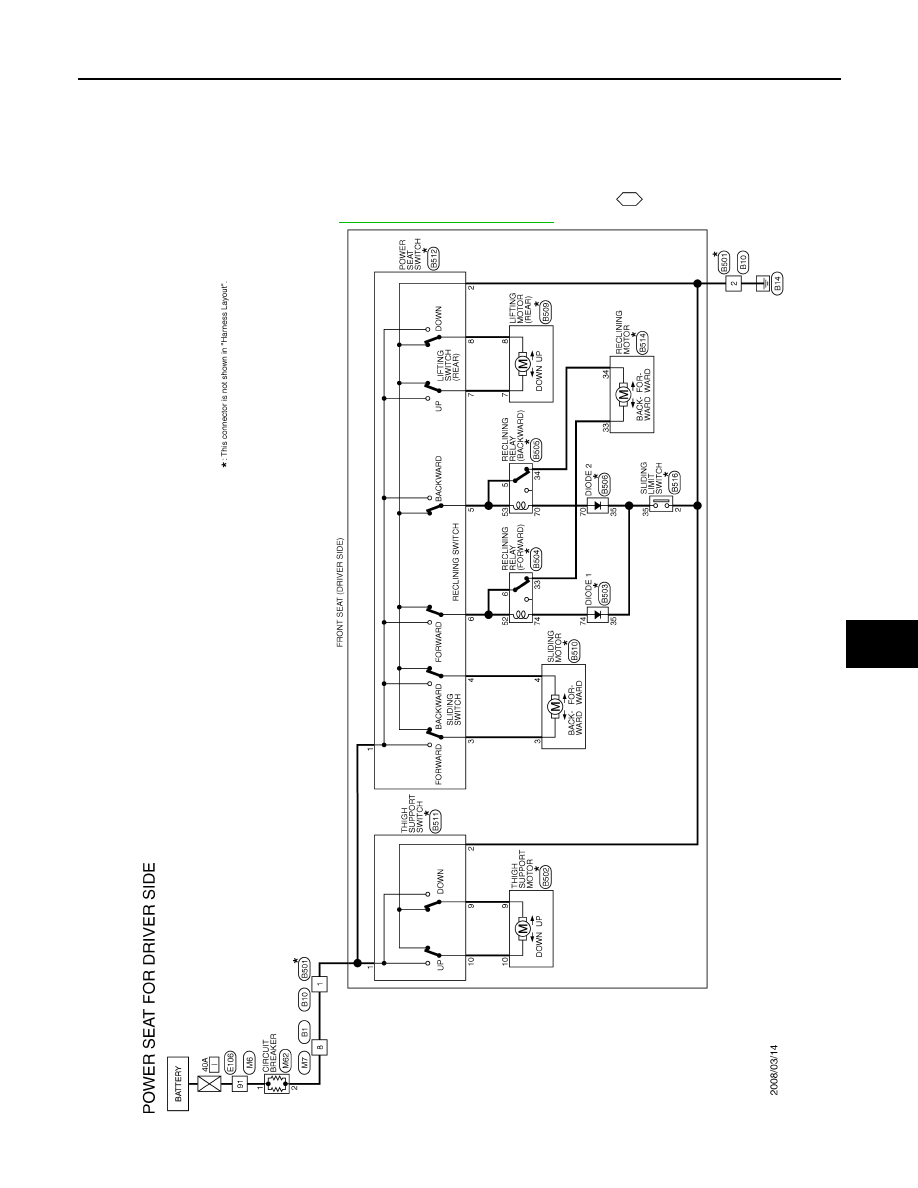

Wiring Diagram - POWER SEAT FOR DRIVER SIDE -

INFOID:0000000009162905

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCJWA0439GB

SE-12

< WIRING DIAGRAM >

POWER SEAT FOR PASSENGER SIDE

POWER SEAT FOR PASSENGER SIDE

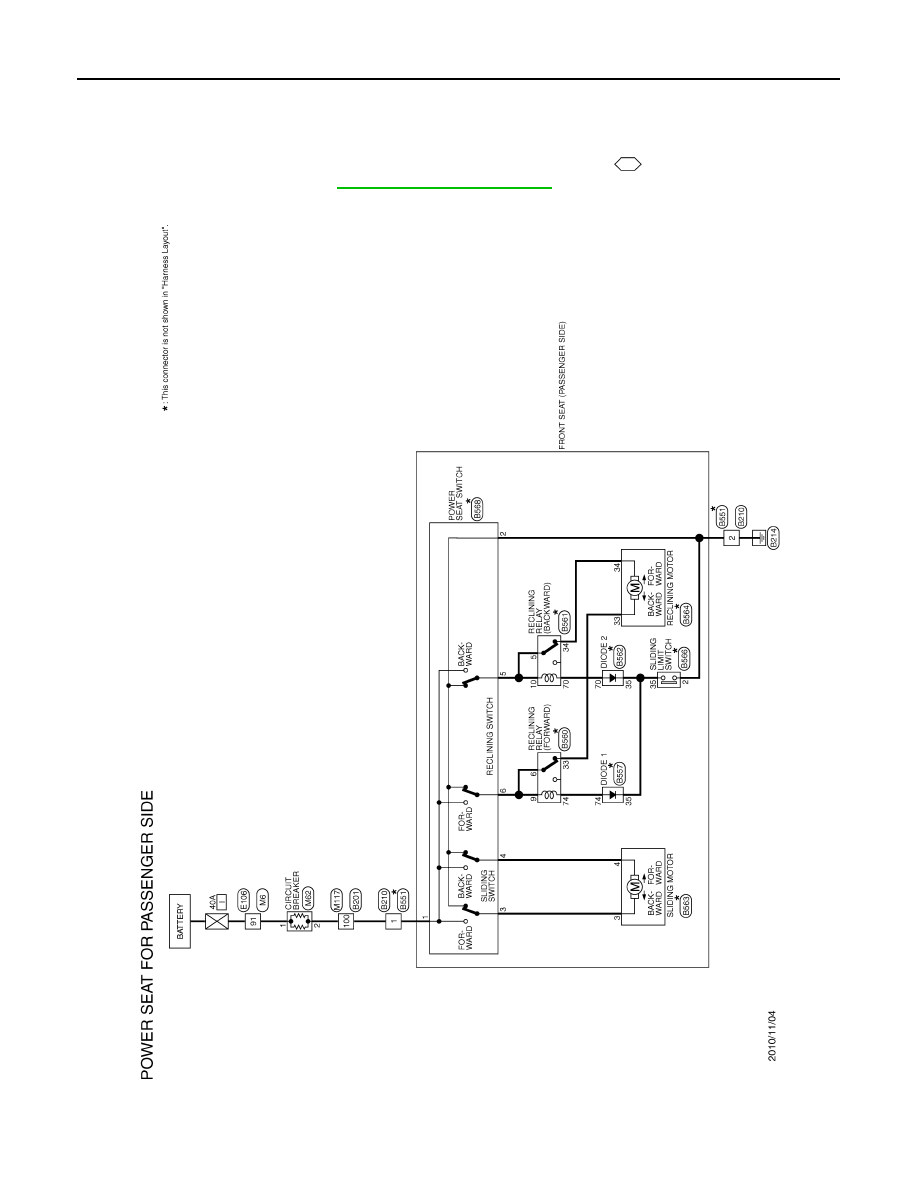

Wiring Diagram - POWER SEAT FOR PASSENGER SIDE -

INFOID:0000000009162906

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCJWA1374GB

HEATED SEAT

SE-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

HEATED SEAT

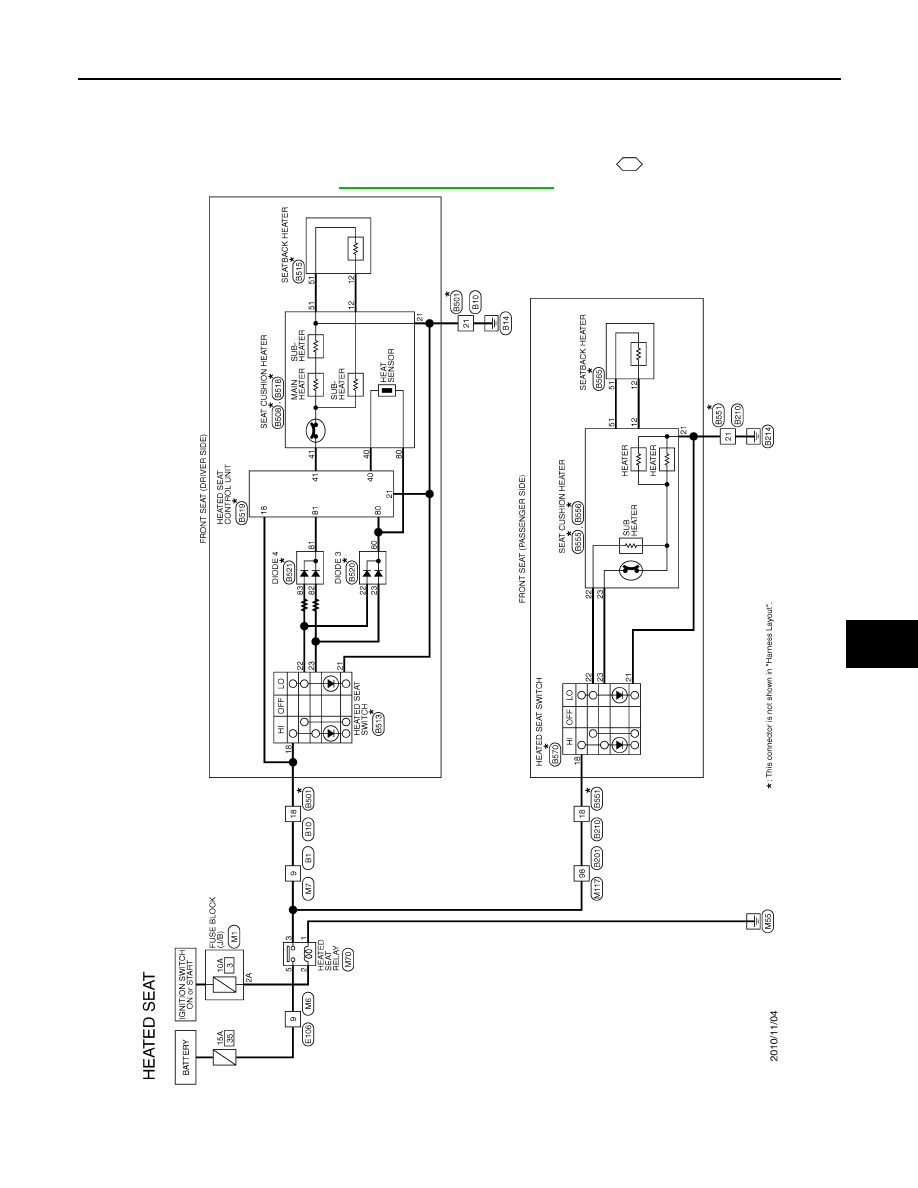

Wiring Diagram - HEATED SEAT -

INFOID:0000000009162907

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCJWA1378GB
