POWER SEAT FOR PASSENGER SIDE

POWER SEAT FOR PASSENGER SIDE

System Description

INFOID:0000000009162894

SLIDING OPERATION

• While operating the sliding switch located in power seat switch, sliding motor operates and makes possible

the seat forward and backward position adjustment.

RECLINING OPERATION

While operating the reclining switch located in power seat switch, reclining motor operates and makes possi-
ble the seatback forward and backward position adjustment.

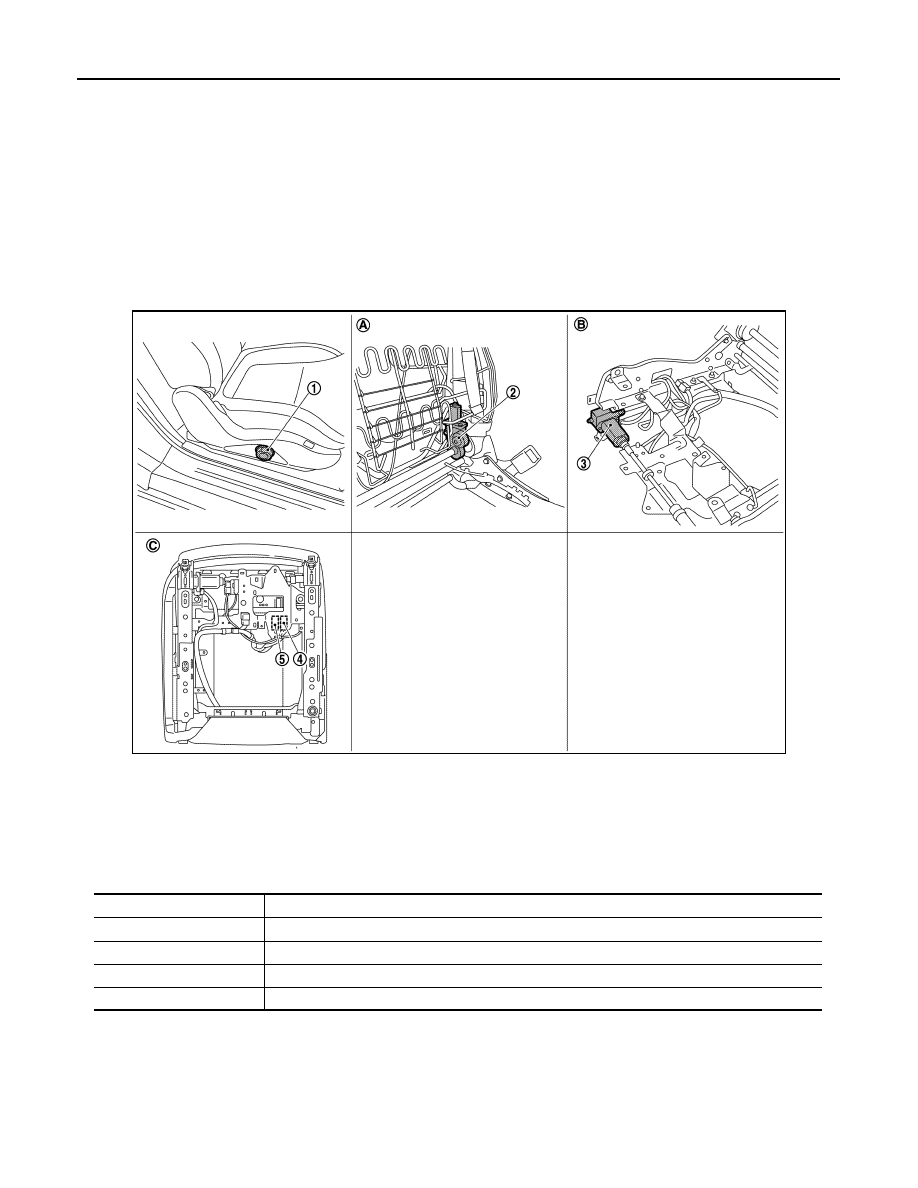

Component Parts Location

INFOID:0000000009162895

Component Description

INFOID:0000000009162896

JMJIA5201ZZ

1.

Power seat switch

2.

Reclining motor

3.

Sliding motor

4.

Sliding relay (backward)

5.

Sliding relay (forward)

A.

Built in seatback

B.

Built in seat cushion

C.

Back side of seat cushion

Item

Function

Power seat switch

Built-in reclining switch and sliding switch controls the power supplied to each motor.

Sliding switch

Detect the operation of sliding motor.

Reclining motor

With the power supplied to power seat switch, operates the forward and backward of seatback.

Sliding motor

With the power supplied to power seat switch, operates the forward and backward slide of seat.

HEATED SEAT (DRIVER SIDE)

SE-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

HEATED SEAT (DRIVER SIDE)

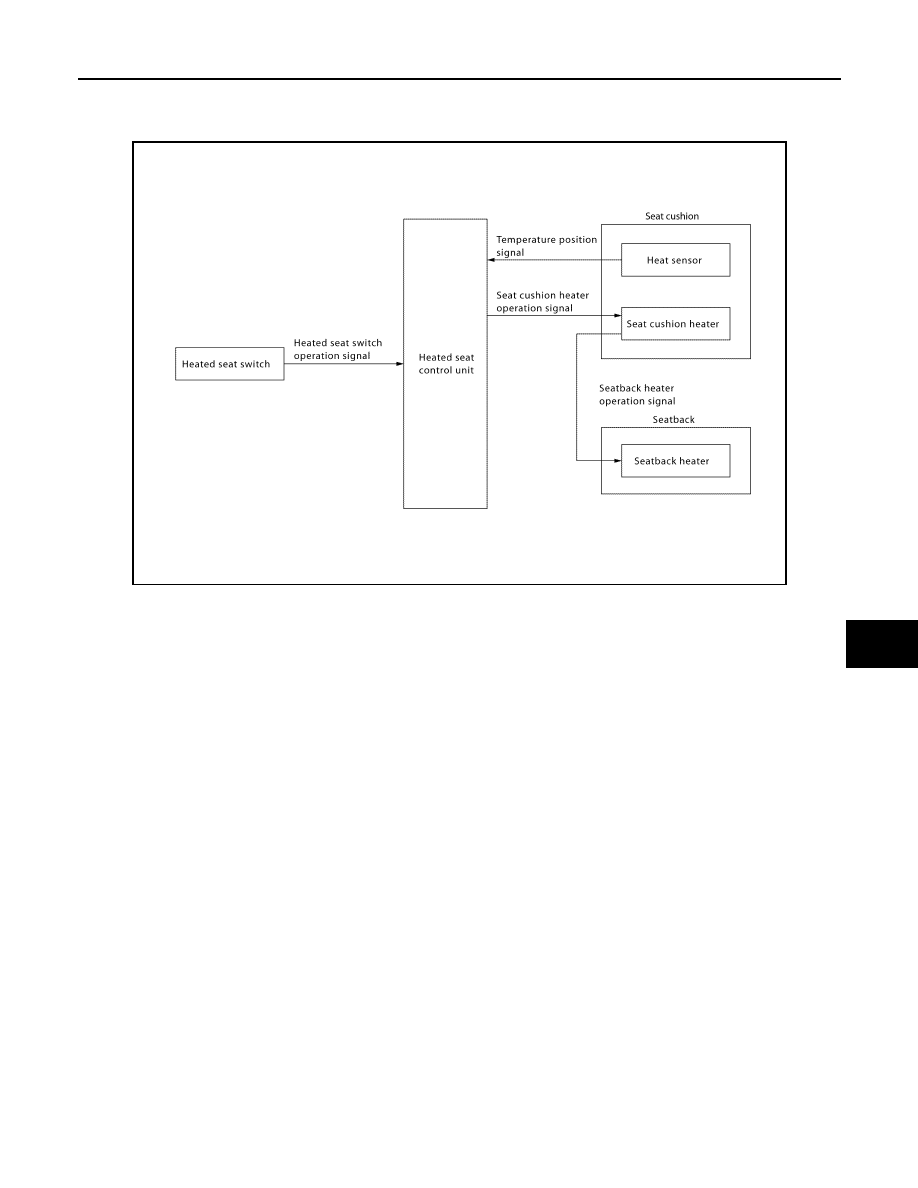

System Diagram

INFOID:0000000009162897

System Description

INFOID:0000000009162898

• Heated seat is activated by heated seat switch while ignition switch is ON, and is equipped with the function

to warm seat cushion and seatback.

• Heated seat is equipped with the LO/HI temperature adjustment function that adjusts temperature by operat-

ing heated seat switch to the optimal position.

OPERATION DESCRIPTION

• When operating heated seat switch to either position of LO/HI while ignition switch is ON, indicator illumi-

nates, heated seat control unit supplies power supply to heater unit, and warms seat cushion and seatback.

• Heat sensor that is built in seat cushion heater detects seat cushion heater temperature and outputs to

heated seat control unit.

• Heated seat control unit monitors the heated seat switch position and heater sensor temperature, and inter-

rupts power supply to heater unit when the heat sensor temperature reaches preset temperature.

JMJIA5207GB

SE-8

< SYSTEM DESCRIPTION >

HEATED SEAT (DRIVER SIDE)

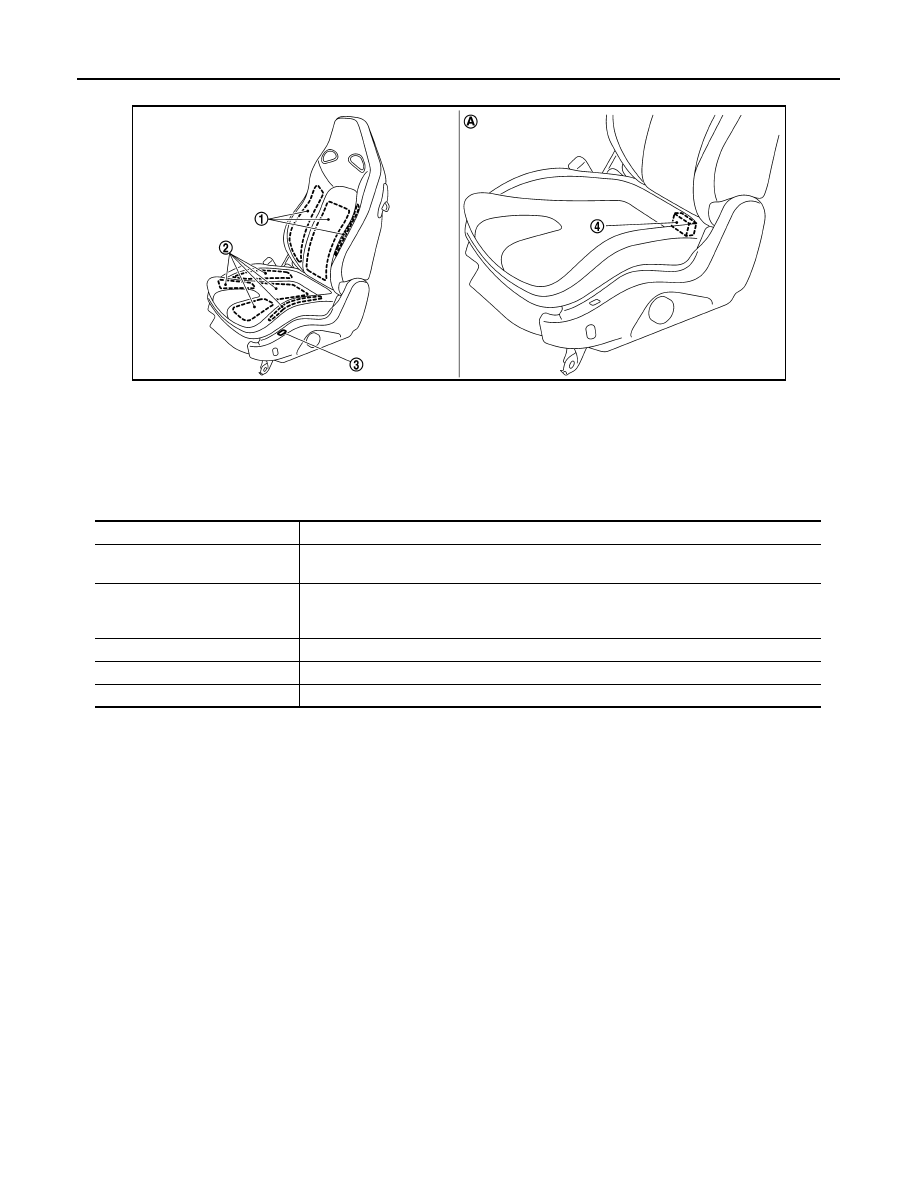

Component Parts Location

INFOID:0000000009162899

Component Description

INFOID:0000000009162900

JMJIA5202ZZ

1.

seatback heater

2.

Seat cushion heater

3.

Heated seat switch

4.

Heated seat control unit

A.

Back side of seat cushion

Item

Function

Heated seat control unit

• Activates seat cushion heater and seatback heater via heated seat switch signal.
• Controls heated seat system.

Heated seat switch

• Supplies power supply to each heater.
• Equips indicator that indicates the operating condition.
• Changes the number of activated heaters depending on the HI or LO switch position.

Heat sensor

Outputs seat cushion temperature to heated seat control unit

Seat cushion heater

Built in seatback and is activated by power supply from heated seat switch.

Seatback heater

Built in seatback and is activated by power supply from heated seat switch.

HEATED SEAT (PASSENGER SIDE)

SE-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

HEATED SEAT (PASSENGER SIDE)

System Description

INFOID:0000000009162901

• By turning seat heated switch ON, seat cushion heater and seat back heater are activated.
• By switching seat switch to HI or LO, the number of activated heaters changes and seat warming seed is

adjusted.

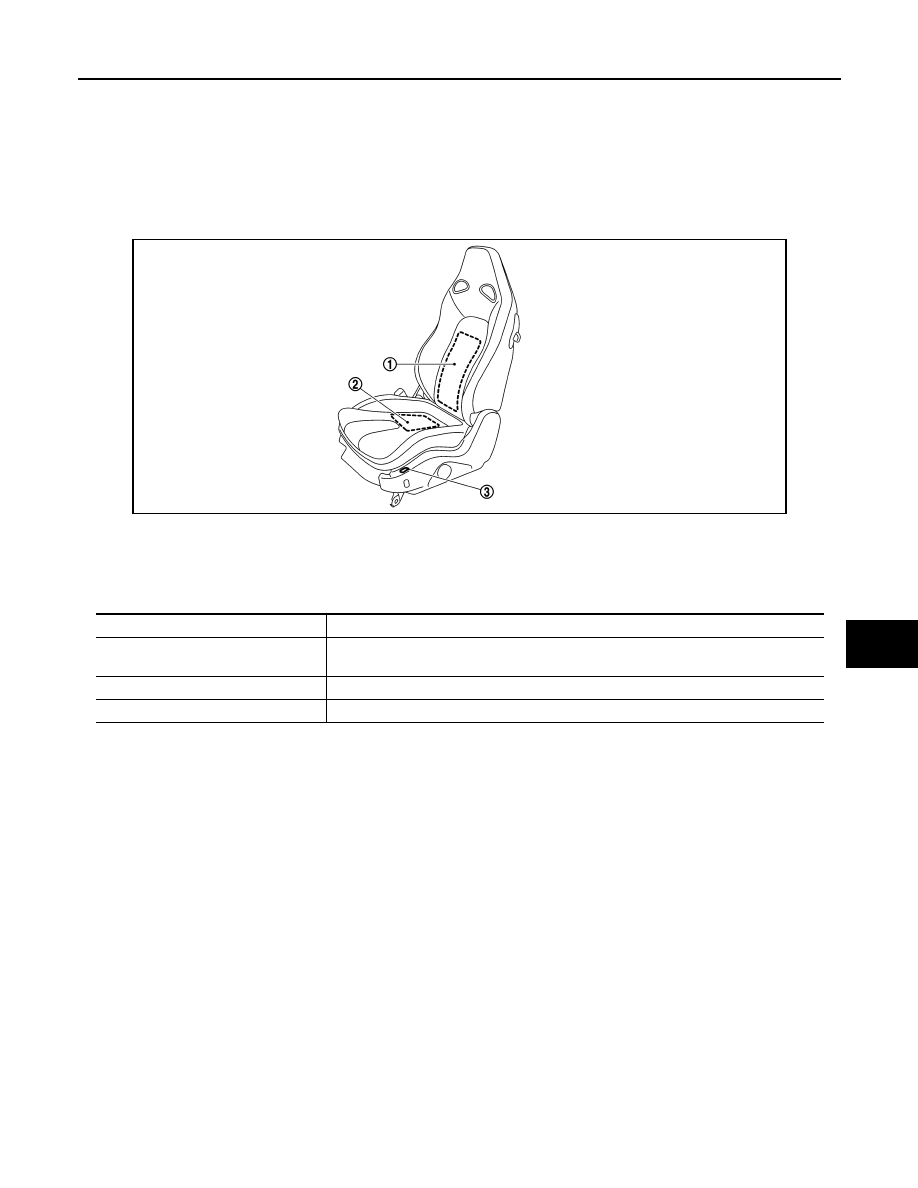

Component Parts Location

INFOID:0000000009162902

Component Description

INFOID:0000000009162903

JMJIA5846ZZ

1.

Seat back heater

2.

Seat cushion heater

3.

Heated seat switch

Item

Function

Heated seat switch

• Supplies power supply to each heater.
• Changes the number of activated heaters depending on the HI or LO switch position.

Seat cushion heater

Built in seat cushion and is activated by power supply from heated seat switch.

Seat back heater

Built in seat back and is activated by power supply from heated seat switch.
