Nissan GT-R. Manual - part 255

RSU-10

< REMOVAL AND INSTALLATION >

FRONT LOWER LINK

FRONT LOWER LINK

Exploded View

INFOID:0000000009163944

1.

Rear suspension member

2.

Radius rod

3.

Brake air guide*

4.

Front lower link

5.

Rear lower link

6.

Axle housing

7.

Suspension arm

A.

Tightening is recommended to be performed by GT-R certified NISSAN dealer.

: Vehicle front

*: With brake air guide

Refer to

GI-4, "Components"

 for the symbols in the figure.

JSEIA0478GB

REAR LOWER LINK

RSU-11

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

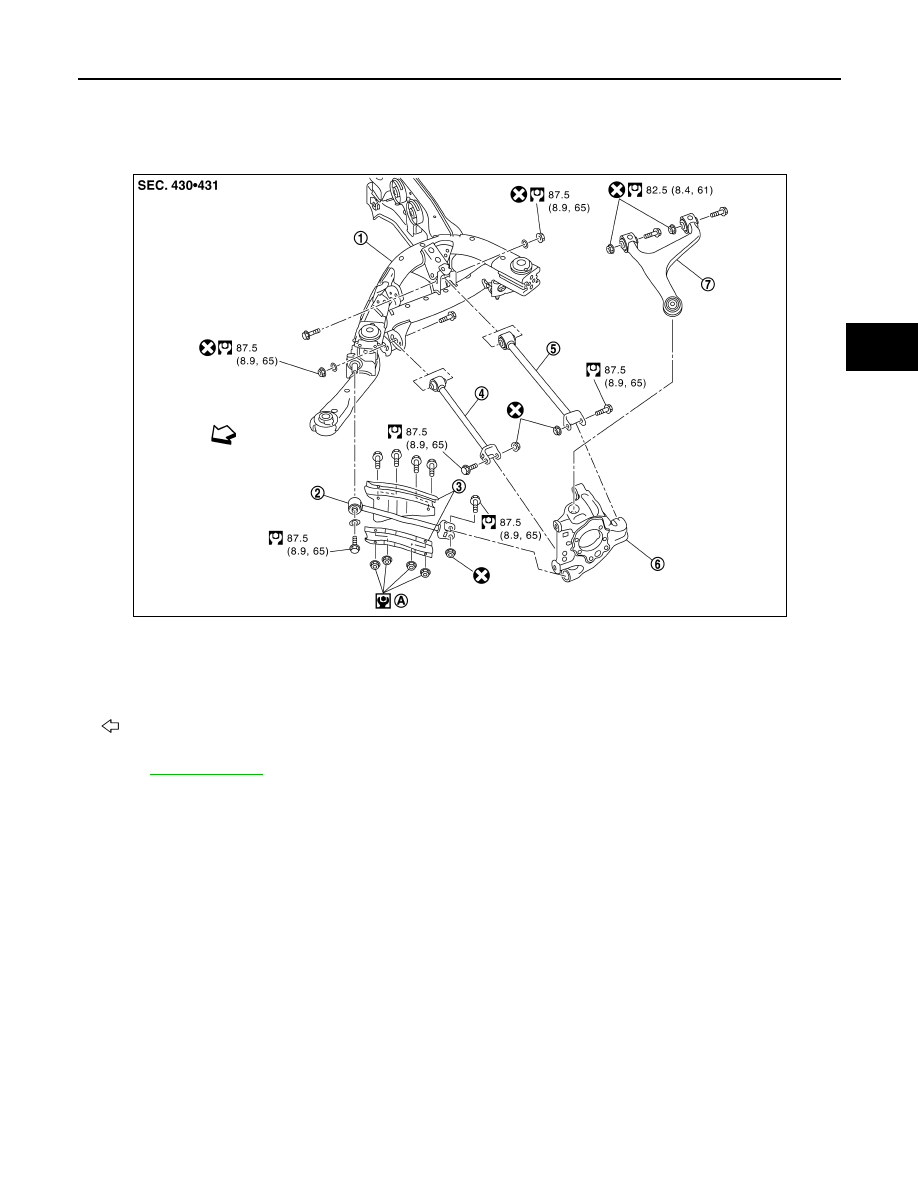

REAR LOWER LINK

Exploded View

INFOID:0000000009163947

1.

Rear suspension member

2.

Radius rod

3.

Brake air guide*

4.

Front lower link

5.

Rear lower link

6.

Axle housing

7.

Suspension arm

A.

Tightening is recommended to be performed by GT-R certified NISSAN dealer.

: Vehicle front

*: With brake air guide

Refer to

GI-4, "Components"

 for the symbols in the figure.

JSEIA0478GB

RSU-12

< REMOVAL AND INSTALLATION >

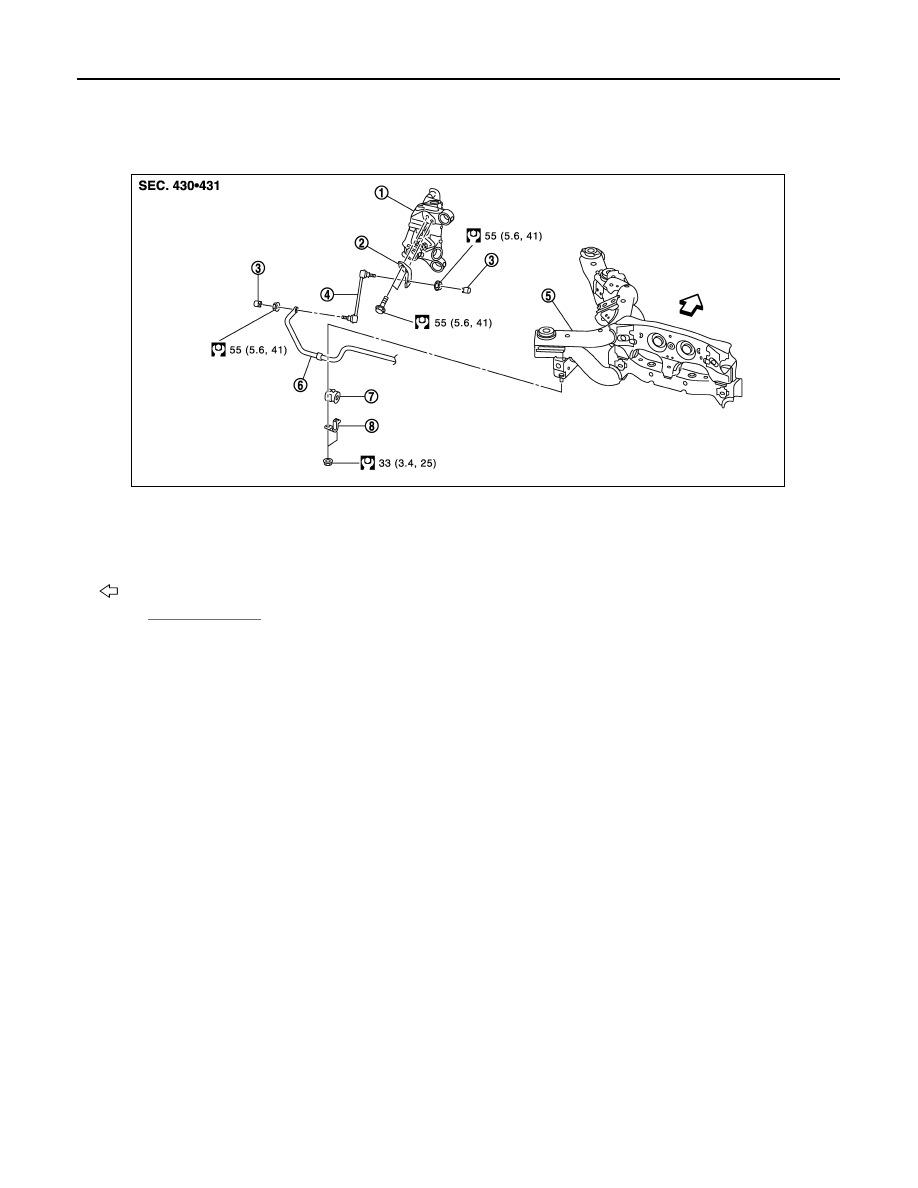

REAR STABILIZER

REAR STABILIZER

Exploded View

INFOID:0000000009163950

1.

Axle housing

2.

Stabilizer connecting rod mounting
bracket

3.

Cap

4.

Stabilizer connecting rod

5.

Rear suspension member

6.

Stabilizer bar

7.

Stabilizer bushing

8.

Stabilizer clamp

: Vehicle front

Refer to

GI-4, "Components"

 for the symbols in the figure.

JPEIB0129GB

REAR SUSPENSION MEMBER

RSU-13

< UNIT REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

UNIT REMOVAL AND INSTALLATION

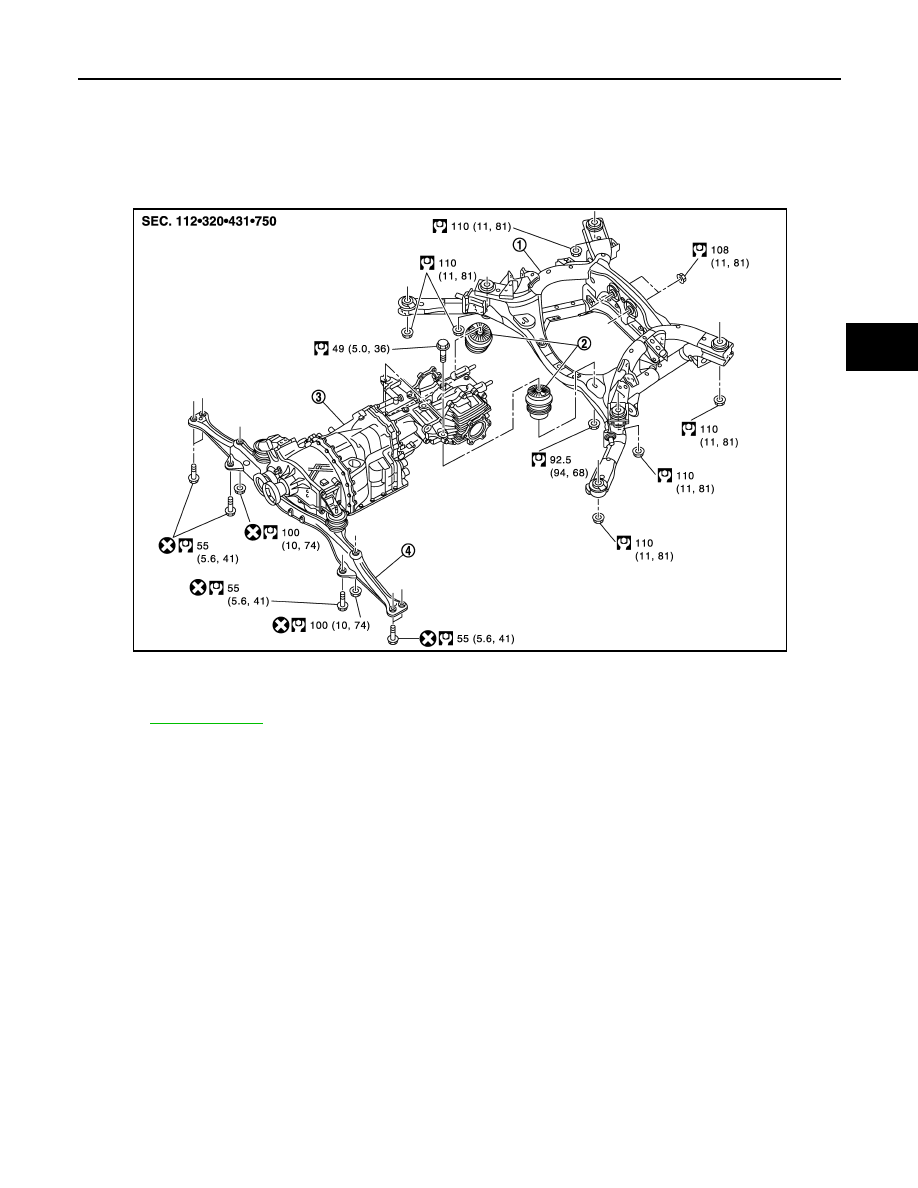

REAR SUSPENSION MEMBER

Exploded View

INFOID:0000000009163953

1.

Rear suspension member

2.

Mount insulator

3.

Transmission assembly

4.

Transmission mount stay

Refer to

GI-4, "Components"

 for the symbols in the figure.

NNEIB0002GB
