RSU-6

< PERIODIC MAINTENANCE >

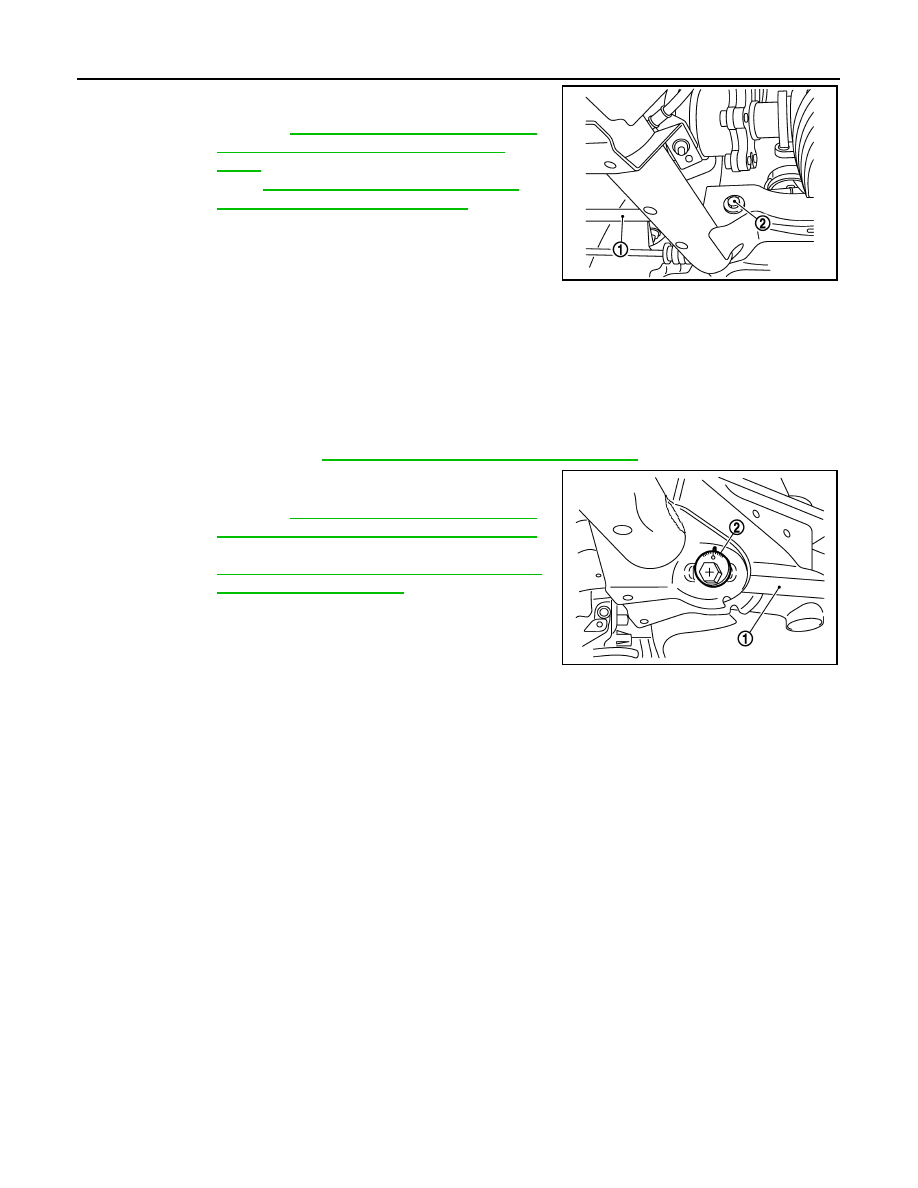

WHEEL ALIGNMENT

2.

Adjust using the adjust bolt (2) of rear lower link (1).

CAUTION:

• Always evenly adjust both toe-in alternately and adjust

the difference between the left and right to the standard.

• Always hold the adjust bolt firmly when tightening nut.
• Always adjust to toe-in. The toe changes, depending on an attitude change or a permanent set of

bush. Accordingly, the state of the front wheels change to toe-out and the rear wheels, toe-in. If
the wheels change to toe-out, tire partial wear is accelerated and local heating may be acceler-
ated in the inner side of tires.

• Engaging in performance driving on a racetrack and ultra-high-speed driving, be sure to adjust

toe-in to 2.0 mm (0.079 in) or less. If used beyond this range, it is not covered by the warranty.

CAMBER

1.

Remove rear diffuser. Refer to

EXT-41, "REAR DIFFUSER : Exploded View"

.

2.

Adjust using the adjust bolt (2) of front lower link (1).

CAUTION:

• Always hold the adjust bolt firmly when tightening nut.
• Always check toe-in after adjusting camber.

Toe-in

: Refer to

RSU-14, "EXCEPT TRACK PACK-

SPECIFIC SUSPENSION : Wheel Align-
ment"

  (Except track pack-specific suspen-

sion),

RSU-15, "TRACK PACK-SPECIFIC

SUSPENSION : Wheel Alignment"

 (Track

pack-specific suspension).

NNEIB0011ZZ

Camber

: Refer to

RSU-14, "EXCEPT TRACK PACK-

SPECIFIC SUSPENSION : Wheel Alignment"



(Except track pack-specific suspension),

RSU-15, "TRACK PACK-SPECIFIC SUSPEN-
SION : Wheel Alignment"

 (Track pack-spe-

cific suspension).

NNEIB0004ZZ

REAR COIL SPRING AND SHOCK ABSORBER

RSU-7

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

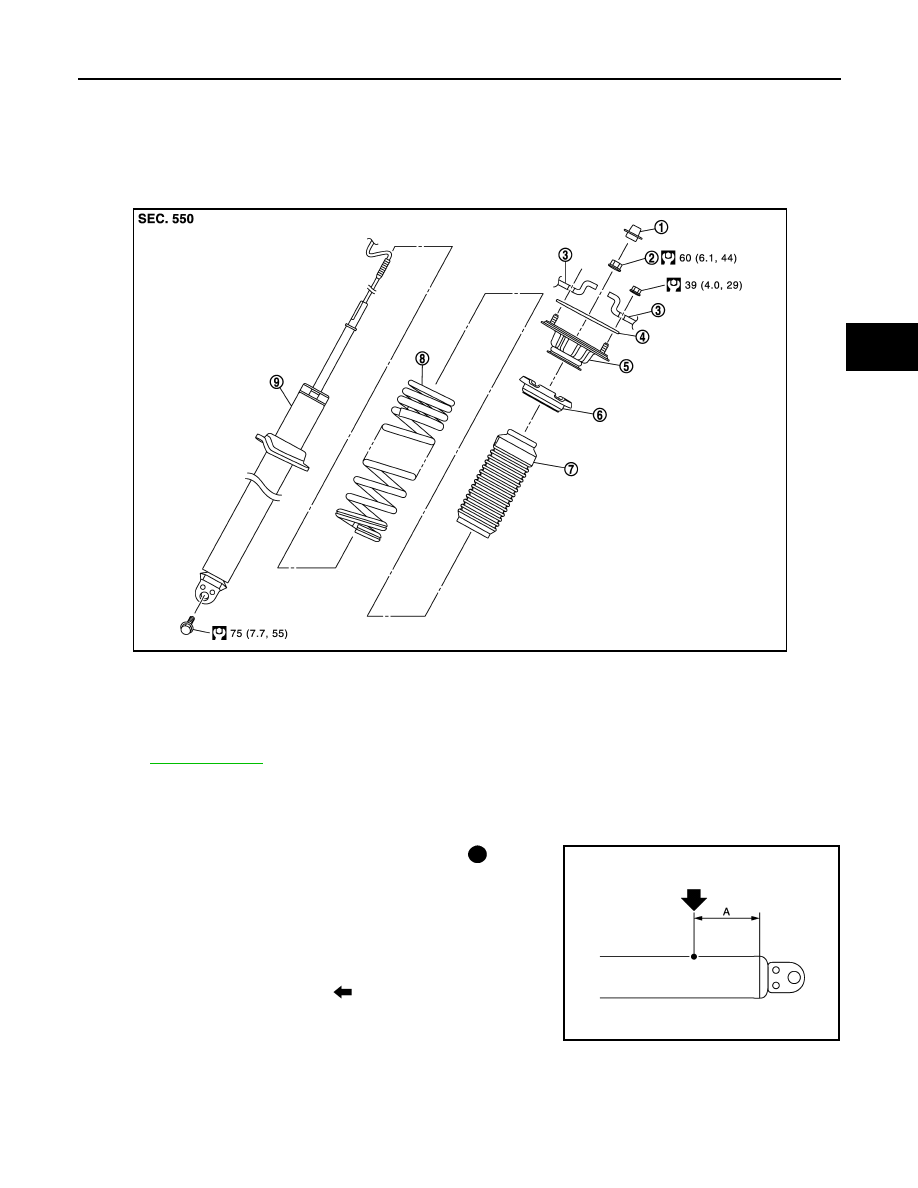

REMOVAL AND INSTALLATION

REAR COIL SPRING AND SHOCK ABSORBER

Exploded View

INFOID:0000000009163933

Disposal

INFOID:0000000009163937

1.

Set shock absorber horizontally with the piston rod fully extended.

2.

Drill 2 – 3 mm (0.08 – 0.12 in) hole at the position (

) from top

as shown in the figure to release gas gradually.

CAUTION:

• Wear eye protection (safety glasses).
• Wear gloves.
• Be careful with metal chips or oil blown out by the com-

pressed gas.

NOTE:
• Drill vertically in this direction (

).

• Directly to the outer tube avoiding brackets.
• The gas is clear, colorless, odorless, and harmless.

3.

Position the drilled hole downward and drain oil by moving the piston rod several times.

CAUTION:

Dispose of drained oil according to the law and local regulations.

1.

Cap

2.

Piston rod lock nut

3.

Vehicle body

4.

Mounting seal

5.

Mount insulator

6.

Rubber seat

7.

Bound bumper

8.

Coil spring*

9.

Shock absorber

*: To replace, all of four coil springs must be replaced together as a set. (Vehicles with track pack-specific suspension)

Refer to

GI-4, "Components"

 for the symbols in the figure.

JPEIB0126GB

A

: 20 – 30 mm (0.79 – 1.18 in)

NNEIB0021ZZ

RSU-8

< REMOVAL AND INSTALLATION >

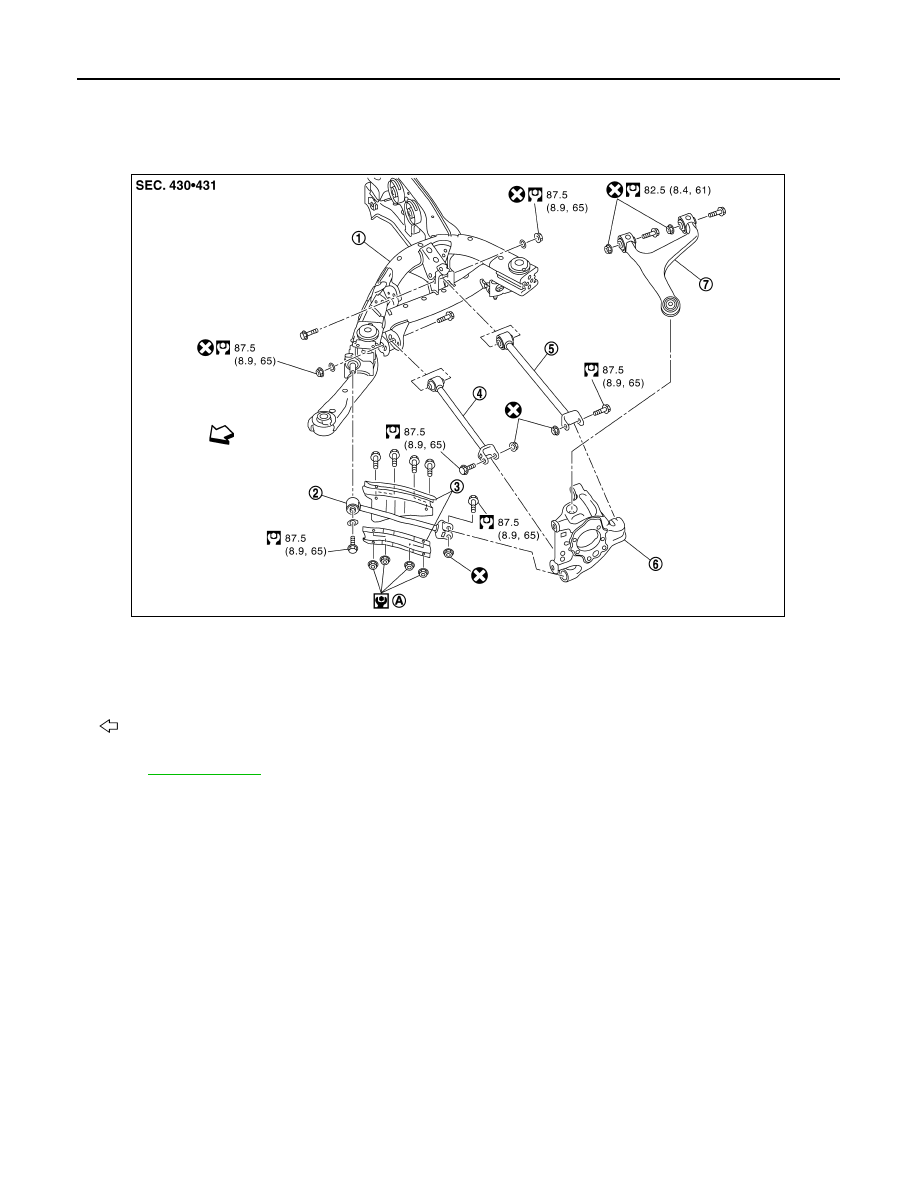

SUSPENSION ARM

SUSPENSION ARM

Exploded View

INFOID:0000000009163938

1.

Rear suspension member

2.

Radius rod

3.

Brake air guide*

4.

Front lower link

5.

Rear lower link

6.

Axle housing

7.

Suspension arm

A.

Tightening is recommended to be performed by GT-R certified NISSAN dealer.

: Vehicle front

*: With brake air guide

Refer to

GI-4, "Components"

 for the symbols in the figure.

JSEIA0478GB

RADIUS ROD

RSU-9

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

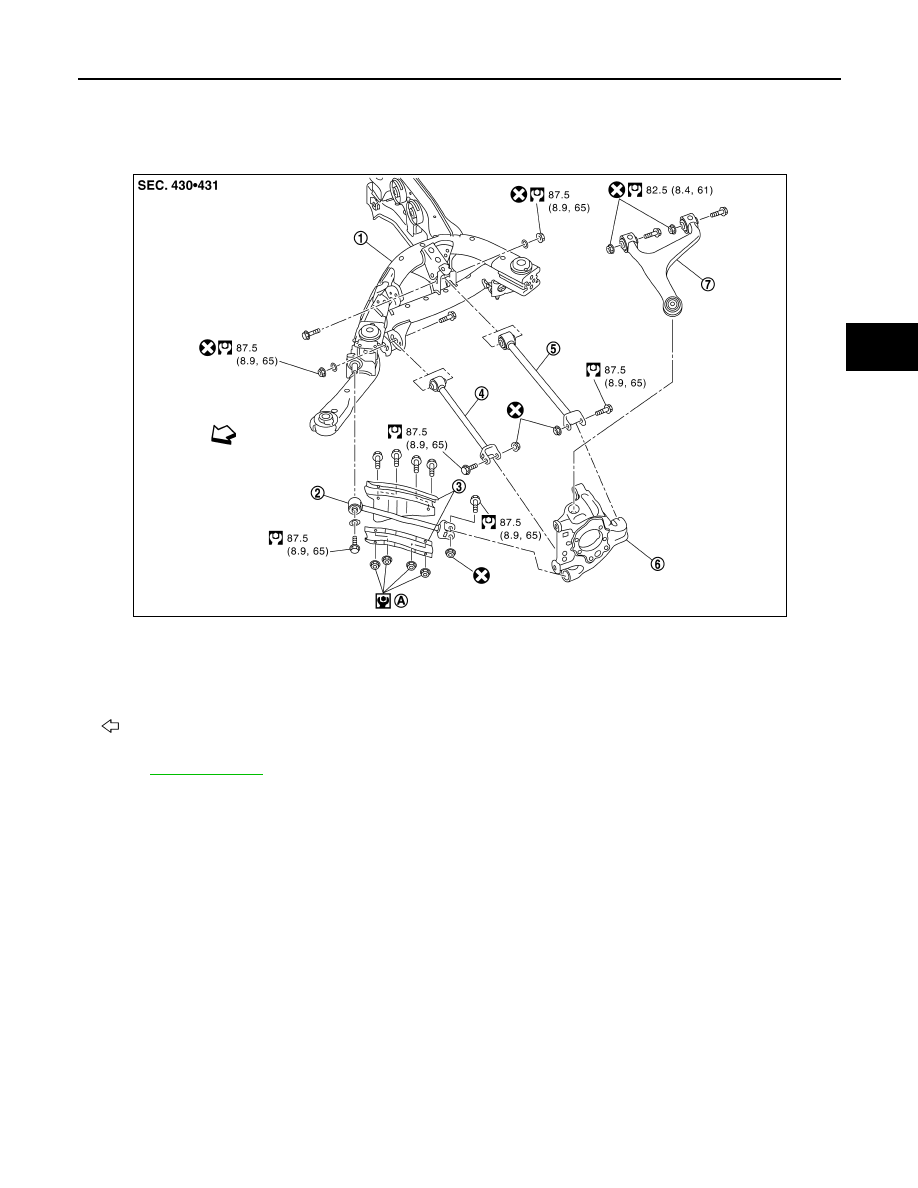

RADIUS ROD

Exploded View

INFOID:0000000009163941

1.

Rear suspension member

2.

Radius rod

3.

Brake air guide*

4.

Front lower link

5.

Rear lower link

6.

Axle housing

7.

Suspension arm

A.

Tightening is recommended to be performed by GT-R certified NISSAN dealer.

: Vehicle front

*: With brake air guide

Refer to

GI-4, "Components"

 for the symbols in the figure.

JSEIA0478GB
