Nissan GT-R. Manual - part 227

MWI

COMBINATION METER

MWI-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

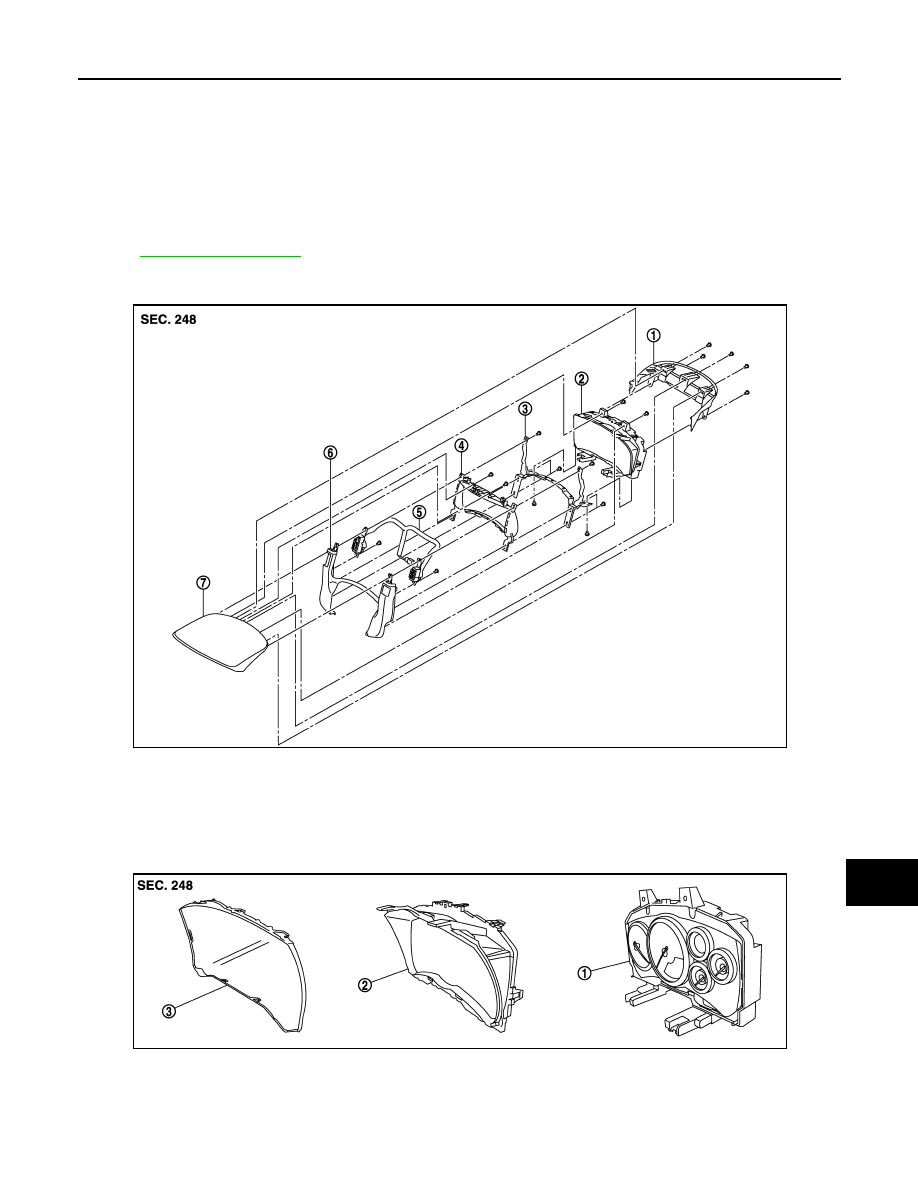

COMBINATION METER

Exploded View

INFOID:0000000009189372

REMOVAL

Cluster Lid A

Refer to

IP-12, "Exploded View"

.

Combination Meter

DISASSEMBLY

1.

Cluster lid A rear cover

2.

Combination meter

3.

Bracket

4.

Meter housing

5.

Meter control switch

6.

Cluster lid A under cover

7.

Cluster lid A front cover

NNNIA0085ZZ

1.

Meter control unit assembly

2.

Upper housing

3.

Front cover

NNNIA0012ZZ

MWI-68

< REMOVAL AND INSTALLATION >

COMBINATION METER

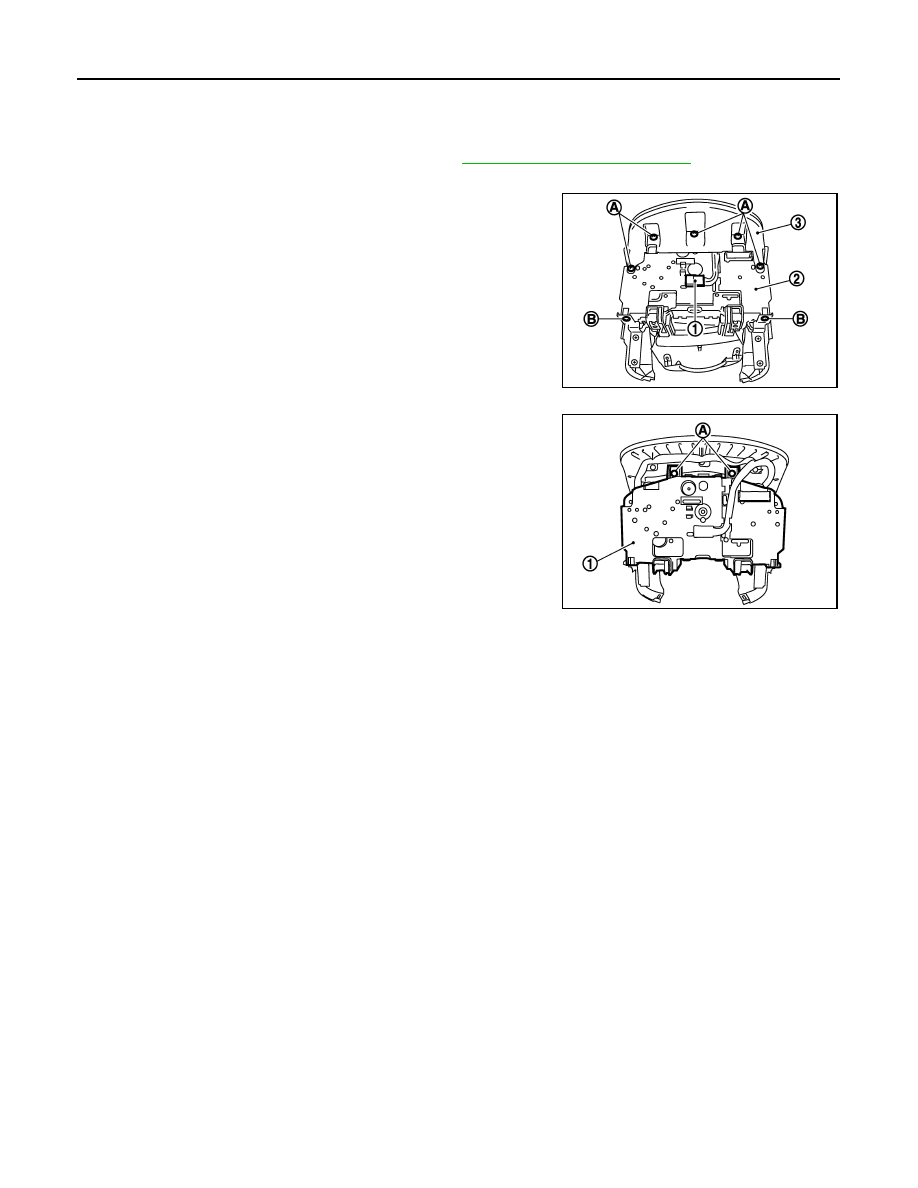

Removal and Installation

INFOID:0000000009189373

REMOVAL

1.

Remove the cluster lid A from the vehicle. Refer to

IP-13, "Removal and Installation"

.

2.

Remove the meter control switch connector (1) from the combi-
nation meter (2).

3.

Remove the screws (A), and then remove the cluster lid A rear
cover (3).

4.

Remove screws (B).

5.

Remove the screws (A), and then remove the combination
meter (1).

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000009189374

DISASSEMBLY

1.

Remove the tabs, and then remove the upper housing.

2.

Remove the tabs, and then remove the front cover.

ASSEMBLY

Assemble the reverse order of disassembly.

NNNIA0011ZZ

NNNIA0107ZZ

MWI

METER CONTROL SWITCH

MWI-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

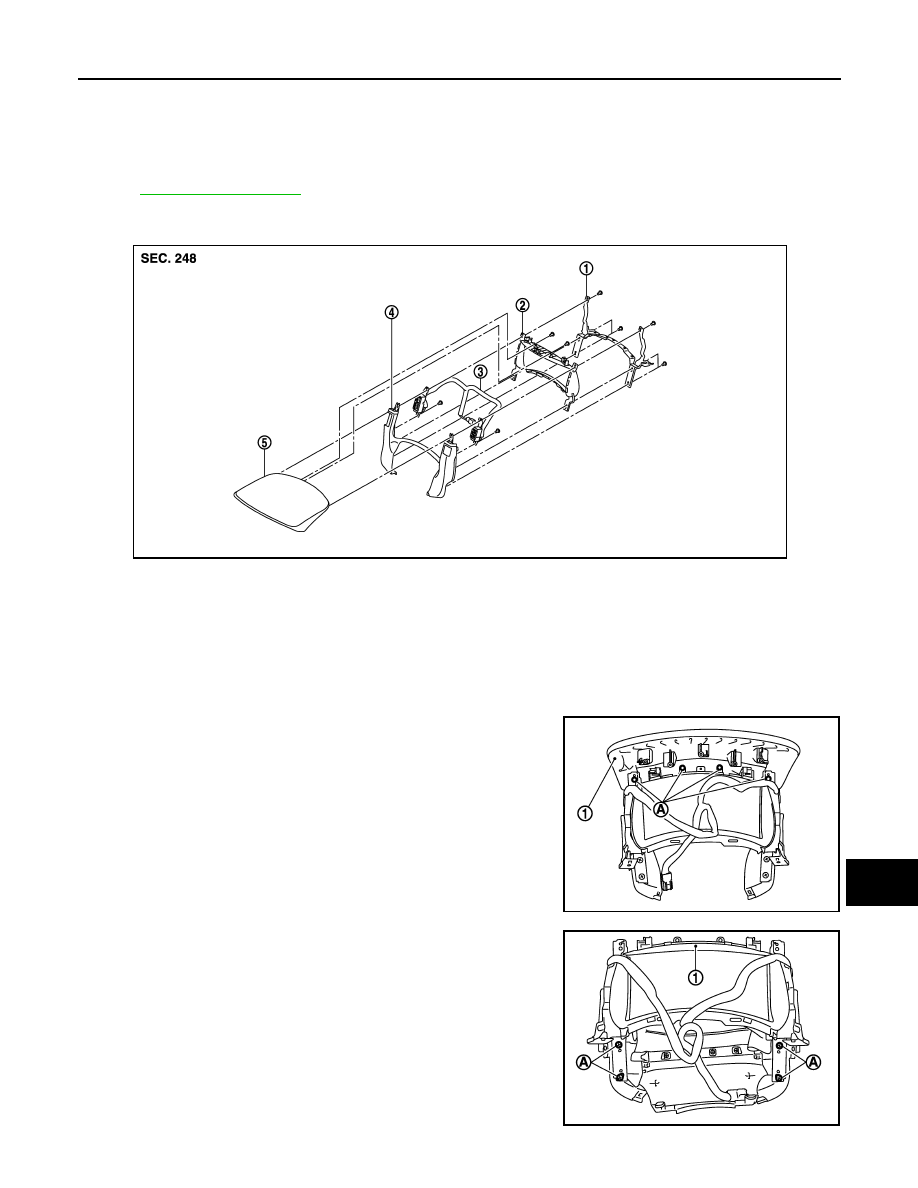

METER CONTROL SWITCH

Exploded View

INFOID:0000000009189375

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009189376

REMOVAL

1.

Remove the combination meter.

2.

Remove the screws (A), and then remove the cluster lid A front
cover (1).

3.

Remove the screws (A), and then remove the bracket and meter
housing (1).

1.

Bracket

2.

Meter housing

3.

Meter control switch

4.

Cluster lid A under cover

5.

Cluster lid A front cover

NNNIA0110ZZ

NNNIA0109ZZ

NNNIA0014ZZ

MWI-70

< REMOVAL AND INSTALLATION >

METER CONTROL SWITCH

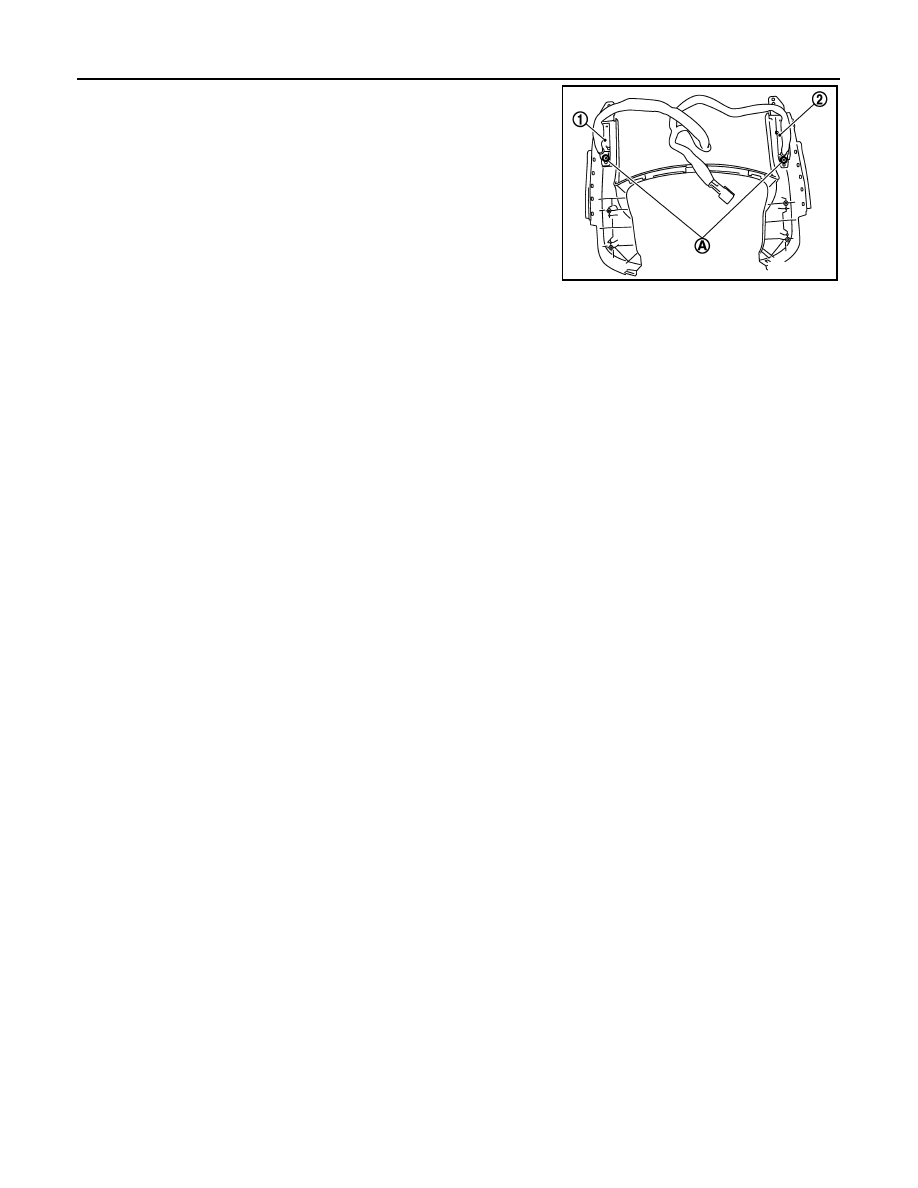

4.

Remove the screws (A), and then remove the drive computer
switch (1), illumination control switch, and trip A/B reset switch
(2).

INSTALLATION

Install in the reverse order of removal.

NNNIA0015ZZ
