PB-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Working Range at a Regular Dealership

INFOID:0000000009167682

CAUTION:

The service items unmentioned on this manual are recommended to be performed by a GT-R certified
NISSAN dealer. Because those service items require special equipment and a GT-R certified technical
staff who completed special training.

General Precautions

INFOID:0000000009159888

CAUTION:

After finishing servicing, check that all the tools and waste are stored in a customary place.

PREPARATION

PB-3

< PREPARATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PREPARATION

PREPARATION

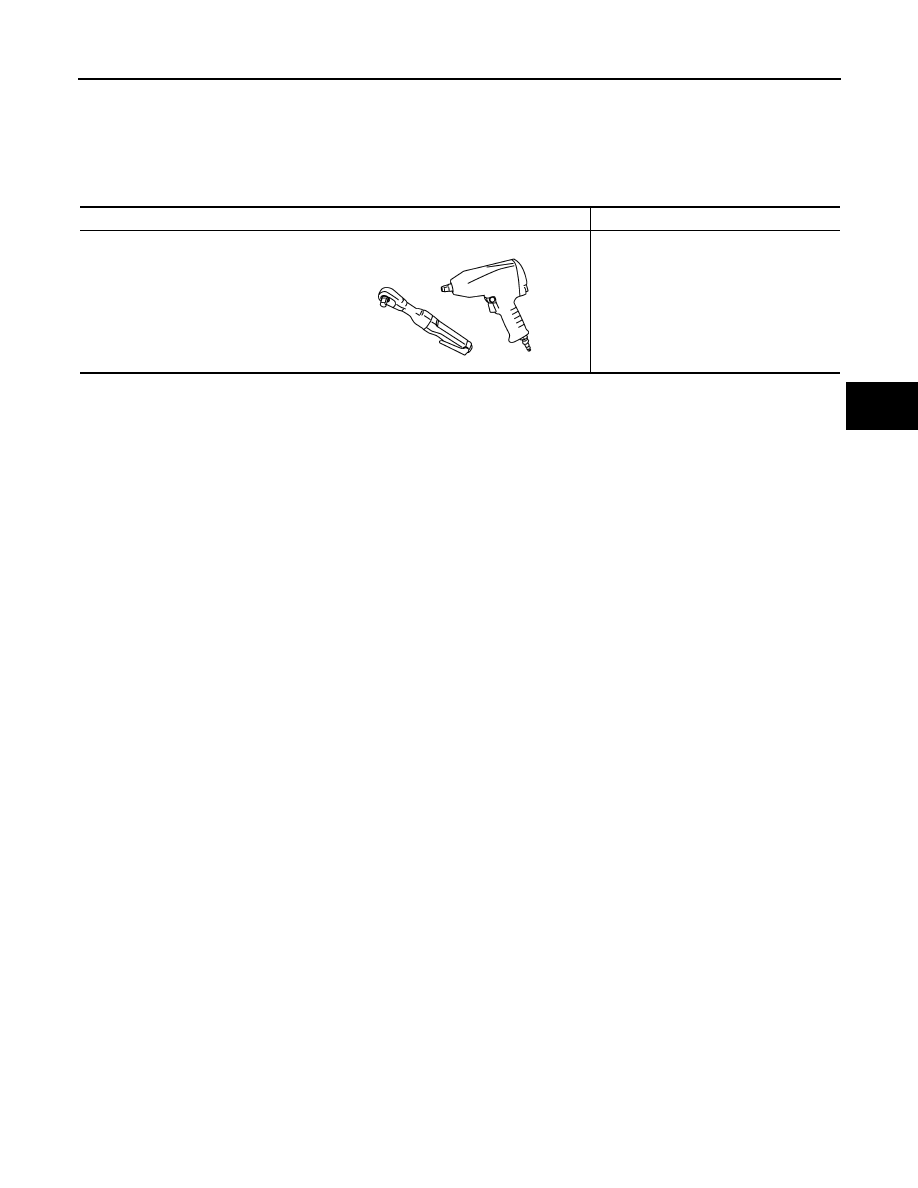

Commercial Service Tool

INFOID:0000000009159889

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

PB-4

< PERIODIC MAINTENANCE >

PARKING BRAKE SYSTEM

PERIODIC MAINTENANCE

PARKING BRAKE SYSTEM

Inspection and Adjustment

INFOID:0000000009159890

INSPECTION

Parking Brake Lever Stroke

1.

Operate the parking brake lever with a force of 196 N (20 kg, 44 lb). Check that the lever stroke is within
the specified number of notches. (Check it by listening to the clicks of the ratchet.)

2.

When brake warning lamp turns ON, check that the lever stroke is within the specified number of notches.
(Check it by listening to the clicks of the ratchet.)

Inspect Components

• Check each component for installation condition such as looseness.
• Check the parking brake lever assembly for bend, damage and cracks. Replace if necessary.
• Check the cables and equalizer for wear, damage and cracks. Replace if necessary.
• Check the parking brake switch, and replace it if necessary. (This work is recommended to be performed by

GT-R certified NISSAN dealer.)

ADJUSTMENT

1.

Remove tires with power tool. Refer to

WT-11, "Exploded View"

.

2.

Fix the disc rotor using wheel nuts.

3.

Remove the instrument garnish. Refer to

IP-12, "Exploded View"

.

4.

Remove the console finisher assembly. Refer to

IP-23, "Exploded View"

.

5.

Remove the cup holder finisher. Refer to

IP-23, "Exploded View"

.

6.

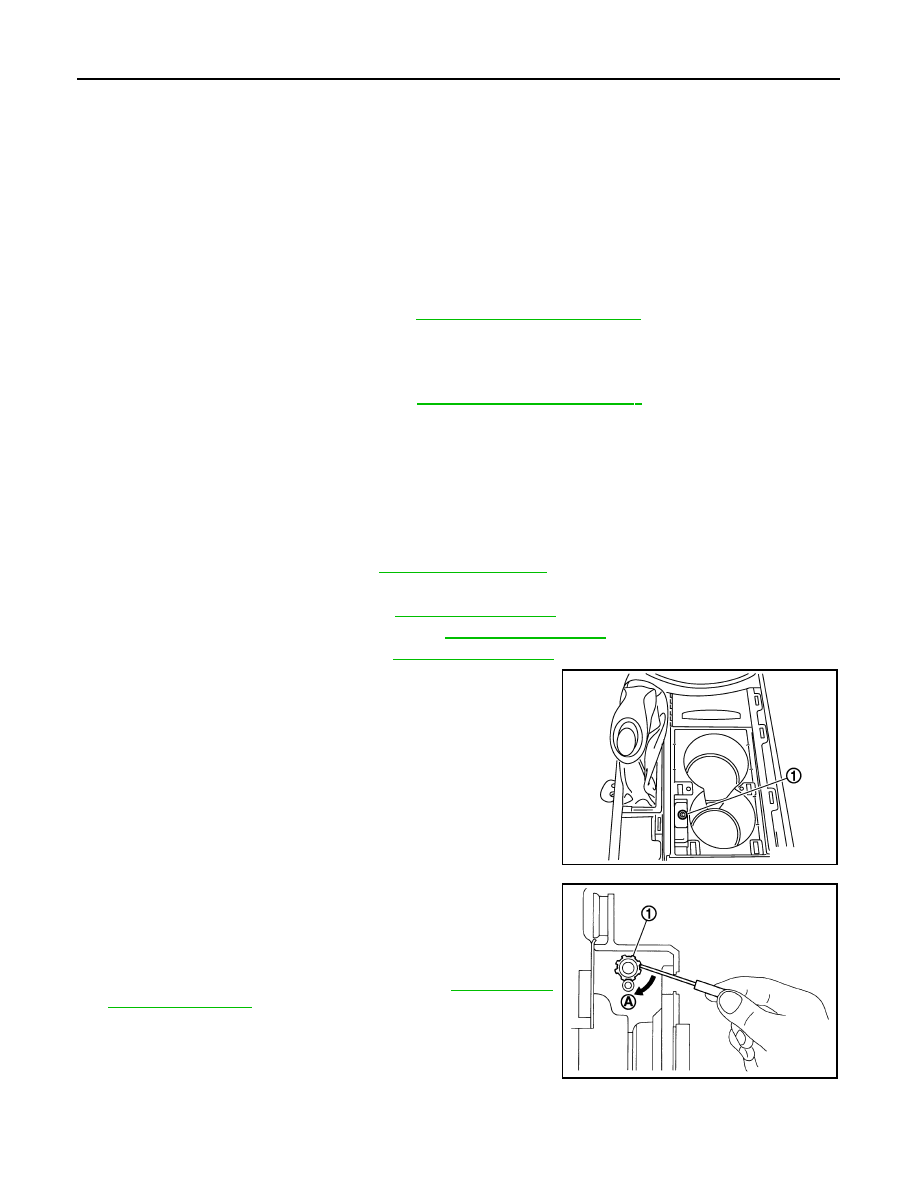

Rotate the adjusting nut (1) and loosen the cable, and then
return the parking brake lever.

7.

Remove the adjusting hole plug from the disc rotor. Turn the
adjuster (1) in the direction (A) as shown in the figure using a
suitable tool until the disc rotor is locked.

8.

Turn back the adjuster 5 or 6 notches from the locked position.

9.

Rotate the disc rotor to check that there is no drag. Install the
adjusting hole plug. If there is any drag, refer to

PB-6, "Inspec-

tion and Adjustment"

.

10. Adjust the cable with the following procedure.

a.

Operate the parking brake lever with a force of 294 N (30 kg, 66
lb) for 10 strokes or more.

b.

Adjust the parking brake lever stroke by turning the adjusting
nut.

CAUTION:

Never reuse the adjusting nut if the adjusting nut removed.

Number of notches

: Refer to

PB-8, "Parking Brake Control"

.

Number of notches

: Refer to

PB-8, "Parking Brake Control"

NNFIB0001ZZ

JPFIB0002ZZ
