PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000009161720

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

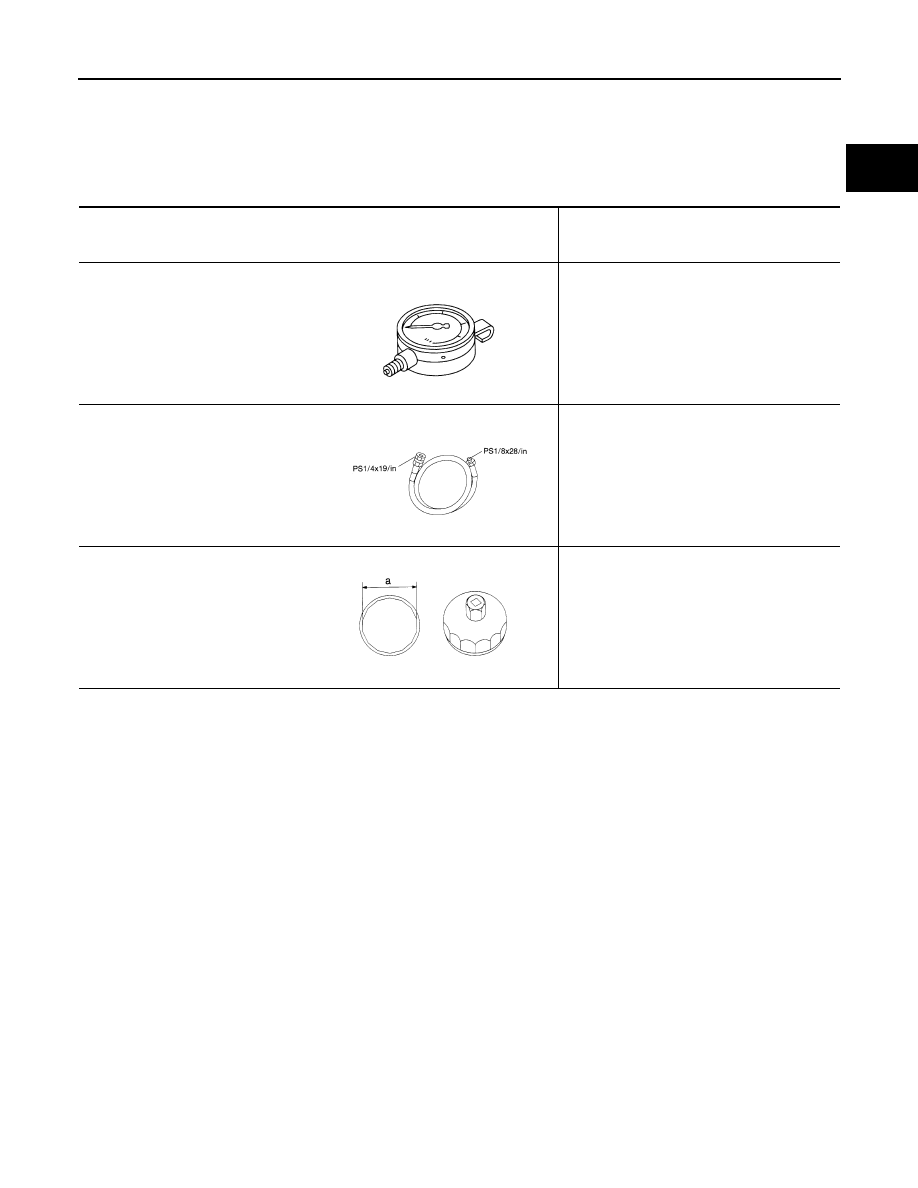

ST25051001
(J-25695-1)
Oil pressure gauge

Measuring oil pressure
Maximum measuring range: 2,452 kPa (25

kg/cm

2

, 356 psi)

ST25052000
(J-25695-2)
Hose

Adapting oil pressure gauge to oil pan (upper)

KV10115801
(J-38956)
Oil filter wrench

Removing and installing oil filter
a: 64.3 mm (2.531 in)

NT050

S-NT559

S-NT375

LU-4

< PERIODIC MAINTENANCE >

ENGINE OIL

PERIODIC MAINTENANCE

ENGINE OIL

Inspection

INFOID:0000000009164368

ENGINE OIL TEMPERATURE HISTORY

Check that engine oil temperature history is not stored in ECM. (This work is recommended to be performed
by GT-R certified NISSAN dealer.)

ENGINE OIL LEVEL

NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop
it and allow 5 minutes before checking.

1.

Pull out oil level gauge and wipe it clean.

2.

Insert oil level gauge and check the engine oil level is within the
range (A) shown in the figure.

3.

If it is out of range, adjust it.
• Adjust the engine oil level 10 mm below the H level within the

range A.
NOTE:
• Engine oil level check and oil refill must be performed con-

stantly [at least every 3000 km (1800 miles)].

• If the customer does not drive on following condition, it can

be filled up to H level:

- Higher-RPM (approaching redline) operation
- Frequent high pedal force braking from moderate and higher

speeds

- Frequent throttle activation
- Fast revving throughout the RPM range

• Engine oil is consumed by driving, and engine oil consumption increases under driving conditions listed

below:

- Frequent heavy load and high rpm.
- Frequent acceleration and deceleration.
- Traveling distance per driving is 10 km or less.
- Engine starting on a slope (e.g. hill).
NOTE:

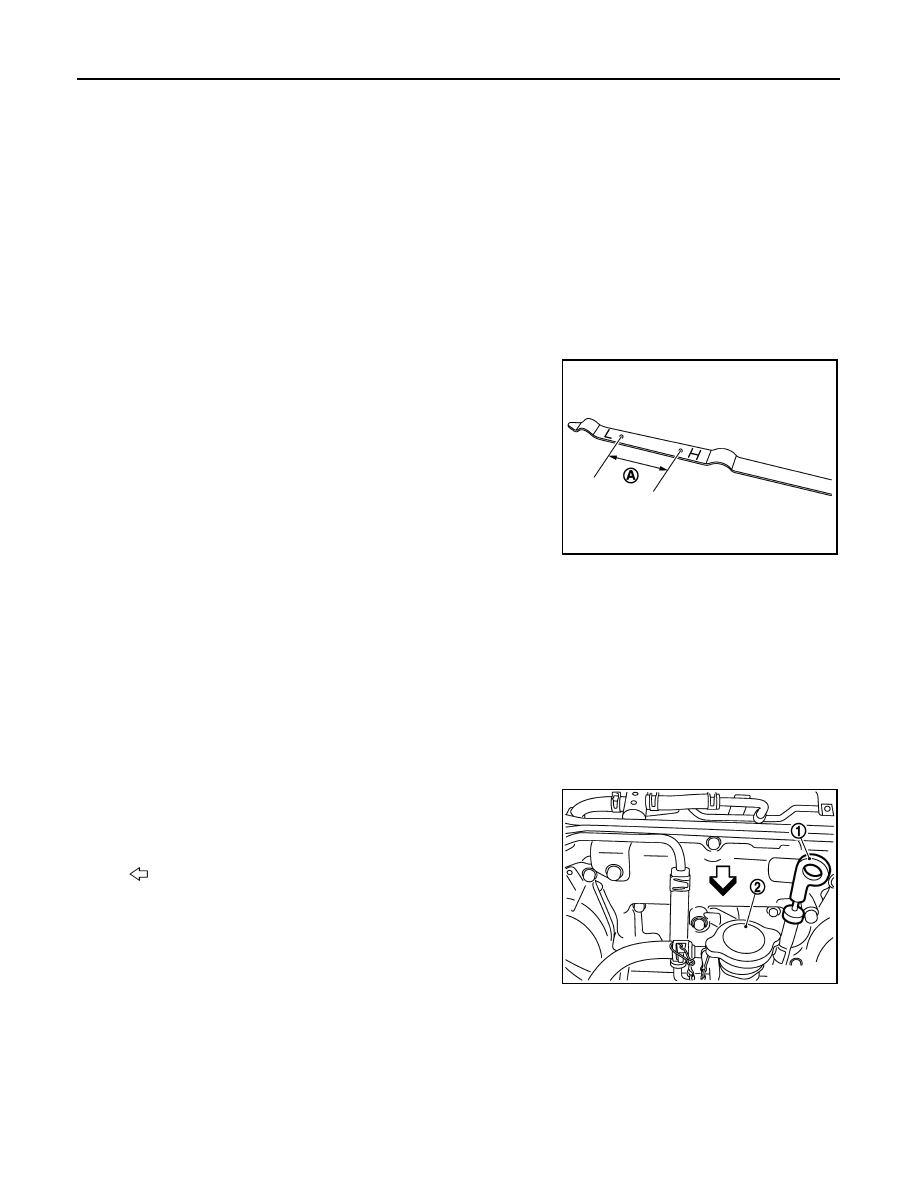

When checking the engine oil level, insert oil level gauge (1)
with its tip aligned with oil level gauge guide.

ENGINE OIL APPEARANCE

• Check engine oil for white turbidity or heavy contamination.
• If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.

Repair or replace damaged parts.

ENGINE OIL LEAKAGE

Visually check engine assembly surrounding area for smears and leakage of engine oil.

Maximum engine oil consumption

: 0.5L (1/2 US qt, 1/2 Imp qt) / 1000km (621-3/8 mile)

2

: Radiator cap

: Engine front

JPBIA0070ZZ

NNBIA0114ZZ

ENGINE OIL

LU-5

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

• *1: When the oil does not drop.

• *2: When the oil drops.

• *3: This work is recommended to be performed by GT-R certified NISSAN dealer.

LIST OF CHECKING POINTS FOR OIL LEAKAGE

Check for engine oil leakage around the following areas:
• Oil pans (lower and upper)
• Oil pan drain plug
• Oil pressure sensor
• Oil level sensor

Oil smears/leakage status from transmission assembly

Required operation

Reference

Smears

*1

Smears from each part on the engine assembly

1.

Use part cleaner or an equivalent to wipe out
smeared oil.

2.

Check again for oil leakage.

—

Leakage

*2

Mating surface of oil pan (upper and lower)

1.

Remove oil pan (upper and/or lower).

2.

Remove old liquid gasket completely, and
then install oil pan (upper and/or lower).

3.

Check for oil leakage.

*3

Drain plug

Replace the drain plug washer, and then check
for oil leakage.

*3

Oil filter

1.

Remove oil filter.

2.

Remove foreign materials adhering to oil fil-
ter installation surface.

3.

Install oil filter.

4.

Check for oil leakage.

*3

Oil filter bracket

1.

Check the mounting condition of oil filter
bracket, oil pressure sensor, oil cooler hose,
and oil thermostat.

2.

 Remove and reinstall above parts if there is
malfunction.

CAUTION:

Replace the O-ring and gasket when rein-
stalling the parts.

3.

Check for oil leakage.

*3

Oil cooler, oil cooler hose, and oil cooler pipe

1.

Specify oil leakage point.

2.

If oil leakage is from connection of parts, re-
move foreign materials from mating surface.

3.

Replace with a new gasket.

4.

If oil leakage is from the part itself, replace
with a new part.

5.

Check for oil leakage.

* 3

Mating surface of flywheel housing

1.

Remove flywheel housing assembly.

2.

Remove flywheel.

3.

Remove rear oil seal, and then check the oil
seal mounting surface and crankshaft.

4.

Replace the rear oil seal if there is not mal-
function.

5.

Check for oil leakage.

*3

Front oil seal

1.

Remove front oil seal, and then check the oil
seal mounting surface and crankshaft.

2.

Replace the front oil seal if there is not mal-
function.

3.

Check for oil leakage.

*3

Turbocharger

1.

Specify oil leakage point.

2.

If oil leakage is from oil tube connected, re-
move foreign materials from mating surface.

3.

Replace with a new gasket.

4.

If oil leakage is from the part itself, replace
turbocharger only.

5.

Check for oil leakage.

EM-26, "Ex-

ploded

View"

LU-6

< PERIODIC MAINTENANCE >

ENGINE OIL

• Oil temperature sensor
• Oil filter
• Oil filter bracket
• Valve timing control cover
• Intake valve timing control solenoid valve
• Mating surface between cylinder head and rocker cover
• Mating surface between front timing chain case and rear timing chain case
• Mating surface between rear timing chain case and cylinder head
• Mating surface between rear timing chain case and cylinder block
• Mating surface between rear timing chain case and oil pan (upper)
• Mating surface between cylinder block and cylinder head
• Mating surface between lower cylinder block and cylinder block
• Crankshaft oil seals (front and rear)
• Camshaft position sensor (PHASE)
• Turbocharger

Draining

INFOID:0000000009164369

WARNING:

• Be careful not to get burned, as engine oil may be hot.
• Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin

contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as
soon as possible.

1.

Warm up the engine, and check for engine oil leakage from engine components. Refer to

LU-4, "Inspec-

tion"

.

2.

Stop the engine and wait for 5 minutes.

3.

Loosen oil filler cap.

4.

Remove front undercover. Refer to

EXT-37, "FRONT UNDER COVER : Exploded View"

.

5.

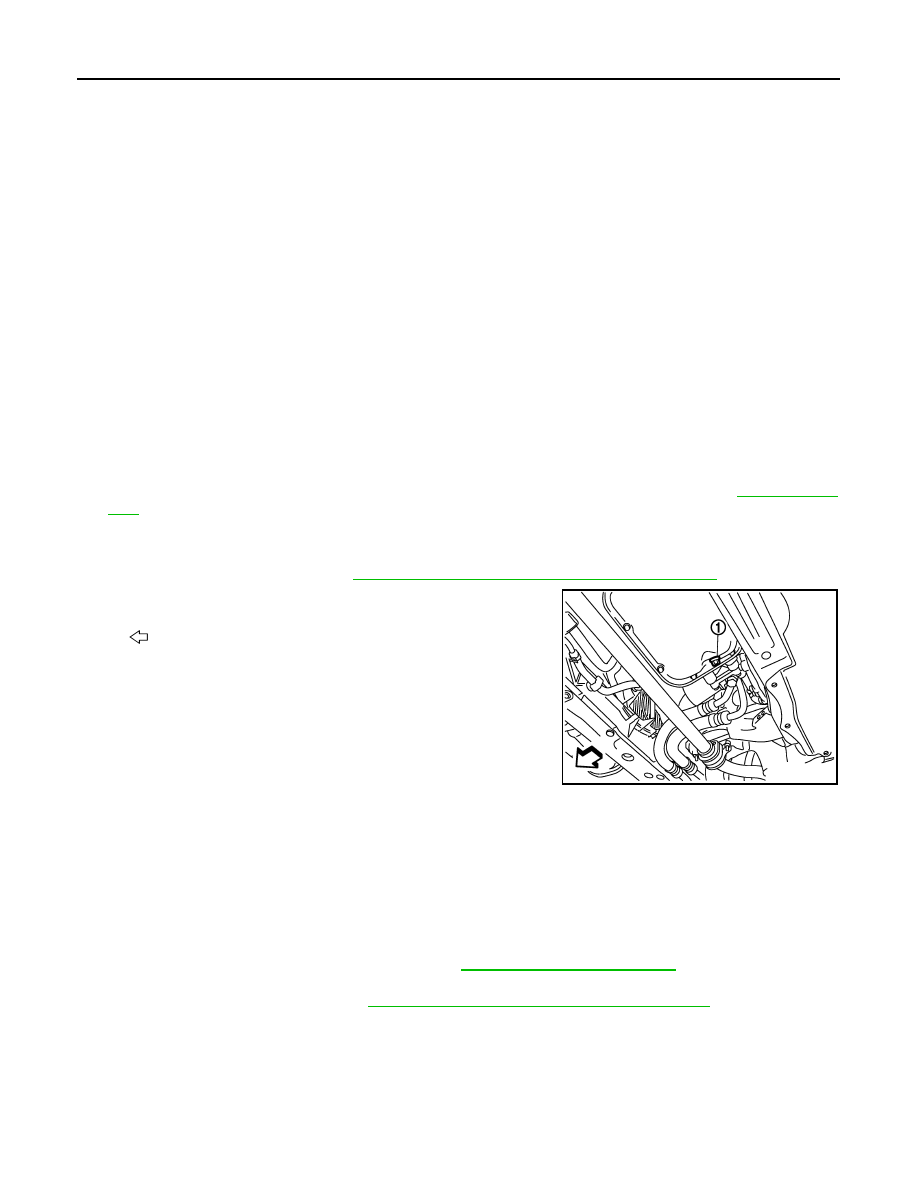

Remove drain plug (1) and then drain engine oil.

Refilling

INFOID:0000000009164370

1.

Install drain plug with new washer.

CAUTION:

Be sure to clean drain plug and install with new washer.

2.

Refill with new engine oil.
Engine oil specification and viscosity: Refer to

MA-22, "Fluids and Lubricants"

.

CAUTION:

• When filling engine oil, never pull out oil level gauge.
• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-

tions for reference only.

• Always use oil level gauge to determine the proper amount of engine oil in engine.

3.

Warm up the engine and check area around drain plug and oil filter for engine oil leakage.

: Vehicle front

NNBIA0115ZZ

Tightening torque

: 34.3 N·m (3.5 kg-m, 25 ft-lb)

Engine oil capacity

: Refer to

LU-9, "Periodical Maintenance Specification"

.
