PRECAUTIONS

INL-17

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

4.

Perform the necessary repair operation.

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from ACC position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT.

Precaution for Battery Service

INFOID:0000000009161931

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

INL-18

< REMOVAL AND INSTALLATION >

MAP LAMP

REMOVAL AND INSTALLATION

MAP LAMP

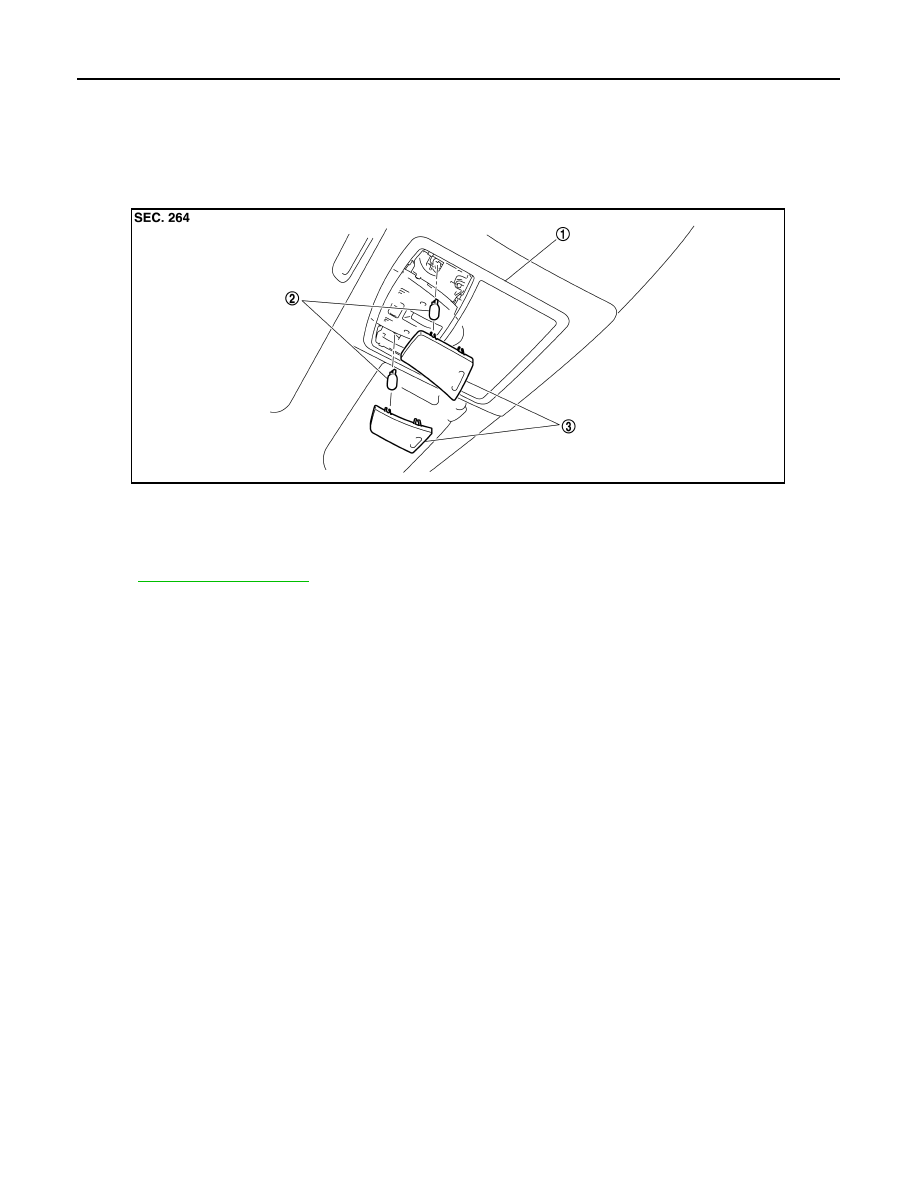

Exploded View

INFOID:0000000009161932

Removal and Installation

INFOID:0000000009161933

Refer to

INT-24, "Exploded View"

 for the map lamp assembly installation/removal.

Replacement

INFOID:0000000009161934

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

MAP LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Map lamp assembly

2.

Bulb

3.

Lens

JPLIA0059ZZ

VANITY MIRROR LAMP

INL-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

VANITY MIRROR LAMP

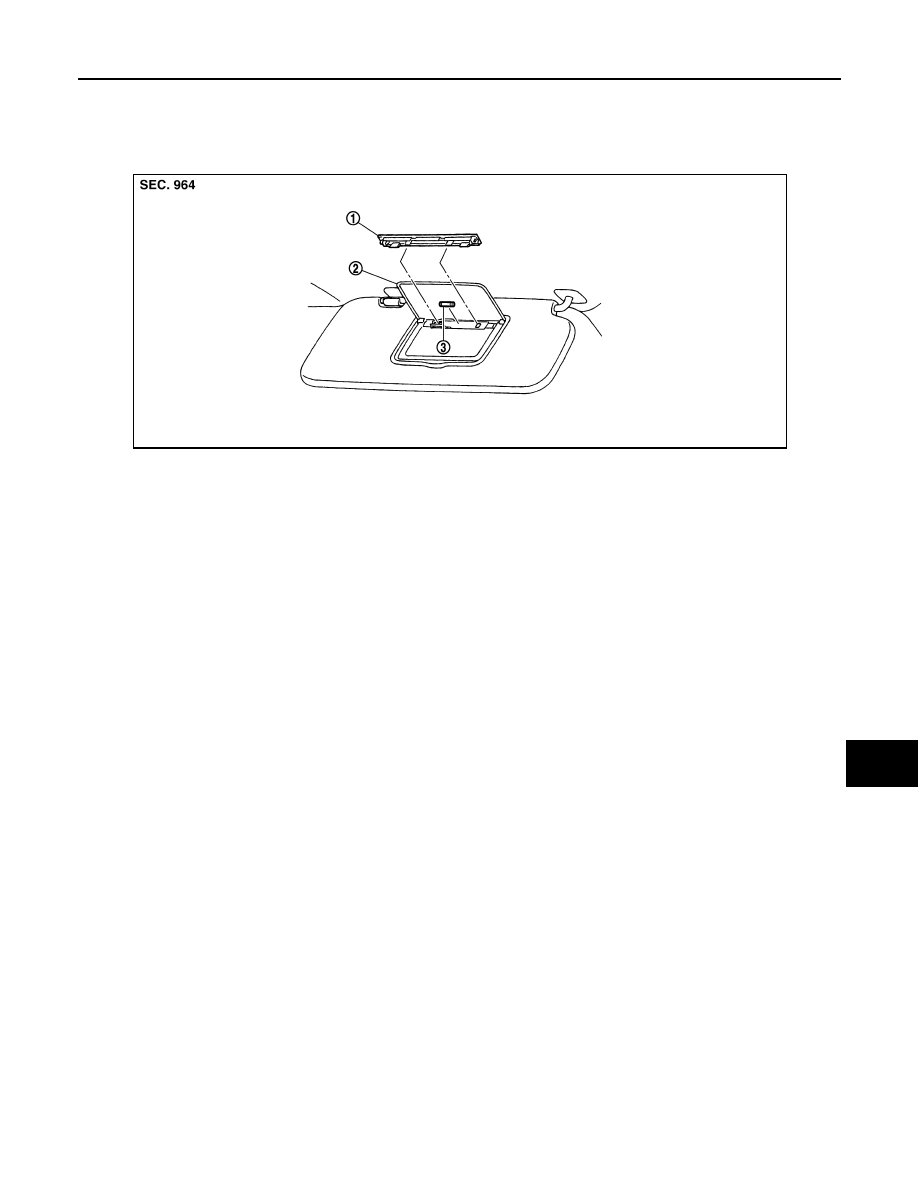

Exploded View

INFOID:0000000009161935

Replacement

INFOID:0000000009161936

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

VANITY MIRROR LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Lens

2.

Vanity mirror assembly

3.

Bulb

JPLIA0749ZZ

INL-20

< REMOVAL AND INSTALLATION >

GLOVE BOX LAMP

GLOVE BOX LAMP

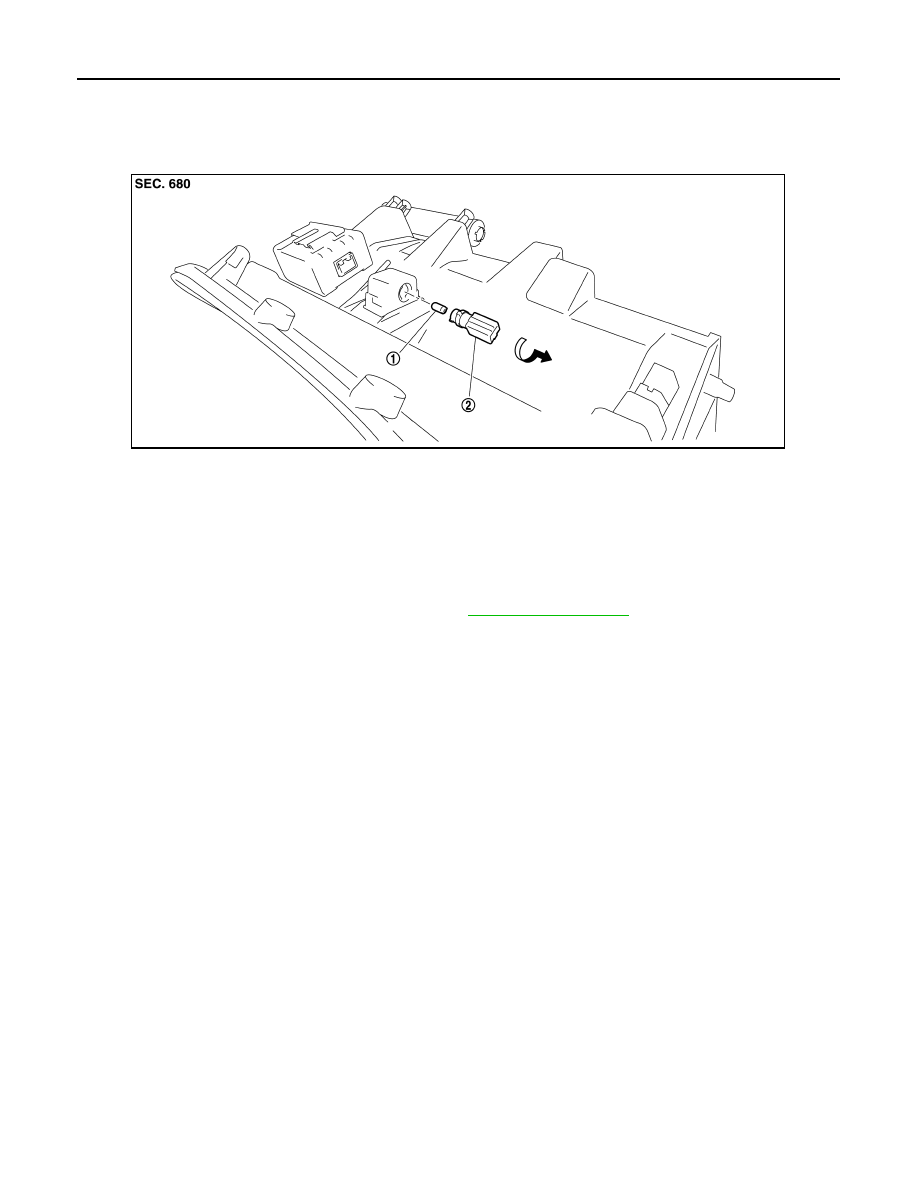

Exploded View

INFOID:0000000009161937

Replacement

INFOID:0000000009161938

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

GLOVE BOX LAMP BULB

1.

Remove the instrument assist lower panel. Refer to

IP-12, "Exploded View"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

1.

Bulb

2.

Bulb socket

JPLIA0066ZZ
