GI-48

< BASIC INSPECTION >

CONSULT/GST CHECKING SYSTEM

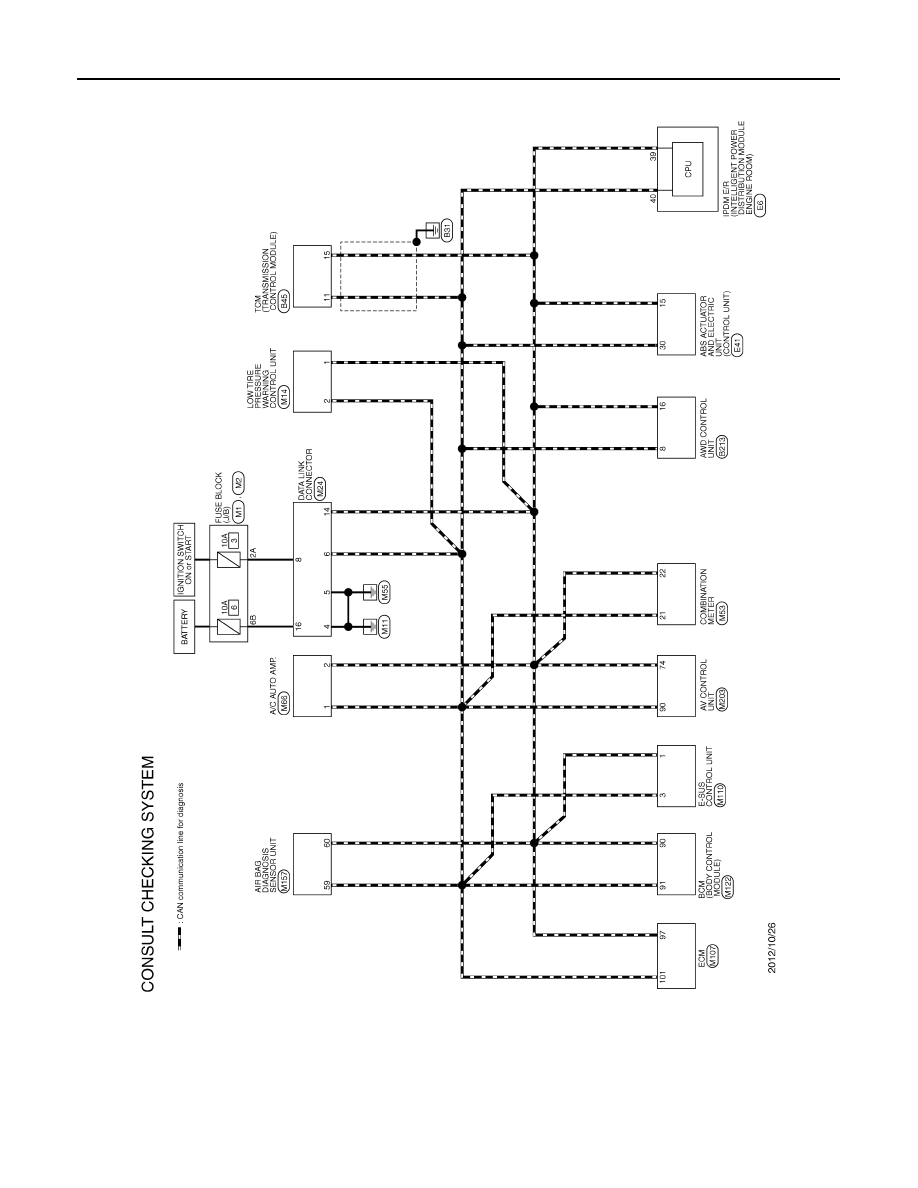

Wiring Diagram - CONSULT/GST CHECKING SYSTEM -

INFOID:0000000009161515

JRAWC0236GB

INSPECTION AND ADJUSTMENT

GI-49

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Re-
quired Procedure After Battery Disconnection

INFOID:0000000009161516

*: Not equipped.

SYSTEM

ITEM

REFERENCE

Automatic air conditioning sys-
tem

Temperature setting trimmer

—

Foot position setting trimmer

—

Inlet port memory function

—

Inlet port Memory function (FRE)

—

Inlet port Memory Function (REC)

—

Gas Sensor Sensitivity Adjustment Function

—

Auto Intake Switch Interlocking Movement Change

—

Clean Switch Interlocking Movement Change

—

Automatic drive positioner

Automatic drive positioner system

—

Power window control

Power window control system

PWC-4, "ADDITIONAL SERVICE

WHEN REMOVING BATTERY

NEGATIVE TERMINAL : Descrip-

tion"

Sunroof system

Sunroof system

—

Sunshade system

Sunshade system

—

Rear view monitor

Rear view monitor possible route line center position adjustment

—

Around view monitor

Predicted course line center position adjustment

—

Automatic back door system

Automatic back door system

—

Engine oil level read

Engine oil level read

—

GW-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

GW

A

B

GW

N

O

P

CONTENTS

GLASS & WINDOW SYSTEM

SYMPTOM DIAGNOSIS  ...............................

2

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

2

Work Flow  .................................................................

2

Inspection Procedure  ................................................

4

Diagnostic Worksheet  ...............................................

6

PRECAUTION ...............................................

8

PRECAUTIONS ...................................................

8

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

8

Precautions Necessary for Steering Wheel Rota-
tion After Battery Disconnection  ................................

8

Precaution for Battery Service  ..................................

9

Precaution for Procedure without Cowl Top Cover

......

9

Precaution for Work  ..................................................

9

PREPARATION ...........................................

10

PREPARATION ..................................................

10

Special Service Tools ..............................................

10

Commercial Service Tools .....................................

10

REMOVAL AND INSTALLATION ...............

11

WINDSHIELD GLASS  ........................................

11

Exploded View (GT-R certified NISSAN dealer)  .....

11

Removal and Installation (GT-R certified NISSAN
dealer) .....................................................................

12

Inspection (GT-R certified NISSAN dealer)  .............

15

SIDE WINDOW GLASS  ....................................

16

Exploded View (GT-R certified NISSAN dealer) ......

16

Removal and Installation (GT-R certified NISSAN
dealer) .....................................................................

17

Inspection (GT-R certified NISSAN dealer)  .............

18

REAR WINDOW GLASS  ..................................

19

Exploded View (GT-R certified NISSAN dealer) ......

19

Removal and Installation (GT-R certified NISSAN
dealer) .....................................................................

20

Inspection (GT-R certified NISSAN dealer)  .............

22

DOOR GLASS ...................................................

23

Exploded View (GT-R certified NISSAN dealer) ......

23

Removal and Installation (GT-R certified NISSAN
dealer) .....................................................................

23

Inspection and adjustment (GT-R certified NIS-
SAN dealer)  .............................................................

24

DOOR REGULATOR  ........................................

27

Exploded View (GT-R certified NISSAN dealer) ......

27

Removal and Installation (GT-R certified NISSAN
dealer) .....................................................................

27

Disassembly and assembly (GT-R certified NIS-
SAN dealer)  .............................................................

28

Inspection and adjustment (GT-R certified NIS-
SAN dealer)  .............................................................

29

GW-2

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SYMPTOM DIAGNOSIS

SQUEAK AND RATTLE TROUBLE DIAGNOSES

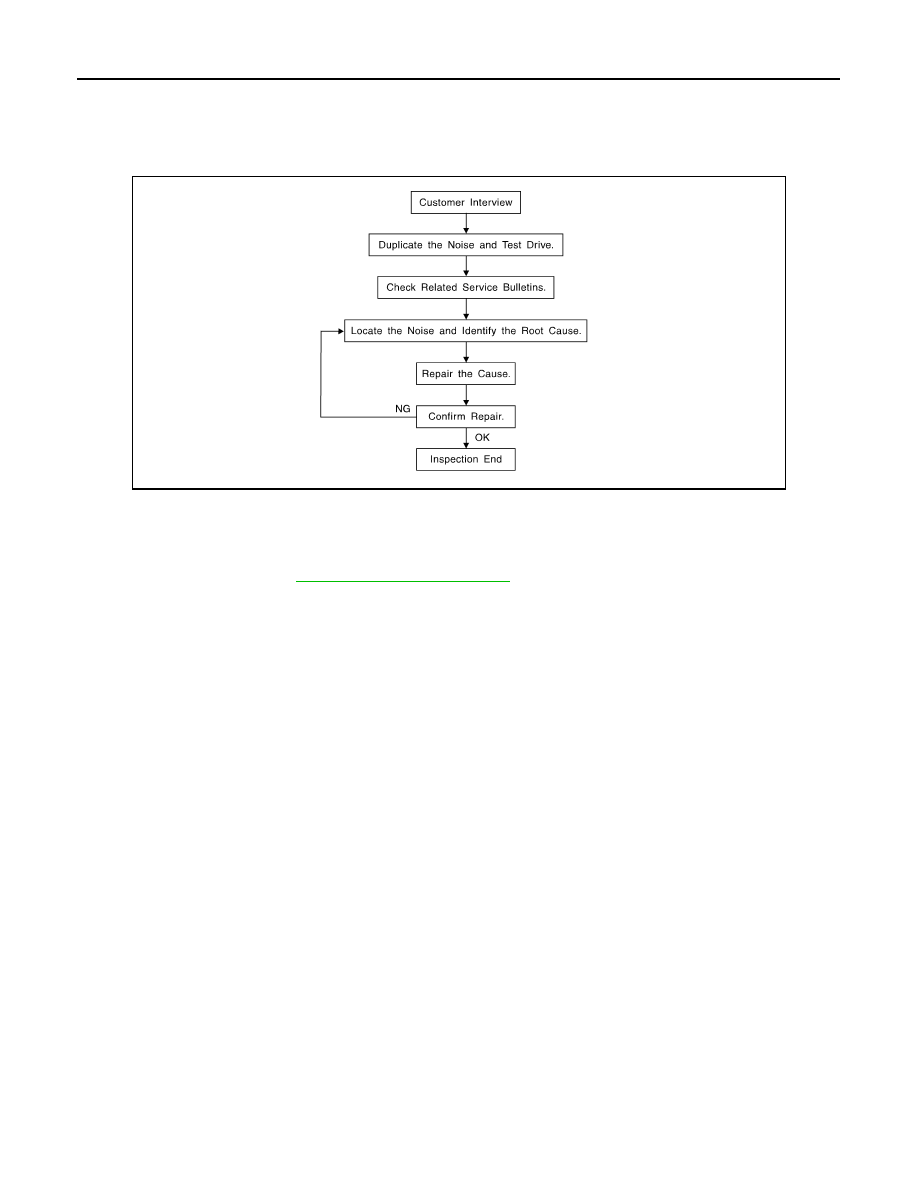

Work Flow

INFOID:0000000009161668

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any of
customer's comments; refer to

GW-6, "Diagnostic Worksheet"

. This information is necessary to duplicate the

conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, perform a diagnosis and repair the noise that the customer is

concerned about. This can be accomplished by performing a cruise test on the vehicle with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

• Squeak – (Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

• Creak – (Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.

• Rattle – (Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

• Knock – (Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick – (Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

• Thump – (Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz – (Like a bumblebee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending up on the person. A noise that a technician

may judge as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

SBT842
