SERVICE INFORMATION FOR ELECTRICAL INCIDENT

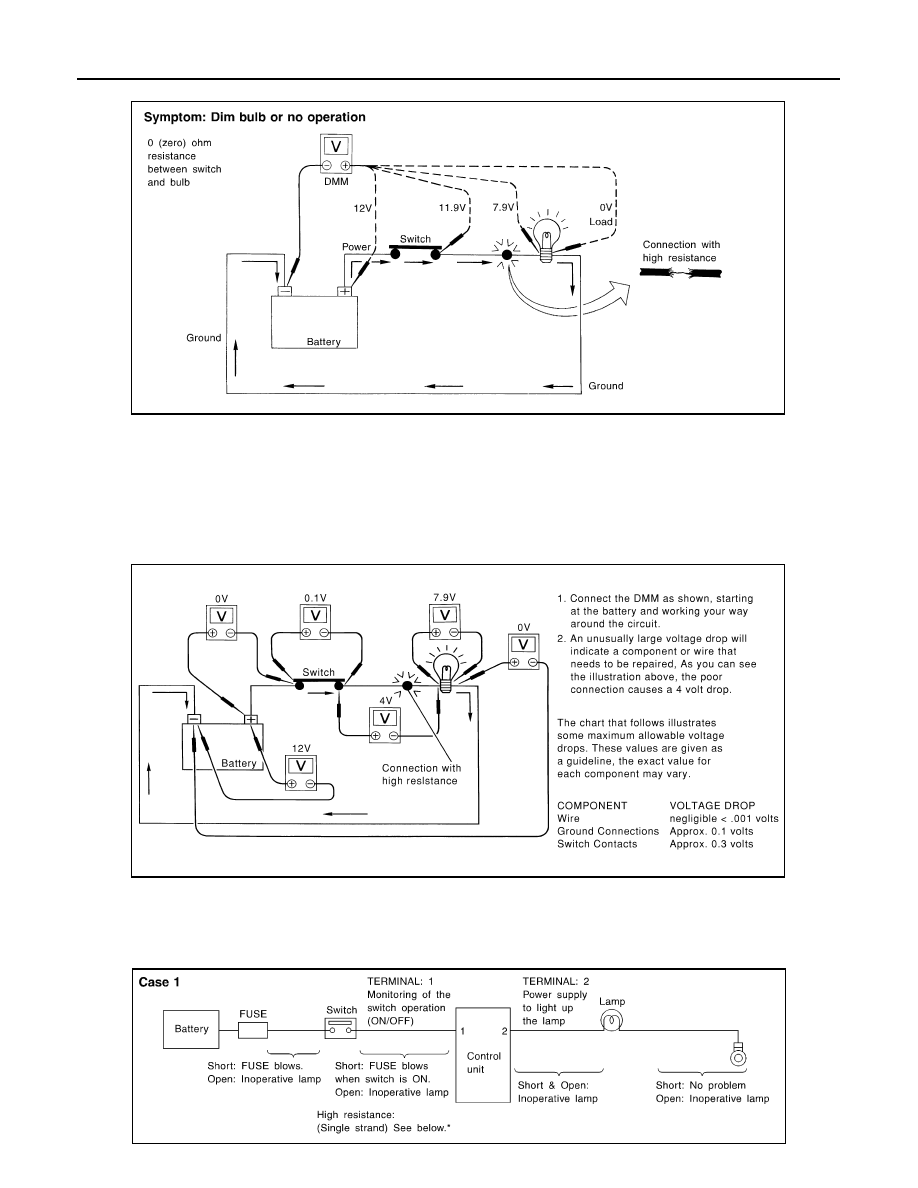

Note in the illustration that there is an excessive 4.1 volt drop between the battery and the bulb.

Measuring Voltage Drop — Step-by-Step

• The step-by-step method is most useful for isolating excessive drops in low voltage systems (such as those

in “Computer Controlled Systems”).

• Circuits in the “Computer Controlled System” operate on very low amperage.
• The (Computer Controlled) system operations can be adversely affected by any variation in resistance in the

system. Such resistance variation may be caused by poor connection, improper installation, improper wire
gauge or corrosion.

• The step by step voltage drop test can identify a component or wire with too much resistance.

CONTROL UNIT CIRCUIT TEST

System Description
• When the switch is ON, the control unit lights up the lamp.

CASE 1

SGI974

SAIA0258E

MGI034A

SERVICE INFORMATION FOR ELECTRICAL INCIDENT

GI-45

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

INPUT-OUTPUT VOLTAGE CHART

• The voltage value is based on the body ground.

• *: If high resistance exists in the switch side circuit (caused by a single strand), terminal 1 does not detect battery voltage. Control unit

does not detect the switch is ON even if the switch does not turn ON. Therefore, the control unit does not supply power to light up the
lamp.

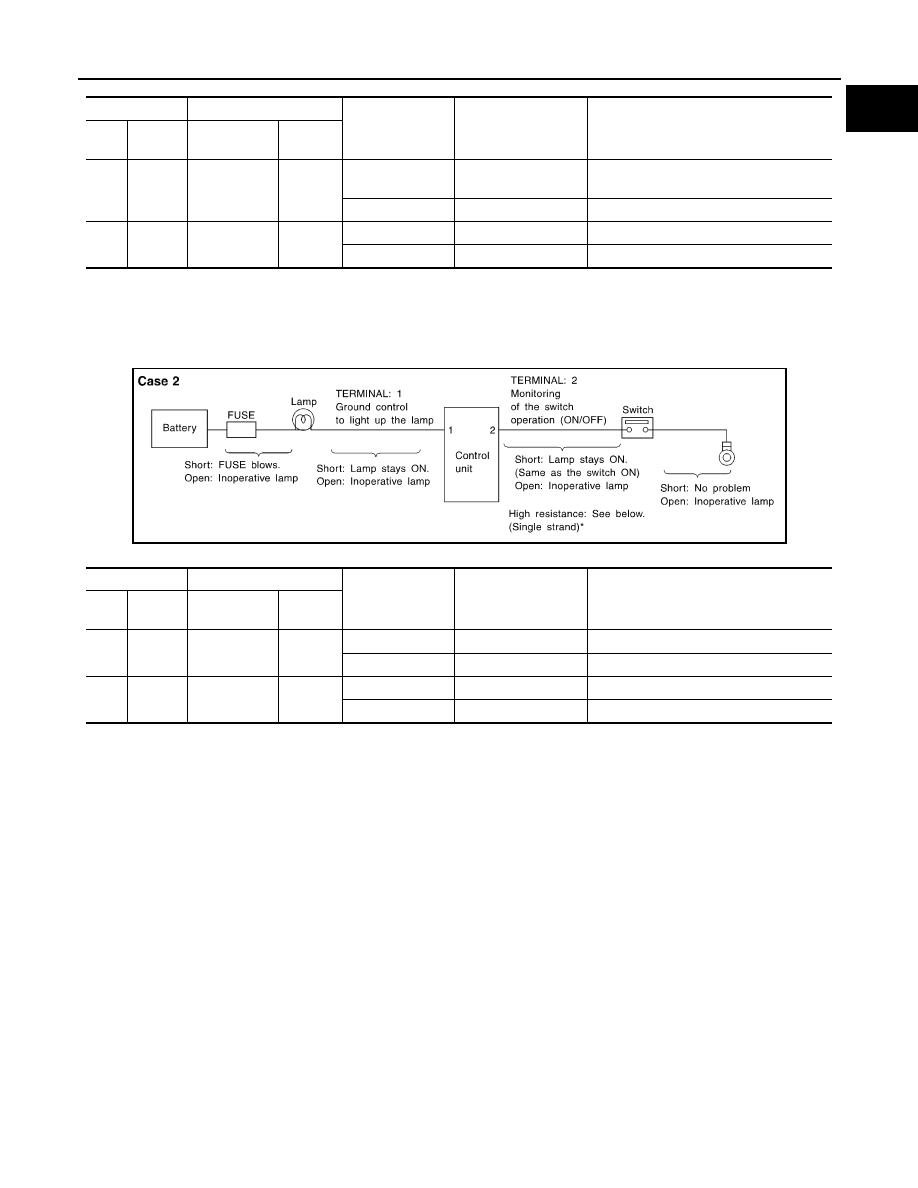

CASE 2

INPUT-OUTPUT VOLTAGE CHART

• The voltage value is based on the body ground.

• *: If high resistance exists in the switch side circuit (caused by a single strand), terminal 2 does not detect approx. 0 V. Control unit

does not detect the switch is ON even if the switch does not turn ON. Therefore, the control unit does not control ground to light up the
lamp.

Terminal No.

Description

Condition

Value (Approx.)

In case of high resistance such as single
strand (V) *

+

−

Signal name

Input/

Output

1

Body
ground

Switch

Input

Switch ON

Battery voltage

Lower than battery voltage Approx. 8 (Ex-
ample)

Switch OFF

0 V

Approx. 0

2

Body
ground

Lamp

Output

Switch ON

Battery voltage

Approx. 0 (Inoperative lamp)

Switch OFF

0 V

Approx. 0

Terminal No.

Description

Condition

Value (Approx.)

In case of high resistance such as single
strand (V) *

+

−

Signal name

Input/

Output

1

Body
ground

Lamp

Output

Switch ON

0 V

Battery voltage (Inoperative lamp)

Switch OFF

Battery voltage

Battery voltage

2

Body
ground

Switch

Input

Switch ON

0 V

Higher than 0 Approx. 4 (Example)

Switch OFF

5 V

Approx. 5

MGI035A

GI-46

< BASIC INSPECTION >

CONSULT/GST CHECKING SYSTEM

CONSULT/GST CHECKING SYSTEM

Description

INFOID:0000000009161512

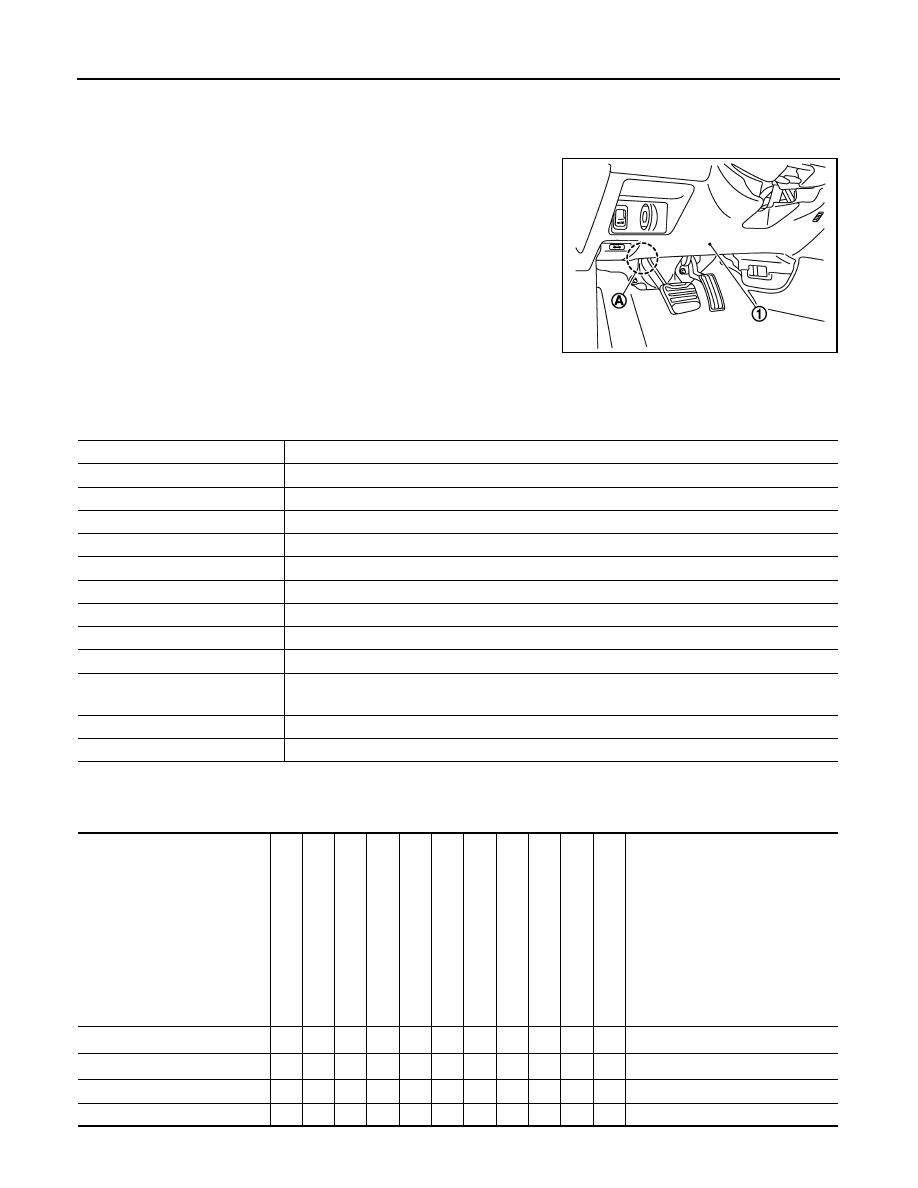

• When CONSULT/GST is connected with a data link connector (A)

equipped on the vehicle side, it will communicate with the control
unit equipped in the vehicle and then enable various kinds of diag-
nostic tests.

• Refer to “CONSULT Software Operation Manual” for more informa-

tion.

CONSULT Function and System Application*1

INFOID:0000000009161513

FUNCTION

*: Permanent DTC is not applied for regions where it is not mandated.

SYSTEM APPLICATION

*1

1
