EXL-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

EXL

A

B

EXL

N

O

P

CONTENTS

EXTERIOR LIGHTING SYSTEM

XENON TYPE

SYSTEM DESCRIPTION  ..............................

3

HEADLAMP SYSTEM .........................................

3

System Diagram ........................................................

3

System Description  ...................................................

3

Component Parts Location ........................................

4

Component Description ............................................

4

AUTO LIGHT SYSTEM  .......................................

5

System Diagram ........................................................

5

System Description  ...................................................

5

Component Parts Location ........................................

6

Component Description ............................................

6

DAYTIME RUNNING LIGHT SYSTEM  ...............

7

System Diagram ........................................................

7

System Description  ...................................................

7

Component Parts Location ........................................

8

Component Description ............................................

8

TURN SIGNAL AND HAZARD WARNING
LAMP SYSTEM  ...................................................

9

System Diagram ........................................................

9

System Description  ...................................................

9

Component Parts Location ......................................

10

Component Description ..........................................

10

PARKING, LICENSE PLATE AND TAIL
LAMPS SYSTEM ................................................

11

System Diagram ......................................................

11

System Description  .................................................

11

Component Parts Location ......................................

12

Component Description ..........................................

12

BACK-UP LAMP SYSTEM  ................................

13

System Diagram ......................................................

13

System Description  .................................................

13

Component Parts Location ......................................

14

Component Description ..........................................

14

EXTERIOR LAMP BATTERY SAVER SYS-
TEM ...................................................................

15

System Diagram  ......................................................

15

System Description ..................................................

15

Component Parts Location  ......................................

16

Component Description ..........................................

16

DIAGNOSIS SYSTEM (IPDM E/R)  ...................

17

Diagnosis Description ..............................................

17

DTC/CIRCUIT DIAGNOSIS  .........................

19

POWER SUPPLY AND GROUND CIRCUIT  ....

19

BCM (BODY CONTROL MODULE)  ..........................

19

BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ................................................................

19

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM)  ..............................

19

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure ......................................................................

19

XENON HEADLAMP .........................................

21

Description ...............................................................

21

Diagnosis Procedure  ...............................................

21

HAZARD SWITCH  ............................................

23

Description ...............................................................

23

Diagnosis Procedure  ...............................................

23

REAR SIDE MARKER LAMP CIRCUIT ............

25

Diagnosis Procedure  ...............................................

25

BACK-UP LAMP CIRCUIT  ...............................

26

Component Inspection .............................................

26

LICENSE PLATE LAMP CIRCUIT ....................

27

Diagnosis Procedure  ...............................................

27

OPTICAL SENSOR ...........................................

28

Description ...............................................................

28

EXL-2

Diagnosis Procedure  ..............................................

28

HEADLAMP SYSTEM  .......................................

31

Wiring Diagram - HEADLAMP - ..............................

31

AUTO LIGHT SYSTEM ......................................

32

Wiring Diagram - AUTO LIGHT SYSTEM -  ............

32

DAYTIME RUNNING LIGHT SYSTEM  ..............

33

Wiring Diagram - DAYTIME LIGHT SYSTEM -  ......

33

TURN SIGNAL AND HAZARD WARNING
LAMP SYSTEM  .................................................

34

Wiring Diagram - TURN AND HAZARD WARN-
ING LAMPS -  ..........................................................

34

PARKING, LICENSE PLATE AND TAIL
LAMPS SYSTEM  ...............................................

35

Wiring Diagram - PARKING LICENSE PLATE
AND TAIL LAMPS -  ................................................

35

STOP LAMP  ......................................................

37

Wiring Diagram - STOP LAMP -  .............................

37

BACK-UP LAMP ................................................

38

Wiring Diagram - BACK-UP LAMP - .......................

38

SYMPTOM DIAGNOSIS  .............................

39

NORMAL OPERATING CONDITION  ................

39

Description ..............................................................

39

PRECAUTION .............................................

40

PRECAUTIONS  .................................................

40

Precaution for Working Range at a Regular Deal-
ership ......................................................................

40

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

40

Precaution for Battery Service  ................................

40

Precautions Necessary for Steering Wheel Rota-
tion After Battery Disconnection  .............................

40

Precautions For Xenon Headlamp Service  ............

41

PERIODIC MAINTENANCE ........................

42

HEADLAMP AIMING ADJUSTMENT  ...............

42

Description ..............................................................

42

Aiming Adjustment Procedure  ................................

43

REMOVAL AND INSTALLATION ...............

45

FRONT COMBINATION LAMP  .........................

45

Exploded View  ........................................................

45

Removal and Installation .........................................

45

Replacement ...........................................................

47

Disassembly and Assembly  ....................................

48

Inspection After Installation (HID Control Unit)  .......

48

DAYTIME RUNNING LIGHT  .............................

50

Exploded View  ........................................................

50

Removal and Installation .........................................

50

FRONT SIDE MARKER LAMP  .........................

52

Exploded View  ........................................................

52

Removal and Installation .........................................

52

Replacement ...........................................................

52

LIGHTING & TURN SIGNAL SWITCH ..............

54

Exploded View  ........................................................

54

HAZARD SWITCH  .............................................

55

Exploded View  ........................................................

55

REAR COMBINATION LAMP  ...........................

56

Exploded View  ........................................................

56

Removal and Installation .........................................

56

Replacement ...........................................................

57

REAR SIDE MARKER LAMP ............................

58

Exploded View  ........................................................

58

Removal and Installation .........................................

58

HIGH-MOUNTED STOP LAMP  .........................

59

Exploded View  ........................................................

59

Removal and Installation .........................................

59

LICENSE PLATE LAMP ....................................

60

Exploded View  ........................................................

60

Removal and Installation .........................................

60

Replacement ...........................................................

60

REAR FOG LAMP  .............................................

62

Exploded View  ........................................................

62

Removal and Installation .........................................

62

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

63

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

63

Bulb Specifications ..................................................

63

HEADLAMP SYSTEM

EXL-3

< SYSTEM DESCRIPTION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SYSTEM DESCRIPTION

HEADLAMP SYSTEM

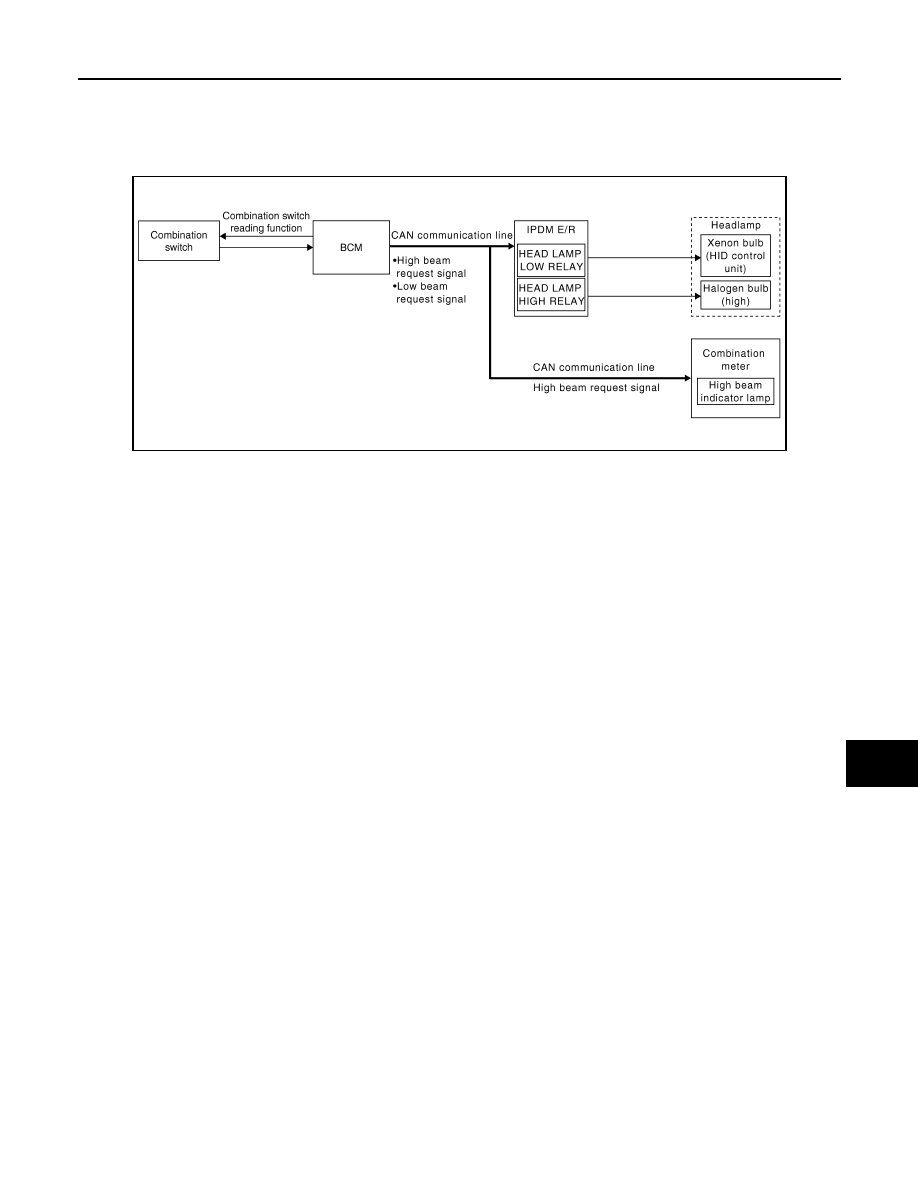

System Diagram

INFOID:0000000009160283

System Description

INFOID:0000000009160284

OUTLINE

Headlamp is controlled by combination switch reading function and headlamp control function of BCM, and
relay control function of IPDM E/R.

HEADLAMP (LO) OPERATION

• BCM detects the combination switch condition with the combination switch reading function.
• BCM transmits the low beam request signal to IPDM E/R with CAN communication according to the head-

lamp (LO) ON condition.

Headlamp (LO) ON condition

- Lighting switch 2ND
- Lighting switch AUTO, and the auto light function ON judgement
• IPDM E/R turns the integrated headlamp low relay ON, and turns the headlamp ON according to the low

beam request signal.

HEADLAMP (HI) OPERATION

• BCM transmits the high beam request signal to IPDM E/R and the combination meter with CAN communica-

tion according to the headlamp (HI) ON condition.

Headlamp (HI) ON condition

- Lighting switch PASS
- Lighting switch HI and any of the following
• Lighting switch 2ND
• Lighting switch AUTO, and the auto light function on judgement
• Combination meter turns the high beam indicator lamp ON according to the high beam request signal.
• IPDM E/R turns the integrated headlamp high relay ON, and turns the headlamp ON according to the high

beam request signal.

JPLIA0168GB

EXL-4

< SYSTEM DESCRIPTION >

[XENON TYPE]

HEADLAMP SYSTEM

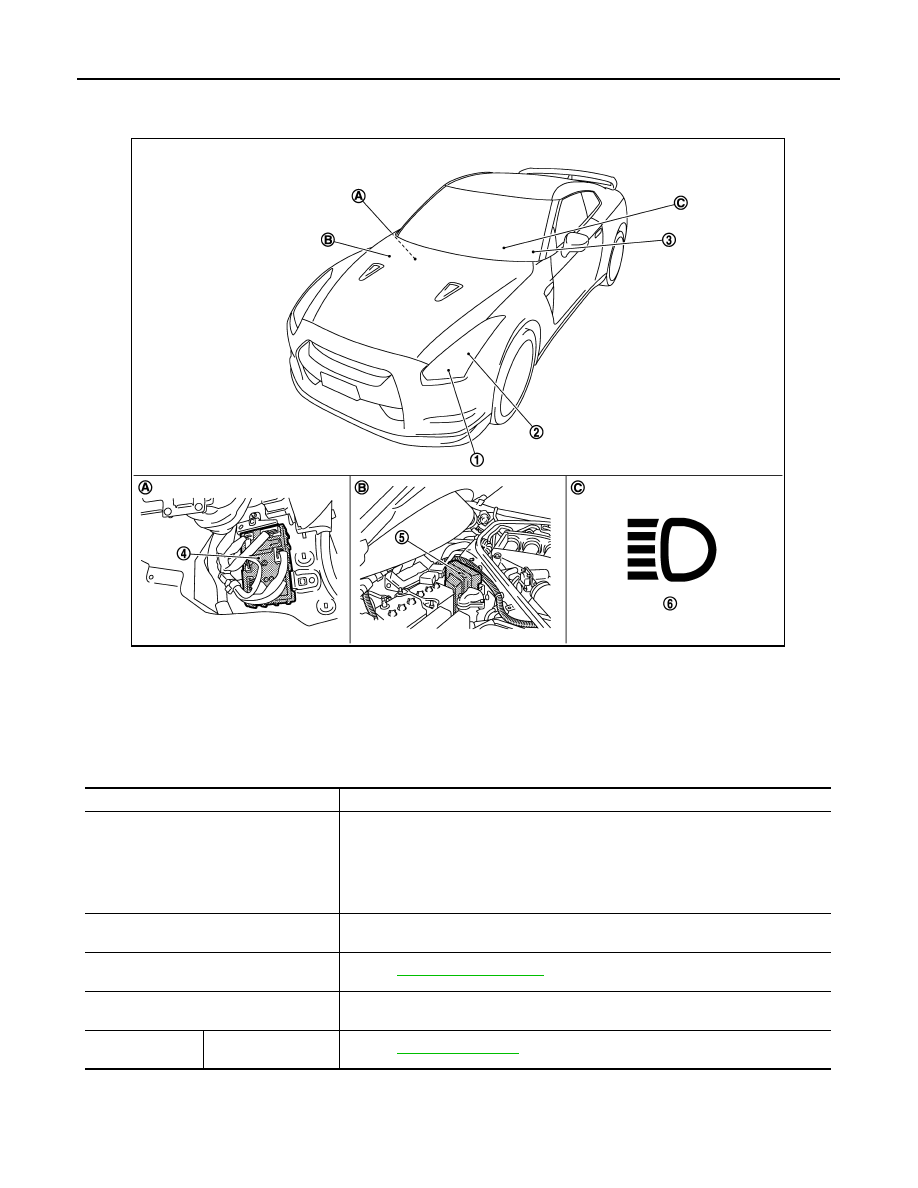

Component Parts Location

INFOID:0000000009160285

Component Description

INFOID:0000000009160286

1.

Headlamp (HI)

2.

Headlamp (LO)

3.

Combination switch

4.

BCM

5.

IPDM E/R

6.

High beam indicator lamp

A.

Dash side lower (passenger side)

B.

Engine room dash panel (RH)

C.

On the combination meter

JPLIA1167ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges that the headlamp is turned ON according to the vehicle condition.
- Requests the headlamp relay (High/Low) ON to IPDM E/R (with CAN communica-

tion).

- Requests the high beam indicator lamp ON to the combination meter (with CAN

communication).

IPDM E/R

Controls the integrated relay, and supplies voltage to the load according to the request
from BCM (with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-5, "System Diagram"

.

Combination meter
(High beam indicator lamp)

Turns the high beam indicator lamp ON according to the request from BCM (with CAN
communication).

Front combination
lamp assembly

• HID control unit
• Xenon bulb

Refer to

EXL-21, "Description"

.
