IGNITION COIL, SPARK PLUG AND ROCKER COVER

IGNITION COIL, SPARK PLUG AND ROCKER COVER

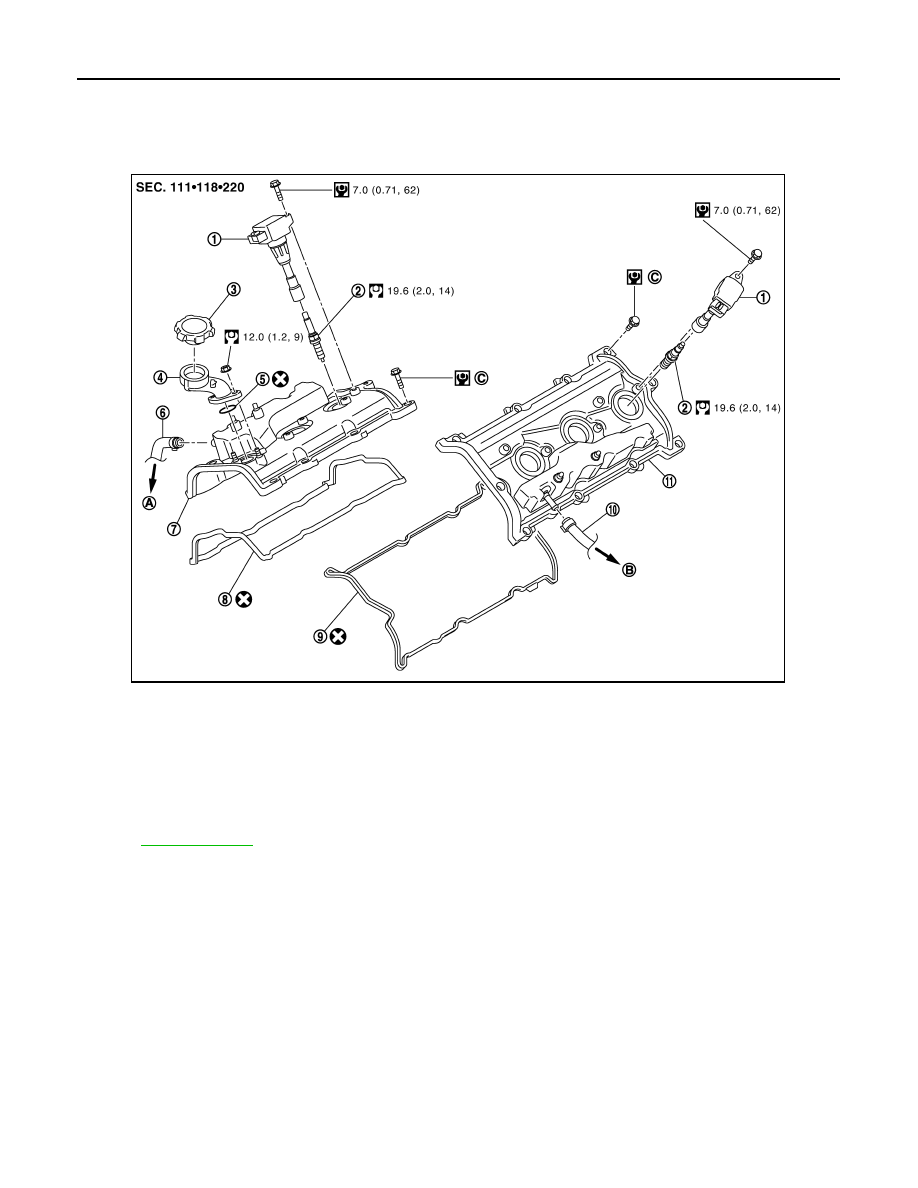

Exploded View

INFOID:0000000009162846

1.

Ignition coil

2.

Spark plug

3.

Oil filler cap

4.

Oil filler tube

5.

O-ring

6.

Fresh air hose

7.

Rocker cover (bank 1)

8.

Rocker cover gasket (bank 1)

9.

Rocker cover gasket (bank 2)

10.

Fresh air hose

11.

Rocker cover (bank 2)

A.

To fresh air tube (bank 1)

B.

To fresh air tube (bank 2)

C.

This work is recommended to be per-
formed by GT-R certified NISSAN
dealer.

Refer to

GI-4, "Components"

 for symbols in the figure.

NNBIA0067ZZ

CATALYST

EM-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CATALYST

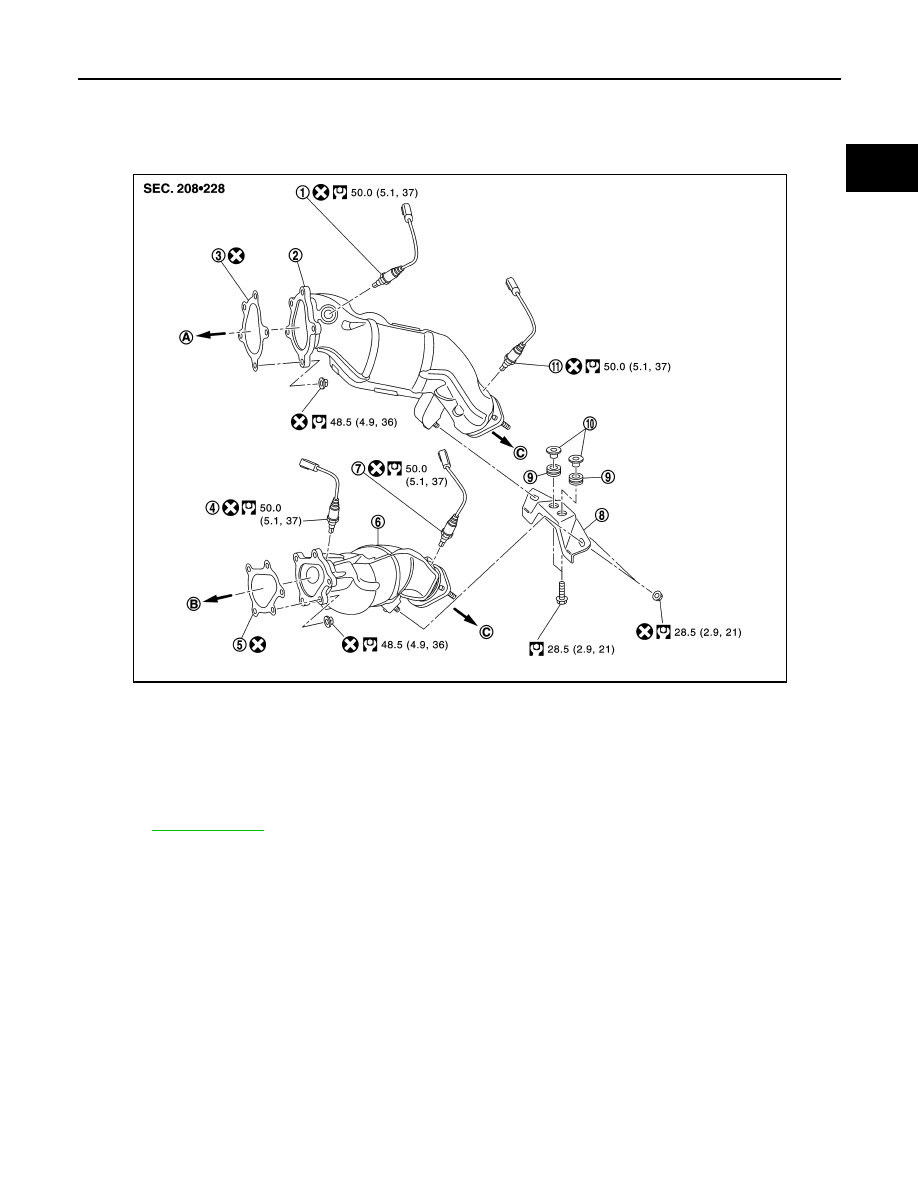

Exploded View

INFOID:0000000009162848

1.

Air fuel ratio sensor 1 (bank 1)

2.

Three way catalyst (bank 1)

3.

Gasket

4.

Air fuel ratio sensor 1 (bank 2)

5.

Gasket

6.

Three way catalyst (bank 2)

7.

Heated oxygen sensor 2 (bank 2)

8.

Bracket

9.

Mounting rubber

10. Collar

11. Heated oxygen sensor 2 (bank 1)

A.

To exhaust manifold and turbocharger
assembly (bank 1)

B.

To exhaust manifold and turbocharg-
er assembly (bank 2)

C.

To sub muffler

Refer to

GI-4, "Components"

 for symbols in the figure.

JSBIA1121GB

EM-26

< UNIT DISASSEMBLY AND ASSEMBLY >

EXHAUST MANIFOLD AND TURBOCHARGER ASSEMBLY

UNIT DISASSEMBLY AND ASSEMBLY

EXHAUST MANIFOLD AND TURBOCHARGER ASSEMBLY

Exploded View

INFOID:0000000009162855

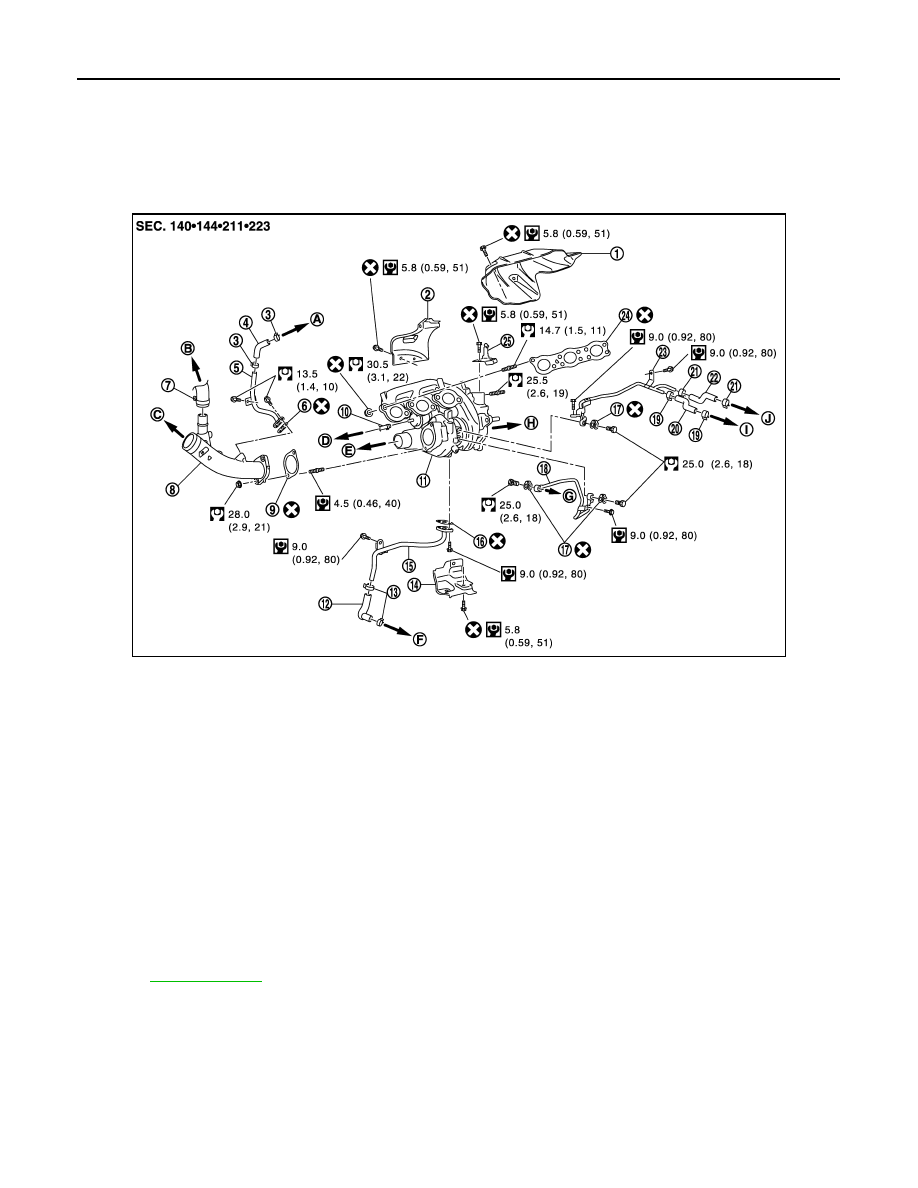

Bank 1 side

NNBIA0043GB

1.

Exhaust manifold cover

2.

Insulator (upper)

3.

Clamp

4.

Fresh air hose

5.

Fresh air tube

6.

Gasket

7.

Recirculation hose

8.

Air inlet pipe

9.

Gasket

10. Vacuum hose

11.

Exhaust manifold and turbocharger
assembly

12.

Oil return hose

13. Clamp

14. Insulator (lower)

15.

Oil return tube

16. Gasket

17. Gasket

18.

Water inlet tube

19. Clamp

20. Water hose

21.

Clamp

22. Water hose

23. Water outlet tube

24.

Gasket

25. Bracket

A.

To rocker cover (bank 1)

B.

To recirculation valve (bank 1)

C.

To air cleaner (bank 1)

D.

To turbocharger boost control sole-
noid valve

E.

To charge air cooler

F.

To oil filter bracket

G.

To cylinder block

H.

To three way catalyst (bank 1)

I.

To heater pipe

J.

To air cut solenoid valve (bank 2)

Refer to

GI-4, "Components"

 for symbols in the figure.

EXHAUST MANIFOLD AND TURBOCHARGER ASSEMBLY

EM-27

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

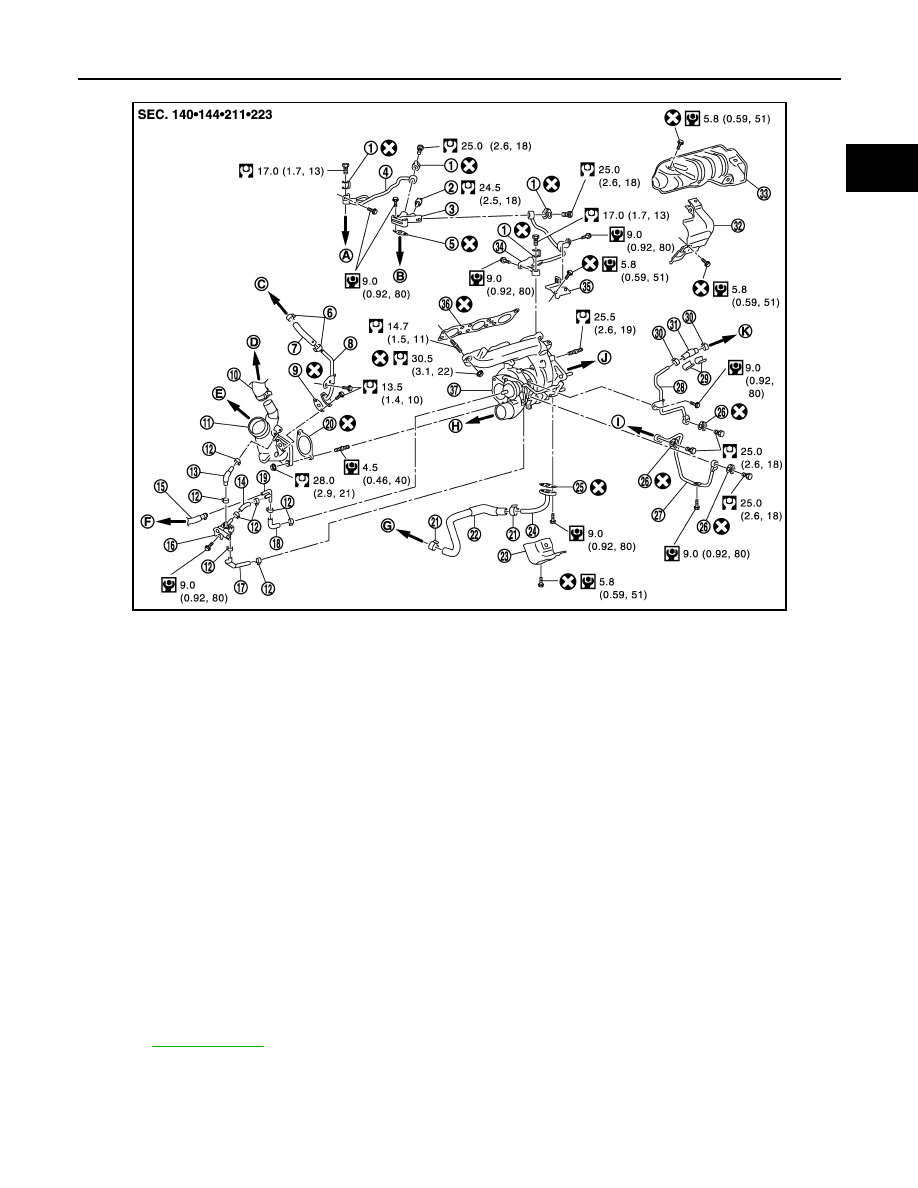

Bank 2 side

NNBIA0171GB

1.

Gasket

2.

Oil temperature sensor

3.

Oil feed adapter

4.

Oil feed tube (bank 1)

5.

Gasket

6.

Clamp

7.

Fresh air hose

8.

Fresh air tube

9.

Gasket

10. Recirculation hose

11. Air inlet pipe

12.

Clamp

13. Vacuum hose

14. Vacuum hose

15.

Vacuum hose

16.

Turbocharger boost control solenoid
valve

17. Vacuum hose

18.

Vacuum hose

19. 3- WAY connector

20. Gasket

21.

Clamp

22. Oil return hose

23. Insulator (lower)

24.

Oil return tube

25. Gasket

26. Gasket

27.

Water inlet tube

28. Water outlet tube

29. Clip

30.

Clamp

31. Water hose

32. Insulator (upper)

33.

Exhaust manifold cover

34. Oil feed tube

35. Bracket

36.

Gasket

37.

Exhaust manifold and turbocharger
assembly

A.

To exhaust manifold and turbocharger
assembly (bank 1)

B.

To cylinder block

C.

To rocker cover (bank 2)

D.

To recirculation valve (bank 2)

E.

To air cleaner (bank 2)

F.

To exhaust manifold and turbo-
charger assembly (bank 1)

G.

To oil pan (upper)

H.

To charge air cooler

I.

To cylinder block

J.

To three way catalyst (bank 2)

K.

To heater pipe

Refer to

GI-4, "Components"

 for symbols in the figure.
