AV

MULTIFUNCTION SWITCH

AV-179

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000009163448

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009163449

REMOVAL

1.

Remove the cluster lid C. Refer to

IP-13, "Removal and Installation"

.

2.

Remove the screws (A), and then remove the multifunction
switch from the cluster lid C (upper).

INSTALLATION

Installation is the reverse order of removal.

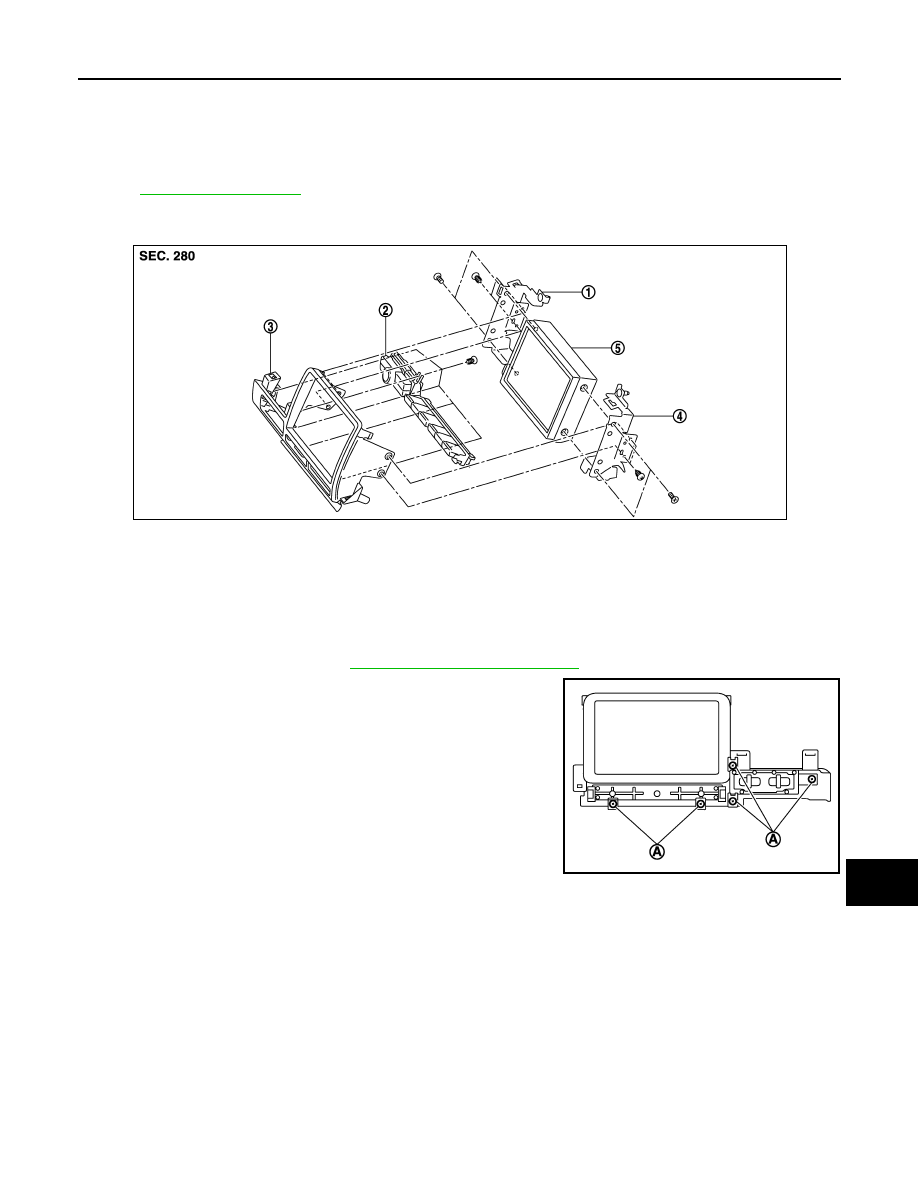

1.

Bracket (LH)

2.

Multifunction switch

3

Cluster lid C (upper)

4.

Bracket (RH)

5.

Display unit

JPNIA1135ZZ

JPNIA1136ZZ

AV-180

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

PRESET SWITCH

PRESET SWITCH

Exploded View

INFOID:0000000009163450

REMOVAL

Refer to

IP-12, "Exploded View"

.

Removal and Installation

INFOID:0000000009163451

REMOVAL

1.

Remove the instrument panel garnish (upper) and the instrument panel garnish LH/RH. Refer to

IP-13,

"Removal and Installation"

.

2.

Remove the screws and disconnect the connector, and then remove the preset switch.

INSTALLATION

Install in the reverse order of removal.

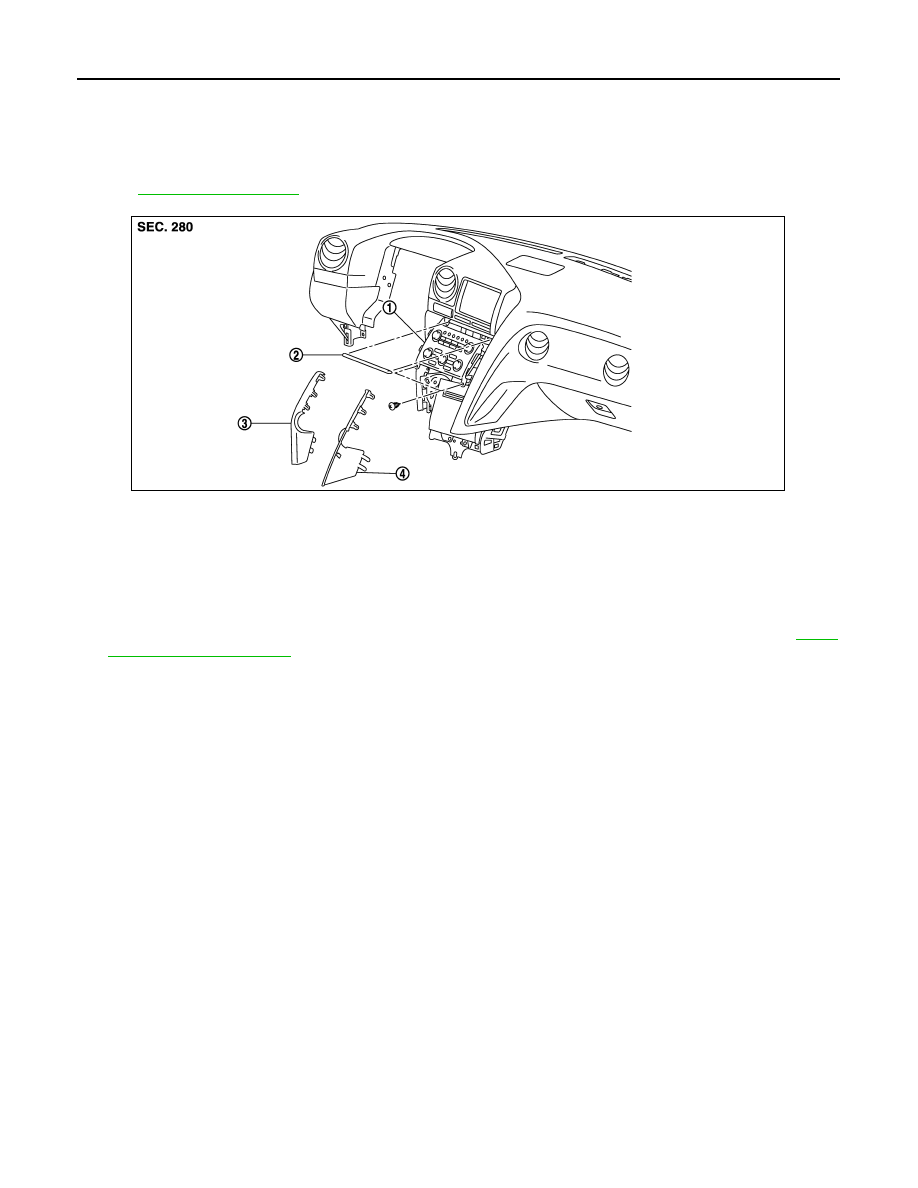

1.

Preset switch

2.

Instrument panel garnish (upper)

3.

Instrument panel garnish LH

4.

Instrument panel garnish RH

JPNIA1137ZZ

AV

DISK EJECT SWITCH

AV-181

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISK EJECT SWITCH

Exploded View

INFOID:0000000009163452

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009163453

REMOVAL

1.

Remove the cluster lid C (lower). Refer to

IP-13, "Removal and Installation"

.

2.

Remove the screws (A), and then remove the disk eject switch.

INSTALLATION

Install in the reverse order of removal.
NOTE:
When installing disk eject switch, do not allow the hard wire that connects disk eject switch and preset switch
to get caught in between AV control unit and disk eject switch.

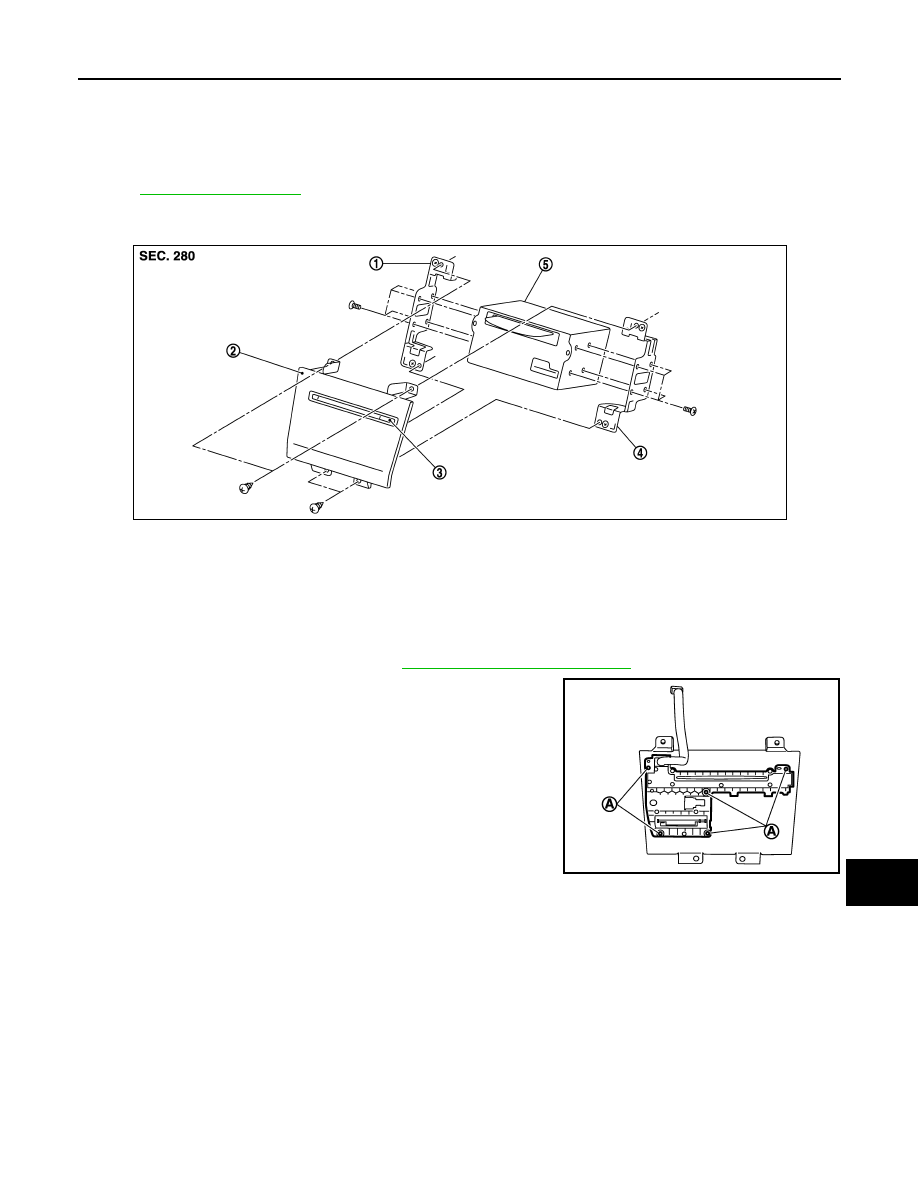

1.

Bracket LH

2.

Cluster lid C (lower)

3.

Disk eject switch

4.

Bracket RH

5.

AV control unit

NNNIA0171ZZ

NNNIA0091ZZ

AV-182

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

STEERING SWITCH

STEERING SWITCH

Exploded View

INFOID:0000000009163454

Refer to

ST-10, "Exploded View"

.

Removal and Installation

INFOID:0000000009163455

REMOVAL

Refer to

ST-10, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.
