AV

REAR SPEAKER

AV-175

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

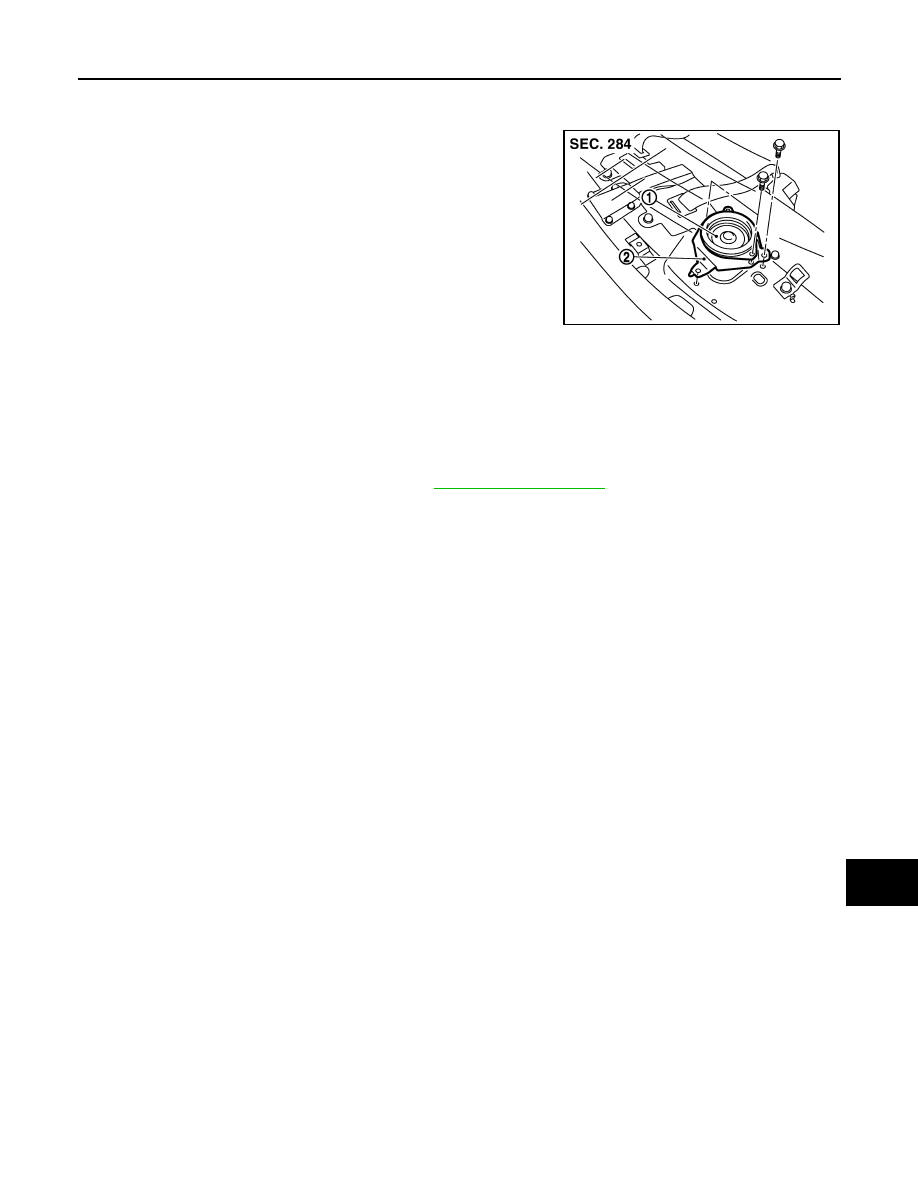

REAR SPEAKER

Exploded View

INFOID:0000000009163440

Removal and Installation

INFOID:0000000009163441

REMOVAL

1.

Remove the rear parcel shelf finisher. Refer to

INT-19, "Exploded View"

.

2.

Remove the rear speaker bracket mounting screws and disconnect the connector, and then remove the
rear speaker together with the speaker bracket.

3.

Remove the speaker from the speaker bracket.

INSTALLATION

Install in the reverse order of removal.

NNNIA0038ZZ

1.

Rear speaker

2.

Speaker bracket

AV-176

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

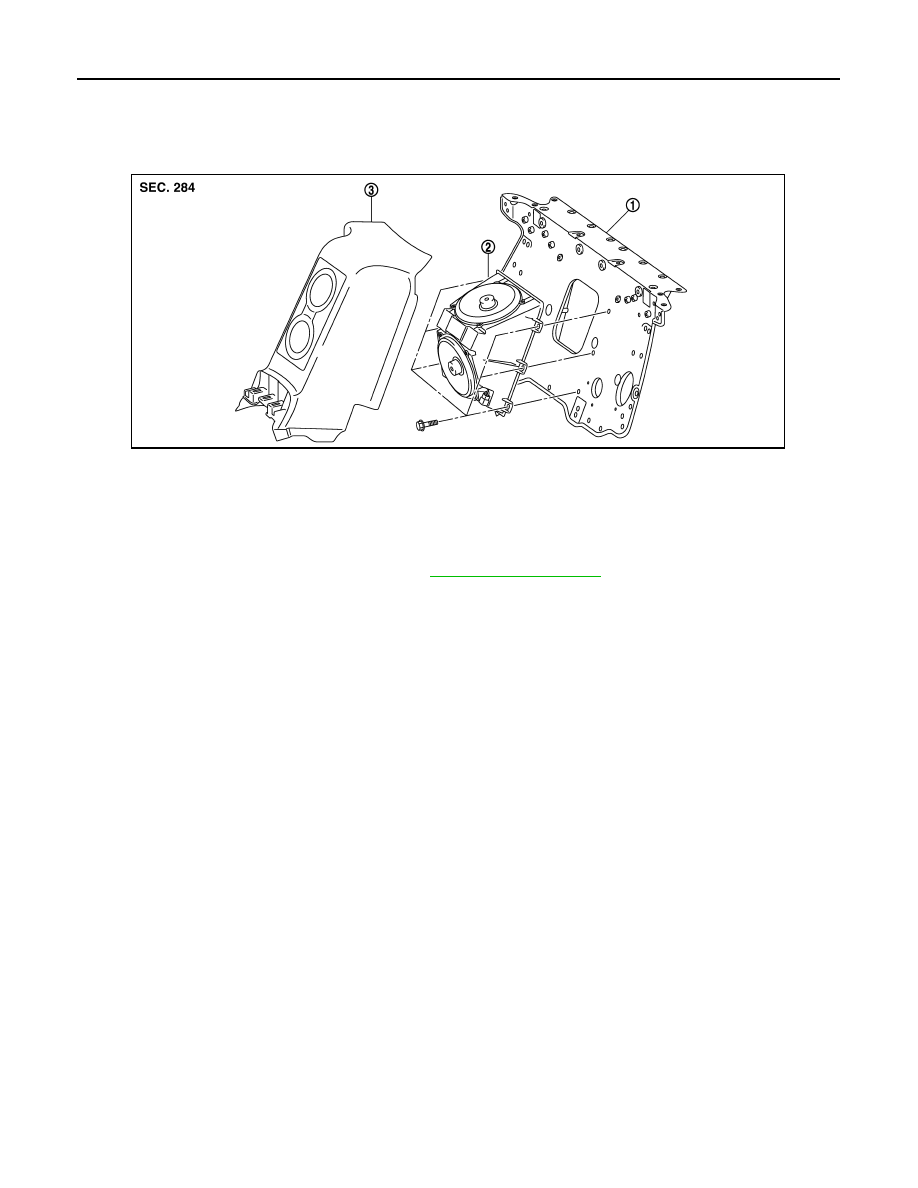

WOOFER

WOOFER

Exploded View

INFOID:0000000009163442

Removal and Installation

INFOID:0000000009163443

REMOVAL

1.

Remove the rear seat center finisher. Refer to

INT-19, "Exploded View"

.

2.

Remove the mounting screws and disconnect the connector, and then remove the woofer.

INSTALLATION

Install in the reverse order of removal.

1.

Rear seatback support

2.

Woofer

3.

Rear seat center finisher

NNNIA0088ZZ

AV

BOSE AMP.

AV-177

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

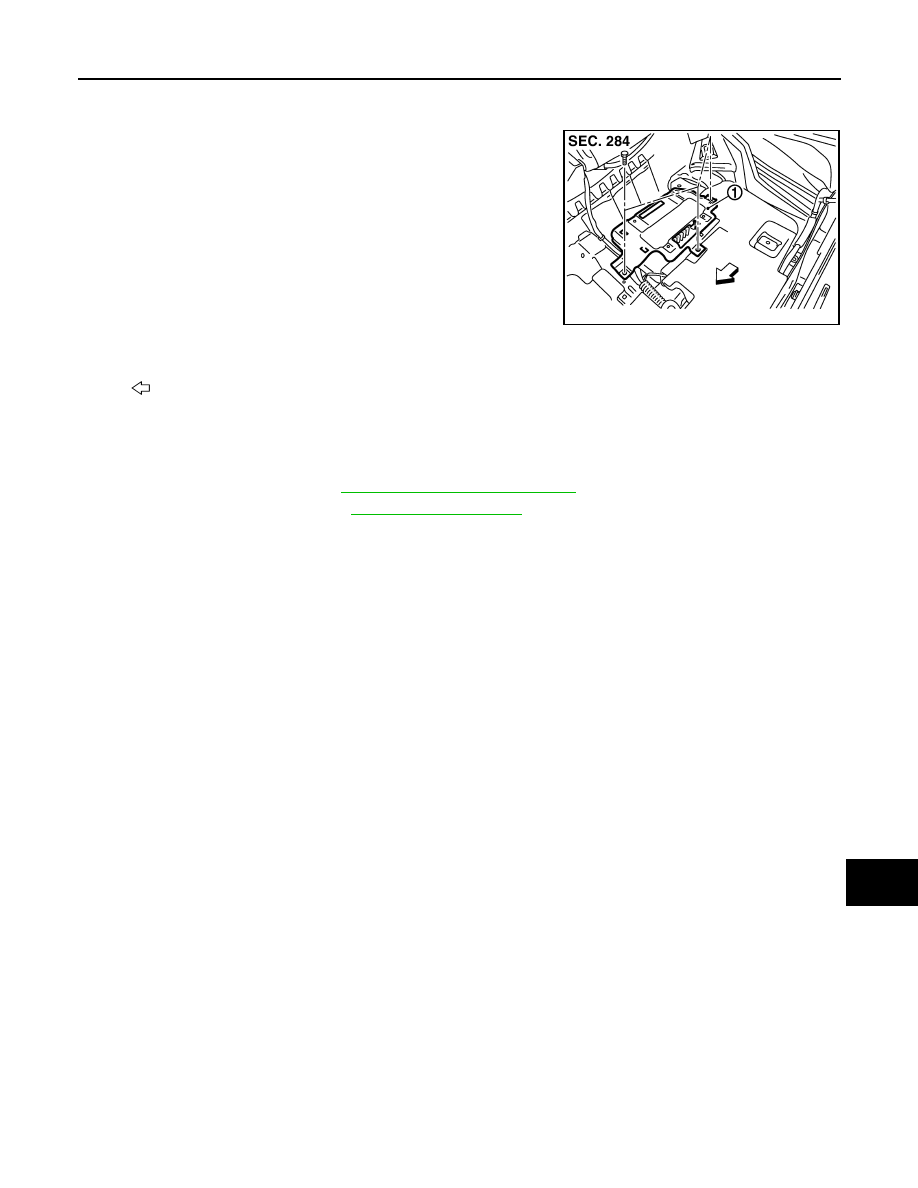

BOSE AMP.

Exploded View

INFOID:0000000009163444

Removal and Installation

INFOID:0000000009163445

REMOVAL

1.

Remove the driver seat. Refer to

SE-49, "Removal and Installation"

.

2.

Turn over the floor carpet (refer to

INT-22, "Exploded View"

), remove the screws and disconnect the con-

nector, and then remove the BOSE amp.

INSTALLATION

Installation is the reverse order of removal.

NNNIA0043ZZ

1.

BOSE amp.

:

Front of vehicle

AV-178

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

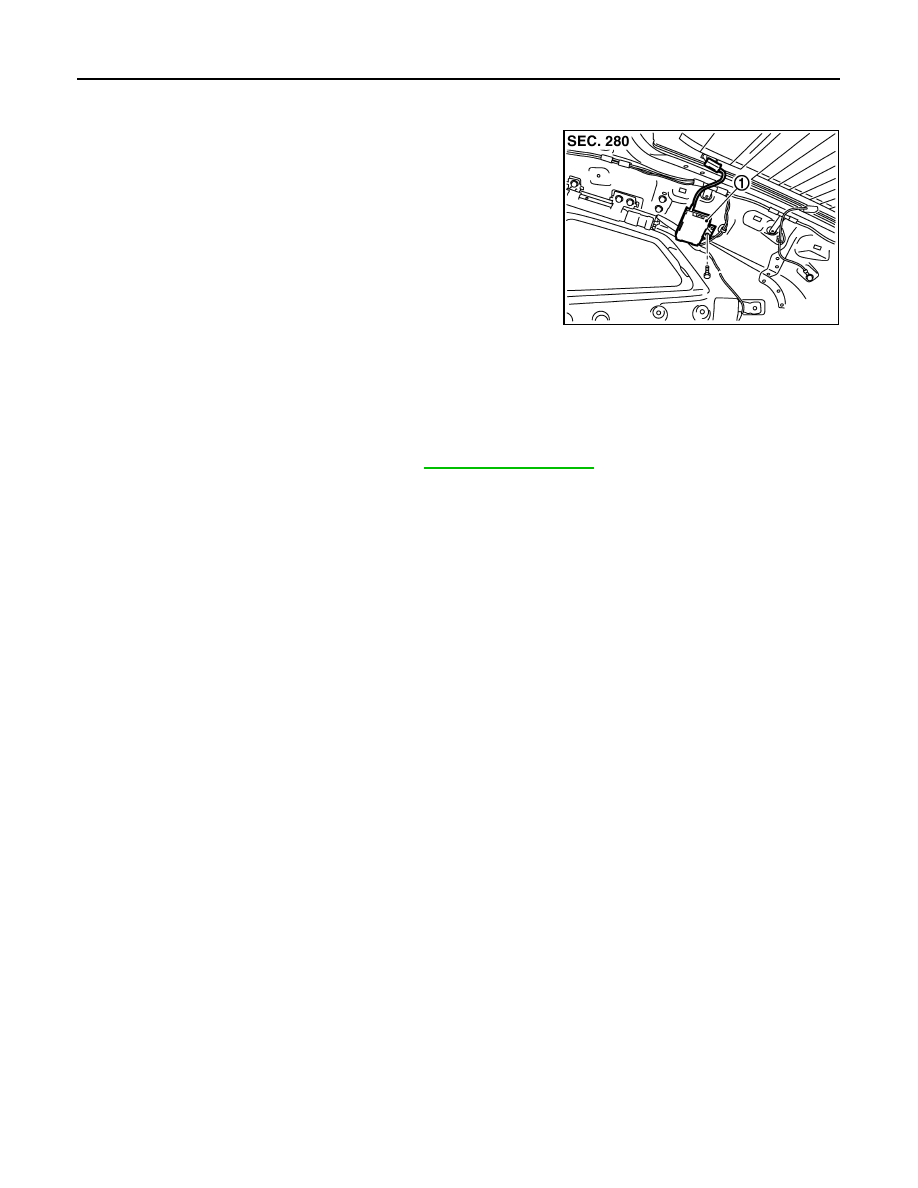

ANTENNA AMP.

ANTENNA AMP.

Exploded View

INFOID:0000000009163446

Removal and Installation

INFOID:0000000009163447

REMOVAL

1.

Remove the rear pillar finisher (RH). Refer to

INT-15, "Exploded View"

.

2.

Remove the screw and disconnect the connector, and then remove the radio antenna amplifier from the
vehicle.

INSTALLATION

Install in the reverse order of removal.

NNNIA0045ZZ

1.

Antenna amp.
